Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
100B-1018XEXTMP XFMR 100BT SMG COM PBC |
4,141 | 21.34 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 0.583" L x 0.580" W (14.81mm x 14.73mm) | 0.185" (4.70mm) | - | - | - |
|
|
1000B-5033XNLETHERNET |
1,865 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 1000 Base-T | - | - | 1CT:1CT | Surface Mount | - | - | -55°C ~ 125°C | - | - |
|
|
100B-1027NLETHERNET |
3,905 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-TX | 350µH | - | 1:1 | Surface Mount | 1.010" L x 0.400" W (25.65mm x 10.16mm) | 0.240" (6.10mm) | -40°C ~ 85°C | - | - |
|
|
10GB-6001TETHERNET |
4,927 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T | - | - | 1:1 | Surface Mount | 0.700" L x 0.490" W (17.78mm x 12.45mm) | 0.235" (5.97mm) | -40°C ~ 85°C | - | - |
|
|
100B-1011FTXFMR CHOKE QUAD 100BT SMT PBC |
3,921 | 24.44 |
|
- |
* | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|
|
10GB-6001NLTETHERNET |
3,824 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T | - | - | 1:1 | Surface Mount | 0.700" L x 0.490" W (17.78mm x 12.45mm) | 0.235" (5.97mm) | -40°C ~ 85°C | - | - |
|
|
100B-1044TETHERNET |
2,358 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | - | - | 1CT:1CT | Surface Mount | - | - | -40°C ~ 85°C | - | - |
|
|
100B-1044NLTETHERNET |
3,317 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | - | - | 1CT:1CT | Surface Mount | - | - | -40°C ~ 85°C | - | - |
|
|
PL3716POWER |
4,514 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Gate Drive | 2.5mH | 126VµS | 1:1 | Through Hole | 0.650" L x 0.443" W (16.51mm x 11.25mm) | 0.400" (10.16mm) | -40°C ~ 85°C | - | - |
|
T-1062SCTNLTXFMR DUAL 1.0625GB Z:150 C RPB |
3,617 | 22.18 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 3.75µH | - | 1CT:1CT | Surface Mount | 0.500" L x 0.290" W (12.70mm x 7.37mm) | 0.185" (4.70mm) | - | - | - |
|

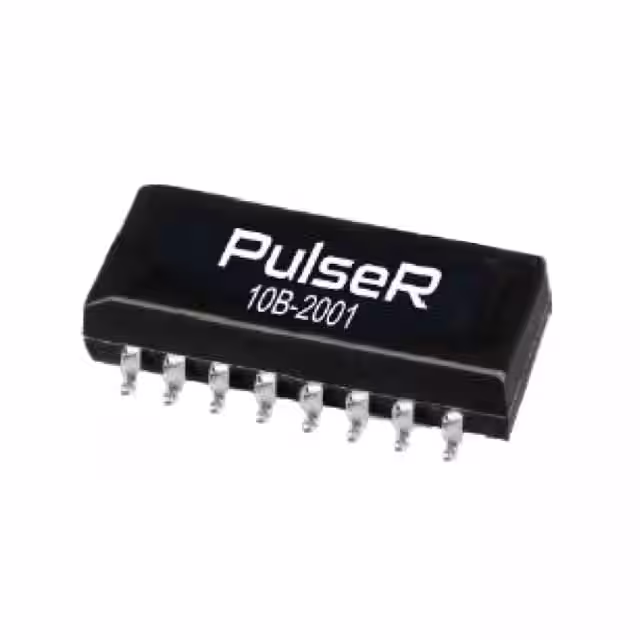

10B-2001XFMR MODULE 10BT SMT EX-TEMP |
3,543 | 18.67 |
|
Datasheet |
- | Bulk | Active | LAN 10 Base-T | - | - | 1:1 | Surface Mount | 0.920" L x 0.500" W (23.37mm x 12.70mm) | 0.235" (5.97mm) | -40°C ~ 85°C | - | - |
|
1000B-5001XPULSE XFMR 1:1 350UH |
1,865 | 20.50 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.19mm) | 0.225" (5.72mm) | -55°C ~ 125°C | - | - |
|
|
TX9031NLTTRANSFORMER 1500VRMS 1CT:2.4 SMD |
1,697 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | T1/E1 (Quad) | 1.2mH | - | 1CT:2.4 Transmitter, 1:1CT Receiver | Surface Mount | 1.255" L x 0.712" W (31.88mm x 18.08mm) | 0.315" (8.00mm) | - | - | - |
|
|
100B-1051TETHERNET |
1,891 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | - | - | 1CT:1CT | Surface Mount | - | - | -40°C ~ 85°C | - | - |
|

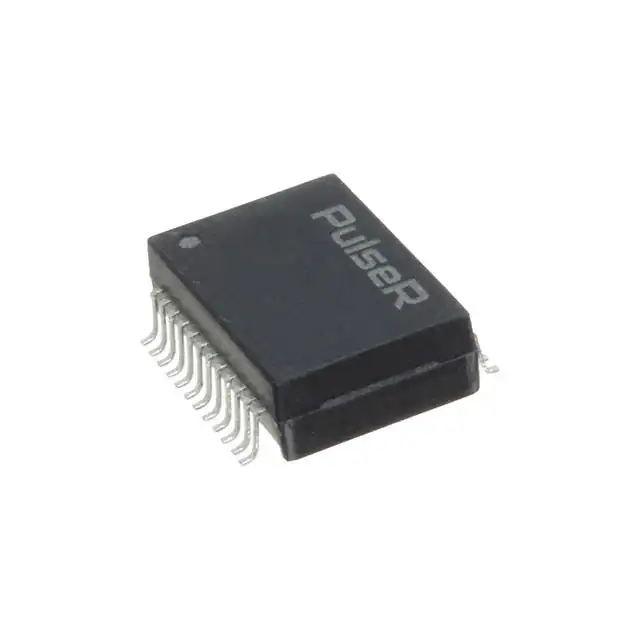

1000B-5001FXNLXFMR TCS SNGL 1000BT SMT RPB |
3,365 | 27.47 |
|
Datasheet |
- | Bulk | Active | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.19mm) | 0.235" (5.97mm) | -55°C ~ 125°C | - | - |
|
|
100B-4007NLTETHERNET |
2,150 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | - | - | 1CT:1CT | Surface Mount | - | - | -40°C ~ 85°C | - | - |
|
|
1000B-5012FNLMDL DUAL 1000B 1:1 SMT TU PBC |
3,656 | 17.20 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.518" L x 0.595" W (13.16mm x 15.11mm) | 0.251" (6.37mm) | - | - | - |
|
10GB-6011NLLAN MODULE XFRMR 10GBASE-T SMD |
2,830 | 29.80 |
|
Datasheet |
- | Tube | Active | LAN 10G Base-T, Power over Ethernet (PoE) | 120µH | - | - | Surface Mount | 0.725" L x 0.480" W (18.42mm x 12.19mm) | 0.265" (6.73mm) | -40°C ~ 85°C | - | - |
|
|
100B-1051NLTETHERNET |
2,184 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | - | - | 1CT:1CT | Surface Mount | - | - | -40°C ~ 85°C | - | - |
|
|
1000B-5002XNLMDL SIN 1GD 1:1 SMT TU NPB |
1,431 | 21.78 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.19mm) | 0.235" (5.97mm) | - | - | - |
