Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

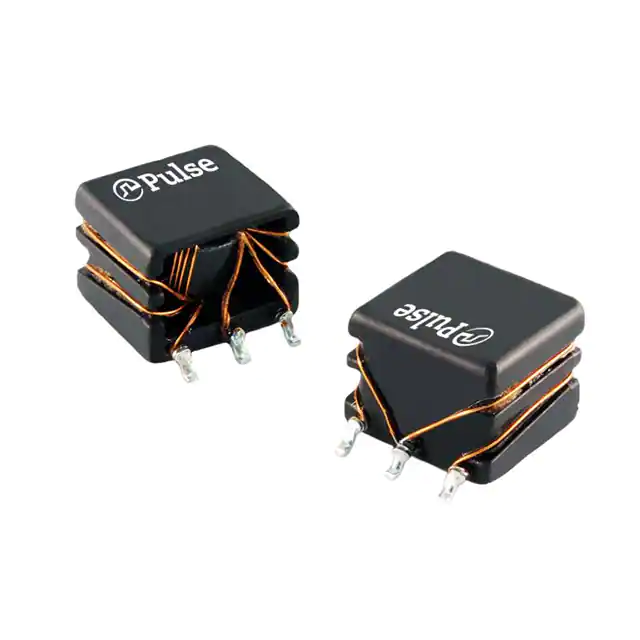

PM2185.043NLTXFMR GATE-DR 4CT:3CT SM NPB |
1,617 | 0.00 |
|
Datasheet |
PM2185.XXXNL | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 538µH | 24VµS | 4CT:3CT | Surface Mount | 0.362" L x 0.323" W (9.20mm x 8.20mm) | 0.299" (7.60mm) | -40°C ~ 125°C | - | - |
|
PM2180.035NLTXFMR GATE-DR 3CT:5CT SM NPB |
4,216 | 0.00 |
|
Datasheet |
PM2180.XXXNL | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 1.02mH | 22VµS | 3CT:5CT | Surface Mount | 0.319" L x 0.280" W (8.10mm x 7.10mm) | 0.200" (5.08mm) | -40°C ~ 125°C | - | - |
|
|
PM2180.021NLTXFMR GATE-DR 2CT:1CT SM NPB |
3,229 | 0.00 |
|
Datasheet |
PM2180.XXXNL | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 1.16mH | 23.6VµS | 2CT:1CT | Surface Mount | 0.319" L x 0.280" W (8.10mm x 7.10mm) | 0.200" (5.08mm) | -40°C ~ 125°C | - | - |
|
|
PM2185.035NLTXFMR GATE-DR 3CT:5CT SM NPB |
2,498 | 0.00 |
|
Datasheet |
PM2185.XXXNL | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 680µH | 27VµS | 3CT:5CT | Surface Mount | 0.362" L x 0.323" W (9.20mm x 8.20mm) | 0.299" (7.60mm) | -40°C ~ 125°C | - | - |
|
|
PM2185.021NLTXFMR GATE-DR 2CT:1CT SM NPB |
1,804 | 0.00 |
|
Datasheet |
PM2185.XXXNL | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 538µH | 24VµS | 2CT:1CT | Surface Mount | 0.362" L x 0.323" W (9.20mm x 8.20mm) | 0.299" (7.60mm) | -40°C ~ 125°C | - | - |
|
|
PM2185.083NLTXFMR GATE-DR 8CT:3CT SM NPB |
4,526 | 0.00 |
|
Datasheet |
PM2185.XXXNL | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 538µH | 24VµS | 8CT:3CT | Surface Mount | 0.362" L x 0.323" W (9.20mm x 8.20mm) | 0.299" (7.60mm) | -40°C ~ 125°C | - | - |
|
749022017TRANSFORMER LAN 10/100/1000 SMD |
4,218 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | General Purpose | 350µH | - | 1:1 | Surface Mount | 0.705" L x 0.630" W (17.91mm x 16.00mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|

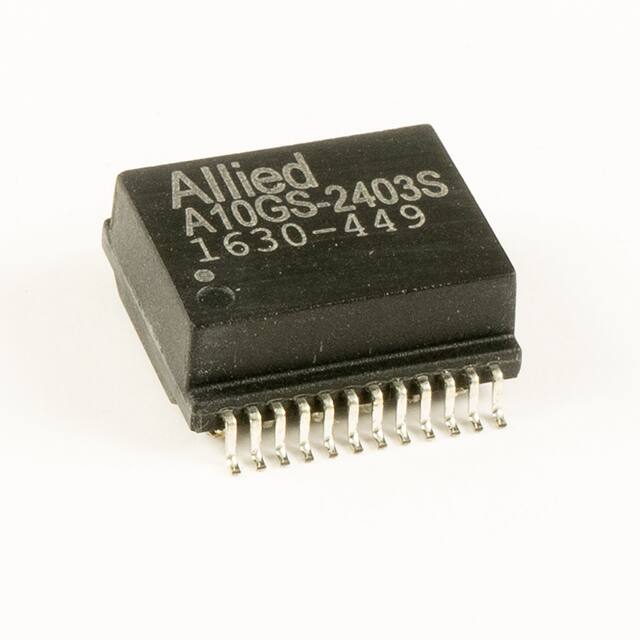

A10GS-2403S10G BASE-T |
2,511 | 10.95 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T | 200µH | - | 1CT:1CT | Surface Mount | 0.539" L x 0.480" W (13.70mm x 12.20mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
AT3973I10/100 BASE-T 350UH SMD TRANSFOR |
2,904 | 1.98 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN | 350µH | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.321" L x 0.283" W (8.15mm x 7.20mm) | 0.246" (6.25mm) | -40°C ~ 85°C | - | - |
|

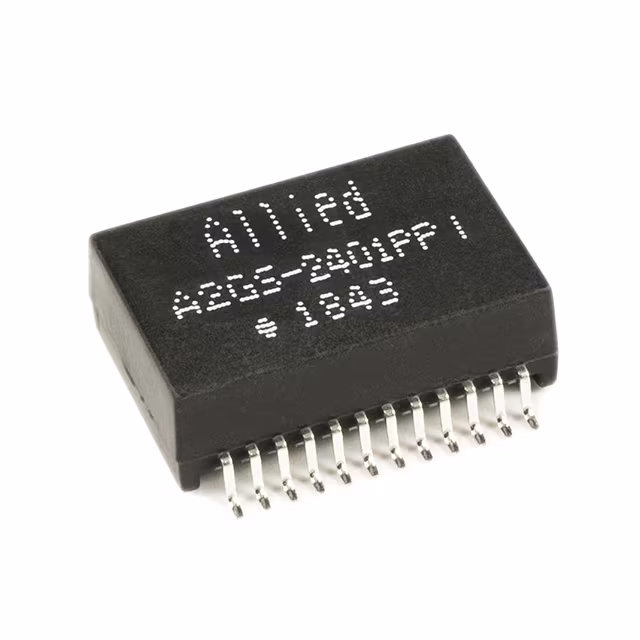

A2GS-2401PPI2.5G SINGLE PORT POE++ |
1,985 | 6.98 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 2.5G Base-T, Power over Ethernet (PoE) | 140µH | - | 1CT:1CT | Surface Mount | 0.717" L x 0.478" W (18.20mm x 12.15mm) | 0.256" (6.50mm) | -40°C ~ 85°C | - | - |
|
A2GS-24062.5G BASE-T |
4,213 | 6.50 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 2.5G Base-T | 150µH | - | 1CT:1CT | Surface Mount | 0.606" L x 0.291" W (15.40mm x 7.40mm) | 0.167" (4.25mm) | 0°C ~ 70°C | - | - |
|

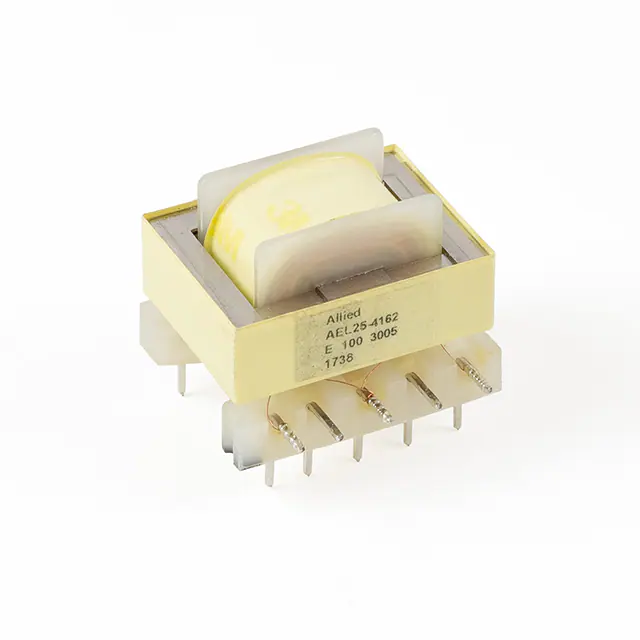

AEL25-41622.6H, EL25 TRANSFORMER |
2,111 | 12.85 |
|
Datasheet |
- | Tray | Active | - | 1.3H, 1.3H | - | 0.457:0.457:1 | Through Hole | 1.142" L x 1.090" W (29.01mm x 27.69mm) | 0.886" (22.50mm) | -20°C ~ 85°C | - | - |
|

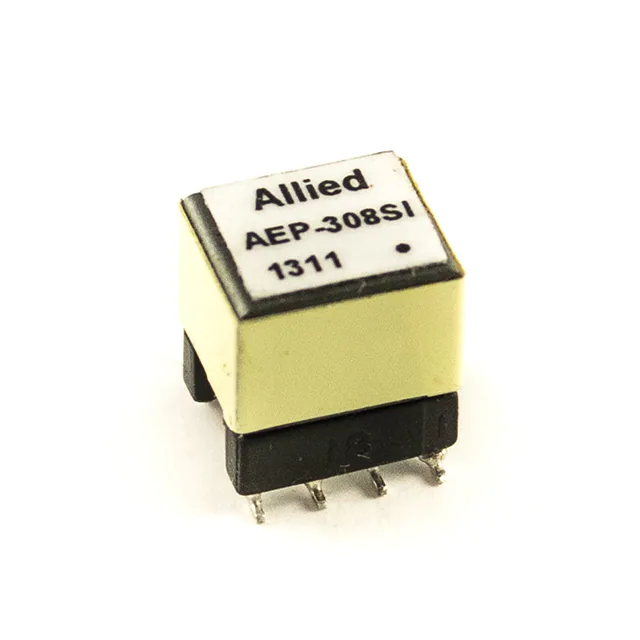

AEP-308SIEP5 POWER TRANSFORMER |
4,915 | 2.98 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 2.4µH | - | 1:1.27 | Surface Mount | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.425" (10.80mm) | -40°C ~ 85°C | - | - |
|
AGSC-4811PI100/1000 BASE T GIGABIT POE PLUS |
1,245 | 5.75 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 100/1000 Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT | Surface Mount | 1.094" L x 0.480" W (27.80mm x 12.20mm) | 0.283" (7.20mm) | -40°C ~ 85°C | - | - |
|

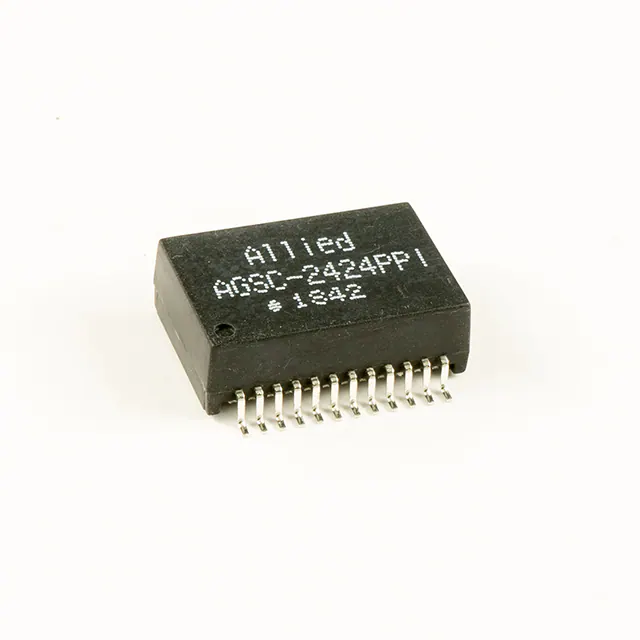

AGSC-2424PPI10/100/1000 SINGLE PORT POE++ FI |
2,481 | 5.75 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT | Surface Mount | 0.717" L x 0.478" W (18.20mm x 12.15mm) | 0.256" (6.50mm) | -40°C ~ 85°C | - | - |
|

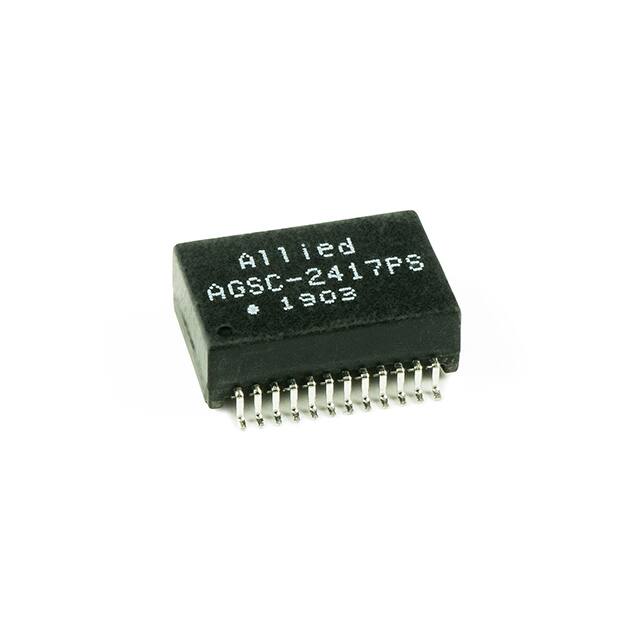

AGSC-2417PS100/1000 BASE T GIGABIT SINGLE P |
3,670 | 6.50 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 100/1000 Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT | Surface Mount | 0.717" L x 0.478" W (18.20mm x 12.15mm) | 0.256" (6.50mm) | 0°C ~ 70°C | - | - |
|

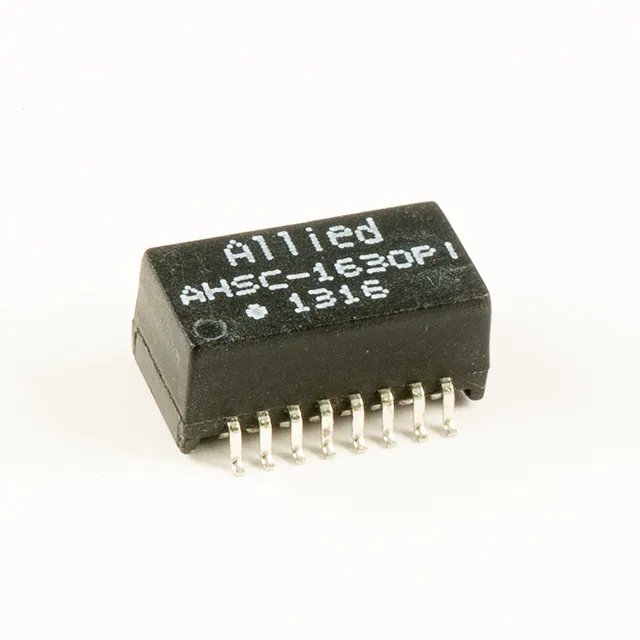

AHSC-1630PI10/100 BASE T SINGLE PORT POE LA |
1,909 | 2.50 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.248" (6.30mm) | -40°C ~ 85°C | - | - |
|
AGSC-2437PI100/1000 BASE T POE PLUS LAN FIL |
1,532 | 5.50 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 100/1000 Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT | Surface Mount | 0.717" L x 0.478" W (18.20mm x 12.15mm) | 0.256" (6.50mm) | -40°C ~ 85°C | - | - |
|
|
S560-6600-NE3MH SHDSL PULSE TRANSFORME |
4,936 | 0.00 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - |
|

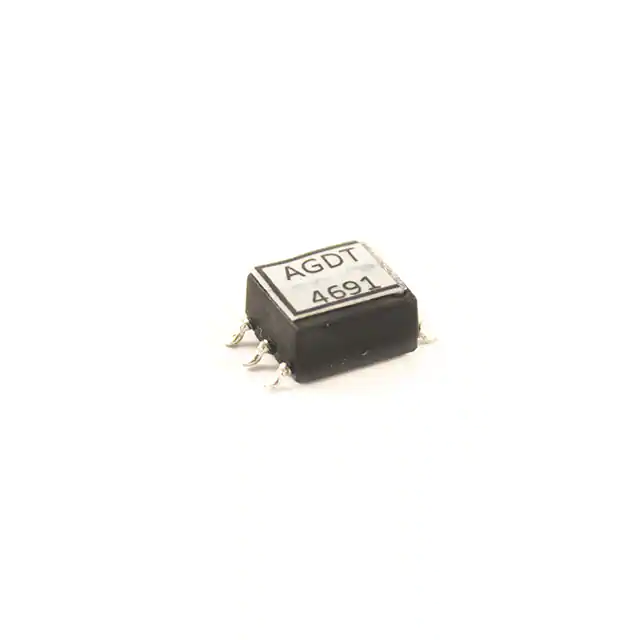

AGDT-4691388UH, GATE DRIVE TRANSFORMER |
3,085 | 3.95 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Gate Drive | 388µH | - | 1.7:1 | Surface Mount | 0.445" L x 0.315" W (11.30mm x 8.00mm) | 0.165" (4.19mm) | -20°C ~ 125°C | - | - |
