Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T60403-D4615-X054GateDrive Transf PTH 1:1.2:1.2 |
3,202 | 0.00 |
|
- |
- | Bulk | Active | Gate Drive | 1.7mH | 250VµS | 1:1.2:1.2 | Through Hole | 0.878" L x 0.894" W (22.30mm x 22.70mm) | 0.650" (16.50mm) | -40°C ~ 85°C | - | - |
|
|
T60403-K5024-X044Audio/Signal Transformers |
2,362 | 0.00 |
|
- |
- | Tape & Reel (TR) | Active | - | 300nH | - | 1:1 | Surface Mount | 0.451" L x 0.433" W (11.46mm x 11.00mm) | 0.299" (7.60mm) | -40°C ~ 85°C | - | - |
|
|
ALANC10001-CDB3EBLAN SGL |
1,204 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - |
|
|
HN1102NLHN1102NL |
1,936 | 0.00 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - |
|
|
HX0060NLHX0060NL |
1,069 | 0.00 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - |
|
|
VTX-111-045PULSE XFMR ENCAP 2:1 CLASS H |
2,535 | 0.00 |
|
Datasheet |
VTX-111 | Bulk | Active | General Purpose | 1.5mH, 0.4mH | 200VµS | 2:1 | Through Hole | 0.591" L x 0.591" W (15.00mm x 15.00mm) | 0.610" (15.50mm) | - | - | - |
|
|
VTX-110-047PULSE XFMR OPEN 2:1 |
4,471 | 0.00 |
|
Datasheet |
VTX-110 | Bulk | Active | General Purpose | 12mH, 3mH | 200VµS | 2:1 | Through Hole | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.551" (14.00mm) | - | - | - |
|

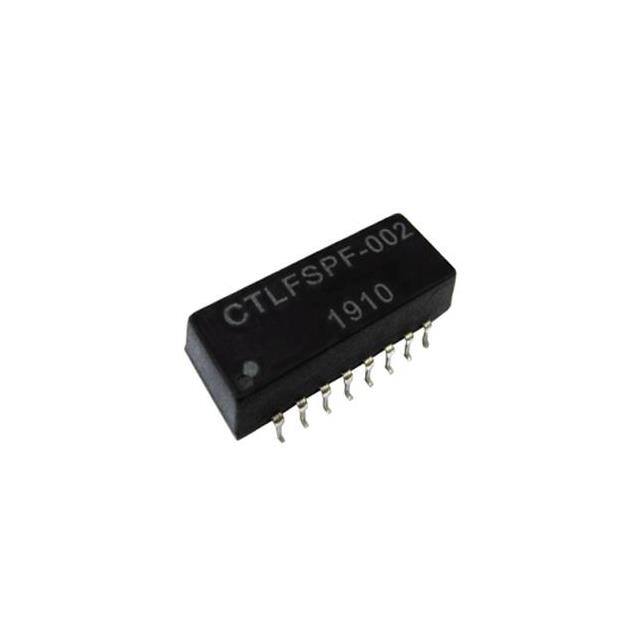

CTLFSPF-002SINGLE PORT-10/100 BASE-T |
4,433 | 4.72 |
|
Datasheet |
CTLFSPF | Tape & Reel (TR) | Active | LAN 10/100 Base-T | - | - | - | Surface Mount | 1.006" L x 0.390" W (25.55mm x 9.90mm) | 0.280" (7.10mm) | 0°C ~ 70°C | - | - |
|
CTLF2R5GF-001LAN FILTER-2.5 GIGABIT ETHERNET |
1,071 | 4.72 |
|
Datasheet |
CTLF2R5GF | Tape & Reel (TR) | Active | LAN 2.5G Base-T | - | - | - | Surface Mount | 0.537" L x 0.475" W (13.64mm x 12.07mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
CTLF48S1GF-001LAN FILTER-1 GIGABIT ETHERNET |
3,055 | 4.72 |
|
Datasheet |
CTLF48S1GF | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | - | - | - | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.285" (7.24mm) | -40°C ~ 85°C | - | - |
|
CTLFPP1GF-001LAN FILTER-1 GIGABIT ETHERNET |
3,064 | 4.72 |
|
Datasheet |
CTLFPP1GF | Tape & Reel (TR) | Active | LAN 100/1000 Base-T, Power over Ethernet (PoE) | - | - | - | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.285" (7.24mm) | 0°C ~ 70°C | - | - |
|

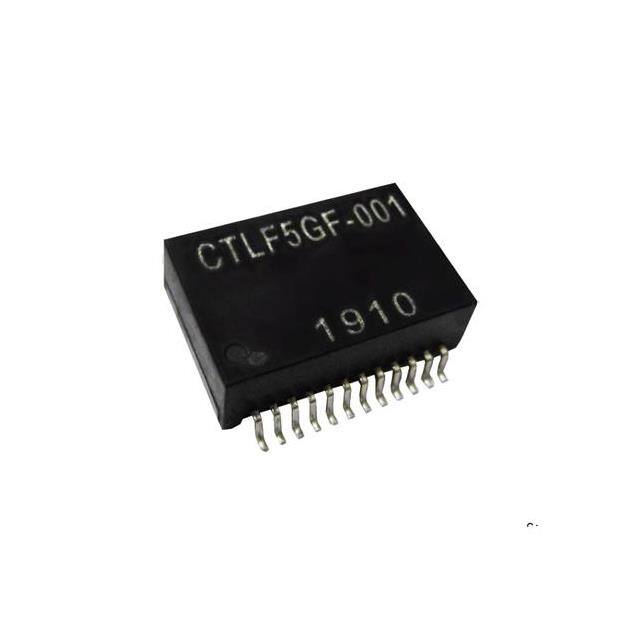

CTLF5GF-001LAN FILTER-5 GIGABIT ETHERNET |
1,153 | 4.72 |
|
Datasheet |
CTLF5GF | Tape & Reel (TR) | Active | LAN 5G Base-T | - | - | - | Surface Mount | 0.724" L x 0.490" W (18.38mm x 12.44mm) | 0.254" (6.45mm) | 0°C ~ 70°C | - | - |
|
|

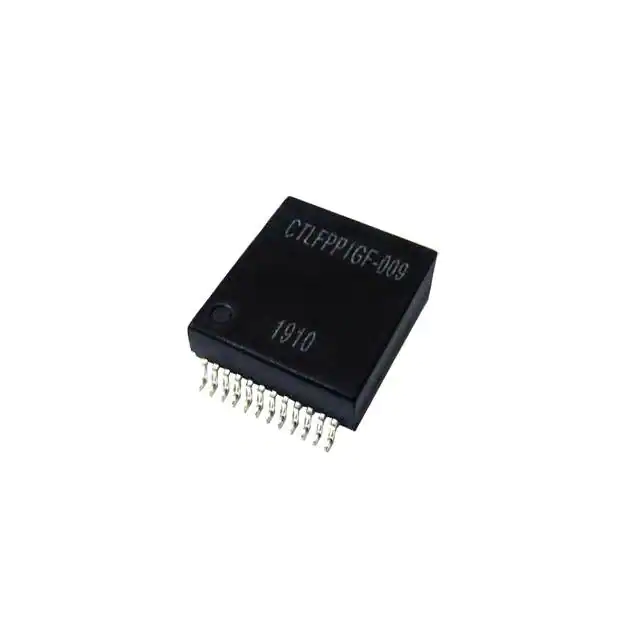

CTLFPP1GF-009LAN FILTER-1 GIGABIT ETHERNET |
3,574 | 4.72 |
|
Datasheet |
CTLFPP1GF | Tape & Reel (TR) | Active | LAN 100/1000 Base-T, Power over Ethernet (PoE) | - | - | - | Surface Mount | 0.600" L x 0.539" W (15.24mm x 13.70mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|

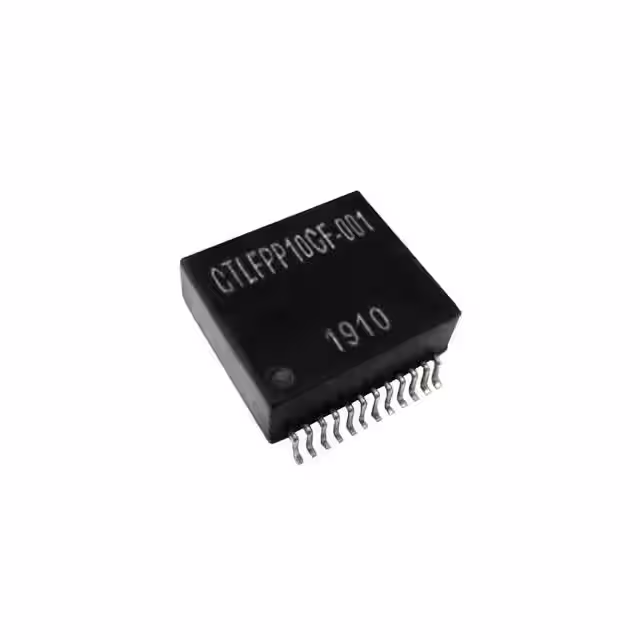

CTLFPP10GF-001LAN FILTER-10 GIGABIT ETHERNET |
1,410 | 4.72 |
|
Datasheet |
CTLFPP10GF | Tape & Reel (TR) | Active | LAN 10G Base-T, Power over Ethernet (PoE) | - | - | - | Surface Mount | 0.537" L x 0.470" W (13.65mm x 11.95mm) | 0.246" (6.25mm) | 0°C ~ 70°C | - | - |
|

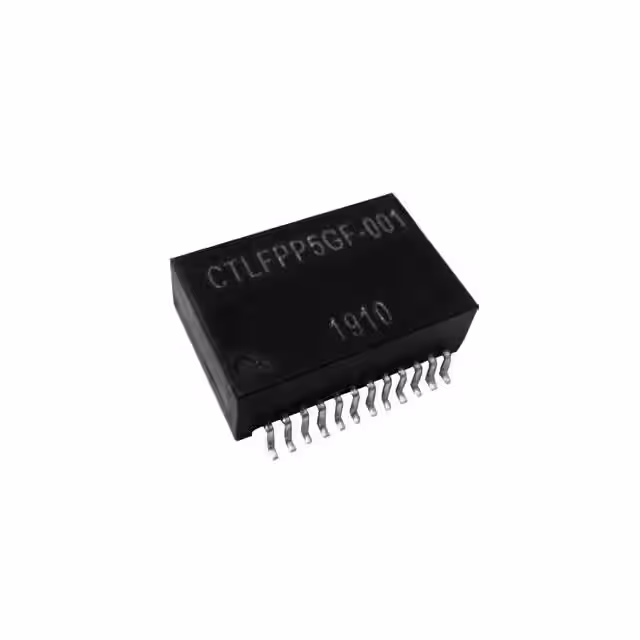

CTLFPP5GF-001LAN FILTER-5 GIGABIT ETHERNET |
3,332 | 4.72 |
|
Datasheet |
CTLFPP5GF | Tape & Reel (TR) | Active | LAN 5G Base-T, Power over Ethernet (PoE) | - | - | - | Surface Mount | 0.724" L x 0.490" W (18.38mm x 12.44mm) | 0.254" (6.45mm) | 0°C ~ 70°C | - | - |
|
CTLF10GDF-001LAN FILTER-10 GIGABIT ETHERNET |
3,428 | 4.72 |
|
Datasheet |
CTLF10GDF | Tape & Reel (TR) | Active | LAN 10G Base-T | 120µH | - | 1:1CT | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.285" (7.24mm) | 0°C ~ 70°C | - | - |
|

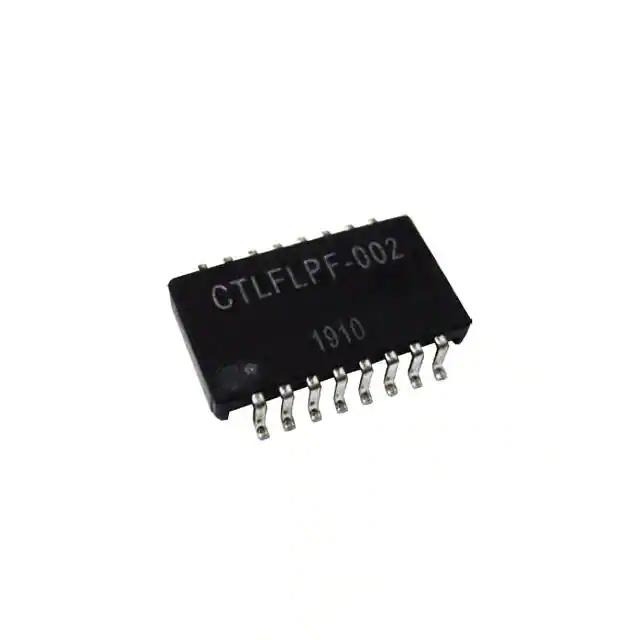

CTLFLPF-002LAN FILTER - 10/100 BASE-T |
2,146 | 4.72 |
|
Datasheet |
CTLFLPF | Tape & Reel (TR) | Active | LAN 10/100 Base-T | - | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.078" (1.98mm) | 0°C ~ 70°C | - | - |
|

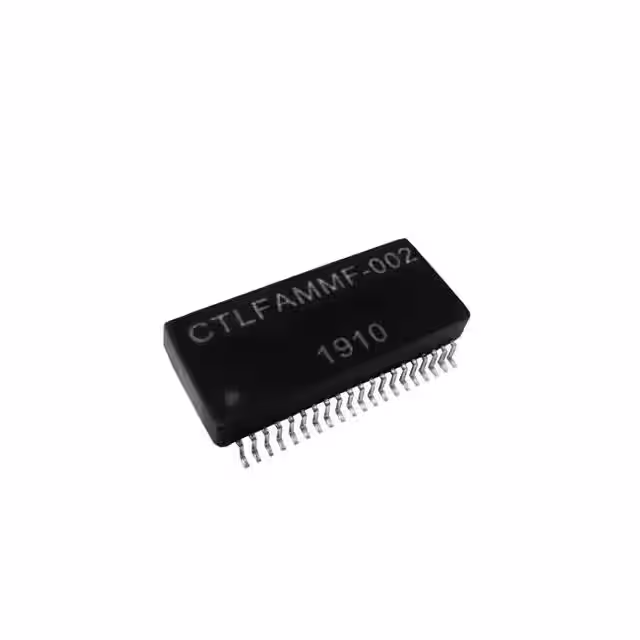

CTLFAMMF-002LAN FILTER - 10/100 BASE-T |
3,445 | 4.72 |
|
Datasheet |
CTLFAMMF | Tape & Reel (TR) | Active | LAN 10/100 Base-T | - | - | - | Surface Mount | 1.125" L x 0.492" W (28.58mm x 12.50mm) | 0.230" (5.85mm) | -40°C ~ 85°C | - | - |
|

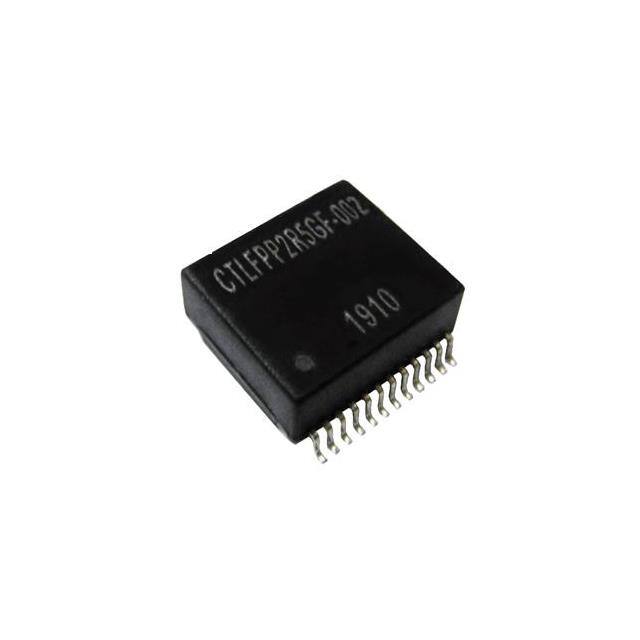

CTLFPP2R5GF-002LAN FILTER-2.5 GIGABIT ETHERNET |
1,788 | 4.72 |
|
Datasheet |
CTLFPP2R5GF | Tape & Reel (TR) | Active | LAN 2.5G Base-T, Power over Ethernet (PoE) | - | - | - | Surface Mount | 0.537" L x 0.475" W (13.64mm x 12.07mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
CTLF24P1GF-002LAN FILTER-1 GIGABIT ETHERNET |
1,606 | 5.36 |
|
Datasheet |
CTLF24P1GF | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | - | - | - | Surface Mount | 0.705" L x 0.484" W (17.90mm x 12.30mm) | 0.110" (2.80mm) | 0°C ~ 70°C | - | - |
