Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3-101-007SWITCH PUSHBUTTON SPST 16A 250V |
2,456 | 58.63 |
|
Datasheet |
MSM LA CS | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-On | 16A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 19.10mm Dia | -20°C ~ 85°C |
|
1241.8547SWITCH PUSHBUTTON SPST 12A 250V |
4,058 | 58.63 |
|
Datasheet |
MSM LA CS | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-On | 12A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 19.10mm Dia | -20°C ~ 85°C |
|

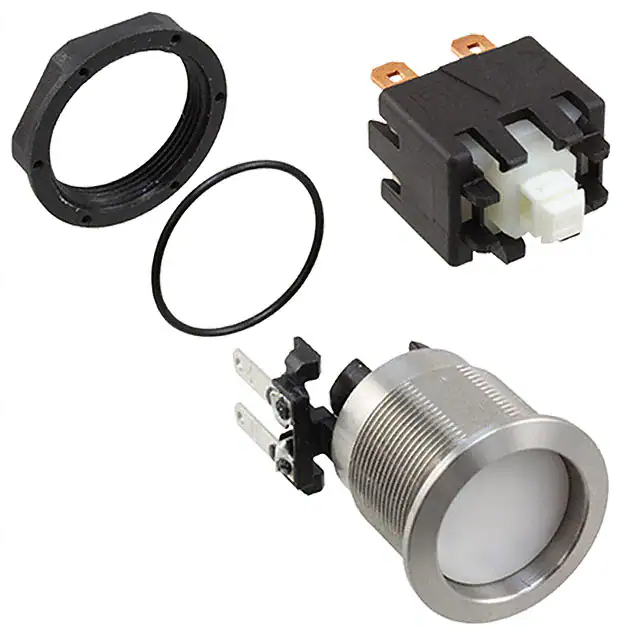

3-101-022SWITCH PUSHBUTTON SPST 16A 250V |
3,497 | 58.63 |
|
Datasheet |
MSM LA CS | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-On | 16A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 19.10mm Dia | -20°C ~ 85°C |
|
PN1L-M2AFB002D0W30MM PIEZO RING 12VDC WHITE |
2,385 | 93.56 |
|
Datasheet |
PN1L | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, White | 12 VDC | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 75°C |
|
A165L-TAM-5D-1SWITCH PUSHBUTTON SPDT 5A 125V |
2,677 | 60.13 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button | No Marking | Blue | LED, Blue | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
AVC16LS04FE0DT5B04SWITCH PUSHBUTTON SPST 1A |
4,827 | 59.51 |
|
Datasheet |
AVC | Bulk | Active | Panel Mount, Front | Capacitive, Anti-Vandal, Illuminated | SPST | Off-On | 1A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green/Red | - | Wire Leads with Connector | IP68 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 65°C |
|

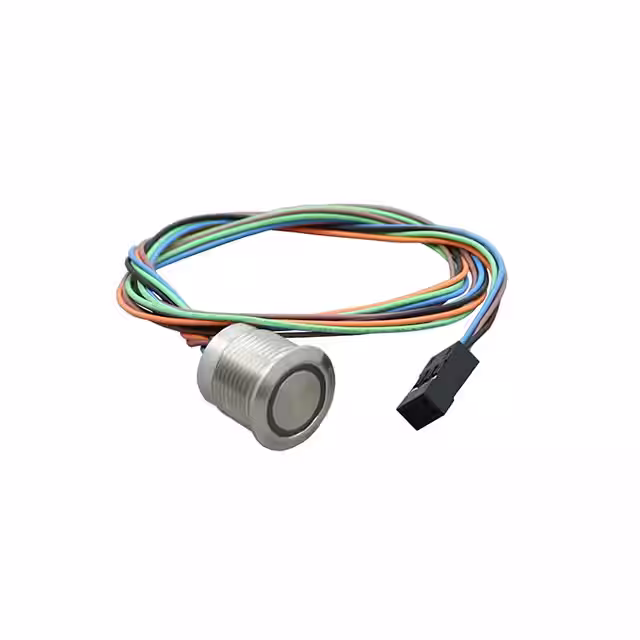

AVC16LS04FE03T5B04SWITCH PUSHBUTTON SPST 1A |
2,269 | 59.51 |
|
Datasheet |
AVC | Bulk | Active | Panel Mount, Front | Capacitive, Anti-Vandal, Illuminated | SPST | Off-On | 1A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green | - | Wire Leads with Connector | IP68 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 65°C |
|

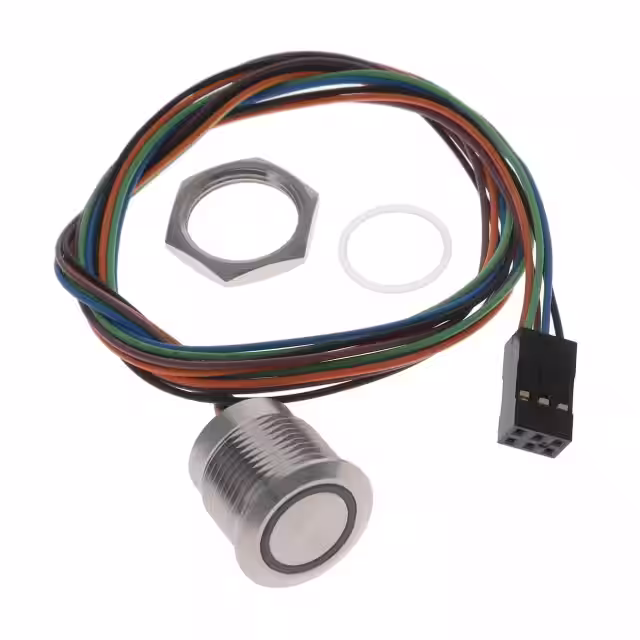

AVC16LS16FE03T5B04SWITCH PUSHBUTTON SPST 1A |
3,402 | 59.51 |
|
Datasheet |
AVC | Bulk | Active | Panel Mount, Front | Capacitive, Anti-Vandal, Illuminated | SPST | Off-On | 1A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green | - | Wire Leads with Connector | IP68 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 65°C |
|

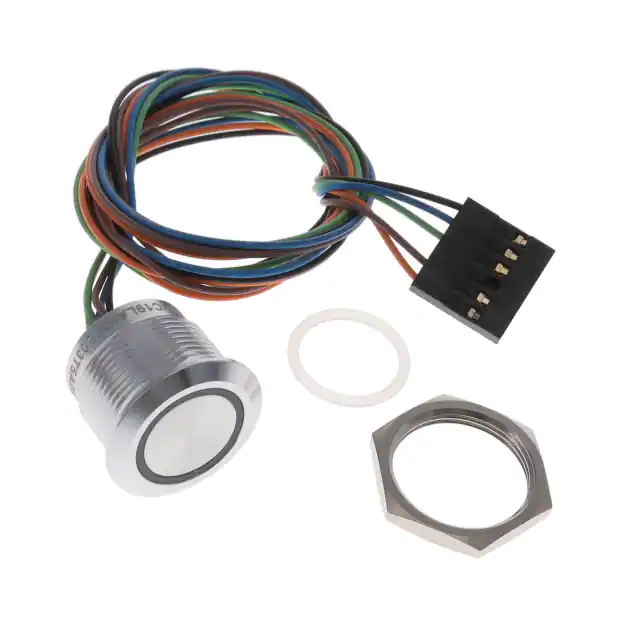

AVC19LAIOFE03T5A04SWITCH PUSHBUTTON SPST 1A |
2,034 | 59.56 |
|
Datasheet |
AVC | Bulk | Active | Panel Mount, Front | Capacitive, Anti-Vandal, Illuminated | SPST | Off-On | 1A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green | - | Wire Leads with Connector | IP68 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 65°C |
|
A165L-AAA-5D-2SWITCH PUSHBUTTON DPDT 5A 125V |
3,239 | 63.74 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 5A (AC) | 125 V | - | Square, Button | No Marking | Blue | LED, Blue | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
|
A165-TGA-2SSWITCH PUSHBUTTON DPDT 5A 125V |
3,703 | 60.13 |
|
Datasheet |
A16 | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 5A (AC) | 125 V | - | Round, Button | No Marking | Green | - | - | Screwless Clamp | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
|
A3U-TBW-A1C-MSWITCH PUSHBUTTON SPDT 0.1A 30V |
4,006 | 60.13 |
|
Datasheet |
A3U | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | White | - | - | Connector | IP40 | - | Circular - 25.20mm Dia | -20°C ~ 70°C |
|

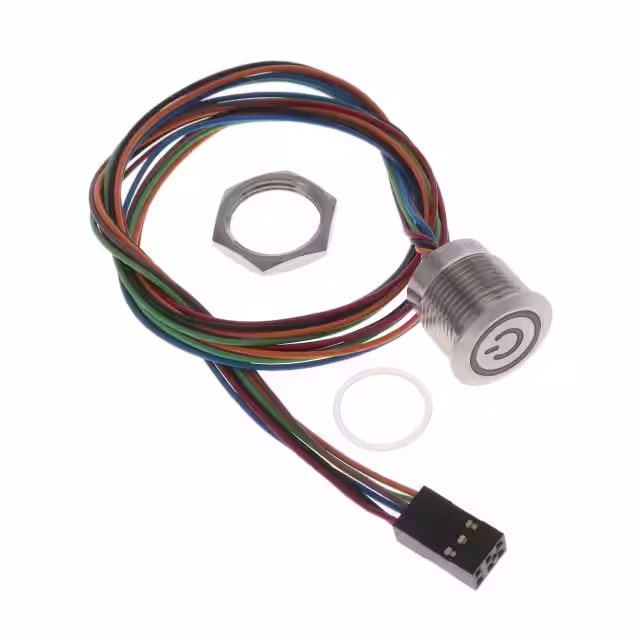

AVC16MS04FE1DT5B04SWITCH PUSHBUTTON SPST-NO 1A |
4,199 | 60.41 |
|
Datasheet |
AVC | Bulk | Active | Panel Mount, Front | Capacitive, Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 1A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green/Red | - | Wire Leads with Connector | IP68 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 65°C |
|

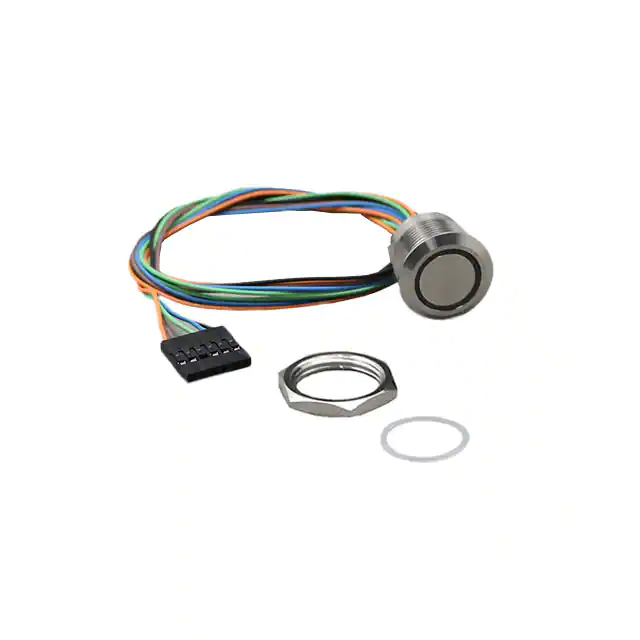

AVC19LS16FE03T5A04SWITCH PUSHBUTTON SPST 1A |
1,592 | 61.32 |
|
Datasheet |
AVC | Bulk | Active | Panel Mount, Front | Capacitive, Anti-Vandal, Illuminated | SPST | Off-On | 1A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green | - | Wire Leads with Connector | IP68 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 65°C |
|
AVC19MS16FE0DT5A04SWITCH PUSHBUTTON SPST-NO 1A |
4,078 | 61.32 |
|
Datasheet |
AVC | Bulk | Active | Panel Mount, Front | Capacitive, Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 1A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green/Red | - | Wire Leads with Connector | IP68 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 65°C |
|

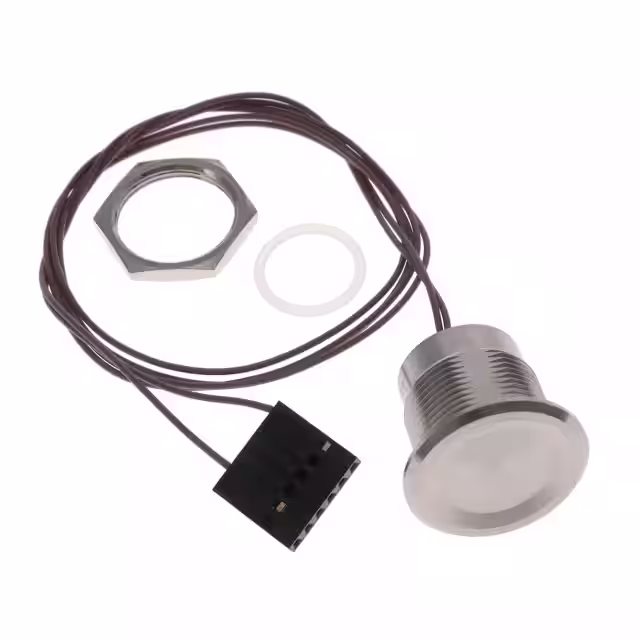

AVP19MS04C000T5A04SWITCH PUSHBUTTON SPST-NO 1A 24V |
4,336 | 61.74 |
|
Datasheet |
AVP | Bulk | Active | Panel Mount, Front | Piezo, Anti-Vandal | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | - | - | Wire Leads with Connector | IP68 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 65°C |
|
XB7NW33M1HARMONY XB7, MONOLITHIC ILLUMINA |
4,881 | 61.50 |
|
Datasheet |
Harmony XB7 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | On-Off | 600mA (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Green | LED, Green | 230 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|

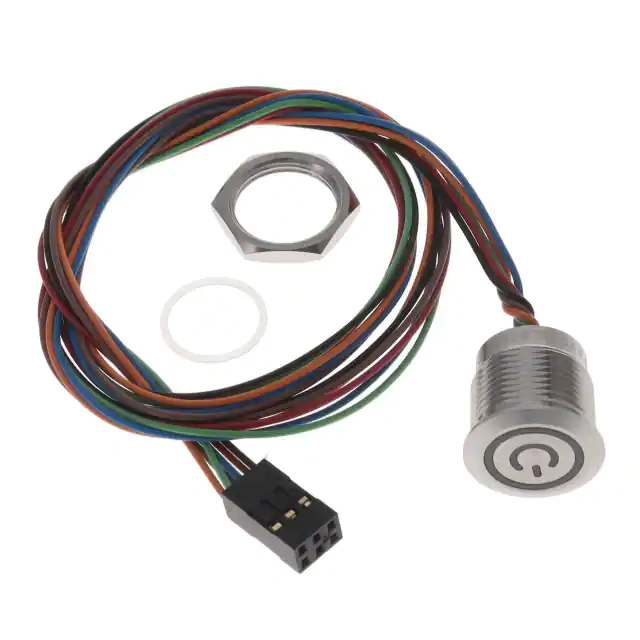

AVC16LS04FE1DT5B04SWITCH PUSHBUTTON SPST 1A |
2,947 | 62.17 |
|
Datasheet |
AVC | Bulk | Active | Panel Mount, Front | Capacitive, Anti-Vandal, Illuminated | SPST | Off-On | 1A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green/Red | - | Wire Leads with Connector | IP68 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 65°C |
|

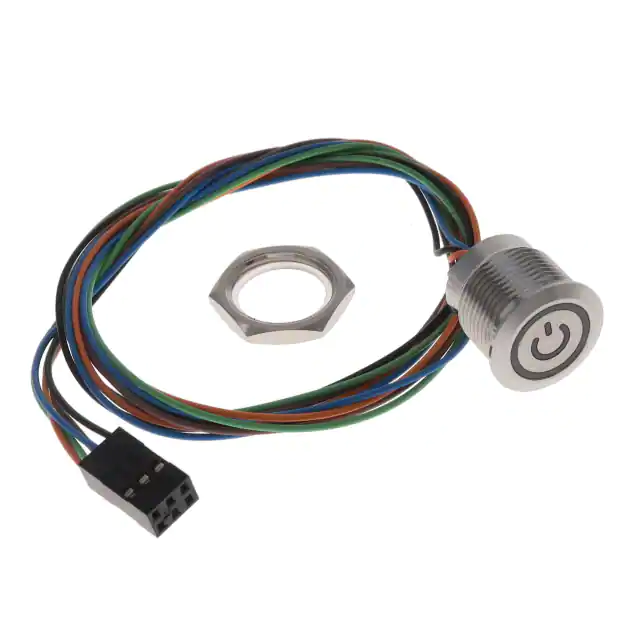

AVC16LS04FE13T5B04SWITCH PUSHBUTTON SPST 1A |
1,138 | 62.17 |
|
Datasheet |
AVC | Bulk | Active | Panel Mount, Front | Capacitive, Anti-Vandal, Illuminated | SPST | Off-On | 1A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green | - | Wire Leads with Connector | IP68 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 65°C |
|
AVC19LS04FE13T5A04SWITCH PUSHBUTTON SPST 1A |
2,689 | 62.17 |
|
Datasheet |
AVC | Bulk | Active | Panel Mount, Front | Capacitive, Anti-Vandal, Illuminated | SPST | Off-On | 1A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green | - | Wire Leads with Connector | IP68 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 65°C |
