RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1005392F0-AS40L0600DUAL-FEED 5G/4G & WI-FI DUAL BAN |
462 | 0.00 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 788.5MHz, 1.8GHz, 2.45GHz, 2.495GHz, 4.15GHz, 5.38GHz | 617MHz ~ 960MHz, 1.4GHz ~ 2.2GHz, 2.3GHz ~ 2.5GHz, 2.4GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 4.9GHz ~ 5.85GHz | Flat Patch | 6 | 2.2, 2.8 | - | 3.1dBi, 2.7dBi, 2.2dBi, 2.2dBi, 2.3dBi, 1.3dBi | 2 W | Cable - 600mm | SMA Male | - | - | - | Adhesive | 0.008" (0.20mm) | 4G, 5G, 802.11a/b/g/n/ac, LoRa, LPWA, LTE Cat-M, LTE-M, M2M, NB-IoT, SigFox |
|
|
ST1228-30-001-AMULTI BAND EXTERNAL RF ANTENNA W |
469 | 0.00 |
|
Datasheet |
- | Box | Active | WiFi | Wide Band | 2.45GHz, 5.4875GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.825GHz, 5.925GHz ~ 7.125GHz | Whip, Tilt | 3 | - | -10dB | 2.4dBi, 3.5dBi, 2.5dBi | 1 W | - | SMA | - | - | - | Connector Mount | 6.791" (172.50mm) | IoT, Wi-Fi |
|
DSGP.1575.15.4.A.02GPS SMT PATCH ANTENNA |
290 | 8.22 |
|
Datasheet |
* | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

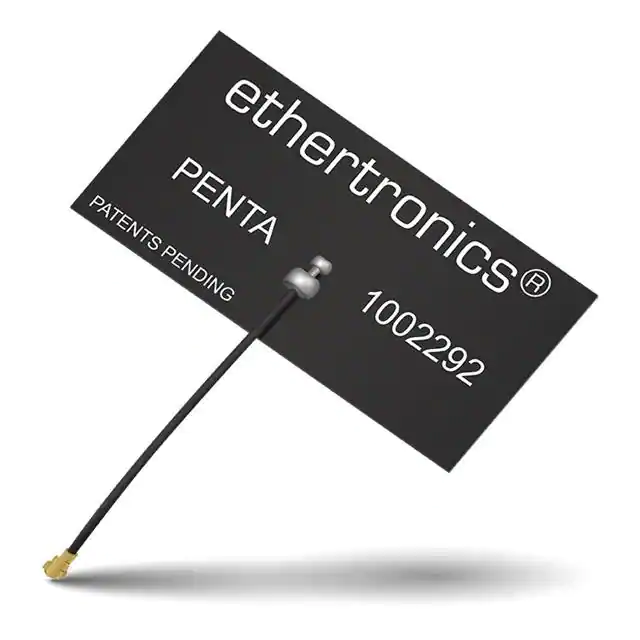

1002292F0-AA10L0100ANTENNA ASSY, PENTA 100 |
1,787 | 4.29 |
|
Datasheet |
- | Box | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 796MHz, 2.2GHz | 698MHz ~ 894MHz, 1.71GHz ~ 2.69GHz | PCB Trace | 2 | 2.8, 3 | - | 1.2dBi, 5dBi | 2 W | Cable - 100mm | U.FL | - | - | - | Adhesive | 0.008" (0.20mm) | Cellular, LTE-M, NB-IoT, loRa, SigFox |
|
|
ST0628-40-501-BDUAL BAND EXTERNAL RF ANTENNA 86 |
312 | 0.00 |
|
Datasheet |
- | Box | Active | General ISM, Lora | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 860MHz ~ 876MHz, 902MHz ~ 928MHz | Whip, Tilt | 2 | - | -10dB | 3dBi, 2.4dBi | 1 W | - | RP-SMA | - | - | - | Connector Mount | 8.740" (222.00mm) | IoT, LoRa, LPWAN, RFID, Sigfox |
|
|
ST0543-00-N10-URF ANTENNA EMBEDDED DUAL BAND GL |
800 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.574GHz ~ 1.607GHz, 1.597GHz ~ 1.576GHz | Ceramic Patch | 2 | - | -10.9dB | 2.6dBi, 3.4dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | GNSS |
|
|
1005392F0-SM42L0400DUAL-FEED 5G/4G & WI-FI DUAL BAN |
478 | 0.00 |
|
- |
- | Bag | Active | Cellular, WiFi | Wide Band | 788.5MHz, 1.8GHz, 2.45GHz, 2.495GHz, 4.15GHz, 5.375GHz | 617MHz ~ 960MHz, 1.4GHz, 2.2GHz, 2.3GHz, 2.69ghz, 2.4GHz ~ 2.5GHz, 3.3GHz ~ 5GHz, 4.9GHz ~ 5.85GHz | Flat Patch | 6 | 2.2, 2.5 | - | 3.1dBi, 2.7dBi, 2.2dBi, 2.2dBi, 2.3dBi, 1.3dBi | - | Cable - 600mm | SMA Male | - | - | - | Adhesive | 0.008" (0.20mm) | 802.11a/b/g/n/ac, IoT, LoRa, LTE, M2M, Sigfox, Wi-Fi, Zigbee™ |
|
|
ST0428-40-001-BWIDE BAND EXTERNAL RF ANTENNA NB |
320 | 0.00 |
|
Datasheet |
- | Box | Active | General ISM | Wide Band | 829MHz, 1.94GHz, 2.495GHz, 4.15GHz, 5.538GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Whip, Tilt | 5 | - | -6dB | 4.1dBi, 3.8dBi, 2.9dBi, 4.6dBi, 4.8dBi | 1 W | - | SMA | - | - | - | Connector Mount | 8.740" (222.00mm) | loT |
|
|
ST0226-30-502-ARF ANTENNA STICK RP-SMA PLUG DUA |
218 | 0.00 |
|
Datasheet |
- | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Whip, Straight | 2 | - | -10dB | 3dBi, 3.4dBi | 1 W | - | RP-SMA | - | - | - | Connector Mount | 4.291" (109.00mm) | Wi-Fi |
|
|
X9001376-4GDSMBCELLULAR/LPWA WHIP EXTERNAL ANTE |
2,086 | 0.00 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 875MHz, 2.2GHz | 790MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Whip, Straight | 2 | - | -9dB, -7.33dB | 1.16dBi, 2.5dBi | - | - | SMA | IP67 | - | - | Connector Mount | 7.087" (180.00mm) | LoRa, LPWAN, LTE, Sigfox |
|
|
9000468ISM 868MHZ 36X36X6MM CERAMIC PAT |
798 | 0.00 |
|
Datasheet |
- | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 866.5MHz | 863MHz ~ 870MHz | Ceramic Patch | 1 | 2.2 | - | 1dBi | 2 W | - | - | - | - | - | Adhesive | 0.236" (6.00mm) | ISM, M2M, RFID |
|
|
9000469ISM 915MHZ 36X36X6MM CERAMIC PAT |
761 | 0.00 |
|
Datasheet |
- | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Ceramic Patch | 1 | 1.37 | - | 1.1dBi | 2 W | - | - | - | - | - | Adhesive | 0.236" (6.00mm) | ISM, M2M, RFID |
|
|
X9001879-W3DFABWI-FI DUAL BAND EXTERNAL WHIP HI |
290 | 0.00 |
|
Datasheet |
- | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.5GHz, 6.25GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz, 7.125GHz | Whip, Right Angle | 3 | 2, 3.5 | - | 1.9dBi, 4.8dBi, 4.4dBi | - | - | Fakra-A | - | - | - | Connector Mount | 4.890" (124.20mm) | Bluetooth, IoT, M2M, Wi-Fi, WLAN, ZigBee™ |
|
|
ST0543-00-N02-URF ANTENNA PASSIVE GNSS PATCH 15 |
1,600 | 0.00 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz | Ceramic Patch | 2 | - | -10dB | -5.5dBi, -2dBi | - | - | Pin | - | - | - | - | 0.157" (4.00mm) | GNSS |
|
|
SGPDF254.APASSIVE DUAL FEED GNSS L1 SMD PA |
381 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Navigation | Wide Band | 1.561GHz, 1.575GHz, 1.603GHz | - | Ceramic Patch | 3 | - | - | 1.23dBi, 4.36dBi, 3.55dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS |
|
|
ST1326-30-501-ARF ANTENNA STICK RP-SMA PLUG WID |
433 | 0.00 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 825MHz, 1.945GHz, 2.495GHz, 4.575GHz | 690MHz ~ 960MHz, 1.72GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5.85GHz | Whip, Straight | 4 | - | - | 5.1dBi, 3.9dBi, 4dBi, 3.2dBi | 2 W | - | RP-SMA | - | - | - | Connector Mount | 5.945" (151.00mm) | 4G, LTE |
|
|
ST0628-30-001-ADUAL BAND EXTERNAL RF ANTENNA 86 |
495 | 0.00 |
|
Datasheet |
- | Box | Active | General ISM, Lora | UHF (300MHz ~ 1GHz) | 891.5MHz | 868MHz ~ 915MHz | Whip, Straight | 1 | - | -8dB | 2.4dBi | 1 W | - | SMA | - | - | - | Connector Mount | 6.299" (160.00mm) | IoT, LoRa, LPWAN, RFID, Sigfox |
|

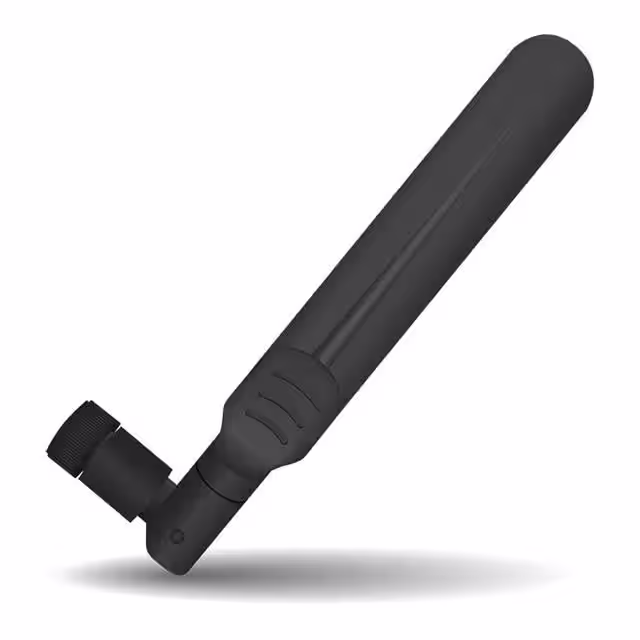

X9000294-W3DSMBANTENNA, BLADE WLAN SMA |
1,194 | 5.44 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz | Whip, Tilt | 2 | - | -9dB, -12dB | 3.2dBi, 4.5dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 6.201" (157.50mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
2118899-1WLAN DUAL BAND ANTENNA 2.4 / 5 G |
4,493 | 0.00 |
|
Datasheet |
- | Tray | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.5125GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 6dBi, 6dBi | - | Cable - 278mm | MHF | - | - | - | Connector Mount | 0.150" (3.80mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
|
GW.29.A153WATERPROOF 2.4GHZ DIPOLE ANTENNA |
115 | 0.00 |
|
Datasheet |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | - | - | 2.32dBi | - | - | RP-SMA Male | IP67 | - | - | Connector Mount | 4.870" (123.70mm) | Wi-Fi |
