RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SZK-C-2U05-100-04FPC ANT, MHF 4L, 100MM, UWB 1~15 |
500 | 0.00 |
|
Datasheet |
- | Tray | Active | Ultra Wide Band | SHF (f > 4GHz) | 4.05GHz, 7.1GHz, 8.5GHz | 3.1GHz ~ 5GHz, 6.2GHz ~ 8GHz, 8GHz ~ 10.5GHz | Flat Patch | 3 | 3, 2.5 | -8dB | 4.3dBi, 5.5dBi | - | Cable - 100mm | IPEX MHF1, U.FL (UMCC) | - | - | - | Adhesive | 0.008" (0.20mm) | UWB |
|
|
SZK-C-0W03-100-01WI-FI ANT 2.4-5GHZ FLAT PATCH IP |
1,000 | 0.00 |
|
Datasheet |
AQUARII | Tape & Box (TB) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | Flat Patch | 2 | 1.85, 1.9 | -10dB, -10dB | 1.85dBi, 5.5dBi | 3 W | Cable - 100mm | IPEX MHF1, U.FL (UMCC) | - | - | - | Adhesive | 0.008" (0.20mm) | 802.11ax, 802.15.4, Bluetooth, Wi-Fi, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E |
|
|
SZK-C-0W03-150-01WI-FI ANT 2.4-5GHZ FLAT PATCH IP |
1,000 | 0.00 |
|
Datasheet |
AQUARII | - | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | Flat Patch | 2 | 1.85, 1.9 | -10dB, -10dB | 1.85dBi, 5.5dBi | 3 W | Cable - 150mm | IPEX MHF1, U.FL (UMCC) | - | - | - | Adhesive | 0.008" (0.20mm) | 802.11ax, 802.15.4, Bluetooth, Wi-Fi, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E |
|
|
AN250201-03HRF ANT ISM915 WLAN2.4/5 U.FL. |
283 | 0.00 |
|
Datasheet |
AN250201 | Bulk | Active | Cellular, General ISM, WiFi | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 893.5MHz, 2.4475GHz, 5.3GHz | 863MHz ~ 924MHz, 2.41GHz ~ 2.485GHz, 4.6GHz ~ 6GHz | PCB Trace | 3 | 1.93, 1.93, 2.32 | -10dB, -10dB, -8dB | 0.7dBi, 2.1dBi, 3.4dBi | 10 W | Cable - 180mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive, Bracket | 0.039" (1.00mm) | Bluetooth, IoT, ISM, LP-WAN, RFID, WLAN |
|

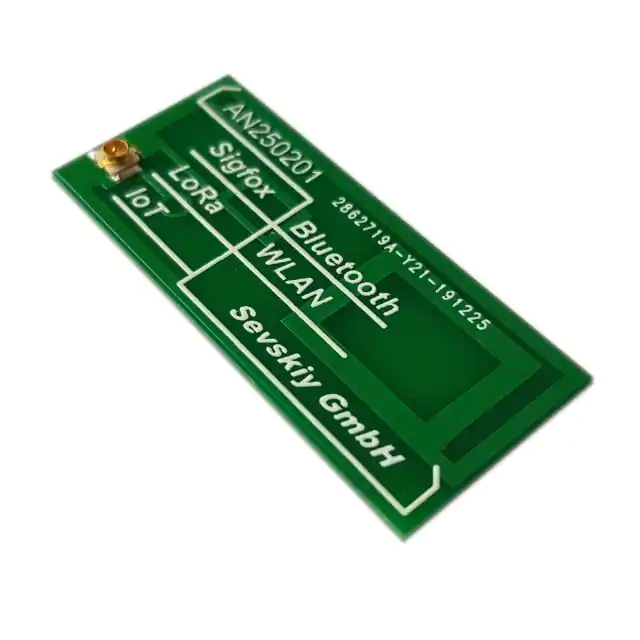

AN250201-01HRF ANT 915MHZ/2.45GHZ/5GHz PCB |
210 | 2.89 |
|
Datasheet |
AN250201 | Bulk | Active | 802.15.4, Cellular, General ISM, WiFi | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 866MHz, 2.4475GHz, 5.2GHz | 807MHz ~ 925MHz, 2.41GHz ~ 2.485GHz, 4.4GHz ~ 6GHz | PCB Trace | 3 | 1.93, 1.93, 2.1 | -9dB, -10dB, -10dB | 0.4dBi, 2.7dBi, 3.9dBi | 10 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive, Bracket | 0.039" (1.00mm) | Bluetooth, IoT, ISM, LP-WAN, RFID, WLAN |
|
|
SZK-C-2U04-100-04FPC ANT, MHF 4L, 100MM, UWB 1~11 |
500 | 0.00 |
|
Datasheet |
VELORUM | - | Active | Ultra Wide Band | SHF (f > 4GHz) | 4.05GHz, 7.1GHz, 8.5GHz | 3.1GHz ~ 5GHz, 6.2GHz ~ 8GHz, 8GHz ~ 9GHz | Flat Patch | 3 | 2, 2.5 | -10dB | 4.4dBi, 3.8dBi | - | Cable - 100mm | IPEX MHF1, U.FL (UMCC) | - | - | - | Adhesive | 0.008" (0.20mm) | UWB |
|

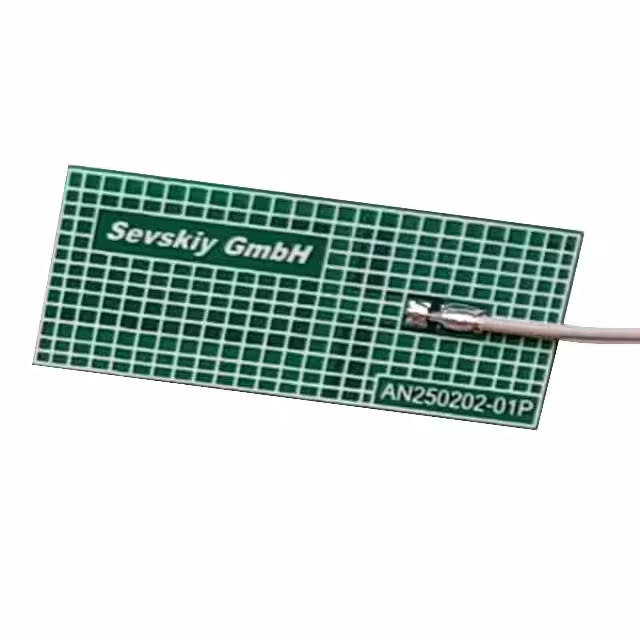

AN250202-01P-150-MHF1RF ANT 2.45GHZ/5.5GHZ/6.5GHZ PCB |
243 | 2.99 |
|
Datasheet |
AN250202 | Bulk | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.045GHz, 2.4475GHz, 6.25GHz | 1.92GHz ~ 2.17GHz, 2.41GHz ~ 2.485GHz, 4.5GHz ~ 8GHz | PCB Trace | 3 | 1.79, 1.93, 2.32 | -10dB, -8dB, -11dB | 1.2dBi, 1.9dBi, 2.4dBi | 10 W | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive, Bracket | 0.031" (0.80mm) | Bluetooth, IoT, ISM, RFID, WiFi 6E, WLAN |
|
|
AN150203-01C-180-MHF1RF ANT ISM915 GNSS PCB CABLE |
108 | 0.00 |
|
Datasheet |
AN150203 | Bulk | Active | General ISM, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892.5MHz, 1.5845GHz | 860MHz ~ 925MHz, 1.559GHz ~ 1.61GHz | PCB Trace | 2 | 2.62, 3.01 | -6dB, -7dB | 1.4dBi, 1.9dBi | 10 W | Cable - 180mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive, Bracket | 0.039" (1.00mm) | GNSS, IoT, ISM, LP-WAN, RFID, Smart Meters |
|
|
SZK-C-0G04-050-01GNSS ANT FLAT PATCH IPEX |
900 | 0.00 |
|
Datasheet |
ZETA | Tape & Box (TB) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.559GHz ~ 1.610GHz | Flat Patch | 1 | 1.65 | -12dB | 2dBi | 5 W | Cable - 50mm | IPEX MHF1, U.FL (UMCC) | - | - | - | Adhesive | 0.008" (0.20mm) | Beidou, Galileo, GLONASS, GPS |
|
|
SZK-C-0G04-150-01GNSS ANT FLAT PATCH IPEX |
900 | 0.00 |
|
Datasheet |
ZETA | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.559GHz ~ 1.610GHz | Flat Patch | 1 | 1.65 | -12dB | 2dBi | 5 W | Cable - 150mm | IPEX MHF1, U.FL (UMCC) | - | - | - | Adhesive | 0.008" (0.20mm) | Beidou, Galileo, GLONASS, GPS |
|
|
AN150201-01C-180-MHF1RF ANT ISM GNSS GSM LTE 5G PCB |
130 | 0.00 |
|
Datasheet |
AN150201 | Bulk | Active | 802.15.4, Bluetooth, Cellular, General ISM, Navigation, WiFi | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | 859.5MHz, 1.5845GHz, 2.24GHz | 791MHz ~ 928MHz, 1.559GHz ~ 1.61GHz, 1.85GHz ~ 2.62GHz | PCB Trace | 3 | 2.32, 3.01, 3.57 | -6dB, -8dB, -5dB | 1.2dBi, 1.4dBi, 1.1dBi | 10 W | Cable - 180mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive, Bracket | 0.039" (1.00mm) | 3G (UMTS), GNSS, IoT, ISM, LP-WAN, RFID |
|
|
AN110501-01C-160-MHF1RF ANT ISM CBRS 3G 4G 5G U.FL. |
121 | 0.00 |
|
Datasheet |
AN110501 | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | 814MHz, 1.93GHz, 3.85GHz | 758MHz ~ 870MHz, 1.69GHz ~ 2.17GHz, 3.4GHz ~ 4.3GHz | PCB Trace | 3 | 1.93, 2.1, 3.57 | -9dB, -10dB, -5dB | -1dBi, 0.9dBi, 4.2dBi | 10 W | Cable - 160mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive, Screw | 0.031" (0.80mm) | 5G, IoT, ISM, LP-WAN, LTE, RFID, Smart Meters |
|
|
AN110201-05C-160-MHF1RF ANT 824-960, 1710-2170MHZ PCB |
116 | 0.00 |
|
Datasheet |
AN110201 | Bulk | Active | Cellular, General ISM | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | PCB Trace | 2 | 1.58, 2.1 | -9dB, -13dB | 0.8dBi, 1.7dBi | 10 W | Cable - 160mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive, Screw | 0.031" (0.80mm) | 5G, GSM, IoT, ISM, LTE, RFID, Smart Meters, UMTS |
|
|
AN240202-01C-180-MHF1RF ANT ISM CBRS 5G/LTE PCB CABLE |
103 | 0.00 |
|
Datasheet |
AN240202 | Bulk | Active | 802.15.4, Cellular, General ISM, WiFi | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 858MHz, 2.4475GHz | 791MHz ~ 925MHz, 2.41GHz ~ 2.485GHz | PCB Trace | 2 | 1.43, 3.01 | -6dB, -15dB | 1.6dBi, 4.2dBi | 10 W | Cable - 180mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive, Bracket | 0.039" (1.00mm) | Bluetooth, IoT, ISM, LP-WAN, RFID, WLAN |
|
|
PESMA10115150-5825 MHz, 3.19 dBi, Stamped |
2,000 | 0.00 |
|
Datasheet |
- | Retail Package | Active | 802.15.4, Bluetooth, General ISM, WiFi | SHF (f > 4GHz) | 5.487GHz | 5.15GHz ~ 5.825GHz | Stamped Metal | 1 | 2 | - | 3.19dBi | 1 W | Cable - 83.312mm | I-PEX | - | - | - | Surface Mount | 0.830" (21.08mm) | 802.11a/b/g/n/ac, Bluetooth, IoT, ISM, M2M, Wi-Fi, Zigbee™ |
|
|
PESMA10062400-2500/ 5150-5825 MHz, 3.15/6 |
2,000 | 0.00 |
|
Datasheet |
- | Retail Package | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.487GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.825GHz | Stamped Metal | 2 | 2 | - | 3.15dBi, 6.52dBi | 1 W | Cable - 149.86mm | I-PEX | - | - | - | Surface Mount | 1.380" (35.05mm) | 802.11a/b/g/n/ac, Bluetooth, IoT, ISM, M2M, Wi-Fi, Zigbee™ |
|
|
AN240203-01C-200-MHF1RF ANT 5G/LTE/UMTS PCB CABLE |
110 | 0.00 |
|
Datasheet |
AN240203 | Bulk | Active | 802.15.4, Cellular, General ISM, WiFi | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | 892.5MHz, 2.045GHz, 2.4475GHz | 860MHz ~ 925MHz, 1.92GHz ~ 2.17GHz, 2.41GHz ~ 2.485GHz | PCB Trace | 3 | 2.32, 2.32, 2.62 | -8dB, -7dB, -8dB | 1.6dBi, 4.5dBi, 4.9dBi | 10 W | Cable - 200mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive, Bracket | 0.039" (1.00mm) | 3G (UMTS), Bluetooth, IoT, ISM, LP-WAN, RFID, WLAN |
|
|
SZK-C-2G19-100-01GNSS ANT FLAT PATCH IPEX |
500 | 0.00 |
|
- |
MIMOSA | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.584GHz | 1.559GHz ~ 1.609GHz | Flat Patch | 1 | - | - | 2.79dBi | - | Cable - 100mm | I-PEX MHFI (U.FL) | - | - | - | Adhesive | 0.008" (0.20mm) | BeiDou, Galileo, GLONASS, GNSS, GPS |
|
|
SZK-C-2L28-070-014G LTE ANT FLAT PATCH IPEX |
500 | 0.00 |
|
Datasheet |
EARENDEL | Bulk | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.35GHz, 2.595GHz | 698MHz ~ 798MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz | Flat Patch | 5 | 3.3, 2.1, 2.9, 2.3, 1.8 | -5dB, -8dB, -7dB, -8dB, -12dB | 4.6dBi, 3.6dBi, 3.2dBi, 1.7dBi, 1dBi | 5 W | Cable - 70mm | IPEX MHF1, U.FL (UMCC) | - | - | - | Adhesive | 0.008" (0.20mm) | 2G, 3G, 4G, LTE, NB-IOT |
|
|
SZK-C-2L28-100-014G LTE ANT FLAT PATCH IPEX |
500 | 0.00 |
|
- |
EARENDEL | Bulk | Active | Cellular | Wide Band | 788.5MHz, 1.54GHz, 1.96GHz, 2.35GHz, 2.59GHz | 617MHz ~ 960MHz, 1.43GHz ~ 1.66GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.49GHz ~ 2.69GHz | Flat Patch | 5 | - | - | 4.6dBi, 3.6dBi, 3.2dBi, 1.7dBi, 1dBi | - | Cable - 70mm | MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | 4G, LTE |
