RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

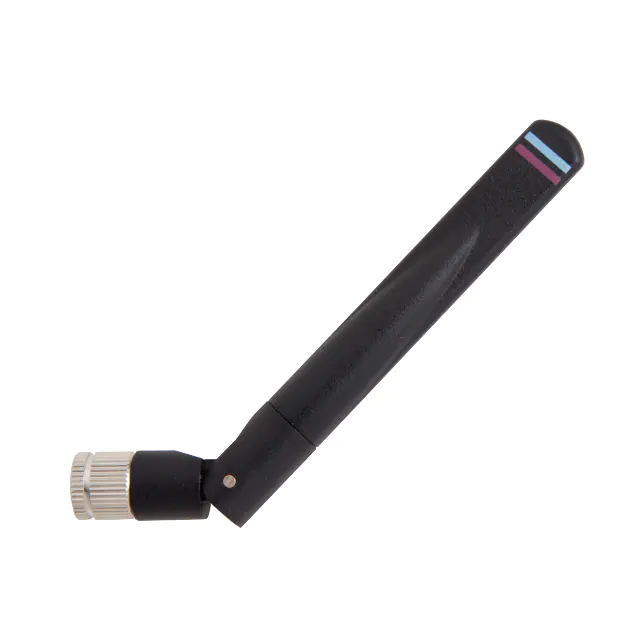

ANT-DB1-RAF-SMARF ANT 2.45GHZ/5.3GHZ WHIP TILT |
272 | 15.77 |
|
Datasheet |
RAF | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 2.5GHz, 5GHz, 5.7GHz, 5.8GHz | 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.825GHz | Whip, Tilt | 2 | 1.9 | - | 2.5dBi, 4.6dBi | - | - | SMA Male | - | - | - | Connector Mount | 4.130" (104.90mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|

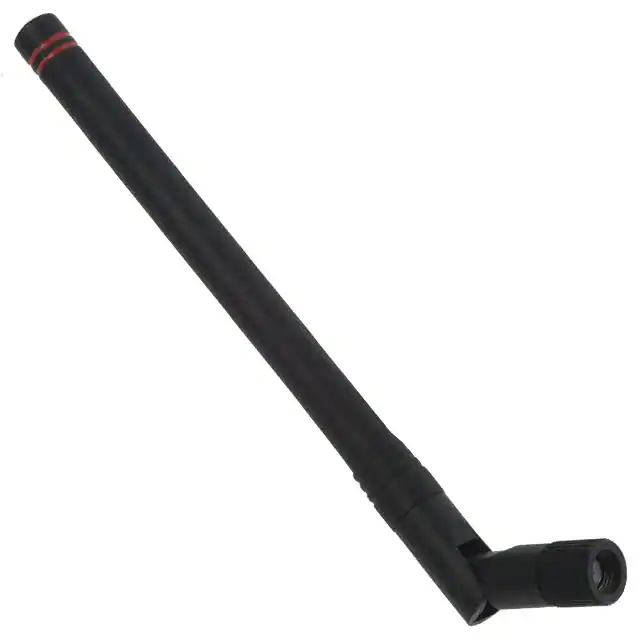

ANT-433-CW-HWR-RPSRF ANT 433MHZ WHIP TILT RP-SMA |
202 | 15.52 |
|
Datasheet |
HWR | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 418MHz ~ 448MHz | Whip, Tilt | 1 | 2 | - | 1.1dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 5.591" (142.00mm) | Alarms, ISM, Remote Control, Security Systems |
|

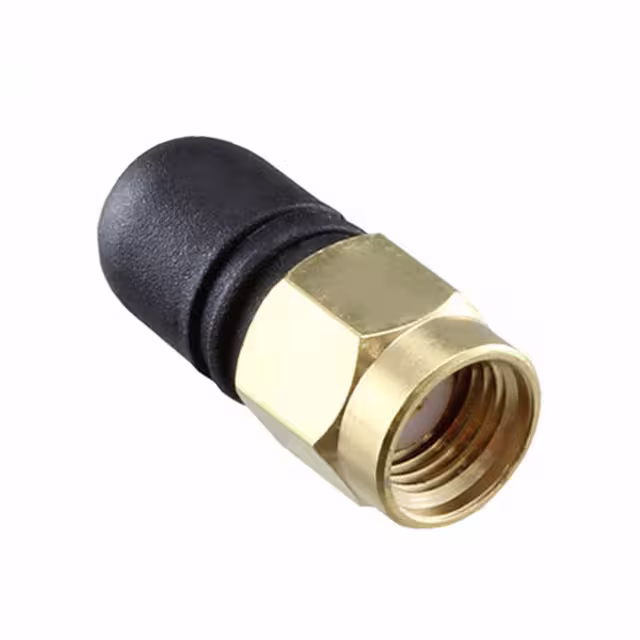

DELTA19/X/SMAM/RP/S/35RF ANT 2.4GHZ WHIP STR MALE 18MM |
791 | 11.91 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | - | 0dBi | 1 W | - | RP-SMA Male | - | - | - | Connector Mount | 0.748" (19.00mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
ANT-433-CW-HWR-SMARF ANT 433MHZ WHIP TILT SMA MALE |
327 | 14.15 |
|
Datasheet |
HWR | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 418MHz ~ 448MHz | Whip, Tilt | 1 | 2 | - | 1.1dBi | - | - | SMA Male | - | - | - | Connector Mount | 5.591" (142.00mm) | Alarms, ISM, Remote Control, Security Systems |
|
SB698SMA3RF ANT 829MHZ/1.94GHZ BLADE SMA |
3,676 | 18.03 |
|
Datasheet |
Stealth Blade | Bulk | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | Blade | 3 | 2.5 | - | 2dBi | 3 W | - | SMA Male | IP67 | - | - | Adhesive | 4.161" (105.70mm) | LTE |
|

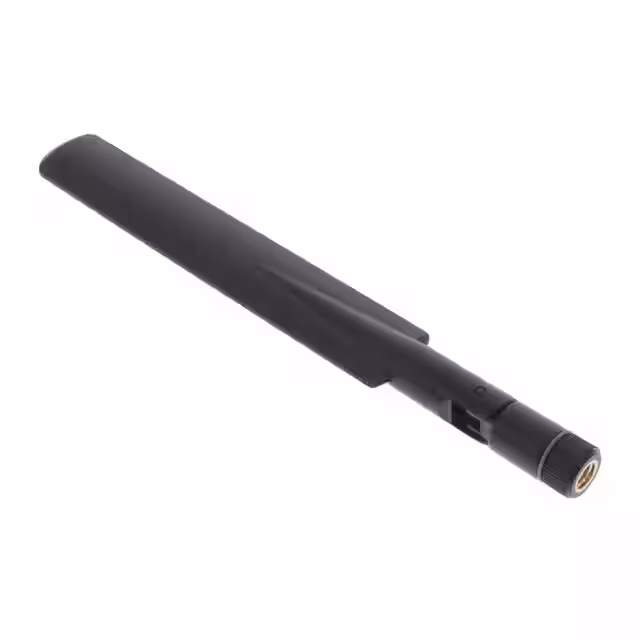

6001110PADDLE CELLULAR ANTENNA |
203 | 14.84 |
|
Datasheet |
AirLink® - Accessory | Box | Active | Cellular | UHF (2GHz ~ 3GHz) | 2.249GHz | 698MHz ~ 3.8GHz | Whip, Tilt | 1 | - | - | - | - | - | - | - | - | - | Connector Mount | - | LTE |
|
GGBLA.01.ARF ANT 1.561GHZ/1.575GHZ CHIP |
32,483 | 13.62 |
|
Datasheet |
Unifier | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.598GHz ~ 1.608GHz | Chip | 3 | 2 | -25dB | 3.2dBi, 2.6dBi, 2.8dBi | - | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | Beidou, GLONASS, GPS |
|
GW.71.5153RF ANT 2.4GHZ/5.4GHZ WHIP TILT |
3,267 | 13.62 |
|
Datasheet |
- | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHz | Whip, Tilt | 2 | 2, 2.1 | - | 3.8dBi, 5.5dBi | 2 W | - | RP-SMA Male | - | - | - | Connector Mount | 7.638" (194.00mm) | WLAN |
|

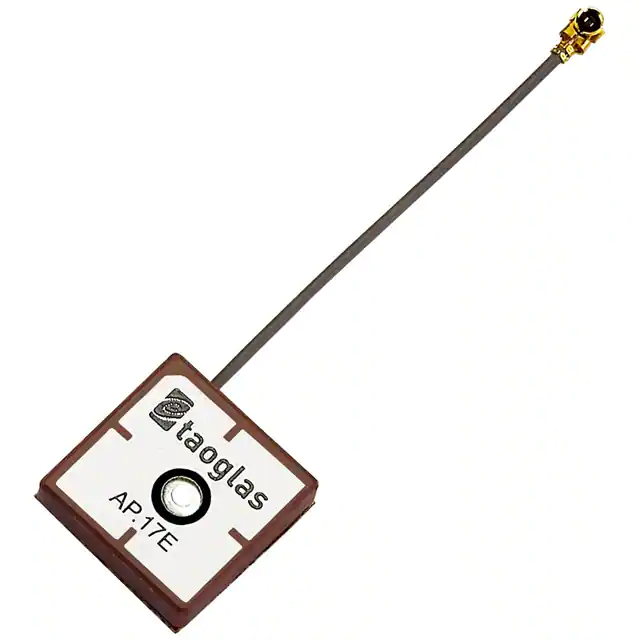

AP.17E.07.0064ARF ANT 1.575GHZ CER PATCH MHFI |
1,327 | 13.62 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 2 | - | -1dBic | - | LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.157" (4.00mm) | GPS |
|

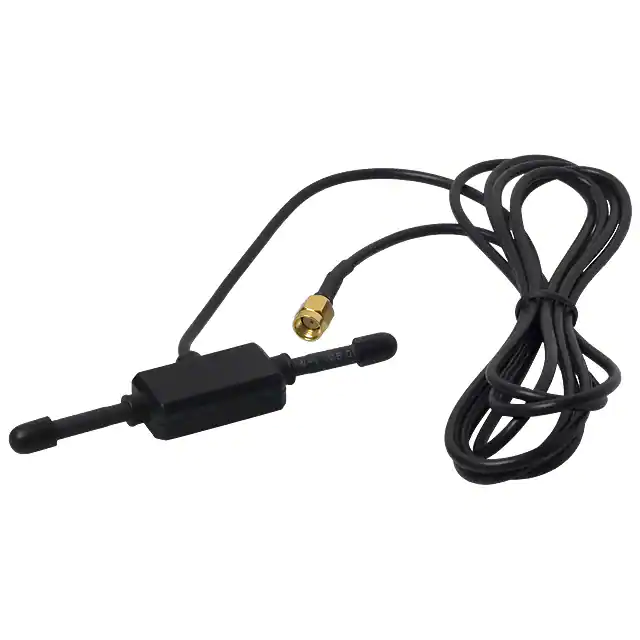

ANT-916-MHW-RPS-SRF ANT 916MHZ WHP CTR ADH 79" |
401 | 16.83 |
|
Datasheet |
MHW | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 816MHz ~ 1.016GHz | Whip, Center-Fed Double | 1 | 1.9 | - | 5.4dBi | - | Cable - 2m | RP-SMA Male | - | - | - | Adhesive | 5.433" (138.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|
ANT-418-CW-HWR-SMARF ANT 418MHZ WHIP TILT SMA MALE |
278 | 16.57 |
|
Datasheet |
HWR | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 418MHz | 398MHz ~ 438MHz | Whip, Tilt | 1 | 2 | - | 0.7dBi | - | - | SMA Male | - | - | - | Connector Mount | 5.591" (142.00mm) | Alarms, ISM, Remote Control, Security Systems |
|

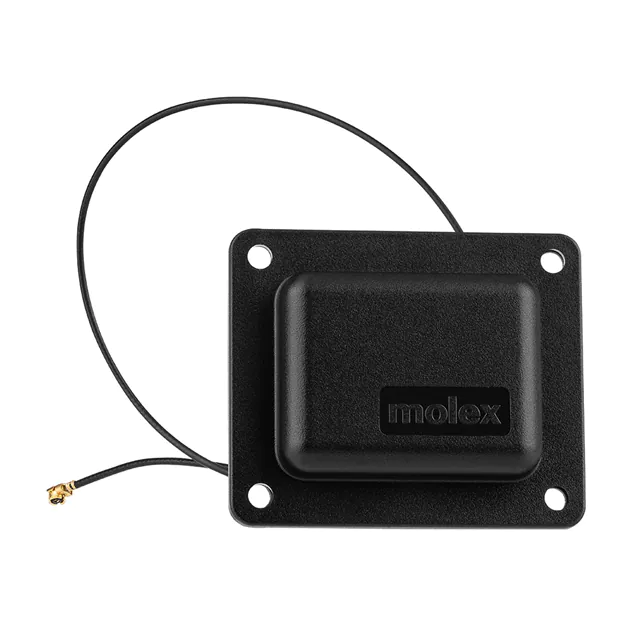

2158680001MOLEX ON-METAL WIFI EXTERNAL ANT |
151 | 18.66 |
|
Datasheet |
215868 | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Module | 2 | - | -6dB | 2dBi, 5.5dBi | - | Cable - 300mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.335" (8.50mm) | Bluetooth, DSRC, Wi-Fi, Zigbee™ |
|

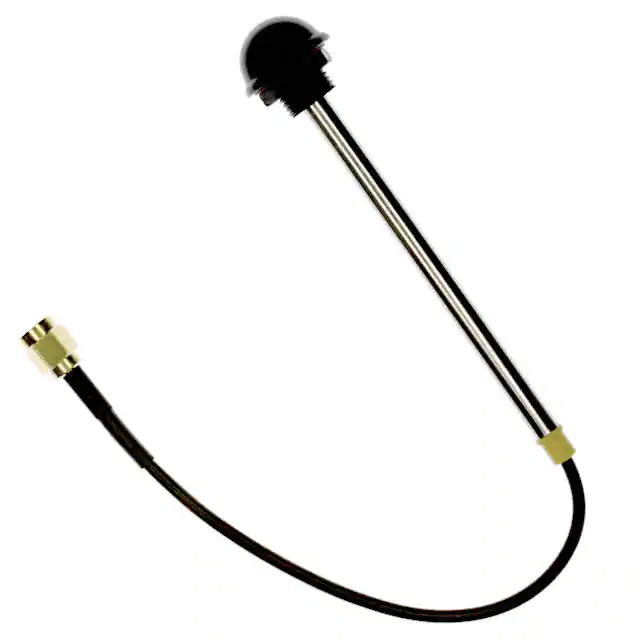

ANT-916-WRT-RPSRF ANT 916MHZ DOME RP-SMA PNL MT |
571 | 16.41 |
|
Datasheet |
WRT | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 900MHz, 915MHz | 900MHz ~ 930MHz | Dome | 1 | 1.9 | - | -0.1dBi | - | Cable - 216mm | RP-SMA Male | - | - | - | Panel Mount | 0.433" (11.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|
TG.30.8113RF ANT 750MHZ/892MHZ WHIP TILT |
3,056 | 14.05 |
|
Datasheet |
Apex | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 750MHz, 892MHz, 1.575GHz, 1.9GHz, 2.6GHz | 700MHz ~ 800MHz, 824MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.8GHz | Whip, Tilt | 5 | - | - | 1.1dBi, 0.3dBi, 1.1dBi, 2.7dBi, 2.7dBi | 10 W | - | SMA Male | IP67 | - | - | Connector Mount | 7.319" (185.90mm) | CDMA, GPS, GSM, LTE, UMTS, WLAN |
|
ANT-GNRM-L1A-3ANTENNA, REMOTE ACTIVE CERAMIC P |
170 | 0.00 |
|
Datasheet |
GNRM | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.601GHz, 1.602GHz | - | Module | 4 | 1.2, 1.3, 1.5 | -14.5dB, -19dB, -19.9dB | 32.8dBi, 33.5dBi, 33.4dBi, 33.4dBi | - | Cable - 3m, LNA | SMA Male | IP67 | - | - | Magnetic | 0.591" (15.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
AA.105.301111RF ANT 1.575GHZ MOD SMA MALE MAG |
3,655 | 14.20 |
|
Datasheet |
Titan | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.57GHz ~ 1.58GHz | Module | 1 | 1.92 | - | 2dBic | - | Cable - 3m, LNA | SMA Male | IP67 | - | - | Magnetic | 0.551" (14.00mm) | GPS |
|
APAMPG-130RF ANT 1.575/1.602GHZ DOME SMA |
494 | 14.38 |
|
Datasheet |
APAMPG | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.572GHz ~ 1.578GHz, 1.594GHz ~ 1.61GHz | Dome | 2 | 1.5 | - | 30dB | - | - | SMA Male | - | - | - | Magnetic | 0.610" (15.50mm) | GLONASS, GPS |
|

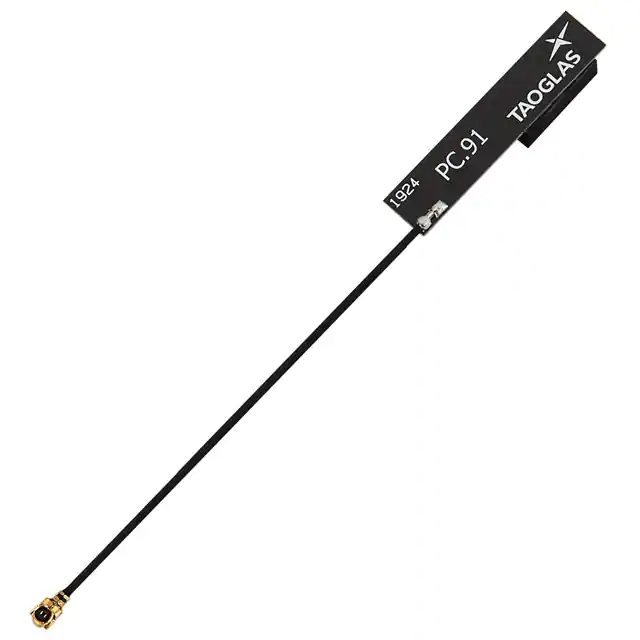

PC91.07.0100A.DBRF ANT 915MHZ PCB TRACE IPEX MHF |
451 | 14.46 |
|
Datasheet |
TheStripe™ | Bag | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | PCB Trace | 1 | 2 | -10dB | - | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.276" (7.00mm) | - |
|
|
GSA.8835.A.101111PHOENIX EXTERNAL 5G/4G ANT |
126 | 0.00 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 657MHz, 752MHz, 892MHz, 1.48GHz, 1.96GHz, 2.59GHz, 3.4GHz, 3.85GHz, 5.54GHz | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.43GHz ~ 1.52GHz, 1.71GHz ~ 2.2GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.5GHz, 3.5GHz ~ 4.2GHz, 5.15GHz ~ 5.93GHz | Flat Bar | 9 | - | - | 0.95dBi, 2.44dBi, 2.59dBi, 3.25dBi, 4.12dBi, 3.78dBi, 3.79dBi, 3.70dBi, 2.81dBi | 2 W | Cable - 1m | SMA Male | IP67, IP68 | - | - | Adhesive | 0.311" (7.90mm) | 4G, 5G |
|
ANT-2.4-WRT-MON-SMARF ANT 2.4GHZ DOME SMA ML PNL MT |
561 | 15.77 |
|
Datasheet |
WRT-MON | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz, 2.5GHz | 2.4GHz ~ 2.5GHz | Dome | 1 | 1.9 | - | 0.8dBi | - | Cable - 216mm | SMA Male | - | - | - | Panel Mount | 1.063" (27.00mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
