RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3686.000.00ID ISC.ANT.U270/270-FCC ANT |
2,752 | 286.70 |
|
Datasheet |
- | Box | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Module | 1 | - | - | 9dBi | - | - | SMA | IP65 | - | - | Surface Mount | 2.244" (57.00mm) | - |
|
|
782574-01GPS ANTENNA, FIXED MOUNT, 10M CA |
1,794 | 609.51 |
|
- |
C | Box | Active | Navigation | - | - | - | - | - | - | - | - | - | Cable - 10m | SMA | - | - | - | - | - | GPS |
|
BOA90211RF ANT 915MHZ WHIP STR N TYPE |
4,290 | 755.78 |
|
Datasheet |
BOA | Tube | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Straight | 1 | 1.5 | - | 11.1dBi | 250 W | - | N Type Female | - | - | - | Mast Mount | 122.008" (309.90cm) | ISM, LoRa, LPWAN |
|
33-VSP6337L-58TRIPLE BAND (L1/L2/L5) + L-BAND |
4,910 | 899.00 |
|
Datasheet |
- | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.2075GHz, 1.549GHz, 1.5825GHz | 1.16GHz ~ 1.255GHz, 1.539GHz ~ 1.559GHz, 1.559GHz ~ 1.606GHz | Dome | 3 | 1.8 | - | 4dBic, 4.5dBic | - | - | TNC Female | IP69K | - | - | - | 2.972" (75.50mm) | Beidou, Galileo, GLONASS, GPS |
|

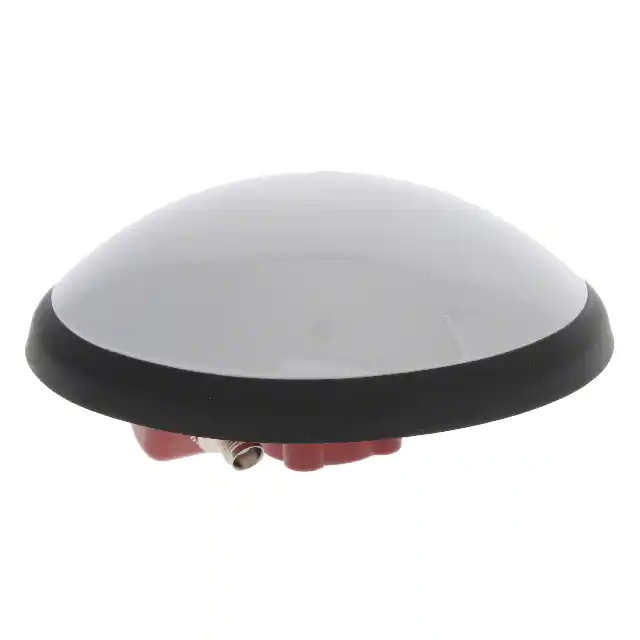

33-VSP6337L-01TRIPLE BAND (L1/L2/L5) + L-BAND |
2,364 | 899.00 |
|
Datasheet |
VeroStar™ | Box | Active | - | - | - | - | - | 3 | - | - | 37dB | - | LNA | - | - | - | - | - | - | - |
|
|
W3712RF ANT 2.45/5.425GHZ PCB TRACE |
236 | 1.47 |
|
Datasheet |
Embedded PCB Ant | Bag | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.425GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.95GHz | PCB Trace | 2 | 2 | - | 3dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | General Purpose |
|

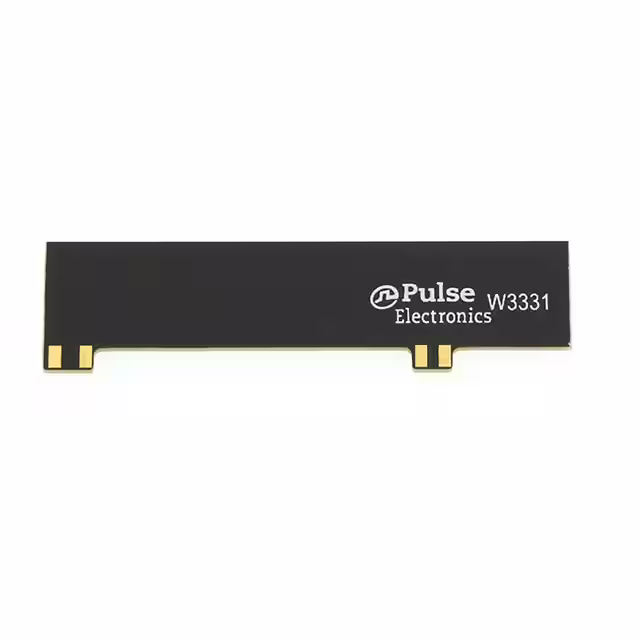

W3331RF ANT 895MHZ/2.4GHZ PCB TRACE |
471 | 2.91 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 895MHz, 2.4GHz | 863MHz ~ 928MHz, 2.4GHz ~ 2.5GHz | PCB Trace | 2 | - | -15dB | 3.5dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.031" (0.80mm) | Bluetooth, WLAN, Zigbee™ |
|

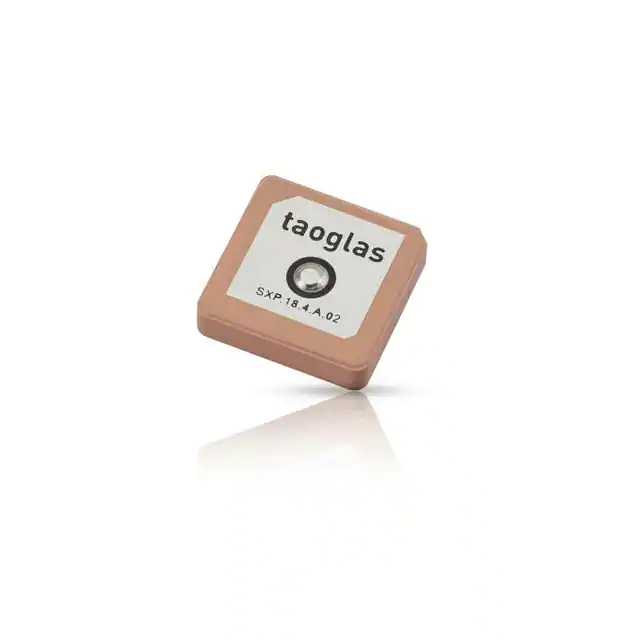

SXP.18.4.A.02SDARS 2320 2345MHZ DUAL-BAND XM |
3,449 | 3.52 |
|
Datasheet |
- | Tray | Active | - | UHF (2GHz ~ 3GHz) | 2.32625GHz, 2.3325GHz, 2.33875GHz | 2.32GHz ~ 2.3325GHz, 2.3325GHz ~ 2.345GHz | Ceramic Patch | 3 | - | -10dB | 8dBic, 9.5dBic | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | - |
|
|
2108994-14G LTE ANTENNA (PCB TYPE), T&R P |
901 | 3.31 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | Chip | 3 | 3 | -7dB | 0.7dBi, 0.9dBi, 1.1dBi, 2.3dBi, 0.7dBi, 1.3dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.126" (3.20mm) | LTE |
|

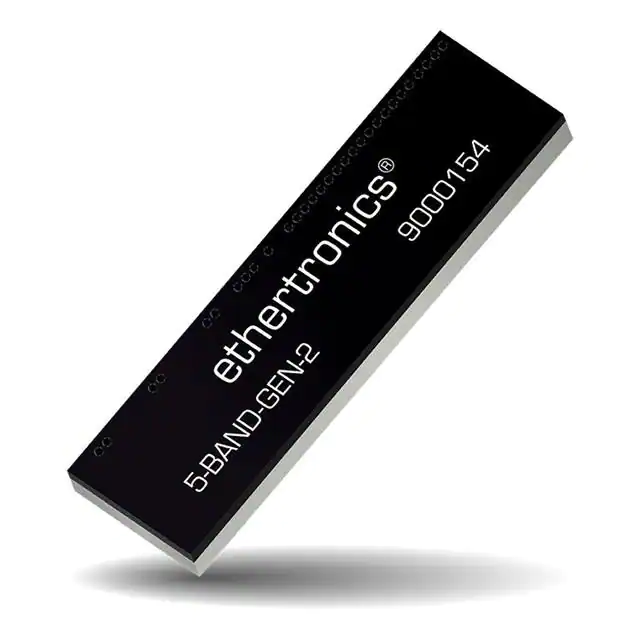

9000154ANTENNA PCB, GSM5 D0230 |
4,436 | 3.31 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 802.15.4, Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Chip | 2 | 2.5, 2.7 | - | 0dBi, 0.7dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.126" (3.20mm) | LTE, LoRa, LPWAN, Sigfox |
|
1001932FT-AA10L0150ANTENNA ASSY, WLAN FT AA10 0150 |
3,198 | 3.65 |
|
Datasheet |
- | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.825GHz | PCB Trace | 2 | 2 | - | 2.5dBi, 4.4dBi | 500 mW | Cable - 150mm | U.FL | - | - | - | Adhesive | 0.063" (1.60mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

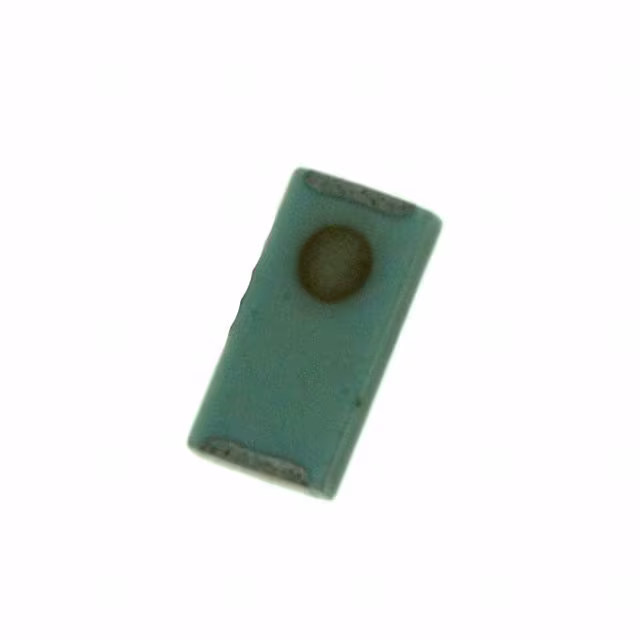

AH316M157501-TRF ANT 1.575GHZ CHIP SOLDER SMD |
2,474 | 4.21 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Chip | 1 | 3 | - | 2.4dBi, -0.6dBic | - | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | GPS |
|
1513168-1RF ANT 915MHZ PCB TRACE SLDR TH |
527 | 5.87 |
|
Datasheet |
- | Bulk | Active | 802.15.4 | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | PCB Trace | 1 | 2 | - | 0dBi | 10 W | - | Solder | - | - | - | Through Hole | 0.600" (15.24mm) | ZigBee™ |
|

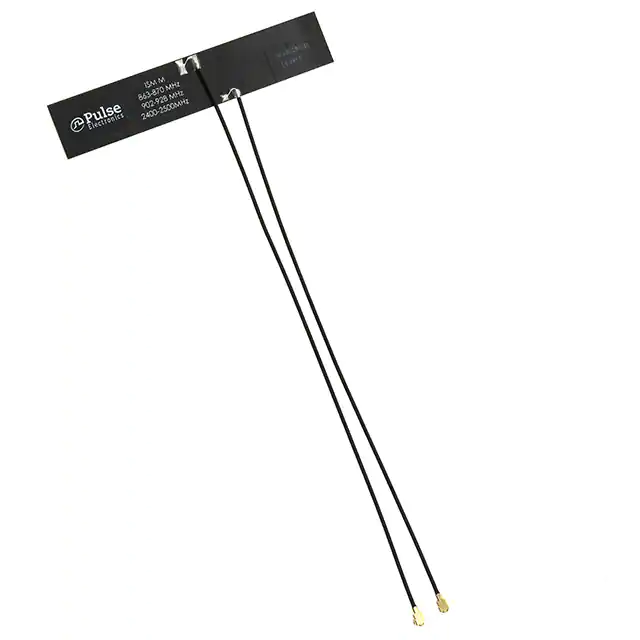

W3332B0150RF ANT 895MHZ/2.4GHZ PCB TRACE |
4,909 | 4.72 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (300MHz ~ 1GHz) | 895MHz, 2.4GHz | 863MHz ~ 928MHz, 2.4GHz ~ 2.5GHz | PCB Trace | 2 | - | -10dB | 4.1dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.020" (0.50mm) | Bluetooth, WLAN, Zigbee™ |
|

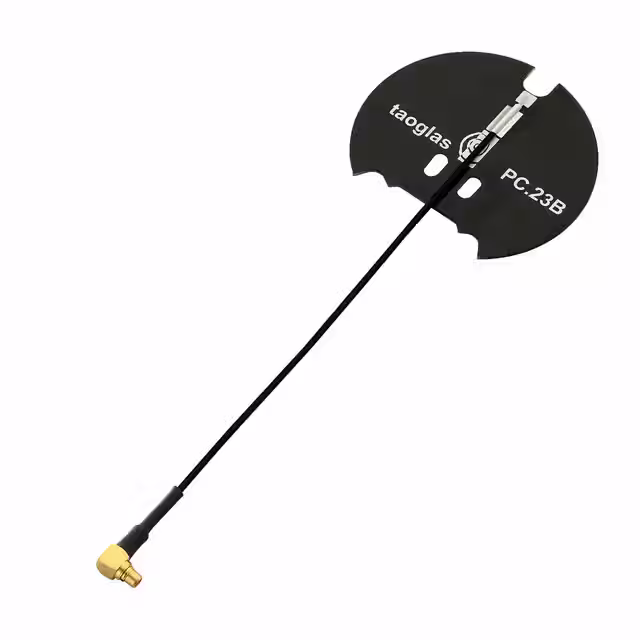

PC23.09.0100ARF ANT 892MHZ/1.9GHZ FLAT PATCH |
2,532 | 6.12 |
|
- |
- | Bag | Not For New Designs | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Flat Patch | 2 | 2 | -25dB, -12dB | 0dBi | 10 W | - | MMCX Male | - | - | - | Adhesive | 0.031" (0.80mm) | GSM |
|
ACTPAT254-01-IPRF ANT 1.575GHZ CER PATCH CAB |
1,317 | 7.44 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.573GHz ~ 1.588GHz | Ceramic Patch | 1 | 2 | -10dB | 5dBic | - | Cable - 63mm, LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.327" (8.30mm) | GPS |
|

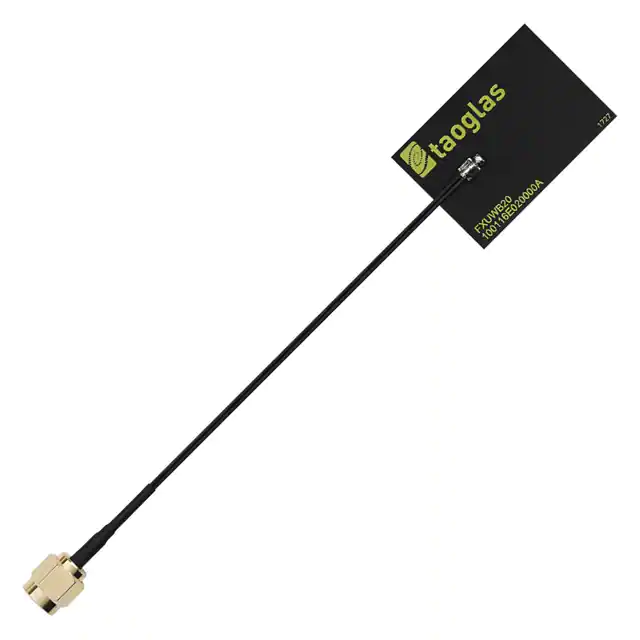

FXUWB20.01.0100CULTRA WIDE BAND FLEX ANTENNA 3.1 |
2,989 | 9.32 |
|
- |
- | Bag | Active | - | SHF (f > 4GHz) | 4.05GHz, 7.1GHz, 9.25GHz | 3.1GHz ~ 5GHz, 6GHz ~ 8.2GHz, 8.2GHz ~ 10.3GHz | FlexPIFA | 3 | 2, 2.2, 3 | - | 4.2dBi, 5.8dBi, 6.6dBi | 10 W | Cable - 100mm | SMA Male | - | - | - | Surface Mount | 0.004" (0.10mm) | UWB |
|

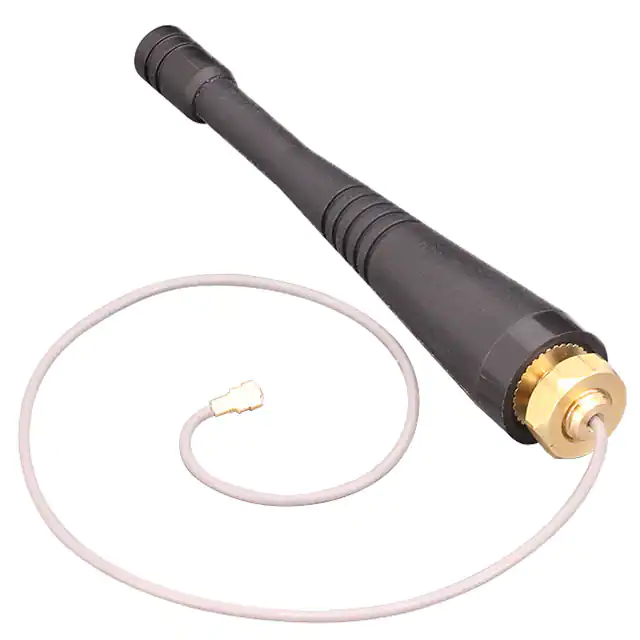

ANT-B5-PW-QW-UFLRF ANT LTE B5 WHIP STR CAB PAN |
2,559 | 11.45 |
|
Datasheet |
PW | Bag | Active | Cellular | UHF (300MHz ~ 1GHz) | 854MHz | 800MHz ~ 900MHz | Whip, Straight | 1 | 2 | - | 1.2dBi | 10 W | Cable - 216mm, O-Ring Compatible | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 3.287" (83.50mm) | Cellular, GSM, LTE, NB-IoT, UMTS |
|
1005194-B02ANTENNA ASSY,UWB68 H SMA(F) |
2,155 | 8.20 |
|
Datasheet |
- | Box | Active | - | SHF (f > 4GHz) | 7.25GHz | 6GHz ~ 8.5GHz | PCB Trace | 1 | 2 | - | 6.1dBi | 10 W | - | SMA Female | - | - | - | Connector Mount | 0.031" (0.80mm) | UWB |
|

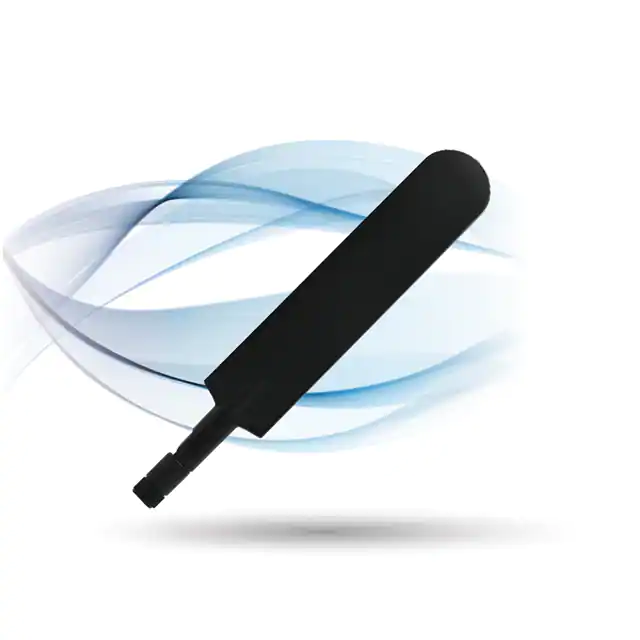

AP-DIPOLE-C-IW-S2-BLANTENNA PLUS DIPOLE ANTENNA |
3,524 | 14.47 |
|
Datasheet |
- | Box | Active | Cellular | Wide Band | 700MHz, 850MHz, 960MHz, 1.71GHz, 1.99GHz, 2.17GHz, 2.4GHz, 2.55GHz, 2.7GHz | 703MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz | Blade, Tilt | 9 | - | - | -0.2dBi, 1.9dBi, 3.5dBi, 3.7dBi, 1.5dBi, 2.4dBi, 2.6dBi, 4.7dBi, 5.6dBi | - | - | SMA Male | - | - | - | Connector Mount | 8.106" (205.90mm) | LTE |
