RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

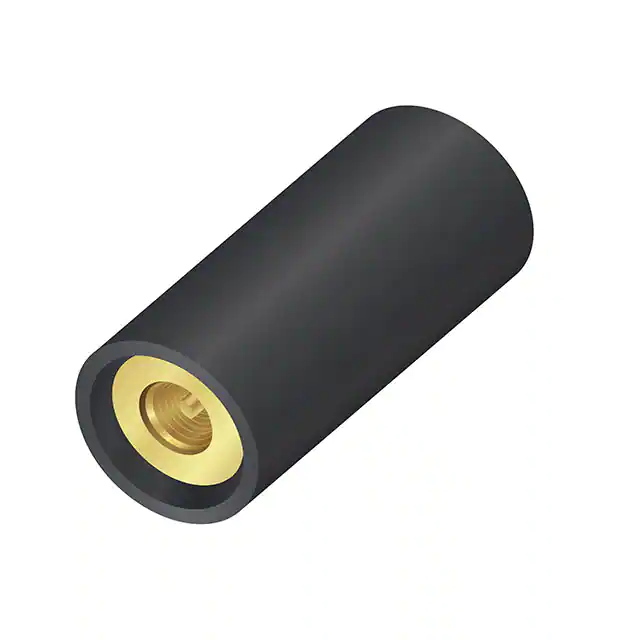

1002857RF ANT 1.575GHZ/1.602GHZ HELICAL |
225 | 47.61 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.57GHz ~ 1.58GHz | Helical | 1 | 2 | - | -3dB | 2 W | - | SMA Male | IP68 | - | - | Connector Mount | 1.382" (35.10mm) | GLONASS, GPS |
|

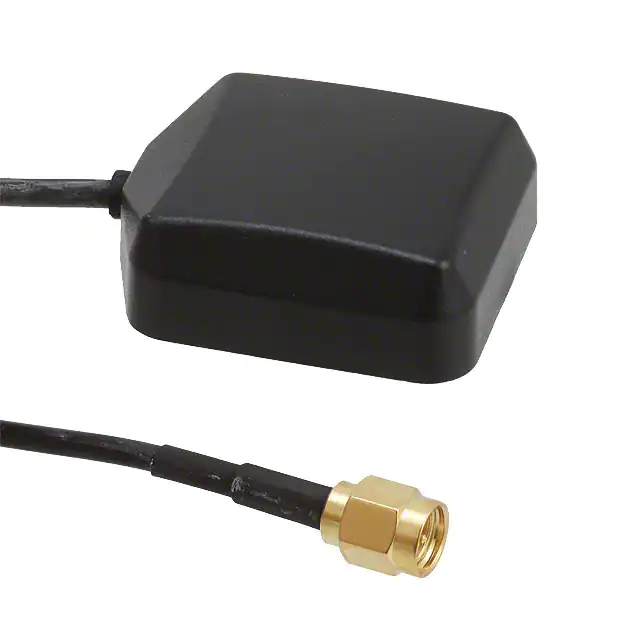

ANGPS-10MMRF ANT 1.575GHZ MOD SMA MALE MAG |
108 | 47.51 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Module | 1 | - | - | - | - | Cable - 5m | SMA Male | - | - | - | Magnetic | - | GPS |
|
TL.10.1HH11RF ANT 700MHZ/850MHZ DOME NMO ML |
1,642 | 48.16 |
|
Datasheet |
Shockwave | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 700MHz, 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.5GHz | 698MHz ~ 800MHz, 824MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.7GHz | Dome | 8 | - | - | -1.7dBi, -0.9dBi, 0.8dBi, 1.3dBi, 1.3dBi, 1.7dBi, 3.5dBi | - | - | NMO Male | IP67, IP69K | - | - | Base Mount | 3.343" (84.90mm) | CDMA, DCS, EDGE, GPRS, GPS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA, Wi-Fi |
|

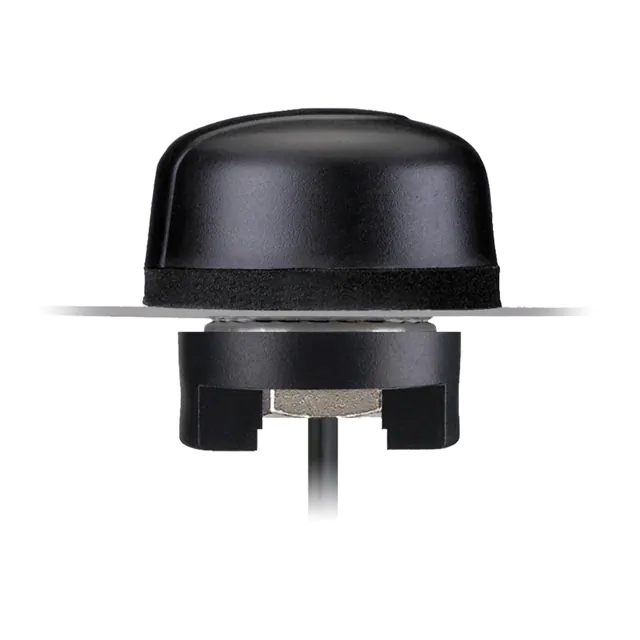

A.40.A.301111RF ANT 1.6GHZ DOME SMA MALE PAN |
3,986 | 58.35 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.6GHz | 1.574GHz ~ 1.606GHz | Dome | 1 | 2 | -10dB | 27dB | - | Filter | SMA Male | IP65 | - | - | Panel Mount | 1.122" (28.50mm) | GLONASS, GPS |
|
TRAB806-17103PRF ANT 850MHZ/900MHZ DOME N FEM |
1,524 | 0.00 |
|
Datasheet |
Phantom® | Bulk | Active | Cellular, General ISM | Wide Band | 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz | 806MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz | Dome | 7 | 2, 2.5 | - | 5.9dBi, 5.8dBi, 5.1dBi, 4.2dBi, 4.2dBi, 4.4dBi, 3dBi | 100 W | - | N Type Female | - | - | - | Panel Mount | 2.300" (58.42mm) | AMPS, DCS, GPS, GSM, PCS, UMTS |
|
TLS.01.1F21RF ANT 829MHZ/1.575GHZ WHIP STR |
852 | 49.85 |
|
Datasheet |
Shockwave | Bag | Active | Cellular, Navigation | Wide Band | 829MHz, 1.575GHz, 2.2GHz | 698MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.7GHz | Whip, Straight | 3 | - | -10dB | 4.7dB | 100 W | - | N Type Female | IP69K | - | - | Base Mount | 3.134" (79.60mm) | GPS, LTE |
|
|
PR1KCO28COMBO MIMO MOBILE/GNSS/WIFI ROOF |
2,583 | 0.00 |
|
Datasheet |
- | Box | Active | Navigation, WiFi | Wide Band | 829MHz, 1.592GHz, 2.2GHz, 2.44GHz, 5.362GHz | 698MHz ~ 960MHz, 1.575GHz ~ 1.61GHz, 1.71GHz ~ 2.48GHz, 2.4GHz ~ 2.69GHz, 4.9GHz ~ 5.825GHz | Dome | 5 | 2.5, 3 | - | 3dBi, 3dBi, 2dBi, 2dBi | - | Cable - 3m, LNA | RP-SMA Male (2), SMA Male (3) | IP65 | - | - | Screw | 2.087" (53.00mm) | GNSS, LTE, Wi-Fi |
|

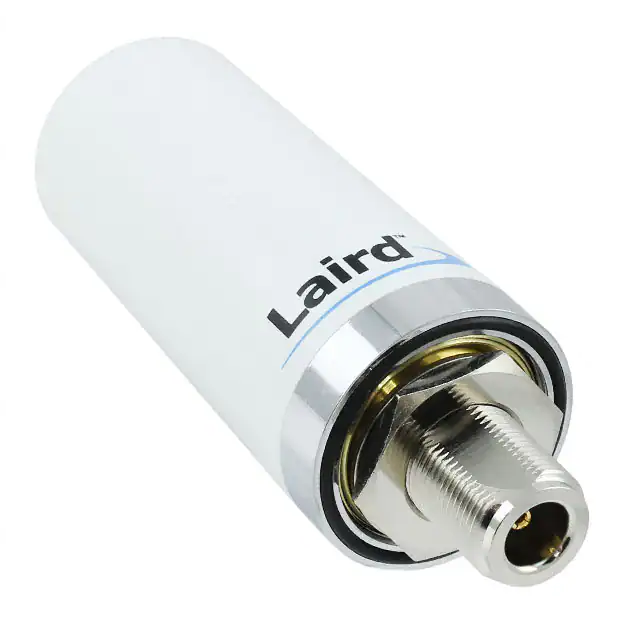

TRA6927M3PW-001ANTENNA 4G/3G N(F) WHITE 3.3" |
1,525 | 54.66 |
|
Datasheet |
Phantom® | Bulk | Active | Cellular, WiFi | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 829MHz, 2.205GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Dome | 2 | 2, 2.5 | - | 3.5dBi, 4.6dBi, 5.5dBi | 100 W | - | N Type Female | - | - | - | Base Mount | 3.300" (83.82mm) | GSM, LTE, WiMax™ |
|

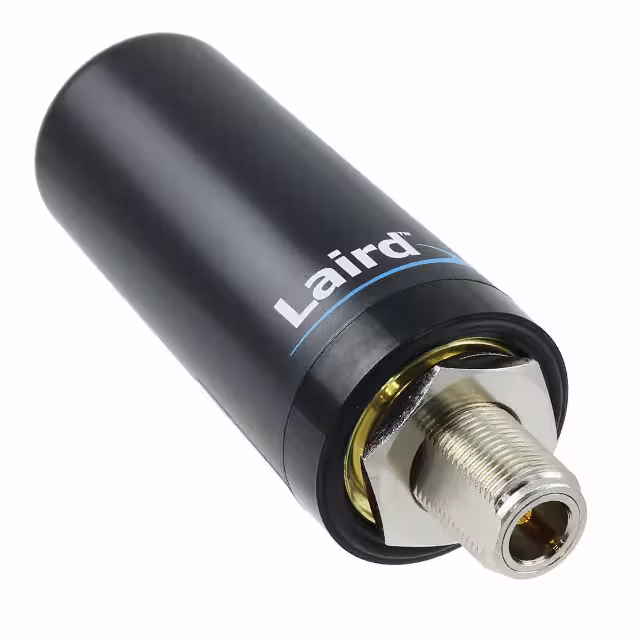

TRA6927M3PB-001RF ANT 829MHZ/2.2GHZ WHIP STR N |
412 | 54.95 |
|
Datasheet |
Phantom® | Bulk | Active | - | Wide Band | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Whip, Straight | 1 | 2.5 | - | 5.5dBi | 100 W | - | N Type Female | - | - | - | Base Mount | 3.300" (83.82mm) | - |
|

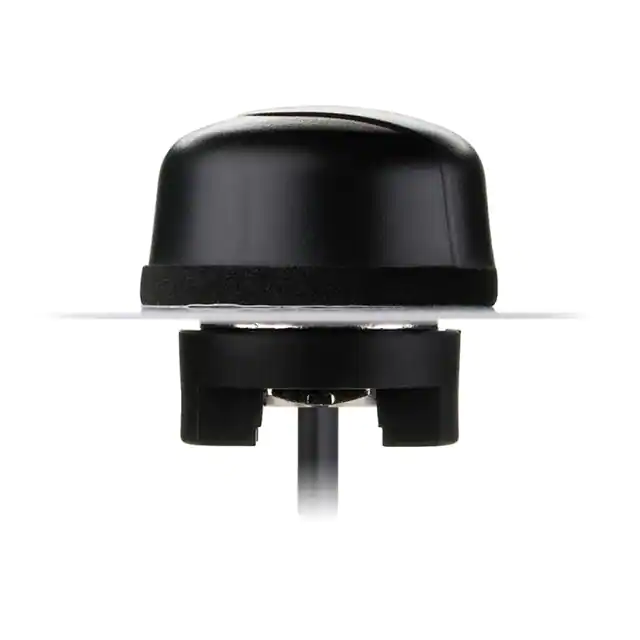

WS.03.B.305151HERCULES WI-FI EXTERNAL ANTENNA |
136 | 51.06 |
|
- |
Hercules | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Dome | 3 | - | - | 2.7dBi, 3.2dBi, 4.3dBi | 10 W | Cable - 5m | RP-SMA Male | - | - | - | Panel Mount | 1.142" (29.00mm) | Wi-Fi |
|

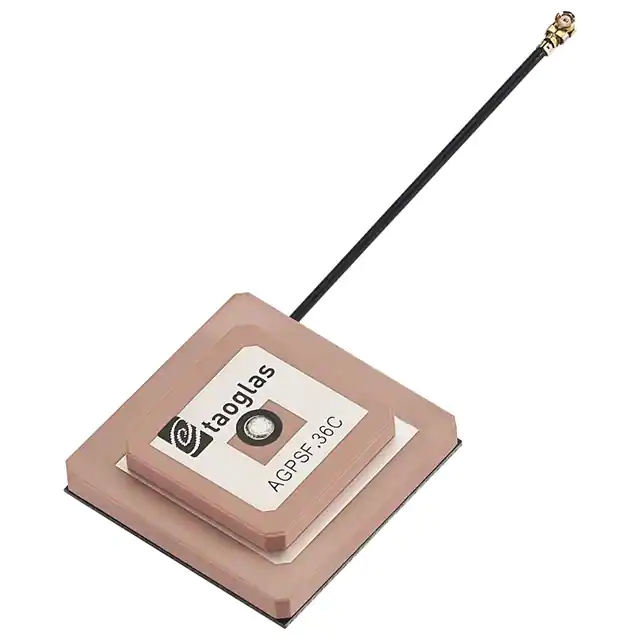

AGPSF.36C.07.0100CACTIVE GPS L1/L2 LOW PROFILE STA |
466 | 53.38 |
|
Datasheet |
- | Tray | Not For New Designs | Navigation | UHF (1GHz ~ 2GHz) | 1.2267GHz, 1.575GHz | 1.2257GHz ~ 1.2277GHz, 1.574GHz ~ 1.576GHz | Ceramic Patch | 2 | - | -10dB, -10dB | 2.73dBi, 3.57dBi | - | Cable - 100mm, LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.433" (11.00mm) | GPS |
|

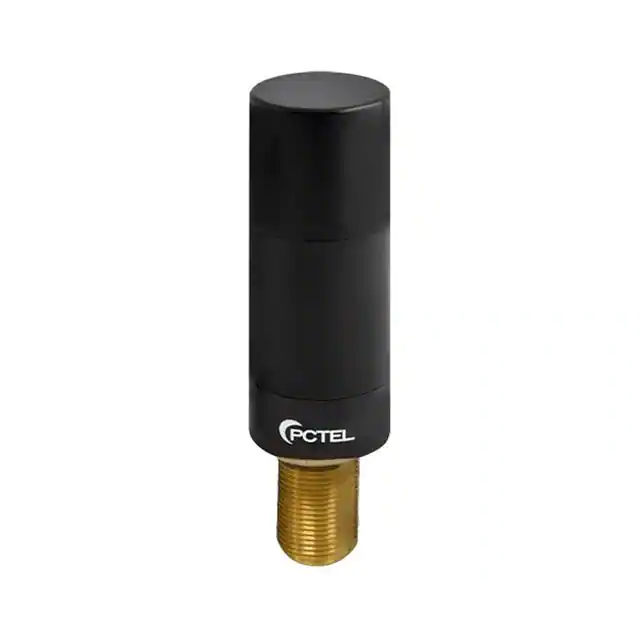

BMLPVMBLTENGP-VPRF ANT 825MHZ/2.205MHZ OMNI NF |
2,308 | 56.88 |
|
Datasheet |
MLPV | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 825MHz, 2.205GHz | 690MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Omni-Directional | 2 | 2.5 | 7.36dB | 3dBi | 150 W | - | N Type Female | IP66 | - | - | NMO Mount | 4.004" (101.70mm) | 2G, 3G, 5G, Bluetooth, Cellular, ISM, LoRa, LPWAN, LMR/TETRA/P25, LTE, Wi-Fi |
|
WS.02.B.205111RF ANT 2.4GHZ DOME SMA ML PNL MT |
219 | 51.06 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Dome | 1 | 1.38 | -15.86dB | 4.42dBi | - | Cable - 2m | SMA Male | IP67, IP69K | - | - | Panel Mount | 1.122" (28.50mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

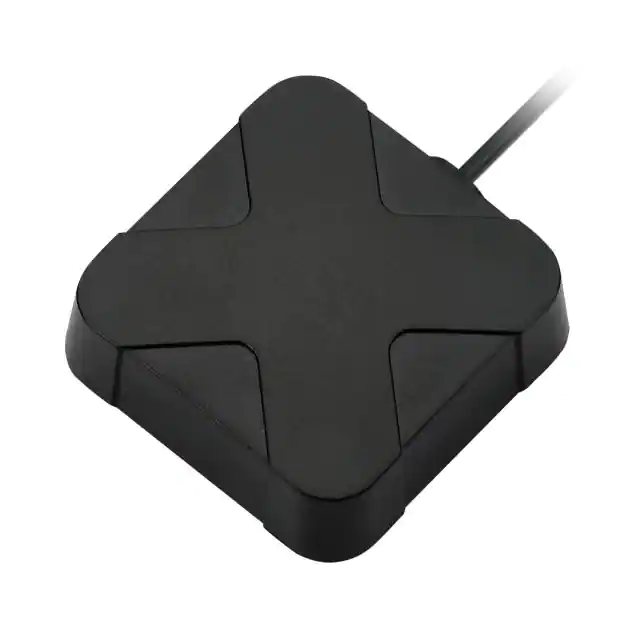

AA.178.301111MAGMAX2 ACTIVE GPS L1/L5 MAG MOU |
2,106 | 53.28 |
|
Datasheet |
Magma X | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.575GHz | - | Module | 2 | 2 | 10dB | 1.1dBi, 1.36dBi | - | Cable - 3m, LNA, Filter | SMA Male | IP67 | - | - | Magnetic | 0.673" (17.10mm) | GNSS |
|
TRA58003PRF ANT 5.5GHZ DOME N FEM PAN MT |
2,580 | 61.06 |
|
Datasheet |
Phantom® | Bulk | Active | WiFi | SHF (f > 4GHz) | 5.5GHz | 4.9GHz ~ 6GHz | Dome | 1 | 2 | - | 3dBi | 150 W | - | N Type Female | - | - | - | Panel Mount | 2.300" (58.42mm) | Wi-Fi |
|

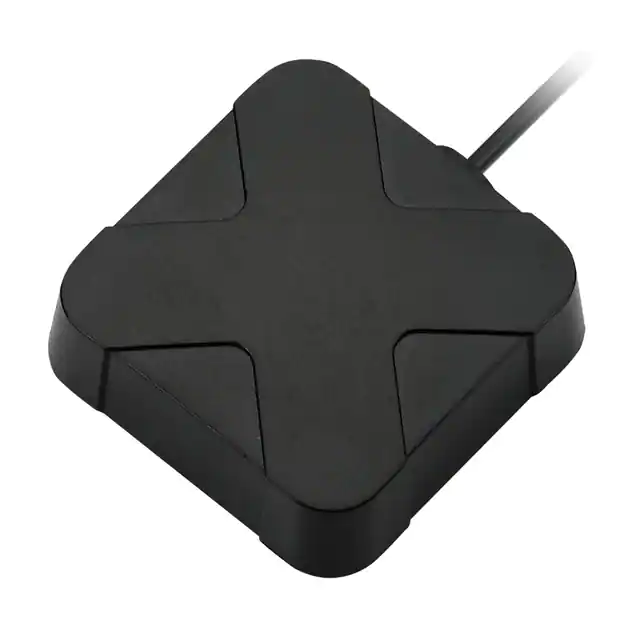

AA.175.301111MAGMAX2 GPS L1/L2 MAG MOUNT ANTE |
386 | 55.30 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.2276GHz, 1.575GHz, 1.602GHz | 1.2257GHz ~ 1.2277GHz , 1.574GHz ~ 1.576GHz , 1.597GHz ~ 1.607GHz | Module | 3 | 2 | -10dB | 3.78dBi, 2.22dBi, 2.05dBi | - | Cable - 3m, LNA, Filter | SMA Male | IP67 | - | - | Surface Mount | 0.669" (17.00mm) | GLONASS, GNSS, GPS |
|

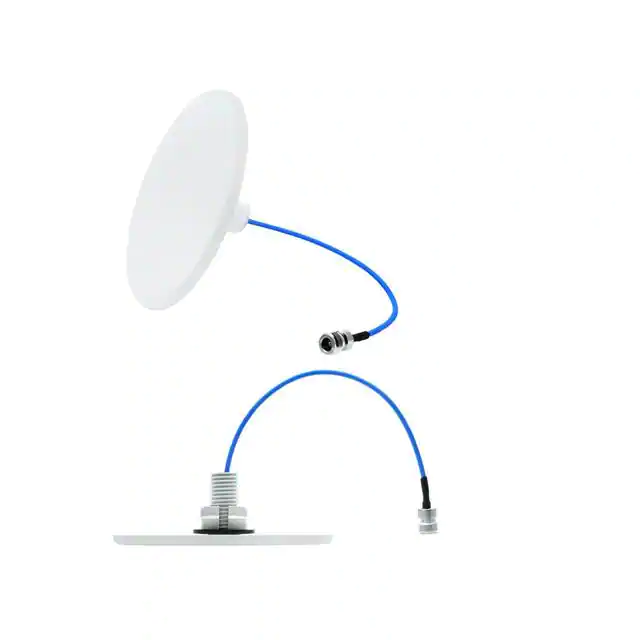

CFSA69383P-30NFRF ANT 829MHZ/1.45GHZ FLAT PNL N |
3,445 | 46.94 |
|
Datasheet |
CBRS | Bulk | Active | Cellular, WiFi | Wide Band | 829MHz, 1.45GHz, 2.75GHz | 698MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.69GHz ~ 3.8GHz | Flat Panel | 3 | 2 | - | 5.8dBi | 50 W | - | N Type Female | - | - | - | Panel Mount | 0.299" (7.60mm) | GSM, LTE, WiMax™ |
|

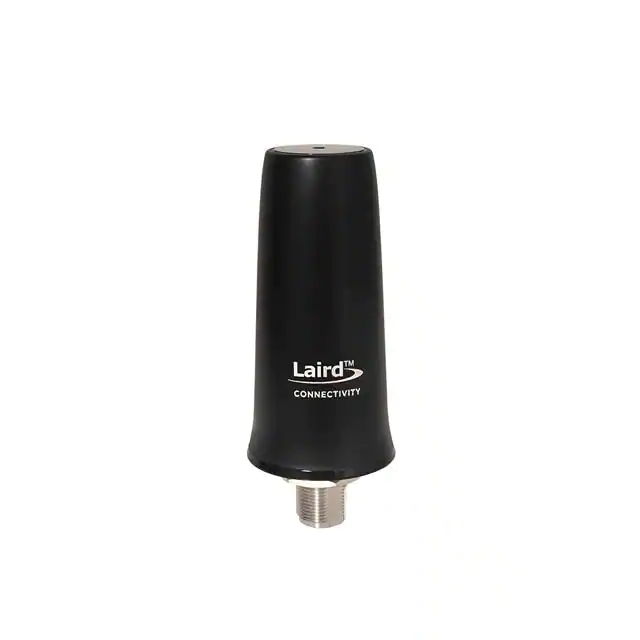

FTRA6171M5PB-001OMNI PH PMT 617-7125MHZ BLK 5 DB |
2,636 | 62.58 |
|
Datasheet |
On-Ground Plane | Box | Active | Cellular | Wide Band | 657.5MHz, 829MHz, 1.561GHz, 2.1975GHz, 3.75GHz, 5.2GHz, 6.5625GHz | 617MHz ~ 698MHz, 698MHz ~ 960MHz, 1.427GHz ~ 1.695GHz, 1.695GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 6GHz, 6GHz ~ 7.125GHz | Dome | 7 | 2.5, 2, 2.7, 2, 1.5, 1.5, 1.5 | - | 4.2dBi, 4dBi, 4.5dBi, 5.5dBi, 5.5dBi, 5.5dBi, 5.5dBi | 100 W | - | N Type Female | IP67 | - | - | Panel Mount | 3.780" (96.00mm) | 5G |
|

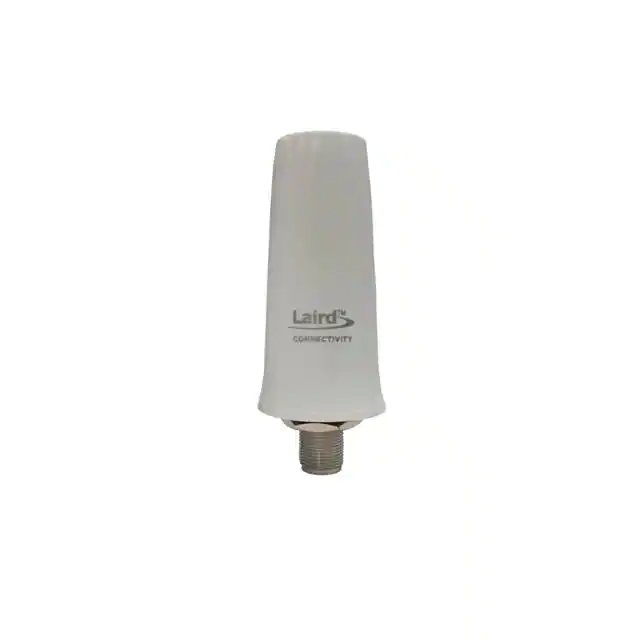

FTRA6171M5PW-001OMNI PH PMT 617-7125MHZ WHT 5 DB |
3,176 | 62.58 |
|
Datasheet |
On-Ground Plane | Box | Active | Cellular | Wide Band | 657.5MHz, 829MHz, 1.561GHz, 2.1975GHz, 3.75GHz, 5.2GHz, 6.5625GHz | 617MHz ~ 698MHz, 698MHz ~ 960MHz, 1.427GHz ~ 1.695GHz, 1.695GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 6GHz, 6GHz ~ 7.125GHz | Dome | 7 | 2.5, 2, 2.7, 2, 1.5, 1.5, 1.5 | - | 4.2dBi, 4dBi, 4.5dBi, 5.5dBi, 5.5dBi, 5.5dBi, 5.5dBi | 100 W | - | N Type Female | IP67 | - | - | Panel Mount | 3.780" (96.00mm) | 5G |
|
|
RO3ISMNMRF ANT 435MHZ/895GHZ WHIP STR N |
110 | 59.03 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 435MHz, 895GHz | 430MHz ~ 440MHz, 860MHz ~ 930MHz | Whip, Straight | 2 | 2 | - | 2dBi, 2.5dBi | 20 W | - | N Type Male | IP67 | - | - | Panel Mount | 21.299" (541.00mm) | ISM |
