RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

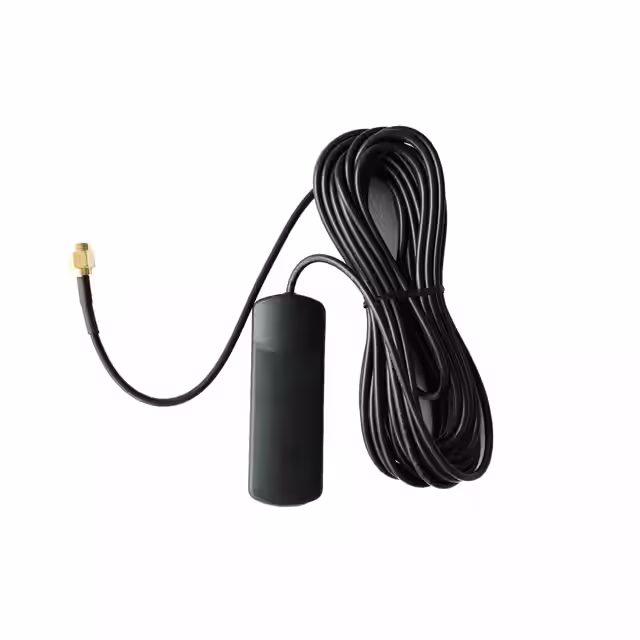

AN_GSM_107Maswell GSM Short Patch Antnna |
4,106 | 10.08 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 859MHz, 1.94GHz, 2.45GHz | 824MHz ~ 894MHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz | Module | 3 | 2 | - | 2dBi | - | Cable - 5m | SMA Male | - | - | - | Adhesive | 0.295" (7.50mm) | GSM |
|

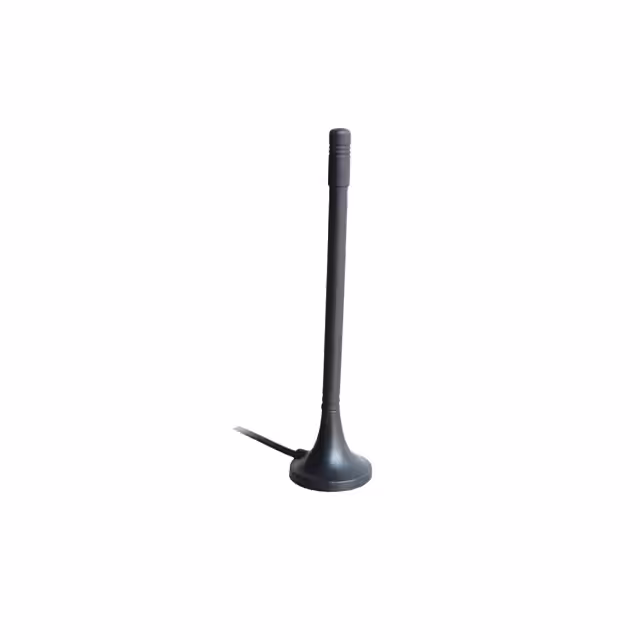

AN_W069WIFI ANTENNA BOTTOM MAGNETICAL |
4,992 | 11.20 |
|
Datasheet |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.44GHz | 2.4GHz ~ 2.48GHz | Whip, Straight | 1 | 2 | - | 2dBi | - | - | SMA | - | - | - | Magnetic | 4.764" (121.00mm) | Wi-Fi |
|
GW.05.0E23GW.05.0E23 DUAL-BAND WIFI 2.4/5. |
2,180 | 10.99 |
|
Datasheet |
- | Bag | Obsolete | 802.15.4, Bluetooth, WiFi | UHF (3GHz ~ 4GHz), SHF (f > 4GHz) | 3.775GHz, 4.175GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Whip, Tilt | 2 | - | -3dB, -5dB | 3.73dBi, 0.64dBi, 4.09dBi, 2.46dBi | 10 W | - | SMB, Fakra | - | - | - | Connector Mount | 2.740" (69.60mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
PEANRBD10472.4 GHz to 2.5 GHz Concave Shape |
3,634 | 0.00 |
|
Datasheet |
- | Retail Package | Active | Cellular, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | - | 3dBi | 10 W | - | RP-SMA Male | IPX7 | - | - | Connector Mount | 5.870" (149.10mm) | 5G, 802.11b/g/n, ISM, WLAN |
|

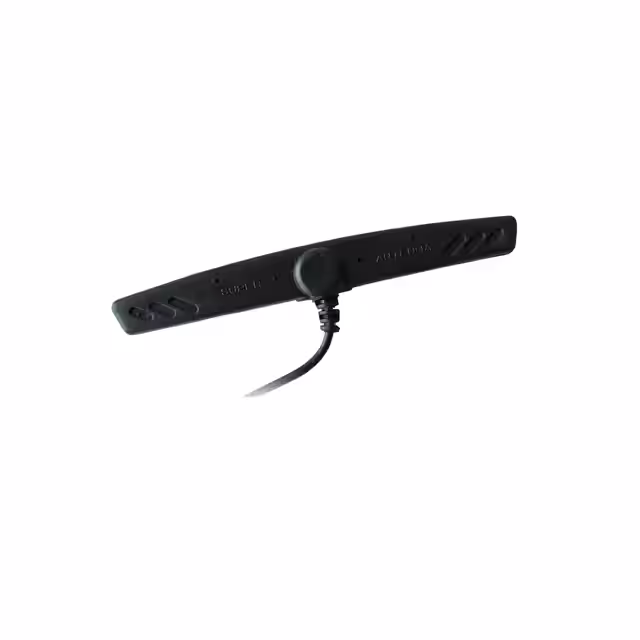

AN_GSM_108Maswell 4G/3G Slim Patch Antenna |
1,162 | 11.20 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 700MHz, 800MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.6GHz | 698MHz ~ 960MHz, 1.572GHz ~ 1.578GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.4835GHz | Flat Bar | 2 | 2 | - | 2.5dBi | - | Cable - 5m | SMA Male | - | - | - | Adhesive | 0.339" (8.60mm) | GSM |
|
|
PEANRBD1015136-174 MHz Rubber Duck Antenna, |
1,260 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | VHF (f < 300MHz) | 155MHz | 136MHz ~ 174MHz | Whip, Straight | 1 | 1.5 | - | 1.8dBi | 50 W | - | TNC Male | - | - | - | Connector Mount | 6.100" (154.94mm) | General Purpose |
|
|
PEANRBD1031136-174 MHz Telescopic Antenna, |
2,016 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | VHF (f < 300MHz) | 155MHz | 136MHz ~ 174MHz | Whip, Straight | 1 | 1.5 | - | 2.5dBi | 50 W | - | TNC Male | - | - | - | - | 17.720" (450.00mm) | General Purpose |
|
|
PEANRBD1030400-470 MHz Rubber Duck Antenna, |
1,594 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | UHF (300MHz ~ 1GHz) | 435MHz | 400MHz ~ 470MHz | Whip, Straight | 1 | 1.5 | - | 2.5dBi | 50 W | - | SMA Female | - | - | - | Connector Mount | 3.100" (78.74mm) | General Purpose |
|

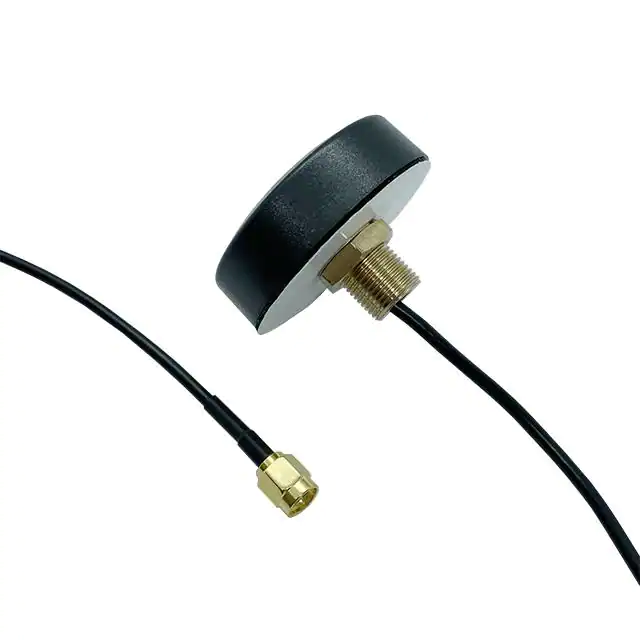

ATGG46015-BP-SMA-3GPS&GLONASS ANTENNA SCREW |
2,601 | 12.64 |
|
Datasheet |
ATGG | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.609GHz | 1.574GHz ~ 1.576GHz, 1.605GHz ~ 1.614GHz | Module | 2 | 2 | - | 3dBi, 4dBi | - | Cable - 3m, LNA | SMA Male | IP66 | - | - | Screw Mount | 0.591" (15.00mm) | GLONASS, GPS |
|
|
ECHO16/0.15M/UFL/S/S/17GPS CERAMIC PATCH ANTENNA 16DB L |
4,233 | 10.63 |
|
Datasheet |
ECHO 16 | Bulk | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Ceramic Patch | 1 | 1.5 | - | 16dB | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.240" (6.10mm) | GPS |
|

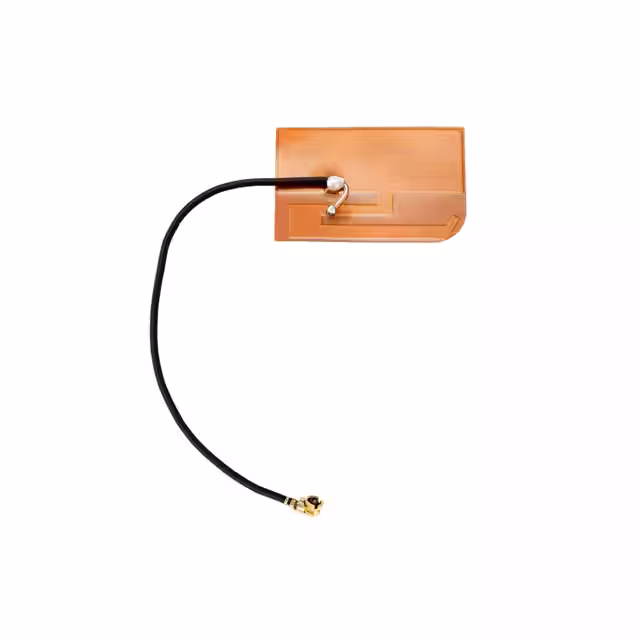

PE512092.6DBI PCB ANT 2400-2500MHZ UMCX |
3,872 | 10.99 |
|
Datasheet |
- | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 2 | - | 2.6dBi | 5 W | Cable - 100mm | U.FL (UMCX), I-PEX | - | - | - | Surface Mount | 0.006" (0.16mm) | Bluetooth, WLAN |
|
|
2JP0383P5G NR/4GLTE/FIRSTNET/CBRS/LPWA/3 |
1,055 | 0.00 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 788.5MHz, 2.059GHz, 4.15GHz, 5.538GHz | 617MHz ~ 960MHz, 1.427GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Flat Patch | 4 | 1.8, 1.9, 2.1, 2.4 | -12.2dB, -12.1dB, -11.9dB, -8.7dB | -0.5dBi, 1.8dBi, 2.2dBi, 3.1dBi | 25 W | Cable - 180mm | U.FL | - | - | - | Adhesive | 0.035" (0.90mm) | 2G, 3G, 4G, 5G, LTE |
|
2217106/3SMA1/4 ,698-960 MHZ & 1710-2700MHZ |
4,354 | 13.20 |
|
Datasheet |
- | Box | Active | Cellular | Wide Band | 824MHz, 2.21GHz | 689MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Whip, Straight | 2 | - | - | 0dB | 20 W | Cable - 3m | FME Female, SMA Male | - | - | - | Magnetic | 3.543" (90.00mm) | LTE |
|
|
H2PE366R110100PB18DRS (18X18X5MM); GPS(L1+L5)/ |
4,361 | 0.00 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.1765GHz, 1.57542GHz, 1.602GHz | - | Ceramic Patch | 3 | - | -10dB | -0.8dBi, 3.1dBi, 2dBi | - | - | Pin | - | - | - | Adhesive | 0.197" (5.00mm) | Galileo, GLONASS, GPS |
|

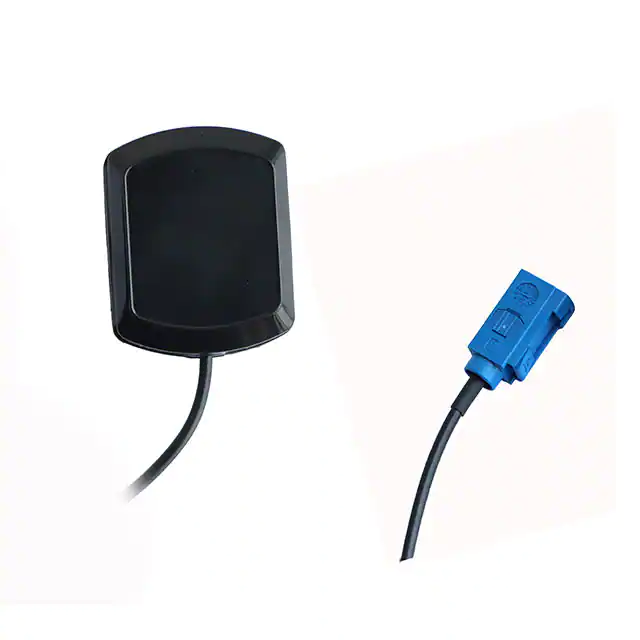

AN_GPS_A001 FAKRAGPS Antenna Rectangular Shape |
4,014 | 13.61 |
|
Datasheet |
- | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Module | 1 | 1.5, 2 | - | 2dBic | - | LNA | Fakra | IP66 | - | - | Magnetic | 0.587" (14.90mm) | GPS |
|
ATIGGBL52580-100RF ANT GPS L1+L5/GLONASS/BEIDOU |
1,755 | 14.10 |
|
Datasheet |
ATIGGBL5 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.561GHz, 1.575GHz, 1.602GHz | 1.166GHz ~ 1.186GHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.594GHz ~ 1.61GHz | Ceramic Patch | 4 | 2 | - | -2dBi, -2dBi, 0dBi, 2dBi | - | Cable - 100mm, LNA | I-PEX MHF | - | - | - | Surface Mount | 0.315" (8.00mm) | Beidou, GLONASS, GPS |
|
ANT-8/9-VDP-2000-SMARF ANT 868/915MHZ WHIP CTR FED |
4,763 | 14.16 |
|
Datasheet |
VDP | Bag | Obsolete | General ISM | UHF (300MHz ~ 1GHz) | 800MHz, 850MHz, 900MHz, 916MHz | 863MHz ~ 873MHz, 902MHz ~ 928MHz | Flat Bar | 3 | 1.9 | - | 0.6dBi, 0.5dBi | 10 W | Cable - 2m | SMA Male | IP67 | - | - | Adhesive | 0.264" (6.71mm) | ISM, LoRa, Sensor Networks, SigFox |
|

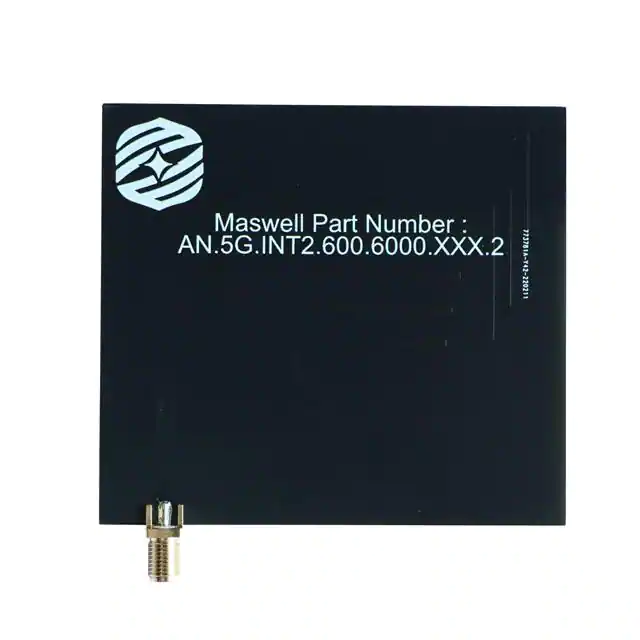

AN.5G.INT2.600.6000.SMA.25G Ultra Wideband patch antenna |
4,023 | 14.38 |
|
Datasheet |
- | Bulk | Active | Cellular, WiFi | Wide Band | 4.3GHz | 600MHz ~ 8GHz | Flat Patch | 1 | 3 | - | 6.8dBi | - | - | SMA Female | - | - | - | Surface Mount | 0.063" (1.60mm) | 4G, 5G, LTE, Wi-Fi |
|

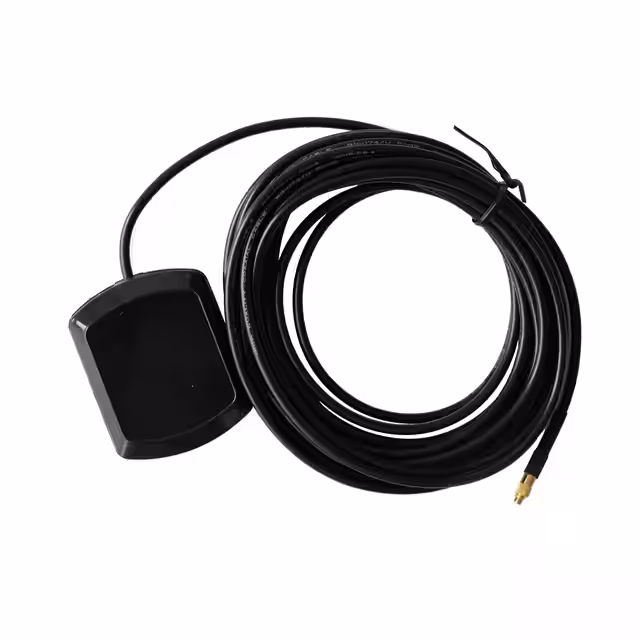

AN_GPS_A001 MMCXGPS Antenna Rectangular Shape |
4,357 | 11.20 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Module | 1 | 1.5, 2 | - | 2dBic | - | LNA | MMCX Male | IP66 | - | - | Magnetic | 0.587" (14.90mm) | GPS |
|
|
PEANRBD1034136-174 MHz Telescopic Antenna, |
3,165 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | VHF (f < 300MHz) | 155MHz | 136MHz ~ 174MHz | Whip, Straight | 1 | 1.5 | - | 2dBi | 50 W | - | BNC Male | - | - | - | Connector Mount | 42.200" (107.19cm) | General Purpose |
