RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEANMOB1003-RTP136-940MHz, 4.5 dBi Gain, Omni-d |
1,193 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 538MHz | 136MHz ~ 940MHz | Whip, Straight | 1 | 1.5 | - | 4.5dBi | 30 W | Cable - 3.05m | RP-TNC | - | - | - | Magnetic | 3.700" (93.98mm) | General Purpose |
|
|
AN.AG50.2CELL.2WIFI.40MASWELL 2X2 5G MIMO 2X2 WIFI7 AN |
1,738 | 0.00 |
|
Datasheet |
- | Bulk | Active | Bluetooth, Cellular, WiFi | Wide Band | 3.35GHz, 4.65GHz | 700MHz ~ 6GHz, 2.1GHZ ~ 7.2GHz | Module | 2 | 3 | - | 3dBi, 3dBi | - | Cable - 1m | RP-SMA (2), SMA Male (2) | IP66 | - | - | Adhesive, Screw | 2.161" (54.90mm) | 3G, 4G, 5G, Bluetooth, LTE, Wi-Fi, Zigbee™ |
|
|
PE51OM1053ANTENNA 3.3-4.2GHz, 11 DBI, N |
4,575 | 0.00 |
|
Datasheet |
- | Case | Active | Cellular | Wide Band | 3.75GHz | 3.3GHz ~ 4.2GHz | Whip, Straight | 1 | 2 | - | 11dBi | 50 W | - | N Type Male | IP67 | - | - | Bracket Mount | 1.008" (25.60mm) | General Purpose |
|
|
TAMP1254G LTE/5G BROADBAND MIMO ANTENNA |
4,780 | 0.00 |
|
Datasheet |
- | Box | Active | Cellular | Wide Band | 780MHz, 1.94GHz, 2.595GHz, 4.65GHz | 600MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.69GHz, 3.3GHz ~ 6GHz | Module | 4 | - | - | 2.7dBi, 2.7dBi, 2.7dBi, 2.7dBi | - | - | SMA (4) | - | - | - | Surface Mount | 0.866" (22.00mm) | 4G, 5G, LTE |
|
PE51FP10135-8.5 DBI DAS PANEL 2 X N (F) |
4,048 | 101.99 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 752MHz, 883MHz, 1.94GHz, 2.45GHz, 3.8GHz | 698MHz ~ 806MHz, 806MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.2GHz ~ 2.7GHz, 3.4GHz ~ 4.2GHz | Module | 5 | 1.8 | - | 5dBi, 6dBi, 7dBi, 7.5dBi, 8.5dBi | 50 W | Cable - 300mm | N Type Female | - | - | - | Wall Mount | 2.360" (59.94mm) | 5G, CDMA, GSM, LTE, LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M |
|
AP-M2M-LP-CC-Q-S22-BL-6ANTENNA PLUS M2M LOW PROFILE ANT |
1,346 | 84.37 |
|
Datasheet |
* | Bag | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2J2202BA-B17HMINI-BAYONET 2IN1 2.4/5.0/WIFI/L |
4,595 | 0.00 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.422GHz | 2.41GHz ~ 2.49GHz, 4.92GHz ~ 5.925GHz | Whip, Straight | 2 | 1.3, 1.4 | -20.3dB, -17.1dB | 2.5dBi, 1.5dBi | 25 W | Cable - 3m | SMA Male | IP67 | - | - | Wall Mount | 5.315" (135.00mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
|
2J4A02PBCONDOR 3IN1 2.4/5.0/6.0GHZ MIMO |
1,131 | 0.00 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.422GHz, 6.525GHz | 2.41GHz ~ 2.49GHz, 4.92GHz ~ 5.925GHz, 5.925GHz ~ 7.125GHz | Module | 3 | 1.7, 1.9, 2.6 | -15.7dB, -11.1dB, -10.2dB | 2.4dBi, 4.6dBi, 5.1dBi | 25 W | Cable - 3m | RP-SMA Male | IP67, IP69 | - | - | Adhesive | 0.787" (20.00mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
|
2J4A41PCFACONDOR 3IN1 4G/3G/2G MIMO GNSS/B |
2,868 | 0.00 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation | Wide Band | 829MHz, 1.561GHz, 1.575GHz, 1.604GHz, 1.94GHz, 2.6GHz | 698MHz ~ 960MHz, 1.598GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Module | 6 | 1.4, 1.5, 2, 2.1 | -19.8dB, -15dB, 13.7dB, -10.1dB | 2.2dBi, 28dBi, 28dBi, 28dBi, 4.4dBi, 2.9dBi | 25 W | Cable - 3m, Filter | SMA Male | IP67, IP69 | - | - | Adhesive | 0.787" (20.00mm) | 2G, 3G, 4G, BeiDou, Galileo, GLONASS, GPS, LTE, QZSS |
|
|
2J4A86PCFCCONDOR 4IN1 5GNR/4G/3G/2G MIMO W |
1,951 | 0.00 |
|
Datasheet |
- | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

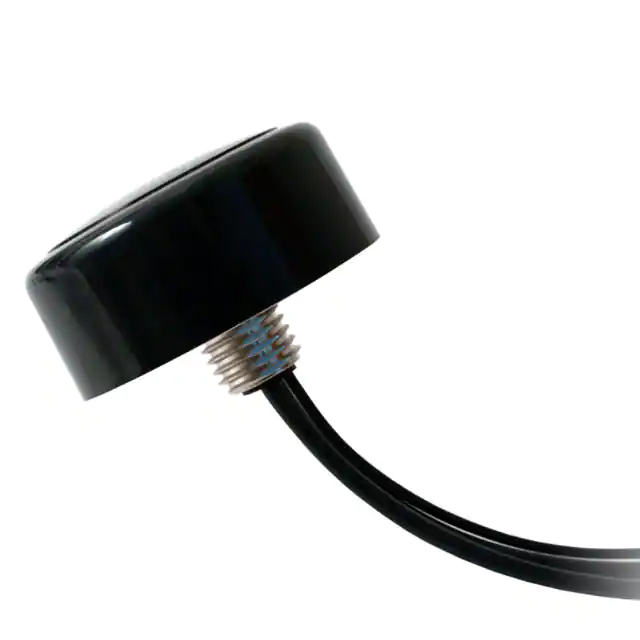

H1S600000006AU3-IN-1 COMBO EXTERNAL ANTENNA |
3,531 | 93.16 |
|
- |
- | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 761MHz, 892MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.4GHz, 2.495GHz, 3.55GHz, 5.8GHz | 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz | Module | 14 | 2, 4.5, 3, 3.5, 2.5 | -4dB, -6dB, -5.5dB, -10dB, -8dB | 1.06dBi, 2.8dBi, 1.21dBi, 1.21dBi, 1.44dBi, 8.21dBi, 8.72dBi, 8.72dBi, 8.14dBi, 7.27dBi | - | Cable - 300mm | SMA Male | IPX7 | - | - | Screw Mount | 1.492" (37.90mm) | 5G, DCS, Beidou, Galileo, GLONASS, GNSS, GPS, GSM, LTE, PCS, UMTS, Wi-Fi |
|
|
2J7A85BCMEDUSA 4IN1 5GNR/4G/3G/2G WIFI6 |
1,400 | 0.00 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, Cellular, General ISM, WiFi | Wide Band | 788.5MHz, 2.058GHz, 2.45GHz, 4.15GHz, 5.422GHz, 5.537GHz, 5.625GHz | 617MHz ~ 960MHz, 1.427GHz ~ 2.69GHz, 2.41GHz ~ 2.49GHz, 3.3GHz ~ 5GHz, 4.92GHz ~ 5.925GHz, 5.15GHz ~ 5.925GHz, 5.925GHz ~ 7.125GHz | Dome | 7 | 1.6, 1.7, 1.8, 1.9, 2, 2.7 | -13.6dB, -13.5dB, -13.3dB, -12.9dB, -11.9dB, -10.4dB, -7.7dB | 1.5dBi, 3.6dBi, 5.6dBi, 3.5dBi, 5.5dBi, 3.8dBi, 3.8dBi | 35 W | Cable - 3m | RP-SMA Male, SMA Male | IK09, IP67, IP69 | - | - | Screw Mount | 3.543" (90.00mm) | 2G, 3G, 4G, 5G, Bluetooth, Cat-M, CBRS, IoT, LPWA, LTE, NB-IoT, NR, Wi-Fi, Zigbee™ |
|
|
2J4A50PCFCONDOR 3IN1 4G/3G/2G WIFI GNSS/B |
2,328 | 0.00 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, Cellular, General ISM, Navigation, WiFi | Wide Band | 829MHz, 1.561GHz, 1.575GHz, 1.604GHz, 1.94GHz, 2.45GHz, 2.6GHz, 5.422GHz | 698MHz ~ 960MHz, 1.598GHz ~ 1.606GHz, 1.71GHz ~ 2.17GHz, 2.41GHz ~ 2.49GHz, 2.5GHz ~ 2.7GHz, 4.92GHz ~ 5.925GHz | Module | 8 | 1.3, 1.4, 1.7, 1.9, 2 | -17.9dB, -15dB, -12.4dB, -11.4dB, -10dB, -9.4dB | 2.4dBi, 28dBi, 28dBi, 28dBi, 3.9dBi, 2.4dBi, 1.9dBi, 2.5dBi | 25 W | Cable - 3m, Filter | SMA Male | IP67, IP69 | - | - | Adhesive | 0.787" (20.00mm) | 2G, 3G, 4G, BeiDou, Bluetooth, Galileo, GLONASS, GNSS, GPS, ISM, LTE, QZSS, Wi-Fi, Zigbee™ |
|
|
2J4A47PCCONDOR 4IN1 4G/3G/2G MIMO 2.4/5. |
4,148 | 0.00 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, Cellular, General ISM, WiFi | Wide Band | 829MHz, 1.94GHz, 2.45GHz, 2.6GHz, 5.422GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.41GHz ~ 2.49GHz, 2.5GHz ~ 2.7GHz, 4.92GHz ~ 5.925GHz | Module | 5 | 1.2, 1.5, 1.6, 1.8, 2 | 24dB, -18.5dB, -18dB, -14.6dB, -11.7dB | 2dBi, 4dBi, 3.7dBi, 3.1dBi, 3.6dBi | 25 W | Cable - 3m | RP-SMA Male | IP67, IP69 | - | - | Adhesive | 0.787" (20.00mm) | 2G, 3G, 4G, Bluetooth, Cat-M, CBRS, IoT, LPWA, LTE, NB-IoT, Wi-Fi, Zigbee™ |
|
|
2J4A02PCCONDOR 4IN1 2.4/5.0/6.0GHZ MIMO |
1,890 | 0.00 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.422GHz, 6.525GHz | 2.41GHz ~ 2.49GHz, 4.92GHz ~ 5.925GHz, 5.925GHz ~ 7.125GHz | Module | 3 | 1.7, 1.9, 2.6 | -15.7dB, -11.1dB, -10.2dB | 4.5dBi, 5.2dBi, 5.2dBi | 25 W | Cable - 3m | RP-SMA Male | IP67, IP69 | - | - | Adhesive | 0.787" (20.00mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|

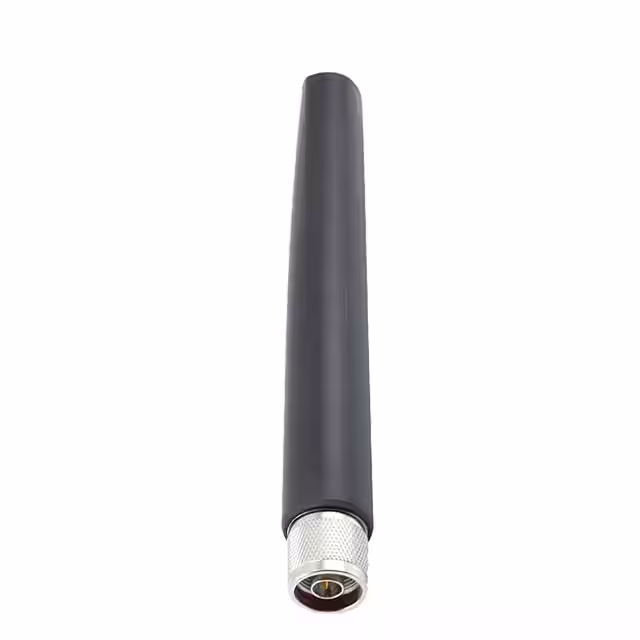

PE51OM10283 DBI PTBL BLK OM, .6-2.7 GHZ NM |
1,634 | 85.99 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 788.5MHz, 2.2GHz | 617MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Whip, Straight | 2 | 3 | - | 2dBi, 3dBi | - | - | N Type Male | IP67 | - | - | Connector Mount | 7.360" (186.94mm) | 4G, 5G, Bluetooth, loT, Zigbee™, Z-Wave |
|
|
AN_MASTER_CUBIC_2C-LP5G 2X2 MIMO ANTENNA SCREW AND 3M |
1,426 | 0.00 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

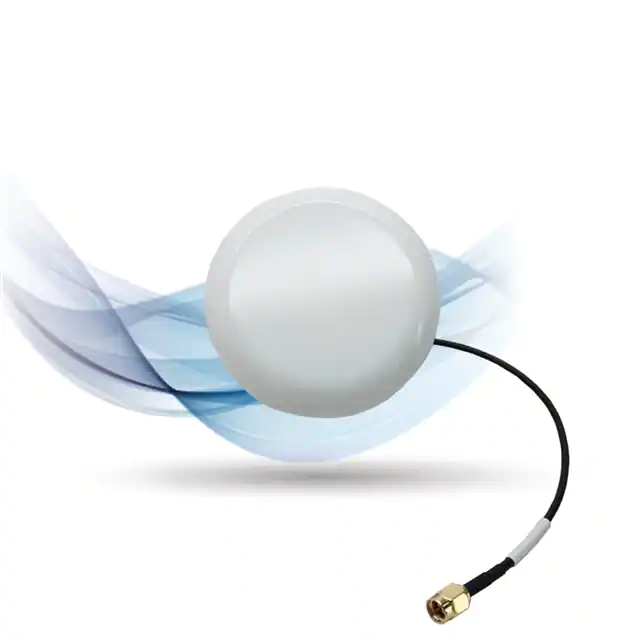

AP-AMBIT-G-Q-S2 BL-15ANTENNA PLUS AMBIT ANTENNA |
4,695 | 95.05 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.58GHz | 1.55GHz ~ 1.61GHz | Dome | 1 | - | - | 24dBi | - | Cable - 4.572m | SMA Male | IP66 | - | - | Panel Mount | 1.232" (31.30mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
|
PE51OM10032.4/5.8 GHz 7/8 dBi Dual Band Om |
2,794 | 0.00 |
|
Datasheet |
- | Retail Package | Active | Cellular, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.38GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz | Whip, Straight | 2 | 2.5 | - | 7dBi, 8dBi | 50 W | - | N Type Female | - | - | - | Bracket Mount | 19.500" (495.30mm) | 802.11a/b/g/-c, Wi-Fi, WiMax, WLAN |
|
|
33-2712-07ANT |
2,436 | 94.16 |
|
Datasheet |
Accutenna® | Bulk | Active | Cellular, Navigation | UHF (1GHz ~ 2GHz) | 1.5815GHz | 1.557GHz ~ 1.606GHz | Dome | 1 | 1.8 | - | 4.75dBic | - | LNA, Filter | SMA Male | IP67 | - | - | Magnetic | 0.591" (15.00mm) | Beidou, Galileo, GLONASS, GPS |
