RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MEA-1621-SM/189-00060-01External Iridium Antenna screw M |
2,185 | 0.00 |
|
Datasheet |
- | Tape & Box (TB) | Active | General ISM | UHF (1GHz ~ 2GHz) | 1.621GHz | 1.616GHz ~ 1.627GHz | Module | 1 | 1.6 | -12.5dB | 4.5dBi | - | Cable - 2m | SMA Male | IP67, IP69K | - | - | Screw | 1.008" (25.60mm) | Iridium™ |
|
|
PEANMOB1002-RTP617-7125 MHz, 2-5 dBi Gain, Omni |
4,654 | 0.00 |
|
Datasheet |
- | Retail Package | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 3.871GHz | 617MHz ~ 7.125GHz | Whip, Straight | 1 | 1.5 | - | 5dBi | 100 W | Cable - 3.05m | RP-TNC | - | - | - | Magnetic | 4.000" (101.60mm) | Bluetooth, IoT, Wi-Fi, Zigbee™ |
|
|
PEANMOB1001-RTP617-7125 MHz, 2-5 dBi Gain, Omni |
2,290 | 0.00 |
|
Datasheet |
- | Retail Package | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 3.871GHz | 617MHz ~ 7.125GHz | Whip, Straight | 1 | 1.5 | - | 5dBi | 100 W | Cable - 3.05m | RP-TNC | - | - | - | Magnetic | 4.000" (101.60mm) | Bluetooth, IoT, Wi-Fi, Zigbee™ |
|
|
PEANLP1016806-2700 MHZ, 9 to 10 dBi gain, |
2,079 | 0.00 |
|
Datasheet |
- | Retail Package | Active | Cellular, WiFi | Wide Band | 1.753GHz | 806MHz ~ 2.7GHz | Panel | 1 | 2 | - | 10dBi | 100 W | Cable - 200mm | N Type Female | - | - | - | Bracket Mount | 11.600" (294.64mm) | 802.11a /b/g/n/ac/ad/ah/ax, GSM, IoT, LoRa, LPWAN, LTE-M, M2M, NB-IoT, Wi-Fi, WLAN |
|
|
M1621HCT-EXT4/100-00044-04Helical Iridium Certified Passiv |
4,918 | 0.00 |
|
- |
- | Tape & Box (TB) | Active | General ISM | UHF (1GHz ~ 2GHz) | 1.621GHz | 1.616GHz ~ 1.626GHz | Whip, Straight | 1 | 1.5 | - | 1dBic | - | Cable - 1.5m | MCX, SMA, SMB, TNC | - | - | - | Magnetic | 2.055" (52.20mm) | Iridium™ |
|
|
PEANKIT1018Helium Hotspot PRO Antenna Upgra |
1,776 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | UHF (300MHz ~ 1GHz) | 914MHz | 900MHz ~ 928MHz | Whip, Straight | 1 | 1.5 | - | 8dBi | 100 W | Cable - 3.05m | N Type Female | - | - | - | Bracket Mount | 62.992" (1600.00mm) | ISM, LoRa, LPWAN |
|
|
PE51FP10042.4/4.9-5.8 GHz Four Element, Du |
4,232 | 0.00 |
|
Datasheet |
- | Retail Package | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.375GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz | Panel | 2 | 2 | - | 13dBi, 15dBi | 25 W | - | N Type Female | - | - | - | Bracket Mount | 1.000" (25.40mm) | 802.11a/b/g/n/ac, WLAN |
|
|
PE51056Portable Antenna Operates From 9 |
3,943 | 0.00 |
|
Datasheet |
- | Retail Package | Active | Cellular | UHF (300MHz ~ 1GHz) | 930MHz | 900MHz ~ 960MHz | Whip, Right Angle | 1 | 1.5 | - | 1dBi | 50 W | - | SMA Male | IP65 | - | - | Connector Mount | 2.756" (70.00mm) | GSM |
|
|
PEANMOB1008-TM136-174 MHz, 3.5 dBi Gain, Omni- |
1,455 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | VHF (f < 300MHz) | 155MHz | 136MHz ~ 174MHz | Whip, Straight | 1 | 1.5 | - | 5.5dBi | 50 W | Cable - 3.05m | TNC Male | - | - | - | Magnetic | 53.386" (1356.00mm) | General Purpose |
|
|
PEANKIT1019Helium Hotspot PRO Antenna Upgra |
1,351 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | UHF (300MHz ~ 1GHz) | 914MHz | 900MHz ~ 928MHz | Whip, Straight | 1 | 1.5 | - | 8dBi | 100 W | - | N Type Female | - | - | - | Bracket Mount | 62.992" (1600.00mm) | IoT, ISM, LoRa, LoRaWAN, LPWAN, M2M |
|
|
MEA-5GG-SM/100-00236-015GNR AND GNSS SCREW MOUNT |
1,035 | 0.00 |
|
Datasheet |
- | Tape & Box (TB) | Active | Cellular, Navigation | Wide Band | 7.885MHz, 1.575GHz, 1.602GHz, 2.058GHz, 4.15GHz, 5.537GHz | 617MHz ~ 960MHz, 1.427GHz ~ 2.69GHz, 1.598GHz ~ 1.606GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Module | 6 | 1.7, 2.1, 2.3, 3.3 | -14.2dB, -11.2dB, 9.7dB, 7.4dB | -1.7dBi, 28dBi, 28dBi, -1.7dBi, -1.3dBi, 0.6dBi | 25 W | Cable - 2m | SMA Male | IP67, IP69K | - | - | Screw Mount | 1.240" (31.50mm) | Beidou, Galileo, GLONASS, GNSS, GPS, LTE, QZSS |
|
|
PEANMOB1001-TM617-7125 MHz, 2-5 dBi Gain, Omni |
3,798 | 0.00 |
|
Datasheet |
- | Retail Package | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 3.871GHz | 617MHz ~ 7.125GHz | Whip, Straight | 1 | 1.5 | - | 5dBi | 100 W | Cable - 3.05m | TNC Male | - | - | - | Magnetic | 4.000" (101.60mm) | Bluetooth, IoT, Wi-Fi, Zigbee™ |
|
|
MEA-5IG-MA/100-00206-015GNR, Iridium and GNSS Magnetic/ |
1,387 | 0.00 |
|
Datasheet |
- | Tape & Box (TB) | Active | Navigation | Wide Band | 788.5MHz, 1.575GHz, 1.602GHz, 1.621GHz, 2.058GHz, 4.15GHz, 5.537GHz | 617MHz ~ 960MHz, 1.427GHz ~ 2.69GHz, 1.598GHz ~ 1.606GHz, 1.616GHz ~ 1.627GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Module | 7 | 1.4, 1.6, 2.4, 2.5, 2.6, 2.7 | -9.2dB, -8.9dB, -8.2dB, -7.5dB, 12.5dB, 15dB | 2.3dBi, 28dBi, 28dBi, 5.2dBi, 5.1dBi, 2.6dBi, 2.7dBi | 25 W | Cable - 2m, Filter | SMA Male | IP67, IP69 | - | - | Adhesive, Magnetic | 1.063" (27.00mm) | Galileo, GLONASS, GNSS, GPS, Iridium™ |
|
|
PEANMOB1003-NF136-940MHz, 4.5 dBi Gain, Omni-d |
4,489 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 538MHz | 136MHz ~ 940MHz | Whip, Straight | 1 | 1.5 | - | 4.5dBi | 30 W | Cable - 3.05m | N Type Female | - | - | - | Magnetic | 4.000" (101.60mm) | General Purpose |
|
|
PEANMOB1002-TM617-7125 MHz, 2-5 dBi Gain, Omni |
1,626 | 0.00 |
|
Datasheet |
- | Retail Package | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 3.871GHz | 617MHz ~ 7.125GHz | Whip, Straight | 1 | 1.5 | - | 5dBi | 100 W | Cable - 3.05m | TNC Male | - | - | - | Magnetic | 4.000" (101.60mm) | Bluetooth, IoT, Wi-Fi, Zigbee™ |
|

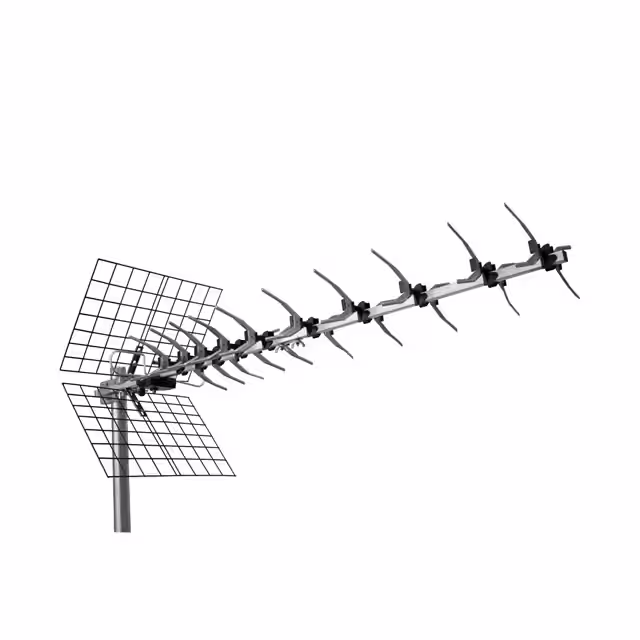

ANT2104Digiwave UHF Outdoor TV Antenna |
4,527 | 78.99 |
|
- |
- | Box | Active | - | UHF (300MHz ~ 1GHz) | 666MHz | 470MHz ~ 862MHz | Yagi, 47-Element | 1 | - | - | 11dBi, 15dBi | - | - | VHF, UHF | - | - | - | Bracket Mount | 0.050" (1.26mm) | - |
|
PE51MP10032DBI VEHICULAR 144-174MHZ NMO |
2,106 | 121.99 |
|
Datasheet |
- | Bag | Active | - | VHF (f < 300MHz) | 159MHz | 144MHz ~ 174MHz | Whip, Straight | 1 | 2 | - | 2dBi | 150 W | - | NMO | - | - | - | Magnetic | 19.330" (490.98mm) | General Purpose |
|
|
PEANMOB1003-RSP136-940MHz, 4.5 dBi Gain, Omni-d |
4,112 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 538MHz | 136MHz ~ 940MHz | Whip, Straight | 1 | 1.5 | - | 4.5dBi | 30 W | Cable - 3.05m | RP-SMA | - | - | - | Magnetic | 3.700" (93.98mm) | General Purpose |
|
|
PE51OM1052ANTENNA 3.3-4.2GHz, 11 DBI, N |
1,829 | 0.00 |
|
Datasheet |
- | Case | Active | Cellular | Wide Band | 3.75GHz | 3.3GHz ~ 4.2GHz | Whip, Straight | 1 | 2 | - | 11dBi | 50 W | - | N Type Female | IP67 | - | - | Connector Mount | 1.008" (25.60mm) | General Purpose |
|
|
BS1850XL3Hi-Pwr Cellular Base Station Ant |
3,735 | 0.00 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (1GHz ~ 2GHz) | 1.92GHz | 1.85GHz ~ 1.99GHz | Whip, Straight | 1 | - | - | 5dBi | 250 W | - | N Type Female | - | - | - | Bracket Mount | 18.000" (457.20mm) | General Purpose |
