RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEWAN1035WR-19 Waveguide Conical Gain Hor |
4,552 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 54GHz | 50GHz ~ 58GHz | Horn | 1 | 1.15 | - | 20dBi | - | - | - | - | - | - | Waveguide Mount | 2.500" (63.50mm) | General Purpose |
|
|
PEWAN1021WR-8 Waveguide Standard Gain Hor |
4,655 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 115GHz | 90GHz ~ 140GHz | Horn | 1 | 1.15 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 1.000" (25.40mm) | General Purpose |
|
|
PE9853B-15WR-51 Waveguide Standard Gain Ho |
4,881 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 18.5GHz | 15GHz ~ 22GHz | Horn | 1 | 1.5 | - | 15dBi | - | - | - | - | - | - | Waveguide Mount | 2.810" (71.37mm) | General Purpose |
|
|
PEANFP10432400-2500, 5150-5850, 6000-7125 |
1,011 | 0.00 |
|
Datasheet |
- | Retail Package | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 4.762GHz | 2.4GHz ~ 7.125GHz | Panel | 1 | 2 | - | 11dBi | 50 W | Cable - 914.4mm | RP-SMA Male | - | - | - | Bracket Mount | 2.560" (65.02mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
|
PEANFP10452400-2500, 5150-5850, 6000-7125 |
2,889 | 0.00 |
|
Datasheet |
- | Retail Package | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 4.762GHz | 2.4GHz ~ 7.125GHz | Panel | 1 | 2 | - | 11dBi | 50 W | Cable - 914.4mm | N Type Female | - | - | - | Bracket Mount | 2.560" (65.02mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
|
PEANFP10442400-2500, 5150-5850, 6000-7125 |
1,060 | 0.00 |
|
Datasheet |
- | Retail Package | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 4.762GHz | 2.4GHz ~ 7.125GHz | Panel | 1 | 2 | - | 11dBi | 50 W | Cable - 914.4mm | N Type Male | - | - | - | Bracket Mount | 2.560" (65.02mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
LTEWBBSEML1SM6FWIDE BAND MM OMNI ANTENNA |
2,274 | 702.83 |
|
Datasheet |
- | Box | Active | Cellular, WiFi | Wide Band | - | 694MHz ~ 3GHz | Dome | 1 | 2 | - | 3dB | - | - | SMA Male | - | - | - | Magnetic | 1.600" (40.64mm) | 3G, 4G, 5G, LTE, Wi-Fi |
|
|
LTEWBBSEML2SM6FWIDE BAND MM OMNI ANTENNA |
4,208 | 702.83 |
|
Datasheet |
- | Box | Active | Cellular, WiFi | Wide Band | - | 694MHz ~ 3GHz | Dome | 1 | 2 | - | 3dB | - | Cable - 1.8m | SMA Male | - | - | - | Magnetic | 1.600" (40.64mm) | 3G, 4G, 5G, LTE, Wi-Fi |
|
|
PE51PD10124900 MHz to 7125 MHz, 3-feet mes |
3,635 | 0.00 |
|
Datasheet |
- | Retail Package | Active | Cellular, WiFi | SHF (f > 4GHz) | 6.0375GHz | 4.95GHz ~ 7.125GHz | Dish | 1 | 2.5 | - | 34dBi | 50 W | - | RP-SMA Female (2) | - | - | - | Bracket Mount | 6.610" (167.89mm) | 5G, Wi-Fi |
|
|
PE51PD10114900 MHz to 7125 MHz, 3-feet Par |
4,619 | 0.00 |
|
Datasheet |
- | Retail Package | Active | Cellular, WiFi | SHF (f > 4GHz) | 6.0375GHz | 4.95GHz ~ 7.125GHz | Dish | 1 | 2.5 | - | 34dBi | 50 W | - | RP-SMA Female (2) | - | - | - | Bracket Mount | 6.680" (169.67mm) | 5G, Wi-Fi |
|
|
PEWAN1040WR-15 Waveguide Conical Gain Hor |
4,133 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 63GHz | 58GHz ~ 68GHz | Horn | 1 | 1.15 | - | 25dBi | - | - | - | - | - | - | Waveguide Mount | 5.500" (139.70mm) | General Purpose |
|
|
PEWAN1056WR-10 Waveguide Conical Gain Hor |
1,807 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 82GHz | 77GHz ~ 87GHz | Horn | 1 | 1.15 | - | 25dBi | - | - | - | - | - | - | Waveguide Mount | 2.910" (73.91mm) | General Purpose |
|
|
PEWAN1060WR-8 Waveguide Conical Gain Horn |
3,637 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 106GHz | 100GHz ~ 112GHz | Horn | 1 | - | - | 25dBi | - | - | - | - | - | - | Waveguide Mount | 3.500" (88.90mm) | General Purpose |
|
|
PEANGPS1004ANT 1.16-1.62GHz, 47.5 DBI, TNC |
2,686 | 0.00 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.232GHz, 1.57GHz | 1.164GHz ~ 1.3GHz, 1.525GHz ~ 1.615GHz | Dome | 3 | 2 | - | 47.5dBi, 47.5dBi | - | - | TNC Female | IP67 | - | - | Screw | 2.440" (61.98mm) | Galileo, GLONASS, GNSS, GPS |
|
|
PE9881A-20WR-15 Waveguide Horn Antenna Ope |
3,762 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 62.5GHz | 50GHz ~ 75GHz | Horn | 1 | - | - | 20dBi | - | - | - | - | - | - | Waveguide Mount | 1.811" (46.00mm) | General Purpose |
|
|
PEWAN1061WR-6 Waveguide Conical Gain Horn |
2,902 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 106GHz | 100GHz ~ 112GHz | Horn | 1 | 1.15 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 1.000" (25.40mm) | General Purpose |
|

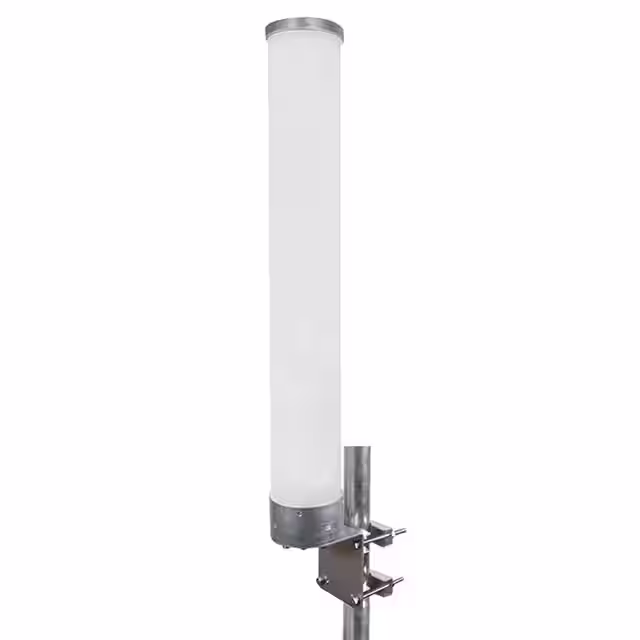

PE51OM1049ANT 3.3-3.8 GHZ OMNI, 12 DBI, N |
4,127 | 740.00 |
|
Datasheet |
- | Bulk | Active | Cellular, WiFi | UHF (2GHz ~ 3GHz) | 3.5GHz | 3.3GHz ~ 3.8GHz | Whip, Straight | 1 | 2 | - | 12dBi | 50 W | - | - | - | - | - | Pole Mount | - | - |
|
|
PEWAN1062WR-6 Waveguide Conical Gain Horn |
2,225 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 106GHz | 100GHz ~ 112GHz | Horn | 1 | 1.15 | - | 15dBi | - | - | - | - | - | - | Waveguide Mount | 1.000" (25.40mm) | General Purpose |
|
|
PE9881-34WR-15 Waveguide Horn Antenna Ope |
3,673 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 61.75GHz | 56.5GHz ~ 67GHz | Horn | 1 | - | - | 34dBi | - | - | - | - | - | - | Waveguide Mount | 5.539" (140.69mm) | General Purpose |
|
|
PEWAN1063WR-6 Waveguide Conical Gain Horn |
1,420 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 106GHz | 100GHz ~ 112GHz | Horn | 1 | 1.15 | - | 20dBi | - | - | - | - | - | - | Waveguide Mount | 1.500" (38.10mm) | General Purpose |
