RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE9856B-10WR-90 Waveguide Standard Gain Ho |
2,932 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 10.3GHz | 8.2GHz ~ 12.4GHz | Horn | 1 | 1.5 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 2.010" (51.05mm) | General Purpose |
|

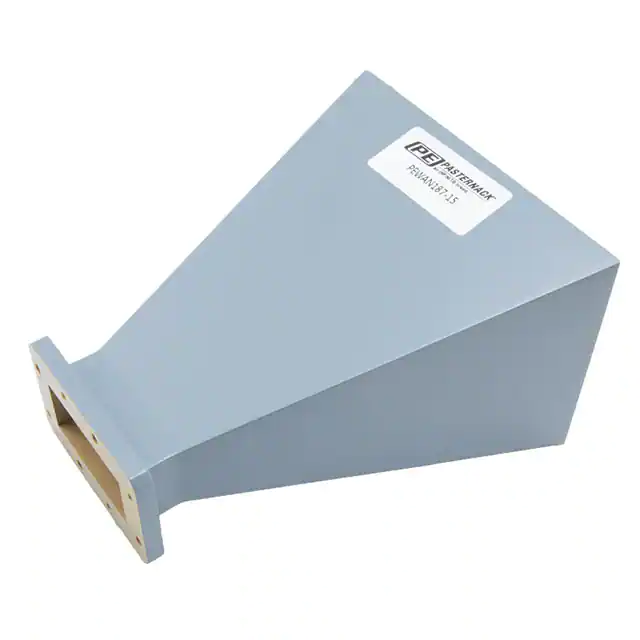

PEWAN187-15WR187 GAIN HORN 3.95-5.85GHZ 15D |
3,841 | 1180.00 |
|
Datasheet |
- | Bulk | Active | Waveguide | C Band (4GHz ~ 8GHz) | 4.9GHz | 3.95GHz ~ 5.85GHz | Horn | 1 | 1.3 | - | 15dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
PEWAN034-20WR34 GAIN HORN 22-33GHZ 20DBI |
2,750 | 1090.00 |
|
Datasheet |
- | Bulk | Active | Waveguide | K-Ka Band (18GHz ~ 40GHz) | 27.4GHz | 22GHz ~ 33GHz | Horn | 1 | 1.3 | - | 20dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
|
PEWAN102-20NFWR102 GAIN HRN 7-11GHZ 20DBI |
4,943 | 0.00 |
|
Datasheet |
- | Tape & Box (TB) | Active | - | Wide Band | 9GHz | 7GHz ~ 11GHz | Horn | 1 | 1.3 | - | 20dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Waveguide Mount | 3.701" (94.01mm) | General Purpose |
|
|
PEWAN102-20ELSFWR102 GAIN HRN 7-11GHZ 20DBI |
3,464 | 0.00 |
|
Datasheet |
- | Tape & Box (TB) | Active | - | Wide Band | 9GHz | 7GHz ~ 11GHz | Horn | 1 | 1.4 | - | 20dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 3.701" (94.01mm) | General Purpose |
|
|
PEWAN075-15SFWR75 GAIN HRN 10-15GHZ 15DBI |
1,492 | 0.00 |
|
Datasheet |
- | Tape & Box (TB) | Active | - | Wide Band | 12.5GHz | 10GHz ~ 15GHz | Horn | 1 | 1.25 | - | 15dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 1.122" (28.50mm) | General Purpose |
|
|
PEWAN102-20SMWR102 GAIN HRN 7-11GHZ 20DBI |
4,070 | 0.00 |
|
Datasheet |
- | Tape & Box (TB) | Active | - | Wide Band | 9GHz | 7GHz ~ 11GHz | Horn | 1 | 1.3 | - | 20dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Male | - | - | - | Waveguide Mount | 3.701" (94.01mm) | General Purpose |
|
|
PEWAN102-20NMWR102 GAIN HRN 7-11GHZ 20DBI |
2,875 | 0.00 |
|
Datasheet |
- | Tape & Box (TB) | Active | Waveguide | Wide Band | 9GHz | 7GHz ~ 11GHz | Horn | 1 | 1.3 | - | 20dBi | - | - | N Type Male | - | - | - | Waveguide Mount | 3.701" (94.01mm) | - |
|
|
PEWAN1068WR-5 Waveguide Conical Gain Horn |
3,240 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 180GHz | 140GHz ~ 220GHz | Horn | 1 | - | - | 25dBi | - | - | - | - | - | - | Waveguide Mount | 1.738" (44.14mm) | General Purpose |
|
|
PE9856B-15WR-90 Waveguide Standard Gain Ho |
1,116 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 10.3GHz | 8.2GHz ~ 12.4GHz | Horn | 1 | 1.5 | - | 15dBi | - | - | - | - | - | - | Waveguide Mount | 5.460" (138.68mm) | General Purpose |
|
|
PEWAN075-20SFWR75 GAIN HRN 10-15GHZ 20DBI |
1,033 | 0.00 |
|
Datasheet |
- | Tape & Box (TB) | Active | - | Wide Band | 12.5GHz | 10GHz ~ 15GHz | Horn | 1 | 1.25 | - | 20dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 2.721" (69.11mm) | General Purpose |
|
|
PEWAN075-20NFWR75 GAIN HRN 10-15GHZ 20DBI |
4,076 | 0.00 |
|
Datasheet |
- | Tape & Box (TB) | Active | Waveguide | Wide Band | 12.5GHz | 10GHz ~ 15GHz | Horn | 1 | 1.3 | - | 20dBi | - | - | N Type Female | - | - | - | Waveguide Mount | 2.721" (69.11mm) | - |
|
|
PEWAN112-20NFWR112 GAIN HRN 7.05-10GHZ 20DBI |
2,453 | 0.00 |
|
Datasheet |
- | Tape & Box (TB) | Active | - | Wide Band | 8.525GHz | 7.05GHz ~ 10GHz | Horn | 1 | 1.3 | - | 20dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Waveguide Mount | 4.071" (103.40mm) | General Purpose |
|
|
PEWAN159-15NFWR159 GAIN HRN 4.9-7.05GHZ 15DBI |
3,518 | 0.00 |
|
Datasheet |
- | Tape & Box (TB) | Active | - | Wide Band | 5.975GHz | 4.9GHz ~ 7.05GHz | Horn | 1 | 1.3 | - | 15dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Waveguide Mount | 3.101" (78.77mm) | General Purpose |
|
|
PEWAN112-20SFWR112 GAIN HRN 7.05-10GHZ 20DBI |
1,164 | 0.00 |
|
Datasheet |
- | Tape & Box (TB) | Active | - | Wide Band | 8.525GHz | 7.05GHz ~ 10GHz | Horn | 1 | 1.3 | - | 20dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 4.071" (103.40mm) | General Purpose |
|
|
PEWAN090-20SFWR42 GAIN HRN 8.2-12.4GHZ 20DBI |
3,076 | 0.00 |
|
Datasheet |
- | Tape & Box (TB) | Active | Waveguide | Wide Band | 10.3GHz | 8.2GHz ~ 12.4GHz | Horn | 1 | 1.25 | - | 20dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 3.265" (82.93mm) | General Purpose |
|

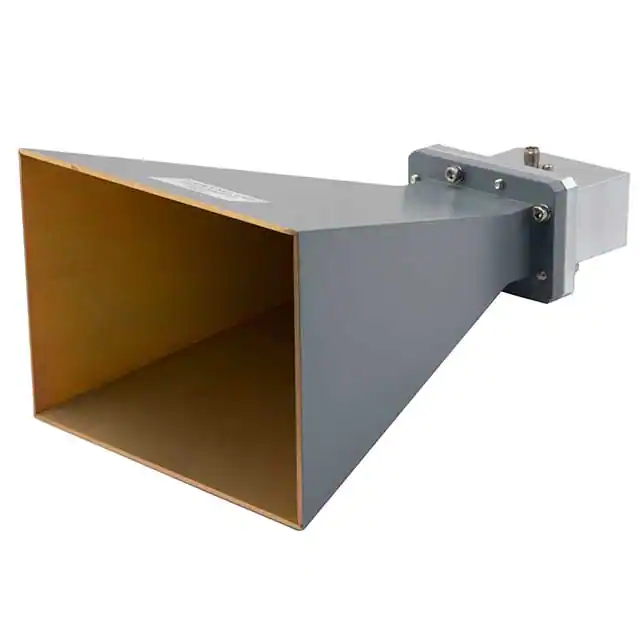

PEWAN187-15SFWR187 GAIN HORN 3.95-5.85GHZ 15D |
4,544 | 1170.00 |
|
Datasheet |
- | Case | Active | - | UHF (3GHz ~ 4GHz), SHF (f > 4GHz) | 4.9GHz | 3.95GHz ~ 5.85GHz | Horn | 1 | 1.3 | - | 15dBi | - | - | SMA Female | - | - | - | Waveguide Flange Mount | 8.198" (208.23mm) | - |
|
|
PEWAN137-20SFWR137 GAIN HRN 5.85-8.2GHZ 20DBI |
3,967 | 0.00 |
|
Datasheet |
- | Case | Active | WiFi | Wide Band | 7.025GHz | 5.85GHz ~ 8.2GHz | Horn | 1 | 1.3 | - | 20dBi | - | - | SMA Female | - | - | - | Waveguide Mount | 4.965" (126.10mm) | General Purpose |
|
|
PEWAN090-20NFWR42 GAIN HRN 8.2-12.4GHZ 20DBI |
1,545 | 0.00 |
|
Datasheet |
- | Tape & Box (TB) | Active | Waveguide | Wide Band | 10.3GHz | 8.2GHz ~ 12.4GHz | Horn | 1 | 1.25 | - | 20dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Waveguide Mount | 3.265" (82.93mm) | General Purpose |
|
|
PE9859B-10-CPRGWR-137 Waveguide Standard Gain H |
4,196 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 7.025GHz | 5.85GHz ~ 8.2GHz | Horn | 1 | 1.5 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 3.020" (76.71mm) | General Purpose |
