RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

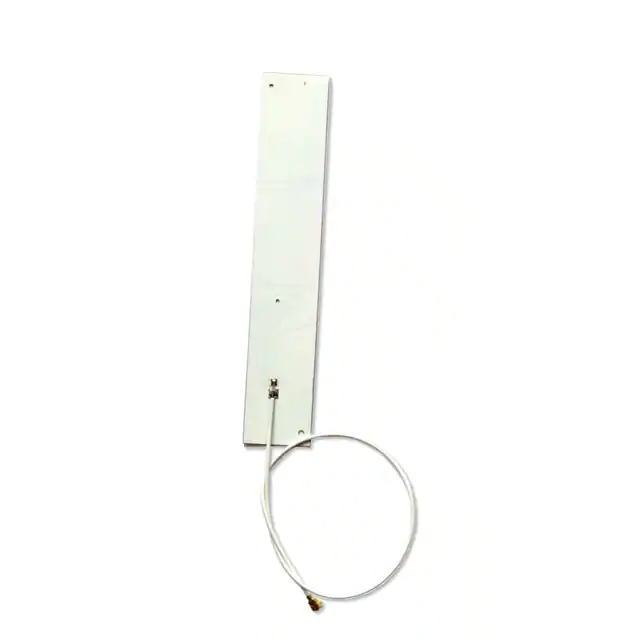

ECHO36/0.1M/IPEX/S/S/262G/3G/4G EMBEDDED SMALL FPC ANTE |
1,157 | 11.18 |
|
Datasheet |
Echo 36 | Bulk | Active | Cellular, WiFi | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 829MHz, 2.205GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Flat Patch | 2 | 3 | - | 3dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.008" (0.20mm) | 2G, 3G, 4G, GSM, LTE, UMTS, Wi-Fi, WLAN |
|
ECHO14/0.2M/UFL/S/S/15RF ANT 800/868MHZ PCB TRACE U.FL |
1,711 | 11.50 |
|
Datasheet |
ECHO 14 | Bulk | Active | Cellular | Wide Band | 800MHz, 868MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.6GHz | - | PCB Trace | 7 | 3.2 | - | 0dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.039" (1.00mm) | GPRS, GSM, UMTS |
|
ECHO41/0.1M/IPEX/S/S/172G/3G/4G EMBEDDED SMALL FPC ANTE |
4,905 | 12.49 |
|
Datasheet |
ECHO 41 | Bulk | Active | Cellular | Wide Band | 825MHz, 1.94GHz, 2.6GHz | 690MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Flat Patch | 3 | 2.7 | - | 2.7dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.012" (0.30mm) | 2G, 3G, 4G, GSM, LTE, UMTS |
|

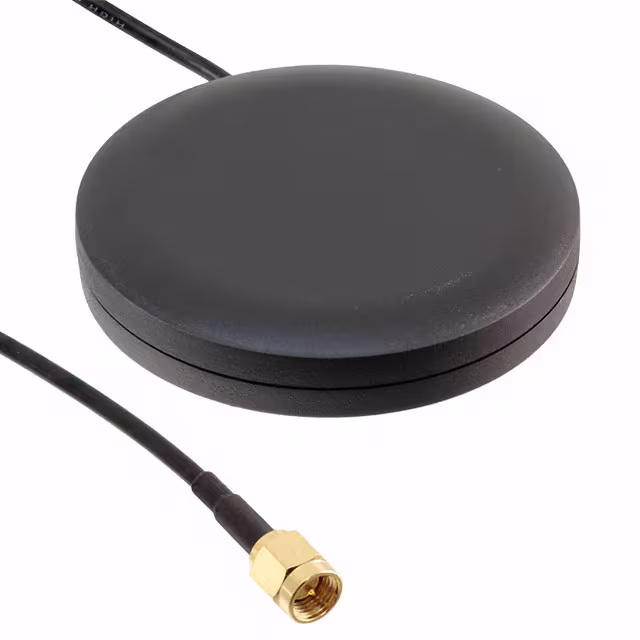

ALPHA15/2.5M/SMAM/S/S/26RF ANT 850/900MHZ PUCK SMA MALE |
4,946 | 16.70 |
|
Datasheet |
ALPHA 15 | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Puck | 5 | 2.5 | - | 2dBi | - | - | SMA Male | - | - | - | Adhesive | 0.571" (14.50mm) | GPRS, GSM, UMTS |
|

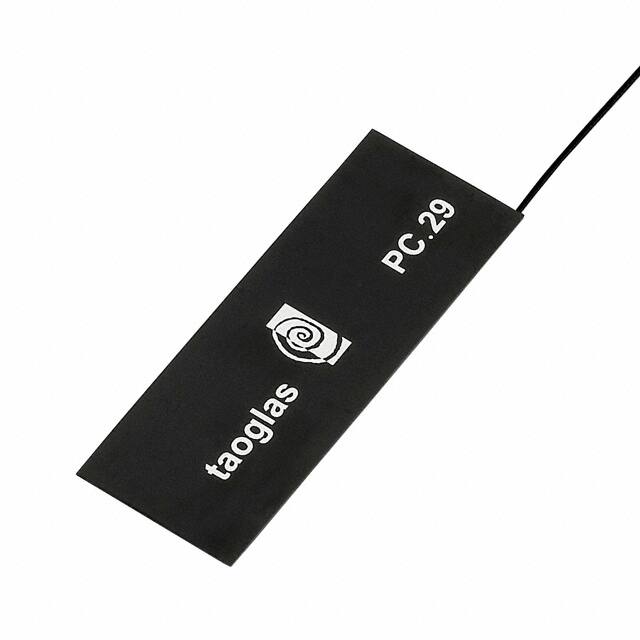

PC29.09.0100ARF ANT 850MHZ/900MHZ FLAT PATCH |
2,598 | 12.84 |
|
Datasheet |
TheStripe™ | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Flat Patch | 5 | 1.58, 1.78, 1.51, 1.38, 1.37 | -13dB, -11dB, -14dB, -16dB, -16dB | 0.01dBi, 1.2dBi, 2.66dBi, 1.25dBi, 1.43dBi | - | - | MMCX Male | - | - | - | Adhesive | 0.031" (0.80mm) | CDMA, GSM, UMTS |
|

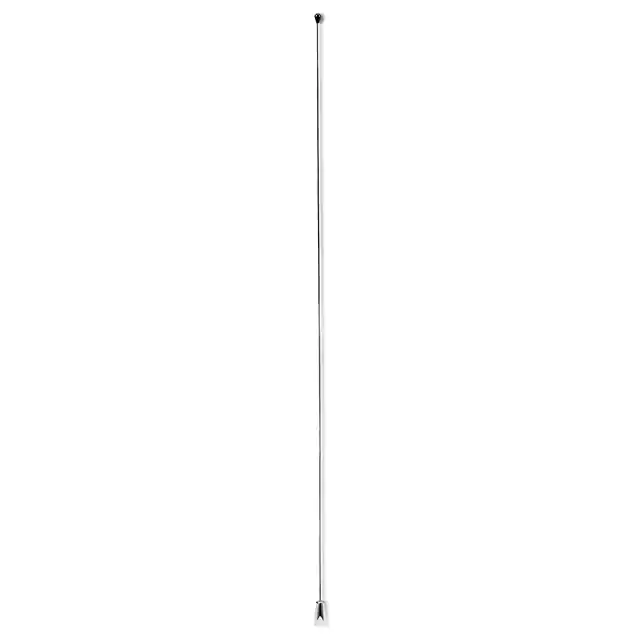

QSTAINLESS CONE / WHIP, UNITY, 13 |
3,244 | 11.82 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 324MHz | 136MHz ~ 512MHz | Whip, Straight | 1 | 1 | - | 2dBi | 200 W | - | - | - | - | - | Magnetic | 22.000" (558.80mm) | - |
|

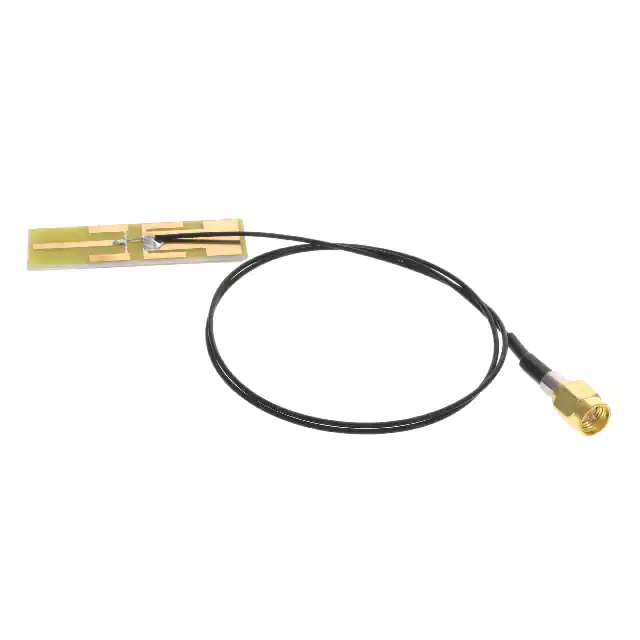

ECHO31/0.5M/SMAM/S/S/17DUAL BAND 2.4/5GHZ WIFI ANTENNA |
1,154 | 18.72 |
|
Datasheet |
Echo 31 | Bulk | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | - | PCB Trace | 2 | 2.8 | - | 3dBi | 50 W | - | SMA Male | - | - | - | Surface Mount | 0.031" (0.80mm) | Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™ |
|
ALPHA3A/0.4M/FMEF/S/S/26RF ANT 850/868MHZ BLADE FME FEM |
2,860 | 14.16 |
|
Datasheet |
ALPHA 3A | Bulk | Active | 802.15.4, Bluetooth, Cellular, WiFi | Wide Band | 850MHz, 868MHz, 900MHz, 915MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz | - | Blade | 8 | 2 | - | 3dBi | - | - | FME Female | - | - | - | Adhesive | 0.098" (2.50mm) | Bluetooth, GPRS, GSM, UMTS, WLAN, Zigbee™ |
|

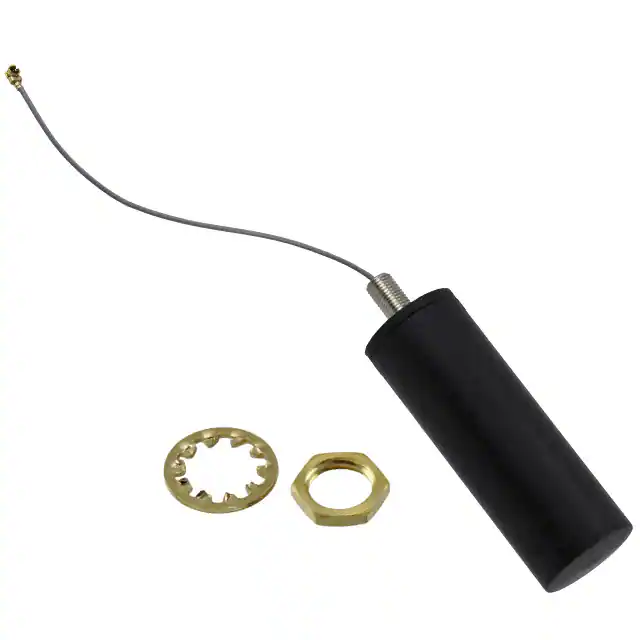

TANGO45/0.1M/IPEX/S/S/29RF ANT WHIP STR IPEX PAN MT |
4,975 | 21.64 |
|
Datasheet |
TANGO 45 | Bulk | Active | - | Wide Band | - | - | Whip, Straight | 3 | 3.5 | - | 2dBi | 1 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 2.362" (60.00mm) | - |
|

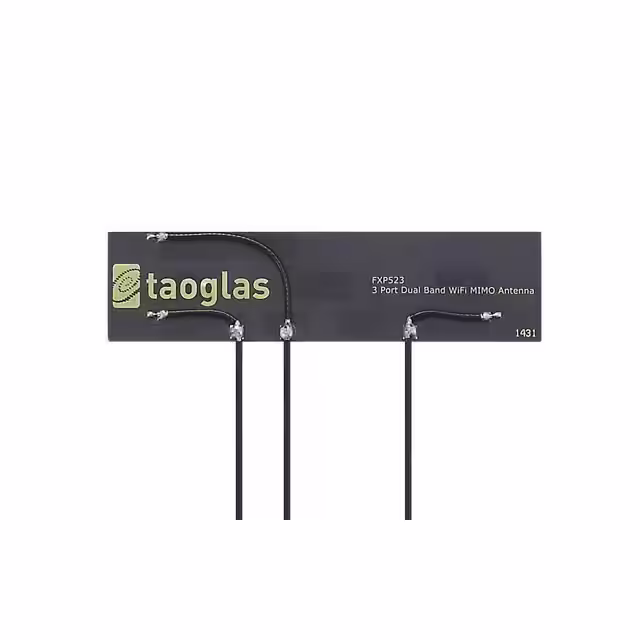

FXP523.A.07.A.001RF ANT 2.4GHZ/5.5GHZ FLAT 120MM |
4,414 | 18.89 |
|
Datasheet |
- | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Flat Patch | 2 | - | - | 6.69dBi | 2 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | WLAN |
|

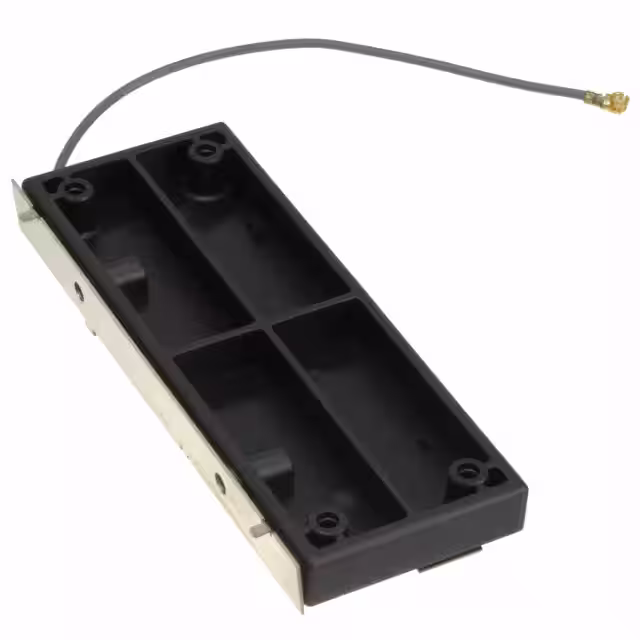

ECHO40/0.1M/UFL/S/S/324G/3G/WIFI EMBEDDED PIFA STYLE A |
2,833 | 15.43 |
|
Datasheet |
ECHO 40 | Bulk | Active | Cellular, WiFi | Wide Band | 875MHz, 1.94GHz, 2.6GHz | 790MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | FlexPIFA | 3 | 3 | - | 0dBi, 2dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Solder | 3.555" (90.30mm) | 3G, Bluetooth, GSM, LTE, UMTS, WiMax™ |
|
DELTA6C/X/SMAM/S/RP/11RF ANT 2.4GHZ/5.8GHZ WHIP TILT |
2,147 | 15.72 |
|
Datasheet |
DELTA 6C | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.8GHz | - | Whip, Tilt | 2 | 2 | - | 4.3dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 7.717" (196.00mm) | Bluetooth, WLAN, Zigbee™ |
|

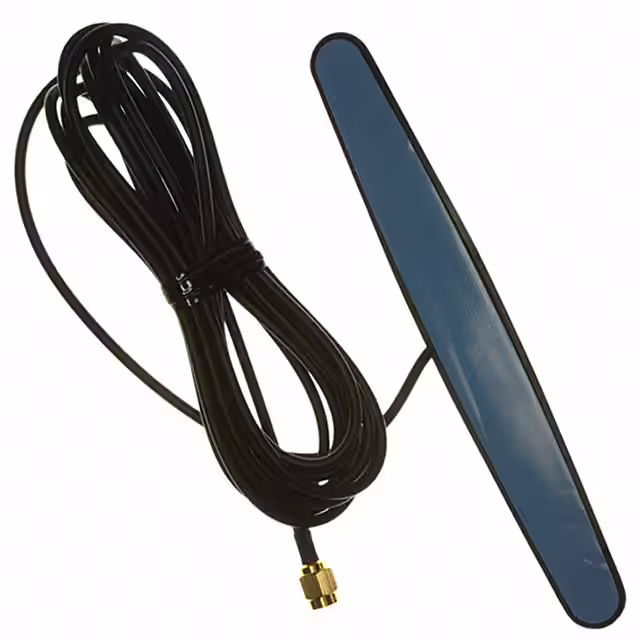

W601DT-110-AM-AGDPULOW PROFILE 3G ANTENNA WITH FLYI |
4,491 | 21.12 |
|
Datasheet |
- | Bulk | Active | Cellular, General ISM | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Flat Bar | 2 | 2 | - | 2dBi | - | - | SMA Male | - | - | - | Adhesive | 0.512" (13.00mm) | AMPS, DCS, GSM, PCS, UMTS |
|

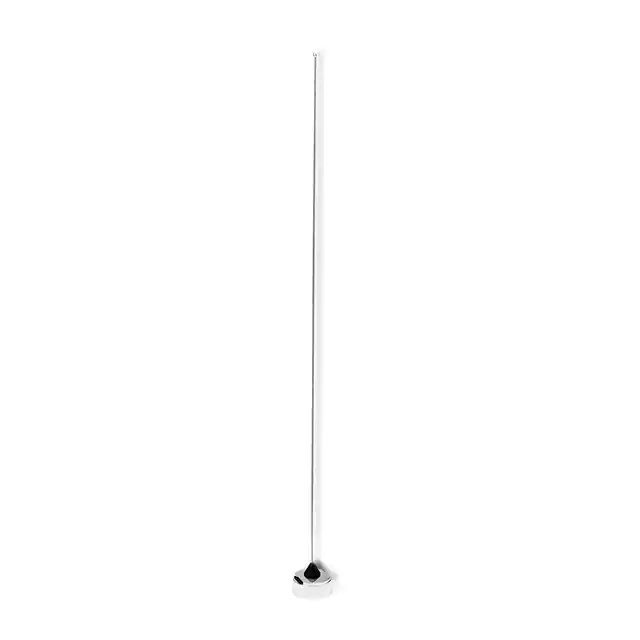

NMOQW152STAINLESS BASE / WHIP, UNITY, 15 |
3,014 | 23.92 |
|
Datasheet |
- | Bag | Active | - | VHF (f < 300MHz) | 157MHz | 152MHz ~ 162MHz | Whip, Straight | 1 | - | - | 2dBi | 200 W | - | NMO | - | - | - | Magnetic | 19.000" (482.60mm) | - |
|

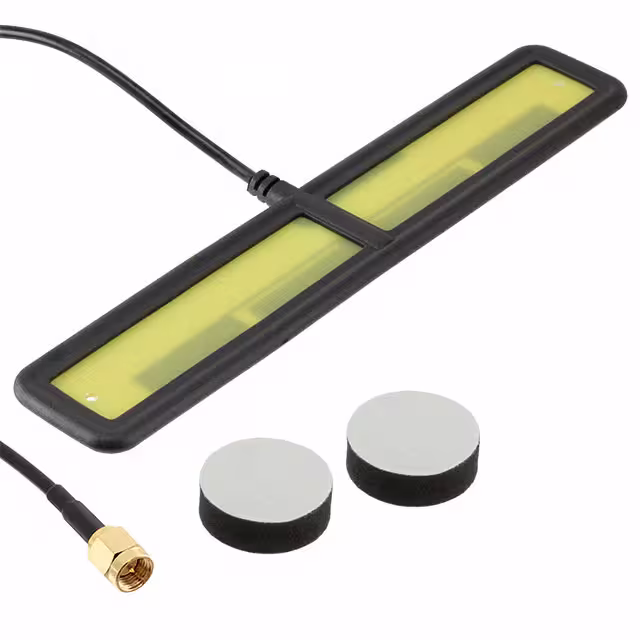

ALPHA40/5M/SMAM/S/S/29RF ANT 762MHZ/1.94GHZ FLAT BAR |
4,598 | 20.64 |
|
Datasheet |
ALPHA 40 | Bulk | Active | 802.15.4, Bluetooth, Cellular, WiFi | Wide Band | 762MHz, 1.94GHz, 2.5GHz | 700MHz ~ 824MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | Flat Bar | 3 | - | - | 2dBi | - | - | SMA Male | - | - | - | Adhesive | 0.177" (4.50mm) | Bluetooth, WLAN |
|

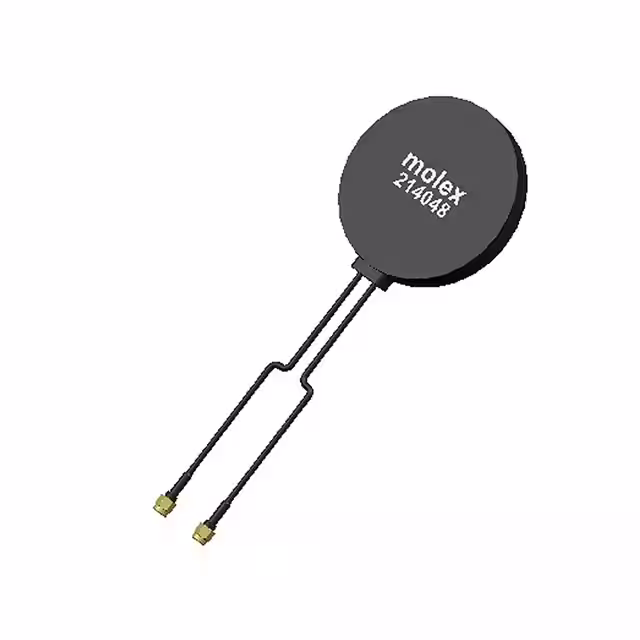

2140483000ISM/DSRC ANTENNA_MIMO |
4,950 | 18.14 |
|
Datasheet |
214048 | Tray | Active | General ISM | SHF (f > 4GHz) | 5.9GHz | 5.8GHz ~ 6GHz | Module | 1 | - | -10dB | -1dBi, -1.8dBi | - | Cable - 3m | SMA Female | - | - | - | Adhesive | 0.591" (15.00mm) | DSRC, ISM |
|
TANGO49/2.5M/SMAM/S/S/17QUAD BAND GSM GPS SHARKS FIN ANT |
4,559 | 24.10 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

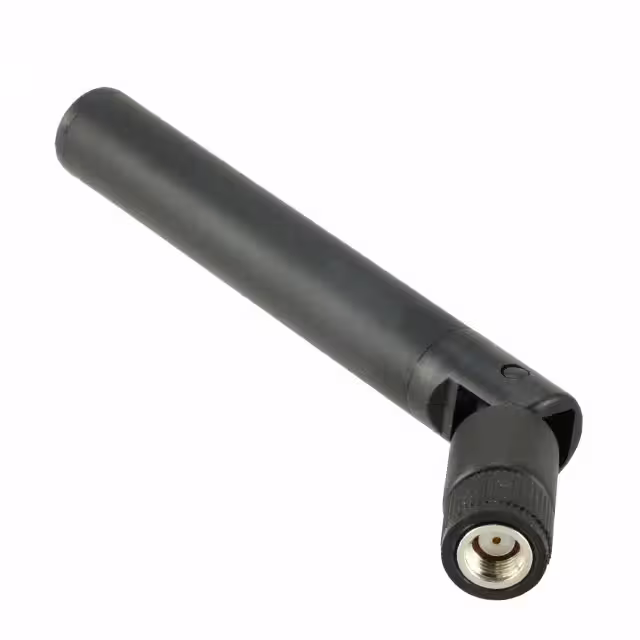

T2102AH-2.4/4.9/5.X-SRF ANT 2.4GHZ/5.4GHZ WHIP TILT |
1,956 | 20.93 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.483.5GHz, 4.9GHz ~ 5.9GHz | Whip, Tilt | 2 | 2 | - | 2dBi | - | - | RP-SMA Male | IP67 | - | - | Connector Mount | 4.488" (114.00mm) | - |
|
|
GNSSCGMSMAANT ACTIVE GNSS ADH MNT 5M SMA |
1,931 | 18.79 |
|
Datasheet |
GNSS Active Antenna | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5845GHz | 1.559GHz ~ 1.61GHz | Module | 1 | 2.5 | - | -2dBi, -1.5dBi, -2.5dBi | - | Cable - 5m, LNA | SMA Male | IP65 | - | - | Adhesive | 0.260" (6.60mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
H2M1W031129900ANTENNA MODULE NB40DG; GPS(L1+L5 |
2,586 | 20.03 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.575GHz, 1.602GHz | - | Ceramic Patch | 3 | - | -10dB | 2.7dBi, 4.8dBi, 3.9dB | - | Cable - 83.5mm, LNA | I-PEX | - | - | - | Adhesive | 0.423" (10.75mm) | GLONASS, GPS |
