RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MA341.A.LB.0012IN1 MAGNET MOUNT GPS/GLONASS 2M |
4,815 | 0.00 |
|
Datasheet |
- | Bag | Active | Navigation | Wide Band | 657.5MHz, 761MHz, 892MHz, 1.472GHz, 1.561GHz, 1.575GHz, 1.603GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.537GHz | 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Module | 11 | 3 | - | -0.78dBi, 0.99dBi, 0.99dBi, 2.87dBi, 31.7dBi, 31.2dBi, 29.8dBi, 5.93dBi, 5.64dBi, 6.84dBi, 6dBi | 2 W | Cable - 2m, LNA, Filter | SMA Male | IP67 | - | - | Magnetic | 2.559" (65.00mm) | BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS |
|
|
MA341.W.LB.0012IN1 WHITE MAGNET MOUNT GPS/GLON |
3,708 | 0.00 |
|
Datasheet |
- | Bag | Active | Navigation | Wide Band | 657.5MHz, 761MHz, 892MHz, 1.472GHz, 1.561GHz, 1.575GHz, 1.603GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.537GHz | 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Module | 11 | 3 | - | -0.78dBi, 0.99dBi, 0.99dBi, 2.87dBi, 31.7dBi, 31.2dBi, 29.8dBi, 5.93dBi, 5.64dBi, 6.84dBi, 6dBi | 2 W | Cable - 2m, LNA, Filter | SMA Male | IP67 | - | - | Magnetic | 2.559" (65.00mm) | BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS |
|
|
HG905RD-RTPANTRUBBER DUCK 900MHZ 5DBI |
4,348 | 0.00 |
|
Datasheet |
HG | Bag | Active | Cellular, General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 900MHz ~ 930MHz | Whip, Tilt | 1 | 2.5 | - | 5dBi | 50 W | - | RP-TNC | - | - | - | Connector Mount | 14.900" (378.46mm) | GSM, ISM, RFID, WLAN |
|
|
MIKE15/2.5M/SMAM/S/S/26LORA/SIGFOX/BLUETOOTH/ZIGBEE MAG |
3,095 | 0.00 |
|
Datasheet |
MIKE 15 | Bulk | Active | 802.15.4, Bluetooth, Cellular, General ISM, WiFi | Wide Band | 1.16GHz, 3.12GHz, 3.95GHz | 410MHz ~ 1.9GHz, 433MHz ~ 5.8GHz, 2GHz ~ 5.9GHz | Whip, Straight | 3 | 8.77 | - | 2.87dBi, -0.83dBi, -2.92dBi | 10 W | Cable - 2.5m | SMA Male | - | - | - | Magnetic | 18.110" (460.00mm) | 2G, 3G, 4G, 5G, Bluetooth, GSM, ISM, LoRa, LTE, LTE Cat M, LTE Cat NB, NR, Sigfox, UMTS, Wi-Fi, Zigbee™, Z-Wave |
|
|
1284780ANT-OMNI-2459-04 |
1,649 | 0.00 |
|
Datasheet |
ANT | Bulk | Active | General ISM | Wide Band | 1.85GHz, 2.35GHz, 3.45GHz, 5.4GHz, 6.5GHz | 1.7GHz ~ 4.2GHz, 4.9GHz ~ 7.1GHz | Whip, Straight | 5 | - | - | 1.5dBi, 2dBi, 1.5dBi, 2.5dBi, 3dBi | - | Cable - 500mm | N Type Male | IP68, IP69K | - | - | Connector Mount | 2.165" (55.00mm) | General Purpose |
|
|
AC94541-060AANT 5G 4G LTE 450MHZ DOME IP67 |
3,351 | 0.00 |
|
Datasheet |
- | Box | Active | Cellular | Wide Band | 410MHz, 450MHz, 600MHz, 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz | 410MHz ~ 430MHz, 450MHz ~ 470MHz, 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 894MHz, 832MHz ~ 1.518GHz, 1.525GHz ~ 1.661GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz | Dome | 9 | 3.4, 1.4, 3.5, 3.7, 3.7, 5.3, 3.2, 2.8, 2.7 | -5.3dB, -15.6dB, -5.1dB, -4.8dB, -4.8dB, -3.3dB, -5.6dB, -6.5dB | 3dBi, 3dBi, 4.5dBi, 4.5dBi, 4.5dBi, 5.1dBi, 5.1dBi, 5.1dBi, 5.1dBi | 45 W | - | SMA Male | IP67 | - | - | Panel Mount | 2.760" (70.10mm) | 4G, 5G, Cat-M1, CDMA, Cellular, GSM, LTE, LTE-M, NB-IoT, UMTS |
|
|
HG2458-5RD-RSPANTRUBBER DUCK 2.4/5GHZ |
1,177 | 0.00 |
|
Datasheet |
HG | Bag | Active | General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.5GHz | 2.4GHz ~ 2.483GHz, 5.1GHz ~ 5.9GHz | Whip, Tilt | 2 | 2 | - | 3dBi, 5dBi | - | - | RP-SMA | - | - | - | Connector Mount | 8.600" (218.44mm) | 802.11a/b/g/-c, ISM, Wi-Fi |
|
|
TFX125.BTRANSPARENT FLEX MULTIBAND GNSS |
2,473 | 0.00 |
|
Datasheet |
- | Canister | Active | Navigation | Wide Band | 1.176GHz, 1.227GHz, 1.278GHz, 1.561GHz, 1.575GHz, 1.603GHz | - | Module | 6 | 1, 3, 4 | - | -7.36dBi, -5.23dBi, -3.74dBi, -6.41dBi, -6.41dBi, -7.33dBi | - | - | SMA Female | - | - | - | Adhesive | 0.512" (13.00mm) | BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS |
|
|
MA343.A.LBI.0013IN1 MAGNET MOUNT GNSS 2M RG-174 |
1,313 | 0.00 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 657.5MHz, 761MHz, 892MHz, 1.472GHz, 1.561GHz, 1.575GHz, 1.603GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.537GHz | 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Module | 11 | 3 | - | -0.78dBi, 1.12dBi, 1.55dBi, 2.87dBi, 31.7dBi, 31.2dBi, 29.8dBi, 5.93dBi, 5.95dBi, 6.84dBi, 6dBi | 2 W | Cable - 2m, LNA, Filter | SMA Male | IP67 | - | - | Magnetic | 2.559" (65.00mm) | 2G, 3G, 4G, 5G, BeiDou, Cat-M, Galileo, GLONASS, GNSS, GPS, IoT, IRNSS, LTE, NB-IoT, NR, QZSS, SBAS, Wi-Fi |
|
|
MA343.W.LBI.0013IN1 WHITE MAGNET MOUNT GNSS 2M |
2,145 | 0.00 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 657.5MHz, 761MHz, 892MHz, 1.472GHz, 1.561GHz, 1.575GHz, 1.603GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.537GHz | 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Module | 11 | 3 | - | -0.78dBi, 1.12dBi, 1.55dBi, 2.87dBi, 31.7dBi, 31.2dBi, 29.8dBi, 5.93dBi, 5.95dBi, 6.84dBi, 6dBi | 2 W | Cable - 2m, LNA, Filter | SMA Male | IP67 | - | - | Magnetic | 2.559" (65.00mm) | 2G, 3G, 4G, 5G, BeiDou, Cat-M, Galileo, GLONASS, GNSS, GPS, IoT, IRNSS, LTE, NB-IoT, NR, QZSS, SBAS, Wi-Fi |
|
|
LCANOM1081VHF, UHF, 4G OMNI ANTENNA 4.5 DB |
4,446 | 0.00 |
|
Datasheet |
LCAN | Bulk | Active | General ISM | VHF (f < 300MHz), UHF (300MHz ~ 1GHz) | 144MHz, 430MHz | 143MHz ~ 145MHz, 428MHz ~ 432MHz | Whip, Straight | 2 | 2 | - | 4.5dBi, 4.5dBi | 30 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | NMO | - | - | - | Connector Mount | 3.660" (92.96mm) | General Purpose |
|
|
TFX257.BTRANSPARENT FLEX WI-FI ANTENNA C |
1,787 | 0.00 |
|
Datasheet |
- | Canister | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Module | 3 | - | - | 3.9dBi, 6.34dBi, 5.65dBi | 2 W | - | RP-SMA Female | - | - | - | Adhesive | 0.512" (13.00mm) | Wi-Fi |
|
|
HG903YE-NFANT YAGI 824-960MHZ 3DBI |
2,878 | 0.00 |
|
Datasheet |
HG | Box | Active | Cellular, General ISM | UHF (300MHz ~ 1GHz) | 900MHz | - | Yagi | 1 | - | - | 3dBi | - | - | N Type Female | - | - | - | Bracket Mount | - | GSM, ISM, LoRa, LPWAN |
|
|
TANGO58/X/NTYPEF/365G/4G LTE, WI-FI 7 ISM CEILING M |
1,502 | 0.00 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TANGO58B/X/NTYPEF/365G/4G LTE, WI-FI 7 ISM CEILING M |
1,149 | 0.00 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HG909YE-NFANT YAGI 824-960MHZ 9DBI |
4,052 | 0.00 |
|
Datasheet |
HG | Bag | Active | Cellular, General ISM | Wide Band | 900MHz | - | Yagi | 1 | - | - | 9dBi | - | - | N Type Female | - | - | - | Bracket Mount | 26.500" (673.10mm) | GSM, ISM, RFID, WLAN |
|

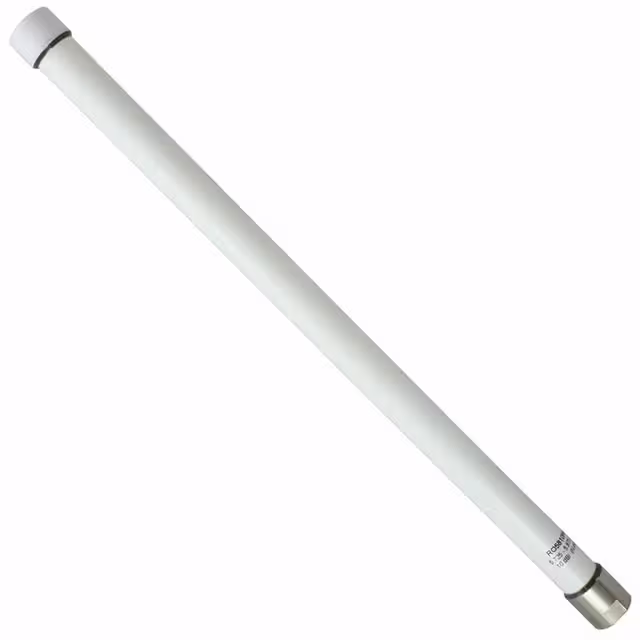

RO5810NMRF ANT 5.8GHZ WHIP STR N FEM |
4,237 | 78.58 |
|
Datasheet |
- | Bulk | Active | - | SHF (f > 4GHz) | 5.8GHz | 5.725GHz ~ 5.875GHz | Whip, Straight | 1 | 2 | - | 10dBi | 20 W | - | N Type Female | IP67 | - | - | Connector Mount | 16.496" (419.00mm) | - |
|
|
OSCAR66/0.3M/NTYPE-F/S/LL/33OUTDOOR WALL OR POLE MOUNTED WID |
4,741 | 0.00 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1355.17.00021355.17.0002 |
2,628 | 0.00 |
|
Datasheet |
- | Bulk | Active | WiFi | Wide Band | 2.4GHz, 4.975GHz, 5.625GHz | 2.3GHz ~ 2.5GHz, 4.8GHz ~ 5.15GHz, 5.15GHz ~ 6.1GHz | Whip, Straight | 3 | 1.5, 2 | - | 6dBi, 5dBi, 6dBi | - | - | N Type Male | IP67 | - | - | Panel Mount | 9.843" (250.00mm) | 802.11b/g/a/h/p, WLAN |
|
|
HG914YE-NF-BLKANTYAGI 900 MHZ 14DBI BLACK N-F |
1,995 | 0.00 |
|
- |
HG | Bag | Active | Cellular, General ISM, WiFi | UHF (300MHz ~ 1GHz) | 892MHz | 824MHz ~ 960MHz | Yagi | 1 | 1.6 | - | 14dBi | 50 W | - | N Type Female | - | - | - | Bracket Mount | 56.000" (1422.40mm) | GSM, ISM, LoRa, LPWAN, WLAN |
