RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

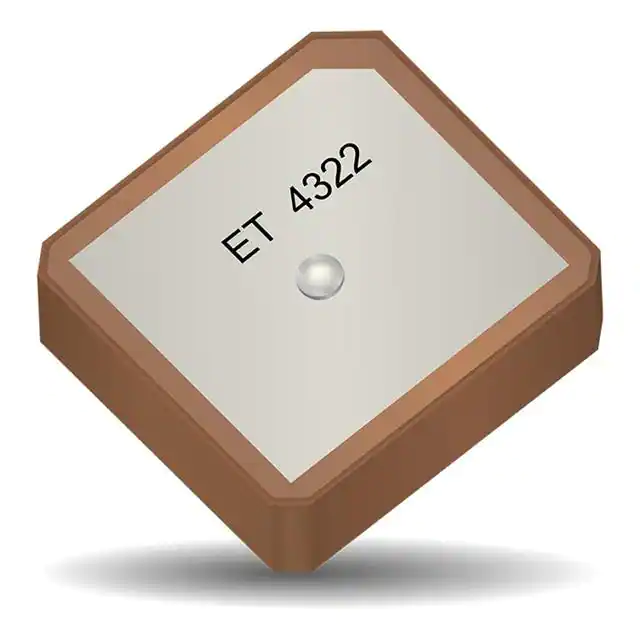

1004322ANTENNA CERAMIC, GPSGB 18X18 |
3,146 | 7.67 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.561GHz, 1.6015GHz | 1.559GHz ~ 1.61GHz | Ceramic Patch | 3 | 1.2, 1.3 | - | 3.12dBi, 4.06dBi, 3.89dBi, 3.92dBi | - | - | Pin | - | - | - | Adhesive | 0.185" (4.70mm) | Beidou, Galileo, GLONASS, GPS |
|

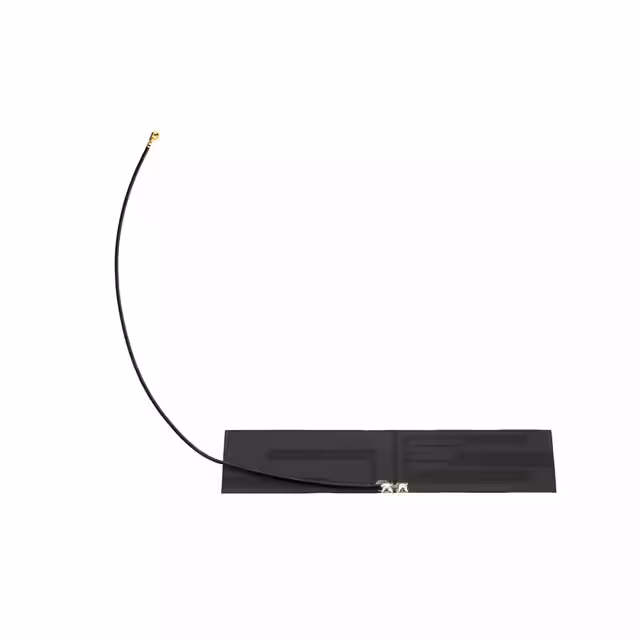

PE512005 DB MULTIBAND PCB 698-2700MHZ |
4,080 | 7.69 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | PCB Trace | 3 | 2.5 | - | 1dBi, 2.5dBi, 5dBi | 5 W | Cable - 100mm | U.FL (UMCX), I-PEX | - | - | - | Surface Mount | 0.008" (0.20mm) | - |
|
M12.LPLATEANTENNA MOUNT L SHAPE M12 TREE M |
4,875 | 0.00 |
|
Datasheet |
- | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|

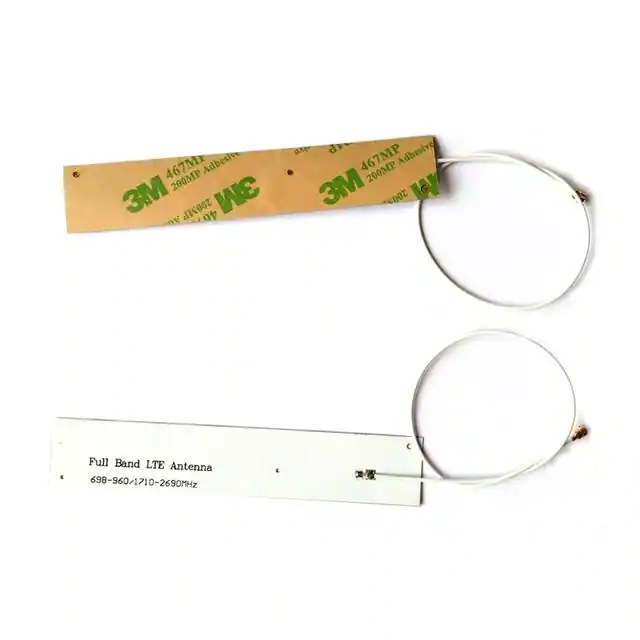

RPCF-MA3-MC5-110020-O-X-0012G/3G/4G EMBEDDED SMALL FPC ANTE |
3,030 | 8.40 |
|
Datasheet |
RPCF | Bulk | Active | Cellular, WiFi | Wide Band | 829MHz, 2.205GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | PCB Trace | 2 | 3 | - | 3dBi | - | Cable - 100mm | I-PEX | IP60 | - | - | Adhesive | 0.008" (0.20mm) | 2G, 3G, 4G, Cellular, Wi-Fi |
|
ANT-8/9-HDP-2000-SMARF ANT 868/915MHZ WHIP CTR FED |
3,523 | 15.08 |
|
Datasheet |
HDP | Bag | Obsolete | General ISM | UHF (300MHz ~ 1GHz) | 800MHz, 850MHz, 900MHz, 916MHz | 863MHz ~ 873MHz, 902MHz ~ 928MHz | Whip, Center-Fed Double | 3 | 1.9 | - | 0.6dBi, 0.5dBi | 10 W | Cable - 2m | SMA Male | IP67 | - | - | Adhesive | 0.244" (6.20mm) | ISM, LoRa, Sensor Networks, SigFox |
|

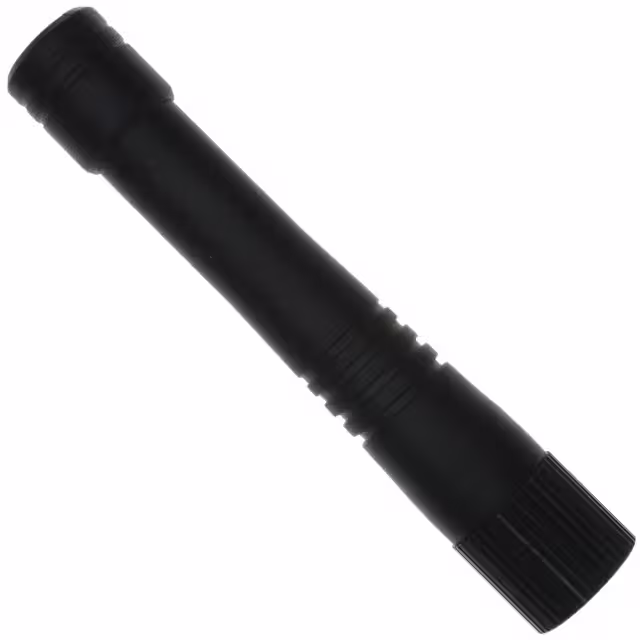

T324AM-GDPRF ANT 925MHZ/1.8GHZ WHIP STR |
3,526 | 11.25 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 925MHz, 1.8GHz, 1.9GHz | 890MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz | Whip, Straight | 3 | 2 | - | 0dBi | - | - | SMA Male | - | - | - | Connector Mount | 3.000" (76.20mm) | - |
|

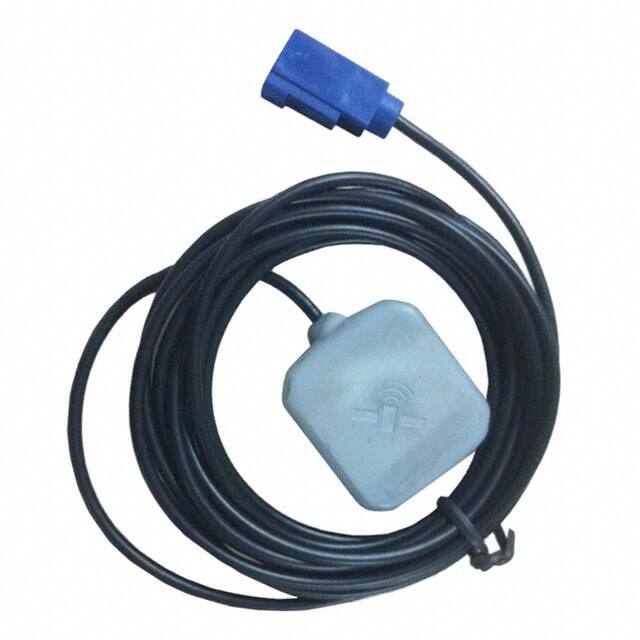

APAMP-113RF ANT 1.575GHZ MOD SMB ADH |
2,060 | 10.53 |
|
Datasheet |
APAMP | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Module | 1 | 1.5 | - | 5dBic | - | Cable - 2.5m, LNA | SMB, Fakra | - | - | - | Adhesive | 0.504" (12.80mm) | GPS |
|

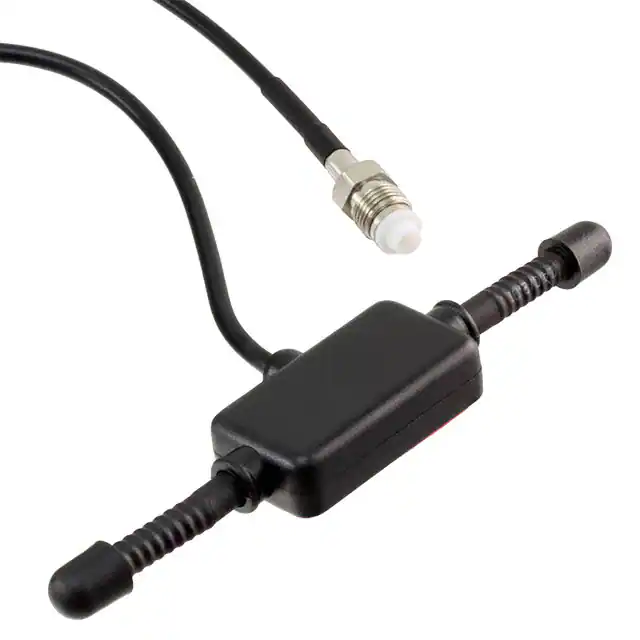

ALPHA18/2.5M/FMEF/S/S/26RF ANT 850MHZ/900MHZ WHIP CTR |
2,723 | 11.58 |
|
Datasheet |
ALPHA 18 | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Whip, Center-Fed Double | 5 | 2 | - | 3dBi | - | - | FME Female | - | - | - | Adhesive | 1.091" (27.71mm) | GPRS, GSM, UMTS |
|
|
PPF-GP07SAXB-P500ANT GNSS ACTIVE SMA 5M CABLE |
2,434 | 0.00 |
|
Datasheet |
GP07 | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.559GHz ~ 1.563GHz, 1.573GHz ~ 1.577GHz, 1.597GHz ~ 1.607GHz | Module | 3 | 1.8, 2.0, 1.7 | -10.9dB, -9.5dB, -11.7dB | 29.6dBi, 29.3dBi, 29.2dBi | - | Cable - 5m, LNA, Filter | SMA Male | IP65 | - | - | Magnetic | 0.646" (16.40mm) | BeiDou, Galileo, GLONASS, GNSS, GPS, QZSS | |
|
|
PU-SMA-433WIRELESS ANTENNA |
3,004 | 0.00 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 433MHz | - | Helical | 1 | - | - | - | - | - | BNC, Screw-Mount, SMA | - | - | - | Connector Mount | 2.480" (63.00mm) | General Purpose |
|
EXS164SMIRF ANT 169MHZ WHIP STR SMI CONN |
2,718 | 0.00 |
|
Datasheet |
EXS | Bulk | Obsolete | - | VHF (f < 300MHz) | 169MHz | 164MHz ~ 174MHz | Whip, Straight | 1 | 1.5 | - | - | 50 W | - | SMI | - | - | - | Connector Mount | 3.950" (100.33mm) | - |
|

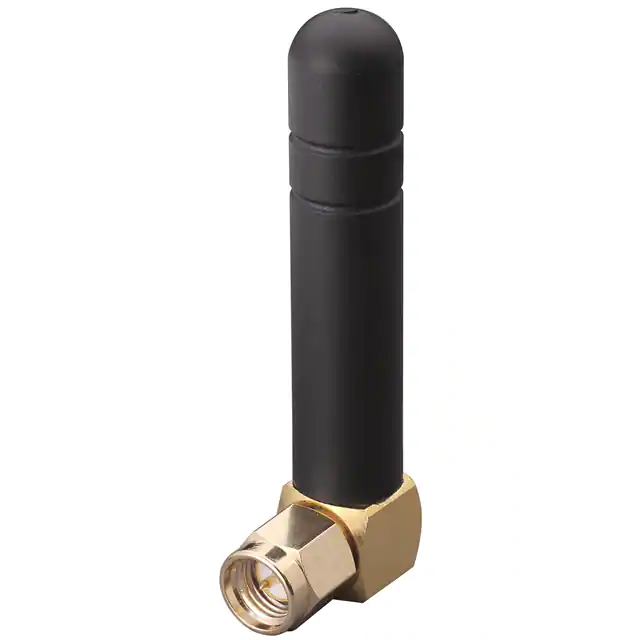

ANT-450-RHR-SMARF ANT 450-470MHZ LTE RA SMA |
3,776 | 15.10 |
|
Datasheet |
- | Bag | Active | Cellular | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Whip, Right Angle | 1 | 2.1 | - | -4.6dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 2.016" (51.20mm) | LTE |
|
|
HG2401PU-100IPEXANT PCB 2400MHZ 2 DBI IPEX CON 2 |
3,580 | 0.00 |
|
- |
HG | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 2 | - | 3dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | I-PEX | - | - | - | Connector Mount | - | Bluetooth, WLAN |
|
|
QWB8253RF ANT 860MHZ WHIP STR NMO BASE |
4,745 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 860MHz | 825MHz ~ 896MHz | Whip, Straight | 1 | 2 | - | 3dB | - | - | NMO | - | - | - | Base Mount | 15.500" (393.70mm) | - |
|
|
QWB8963RF ANT 933MHZ WHIP STR NMO BASE |
3,987 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 933MHz | 896MHz ~ 970MHz | Whip, Straight | 1 | - | - | 3dB | - | - | NMO | - | - | - | Base Mount | 15.500" (393.70mm) | - |
|
APAMP-127RF ANT 1.575GHZ DOME FAKRA MAG |
4,699 | 10.68 |
|
Datasheet |
APAMP | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Dome | 1 | 1.5 | - | 5dBic | - | - | SMB, Fakra | - | - | - | Magnetic | 0.505" (12.83mm) | GPS |
|
|
EXB150MDRF ANT 156MHZ WHIP STR MD CONN |
2,535 | 0.00 |
|
Datasheet |
EXB | Bulk | Obsolete | - | VHF (f < 300MHz) | 156MHz | 150MHz ~ 162MHz | Whip, Straight | 1 | 1.5 | - | 0dBi | - | - | MD | - | - | - | Connector Mount | 6.500" (165.10mm) | - |
|
|
ECHO28B/0.1M/IPEX/S/S/30FLEXIBLE DUAL BAND 2.4GHZ/5.8GHZ |
1,579 | 0.00 |
|
- |
ECHO 28 | Bulk | Active | Bluetooth, WiFi | UHF (1GHz ~ 2GHz), SHF (f > 4GHz) | 2.45GHz, 5.48GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.8GHz | Flat Patch | 2 | 1.5 | - | 3dBi | - | - | I-PEX | - | - | - | Surface Mount | 0.039" (1.00mm) | Bluetooth, WLAN, Zigbee™ |
|
|
ST0426-31-302-BEXTERNAL ANTENNA 3300-5000 MHZ |
3,288 | 0.00 |
|
- |
- | Bulk | Active | Cellular, General ISM | Wide Band | 4.15GHz | 3.3GHz ~ 5GHz | Whip, Straight | 1 | - | -10dB | 5.1dBi | 1 W | - | N Type Male | IP66 | - | - | Connector Mount | 7.402" (188.00mm) | 5G, IoT |
|

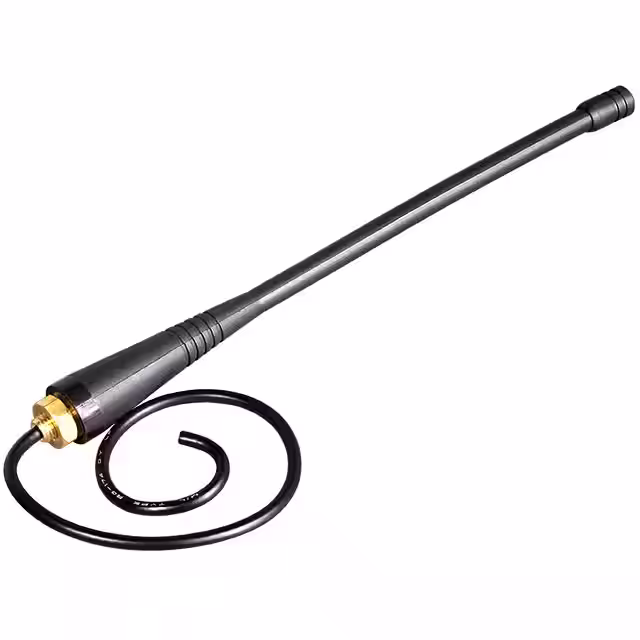

ANT-450-PW-QWRF ANT 5G 450MHZ WHIP STR CUT |
2,707 | 8.92 |
|
Datasheet |
PW | Bag | Active | Cellular | UHF (300MHz ~ 1GHz) | 458MHz | 450MHz ~ 470MHz | Whip, Straight | 1 | 1.3 | 17.7dB | 3.4dBi | 10 W | Cable - 216mm | - | - | - | - | Solder | 6.570" (167.00mm) | 5G, Cellular, LTE, NR, mMTC, NB-IoT |
