RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TRAB3803ANT PHANTOM NMO 380-400MHZ BK |
2,027 | 0.00 |
|
Datasheet |
Phantom® | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 390MHz | 380MHz ~ 400MHz | Dome | 1 | - | - | 3dBi | 100 W | - | NMO | - | - | - | Base Mount | 3.300" (83.82mm) | - |
|
|
MHBDC5800BASE LOADED - 3DB GAIN VHF & UHF |
4,427 | 0.00 |
|
Datasheet |
MHB | Bag | Active | - | VHF (f < 300MHz) | 159MHz | 144MHz ~ 174MHz | Whip, Straight | 1 | 1.5 | - | 3dBi | 200 W | - | - | - | - | - | Base Mount | - | - |
|
|
HCR8240M3PWN-001RF ANT 859MHZ/1.8GHZ WHIP STR N |
3,055 | 37.51 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 859MHz, 1.8GHz, 2GHz | 880MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Straight | 3 | 2 | - | 1.6dBi, 3.4dBi, 3.6dBi | 50 W | - | N Type Female | IP67 | - | - | Panel Mount | 3.300" (83.82mm) | - |
|
|
HCR8819M3PWN-001RF ANT 920MHZ/1.8GHZ WHIP STR N |
4,994 | 37.51 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 920MHz, 1.8GHz, 1.9GHz | 880MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Whip, Straight | 3 | 2 | - | 2.3dBi, 3dBi, 3.1dBi | 50 W | - | N Type Female | IP67 | - | - | Panel Mount | 3.300" (83.82mm) | - |
|
|
SB800FME3ANT STEALTH BLD 806-896 MHZ 3FT |
2,808 | 31.10 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 851MHz | 806MHz ~ 896MHz | Flat Bar | 1 | - | - | 2.14dBi | 3 W | Cable - 76.2mm | FME | - | - | - | Adhesive | - | - |
|
S765N-868867-869MHZ N JACK M2M OUTDOOR AN |
2,056 | 36.00 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 868MHz | 867MHz ~ 869MHz | Dome | 1 | 2 | - | 2dBi | - | - | N Type Male | - | - | - | Panel Mount | 3.039" (77.20mm) | - |
|
|
TRAB4203ANT PHANTOM NMO 420-430MHZ BK |
4,856 | 0.00 |
|
- |
Phantom® | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 425MHz | 420MHz ~ 430MHz | Dome | 1 | - | - | - | - | - | NMO | - | - | - | Base Mount | - | - |
|
|
AECW0801C03A-3000SEXTERNAL LTE + WI-FI + GNSS COMB |
1,112 | 0.00 |
|
Datasheet |
AECW | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.581GHz, 2.2GHz, 2.441GHz, 5.362GHz | 698MHz ~ 960MHz, 1.561GHz ~ 1.602GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.4835GHz, 4.9GHz ~ 5.825GHz | Module | 5 | 1.5, 2, 2.5, 3 | - | 2dBi, 2dBic, 2dBi, 2dBi, 2dBi | - | Cable - 3m, LNA | SMA Male (3) | IP67 | - | - | Screw Mount | 0.642" (16.30mm) | BeiDou, Cat-M, GLONASS, GNSS, GPS, IoT, LTE, M2M, NB-IoT, QZSS, Wi-Fi |
|

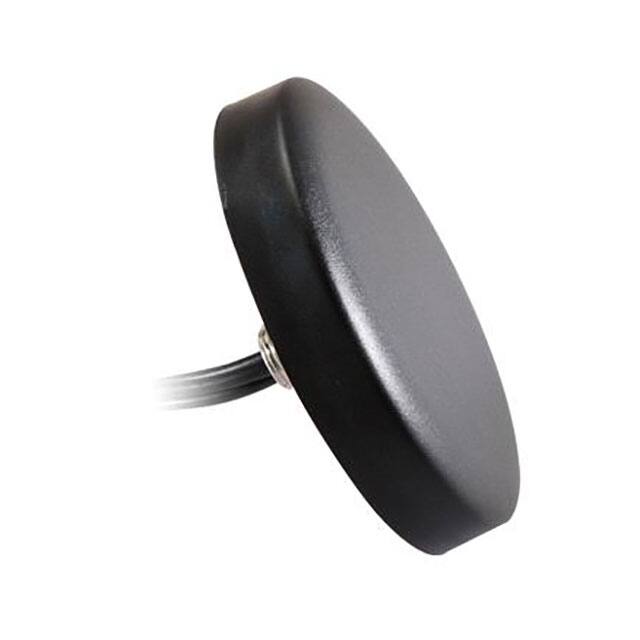

AN_LTE_GSM_WF_046LM2 COMBO ANTENNA SCREW Mount |
2,519 | 26.32 |
|
Datasheet |
- | Bulk | Active | Cellular, WiFi | Wide Band | 830MHz, 1.94GHz, 2.44GHz | 698MHz ~ 960MHz, 1.572GHz ~ 1.578GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.4835GHz | Module | 3 | 3, 2 | - | 2.5dBi, 3dBi | - | Cable - 5m | SMA Male, RP-SMA | IP67 | - | - | Screw Mount | 0.575" (14.60mm) | 4G, GPS, GSM, LTE, Wi-Fi |
|

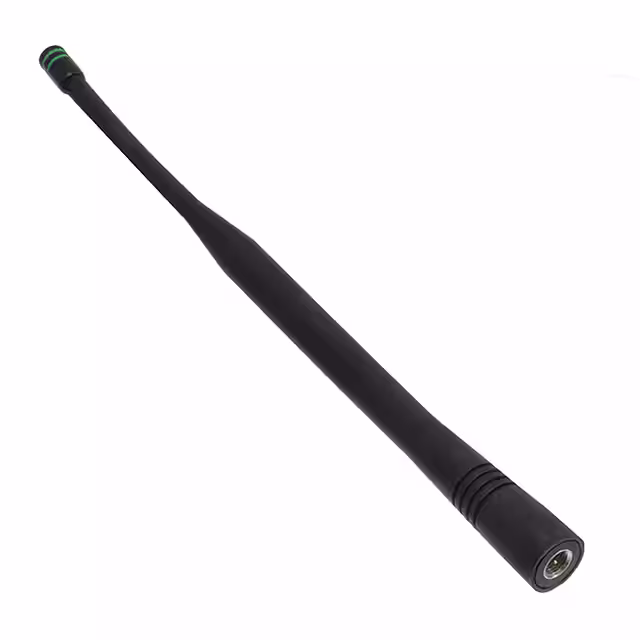

EXE902SMRF ANT 931MHZ WHIP STR SMA MALE |
3,667 | 30.07 |
|
Datasheet |
EXE | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 931MHz | 902MHz ~ 960MHz | Whip, Straight | 1 | 1.5 | - | - | - | - | SMA Male | - | - | - | Connector Mount | 8.300" (210.82mm) | - |
|
|
2J2183-C315NBAYONET 5GNR/4GLTE/3G/2G WIDEBAN |
1,995 | 0.00 |
|
Datasheet |
- | Active | Cellular | Wide Band | 788.5MHz, 2.059GHz, 4.15GHz, 5.537GHz | 617MHz ~ 960MHz, 1.427GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Whip, Straight | 4 | 1.6, 2, 2.5, 2.6 | -13.7dB, -10dB, -9.7dB, -8.1dB | 1.3dBi, 1.5dBi, 2.8dBi, 2.6dBi | 25 W | - | N Type Male | - | - | - | Connector Mount | 9.213" (234.00mm) | 2G, 3G, 4G, 5G, Cat-M, CBRS, IoT, LPWA, LTE, NB-IoT, NR | |
|

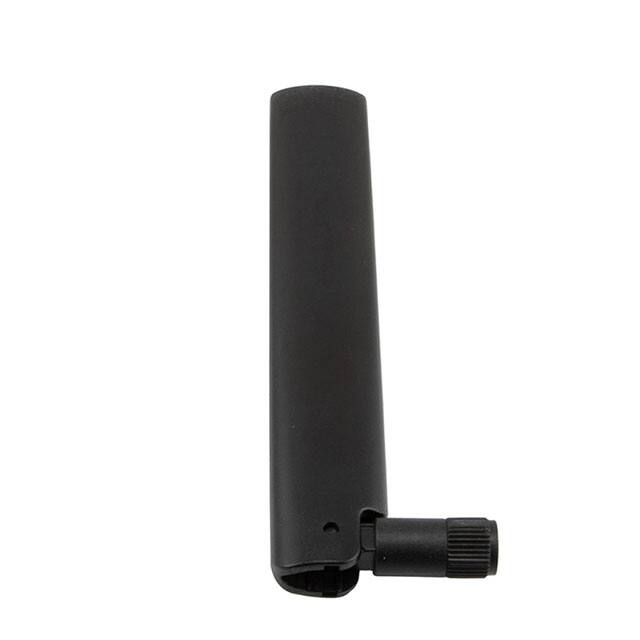

PE51RD10253DBI RBR DUCK 2400-7125MHZ SMA |
3,727 | 29.59 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | SHF (f > 4GHz) | 4.76GHz | 2.4GHz ~ 7.125GHz | Blade, Tilt/Swivel | 1 | 1.7 | - | 3dBi | - | - | SMA Male | - | - | - | Connector Mount | - | Bluetooth, loT, Wi-Fi, Zigbee™, Z-Wave |
|
KIT1133-P250RF ANT GB8W15FT |
1,638 | 0.00 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BB-AO-ALTE-MG9S-FANT LTE/UMTS/GSM,MAGNETIC 7-9DB, |
1,207 | 0.00 |
|
- |
- | Bulk | Active | Cellular | Wide Band | 700MHz, 800MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.5GHz, 2.6GHz, 2.7GHz | - | Whip, Straight | 10 | 2 | - | 9dBi | 10 W | Cable - 3m | SMA Male | - | - | - | Magnetic | 15.866" (403.00mm) | GSM, LTE, UMTS |
|
OSCAR1A/5M/FMEF/S/S/31RF ANT 850MHZ/900MHZ WHIP STR |
4,120 | 42.84 |
|
Datasheet |
OSCAR 1A | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Whip, Straight | 5 | 1.8 | - | 5dBi | - | - | FME Female | - | - | - | Bracket Mount | 8.071" (205.00mm) | 3G, 4G, 5G, GPRS, GSM, LoRa, LTE, NB-IOT, UMTS |
|
|
HG72705FPU-UFLANTOMNI FPCB 700-2700MHZ 5DBI |
3,981 | 0.00 |
|
- |
HG | Bag | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | PCB Trace | 3 | 2.5 | - | 1dBi, 2.5dBi, 5dBi | 5 W | Cable - 203.2mm | IPX, U.FL | - | - | - | Adhesive | 0.010" (0.25mm) | LTE, PCS |
|
|
FM51FP1016ANTENNA 4.3-10 JACK 698 MHZ-4.2 |
2,545 | 0.00 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 752MHz, 883MHz, 1.94GHz, 2.45GHz, 3.8GHz | 698MHz ~ 806MHz, 806MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.2GHz ~ 2.7GHz, 3.4GHz ~ 4.2GHz | Panel | 5 | 1.8 | - | 5dBi, 6dBi, 7dBi, 7.5dBi, 8.5dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | 4.3/10 - Female | - | - | - | Wall Mount | 2.360" (59.94mm) | 5G, CDMA, GSM, LTE, LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M |
|
|
FM51225ANTENNA 4.3-10 JACK 617 MHZ-6 GH |
3,781 | 0.00 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 657.5MHz, 829MHz, 2.205GHz, 3.8GHz, 5.45GHz | 617MHz ~ 698MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3.4GHz ~ 4.2GHz, 4.9GHz ~ 6GHz | Dome | 5 | 1.8 | - | 1.8dBi, 2dBi, 3dBi, 4dBi, 4.5dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | 4.3/10 - Female | - | - | - | Ceiling Mount | 5.880" (149.35mm) | 5G, CDMA, GSM, LTE, LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M |
|
|
ETRA8063RF ANT 851MHZ WHIP STR NMO BASE |
2,270 | 39.62 |
|
Datasheet |
Phantom Elite® | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 851MHz | 806MHz ~ 866MHz | Whip, Straight | 1 | - | - | 3dBi | 150 W | - | NMO | - | - | - | Base Mount | 2.700" (68.58mm) | - |
|
|
RE05ER-MCREANTOMNI 2.4GHZ 5DBI |
3,010 | 0.00 |
|
- |
RE | Bag | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Flat Bar | 1 | - | - | 5dBi | - | Cable - 482.6mm | MC Card | - | - | - | Adhesive | 6.500" (165.10mm) | 802.11b/g/n, Bluetooth, ISM, Wi-Fi, WLAN |
