RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECHO1A/0.1M/IPEX/S/S/11RF ANT 850/868MHZ PCB TRACE IPEX |
747 | 6.94 |
|
Datasheet |
ECHO 1A | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 868MHz, 900MHz, 915MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | PCB Trace | 1 | 2 | - | 3.6dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.024" (0.60mm) | GPRS, GSM, UMTS |
|
1002089ANTENNA ASSY, PENLT DV |
605 | 9.46 |
|
Datasheet |
- | Tray | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 829MHz, 2.205GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | PCB Trace | 2 | 3 | - | 5.1dBi, 4.9dBi | 2 W | - | SMA Male | - | - | - | Connector Mount | 0.315" (8.00mm) | Cat-M, Cellular, GSM, LPWA, LTE, LTE-M, LoRa, NB-IoT, Sigfox |
|

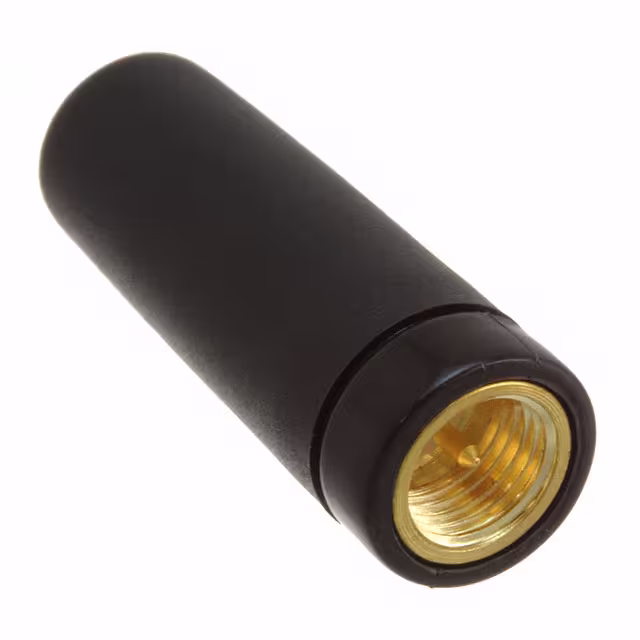

DELTA8A/X/SMAM/S/S/17RF ANT 2.4GHZ WHIP STR SMA MALE |
212 | 7.01 |
|
Datasheet |
DELTA 8A | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | - | 0dBi | - | - | SMA Male | - | - | - | Connector Mount | 1.063" (27.00mm) | Bluetooth, WLAN, Zigbee™ |
|

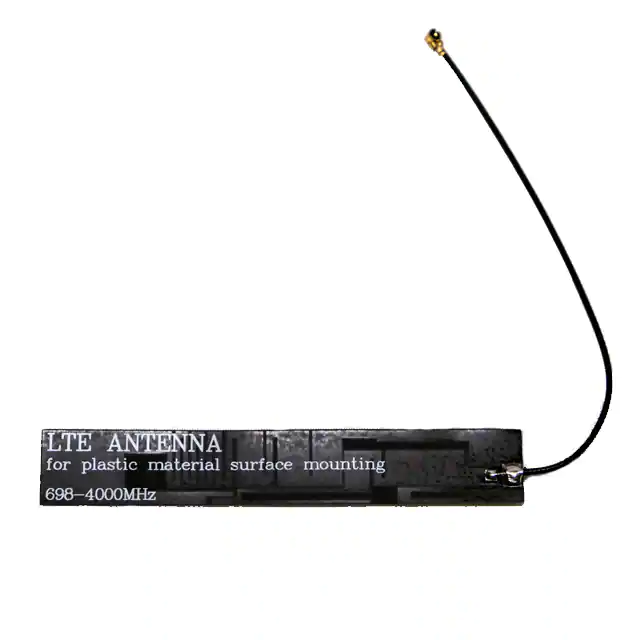

AFC8513U4GS-0100SRF ANT 5G/4G/LTE/NBIOT/GNSS FLEX |
558 | 7.57 |
|
Datasheet |
AFC | Bulk | Active | Cellular, Navigation, WiFi | UHF (2GHz ~ 3GHz) | 2.349GHz | 698MHz ~ 4GHz | Flat Patch | 1 | 3 | - | 5dBi | 5 W | Cable - 100mm | I-PEX | - | - | - | Adhesive | 0.008" (0.20mm) | 2G, 3G, 4G, 5G, Beidou, GLONASS, GNSS, GPS, GSM, LTE, Wi-Fi |
|
ANT-190751B93RF ANT, GPS/GLONASS (ACTIVE), U. |
306 | 6.40 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.609GHz | - | Ceramic Patch | 2 | 1.23, 1.34 | -19.61dB, -16.73dB | 2.04dBi, 2.23dBi | - | Cable - 150mm | U.FL | - | - | - | Adhesive | 0.157" (4.00mm) | GLONASS, GNSS, GPS |
|

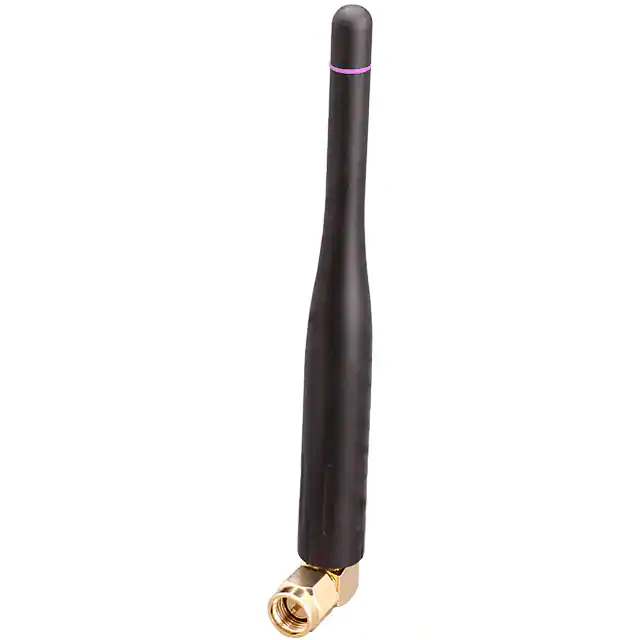

ANT-2.4-CW-RCL-SMA2.4GHZ RGHT ANG DIPOLE WHIP SMA |
239 | 8.81 |
|
Datasheet |
RCL | Bag | Active | General ISM | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.485GHz | Whip, Right Angle | 1 | 1.5 | -14dB | 2.3dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 3.846" (97.70mm) | 802.15.4, Bluetooth, General ISM, WiFi |
|

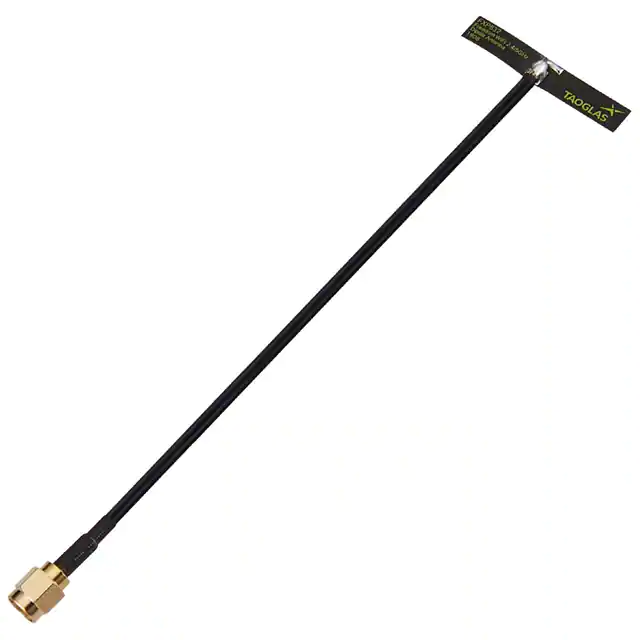

FXP832.03.0458DRF ANT 2.4GHZ/5.4GHZ FLAT PATCH |
3,339 | 8.68 |
|
Datasheet |
Freedom | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | Flat Patch | 2 | - | -10dB | 3.66dBi, 5.33dBi | 2 W | Cable - 458mm | RP-SMA Male | - | - | - | Adhesive | 0.009" (0.24mm) | Bluetooth, DSRC, V2V, Wi-Fi, Zigbee™ |
|

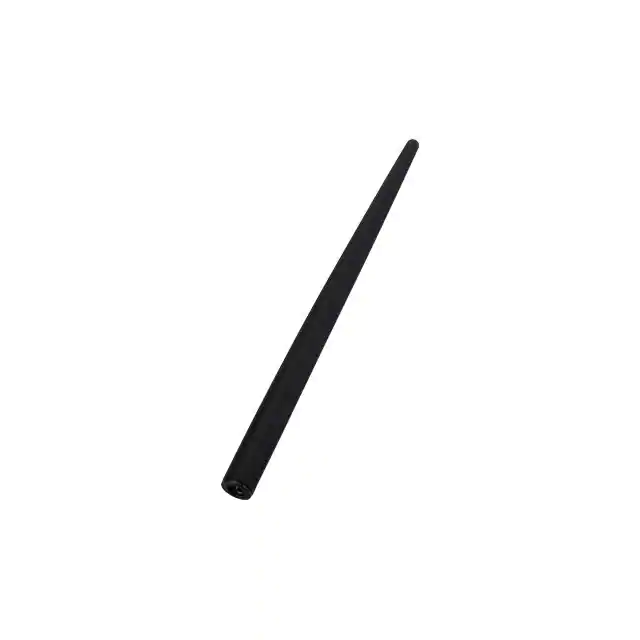

TI.09.A.0111RF ANT 915MHZ WHIP STR SMA MALE |
242 | 8.51 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | - | Whip, Straight | 1 | 1.8 | - | 4dBi | 1 W | - | SMA Male | - | - | - | Connector Mount | 6.654" (169.00mm) | - |
|
TI.10.0112RF ANT 433MHZ WHIP RA SMA MALE |
137 | 8.51 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 433MHz | 433MHz ~ 434MHz | Whip, Right Angle | 1 | 1.5 | -20dB | 0dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 1.764" (44.80mm) | - |
|

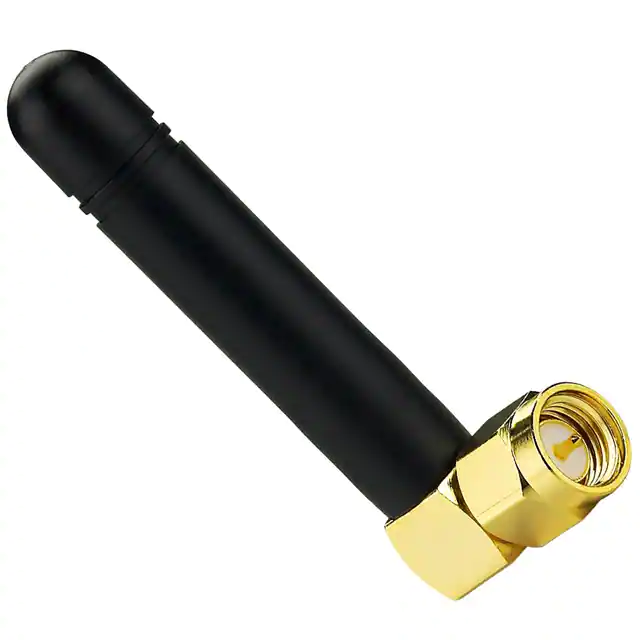

TG.22.0112RF ANT 850MHZ/900MHZ WHIP RA |
133 | 8.51 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 800MHz ~ 2.2GHz | Whip, Right Angle | 5 | 2.3 | - | 0dBi | 20 W | - | SMA Male | - | - | - | Connector Mount | 1.764" (44.80mm) | CDMS, DCS, EDGE, GPRS, GSM, HSPA, PCS, UMTS |
|
|
TI.42.A113433MHZ TERMINAL MOUNT ANTENNA WI |
115 | 0.00 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 417MHz, 460MHz | 400MHz ~ 435MHz, 450MHz ~ 470MHz | Whip, Right Angle | 2 | - | - | 3.7dBi, 3dBi | - | - | SMA Male | - | - | - | Connector Mount | 7.795" (198.00mm) | General Purpose |
|

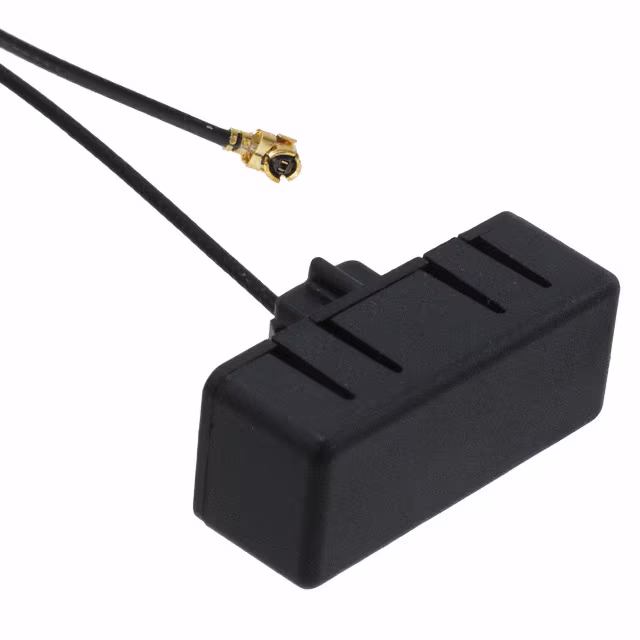

1513472-5RF ANT 2.4GHZ/5.5GHZ MODULE CAB |
614 | 7.88 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.483.5GHz, 5.15GHz ~ 5.875GHz | Module | 2 | 3 | - | 3dBi | 10 W | Cable - 360mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 0.394" (10.00mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
YG0030AAGNSS RF ANTENNA |
792 | 21.23 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.575GHz | - | Ceramic Patch | 2 | 1.02, 1.07 | - | -0.9dBi, 3.05dBi | - | - | I-PEX MHF1 | - | - | - | Surface Mount | 0.366" (9.30mm) | GPS |
|

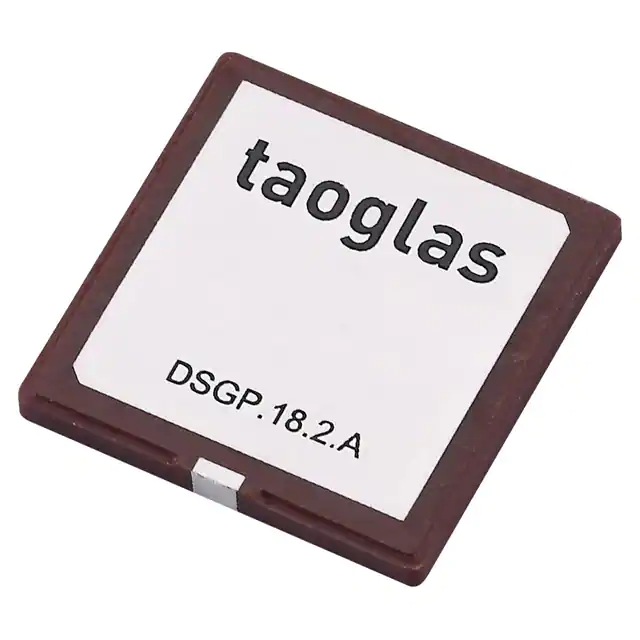

DSGP.1575.18.2.A.02RF ANT 1.575GHZ CER PATCH SLD |
252 | 8.57 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Ceramic Patch | 1 | 2:1 | -10dB | 2.4dBi | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | Galileo, GPS |
|

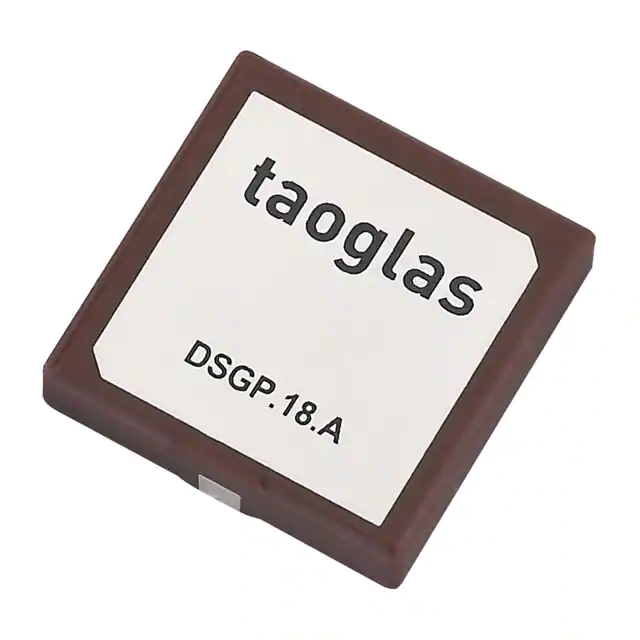

DSGP.1575.18.4.A.02GPS 1575MHZ SMD CERAMIC DIRECT M |
174 | 8.57 |
|
- |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Ceramic Patch | 1 | - | -10dB | 4.2dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | Galileo, GPS |
|

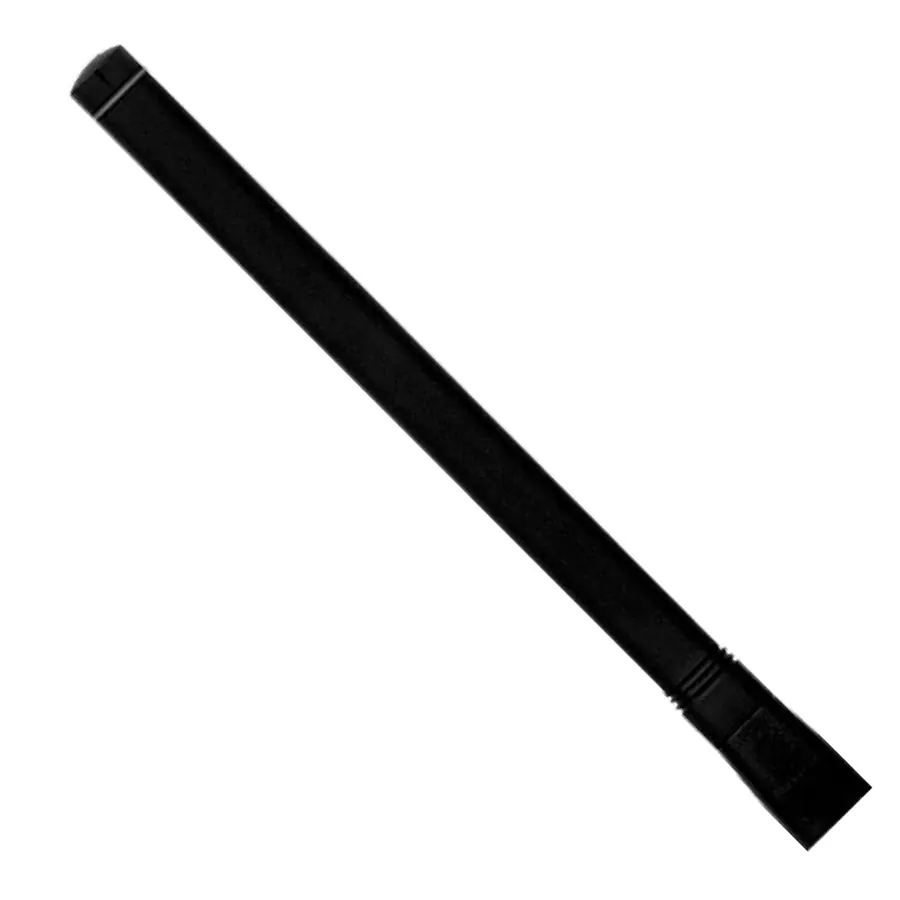

ANT-433-CW-HWRF ANT 433MHZ WHIP STR RP-SMA ML |
382 | 10.34 |
|
Datasheet |
HW | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 418MHz ~ 448MHz | Whip, Straight | 1 | 2 | - | 0dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 4.724" (120.00mm) | Alarms, ISM, Remote Control, Security Systems |
|
ANT-433-CW-HW-SMARF ANT 433MHZ WHIP STR SMA MALE |
161 | 10.34 |
|
Datasheet |
HW | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 418MHz ~ 448MHz | Whip, Straight | 1 | 2 | - | 0dBi | - | - | SMA Male | - | - | - | Connector Mount | 4.724" (120.00mm) | Alarms, ISM, Remote Control, Security Systems |
|

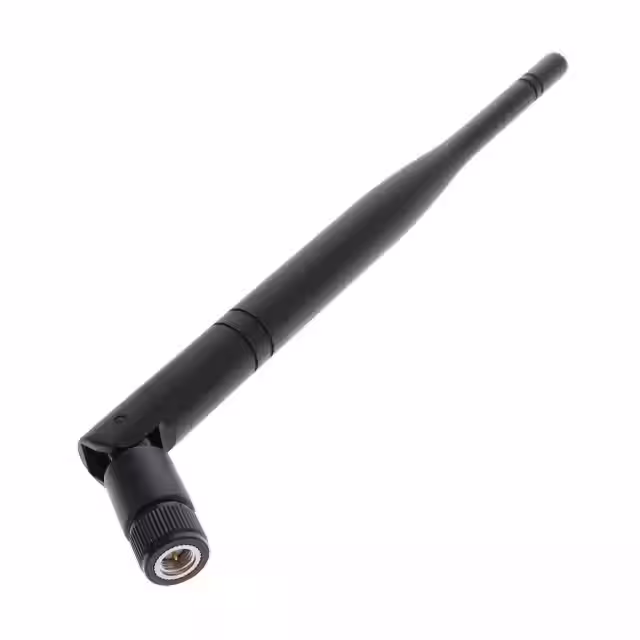

AEACAC195013-S868RF ANT 868MHZ WHIP TILT SMA ML |
244 | 5.26 |
|
Datasheet |
AEAC | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 837MHz ~ 884MHz | Whip, Tilt | 1 | 2.5 | - | 3dBi | - | - | SMA Male | - | - | - | Connector Mount | 7.677" (195.00mm) | ISM, LoRa, LPWAN, Sigfox |
|

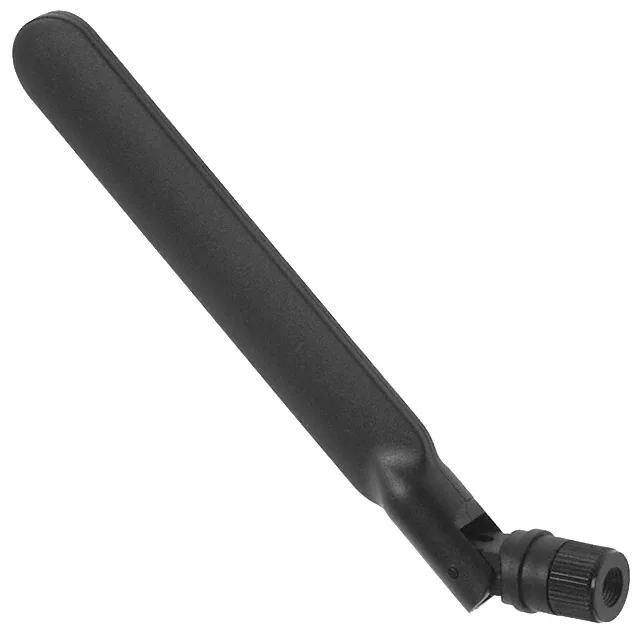

W1043RF ANT 2.4/5GHZ WHIP TILT 4.5" |
2,697 | 9.86 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.825GHz | Whip, Tilt | 2 | 2 | - | 2.5dBi, 3.5dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 6.201" (157.50mm) | Bluetooth, WLAN, Zigbee™ |
|

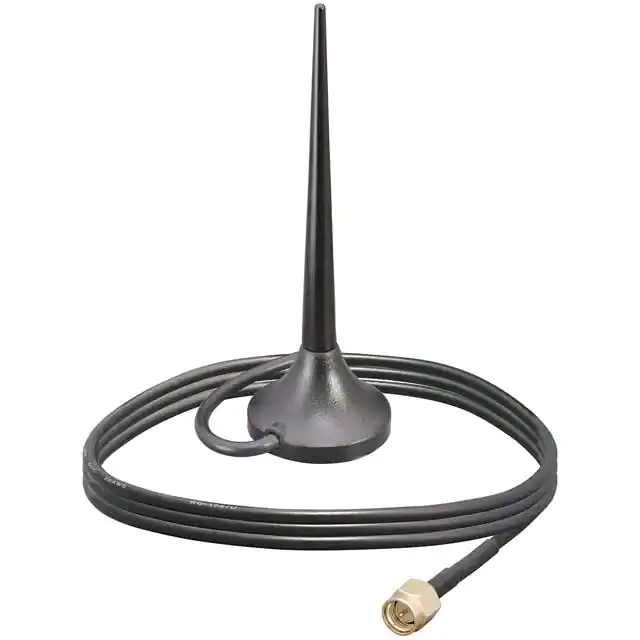

ANT-5GW-MMG2-SMA-1RF ANT 5G CELLULAR MAG 1M SMA |
109 | 11.66 |
|
Datasheet |
- | Bag | Active | Cellular, General ISM | Wide Band | 657.5MHz, 750.5MHz, 842.5MHz, 1.175GHz, 1.593GHz, 1.9475GHz, 2.495GHz, 3.75GHz, 4.7GHz | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 894MHz, 832MHz ~ 1.518GHz, 1.525GHz ~ 1.661GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz | Whip, Straight | 9 | 1.6, 2.3, 2.4, 2.5, 2.8, 3.1, 5.7 | - | -0.5dBi, 3.4dBi, 3.4dBi, 3.3dBi, 0.7dBi, 3.2dBi, 3.6dBi, 4.7dBi, 2.4dBi | 10 W | Cable - 1m | SMA Male | - | - | - | Magnetic | 3.484" (88.50mm) | 2G, 3G, 4G, 5G, Cellular, ISM, LTE, NB-IoT |
