RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

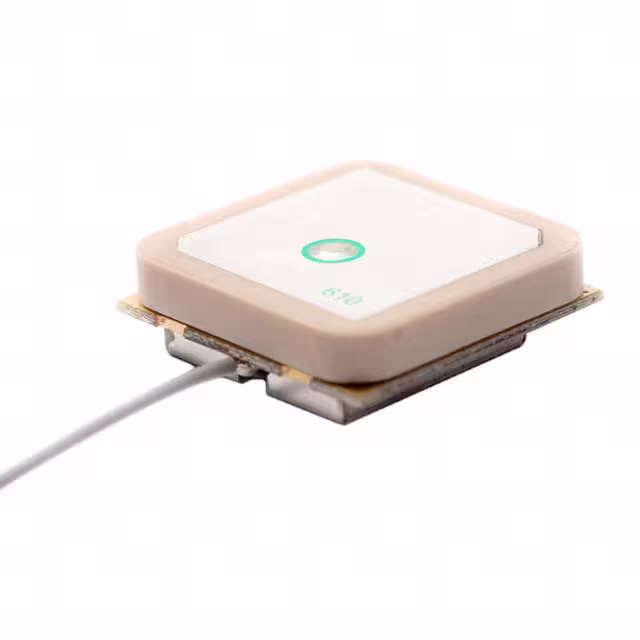

AP.25C.07.0080ARF ANT 1.575GHZ CER PATCH CAB |
3,213 | 0.00 |
|
Datasheet |
- | Tray | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Ceramic Patch | 1 | 2 | - | 2dBic | - | Cable - 80mm, LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.327" (8.30mm) | GPS |
|

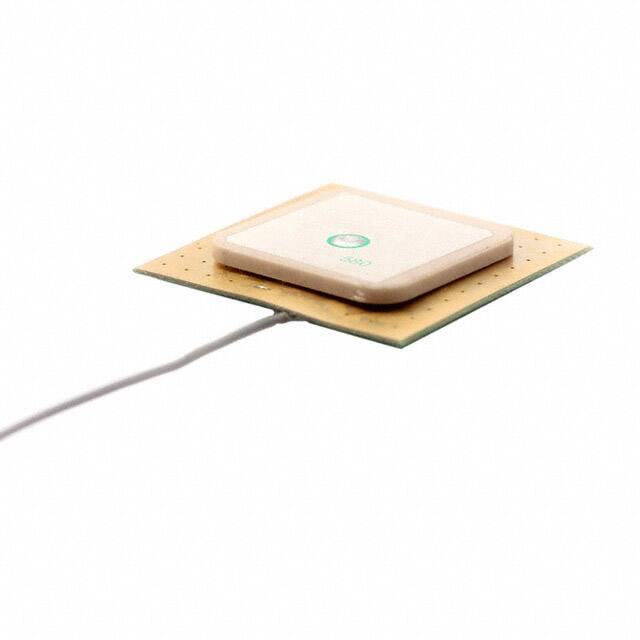

AP.25B.07.0052ARF ANT 1.575GHZ CER PATCH IPEX |
3,080 | 0.00 |
|
Datasheet |
- | Tray | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 2 | - | -1.5dBic | - | LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.157" (4.00mm) | GPS |
|

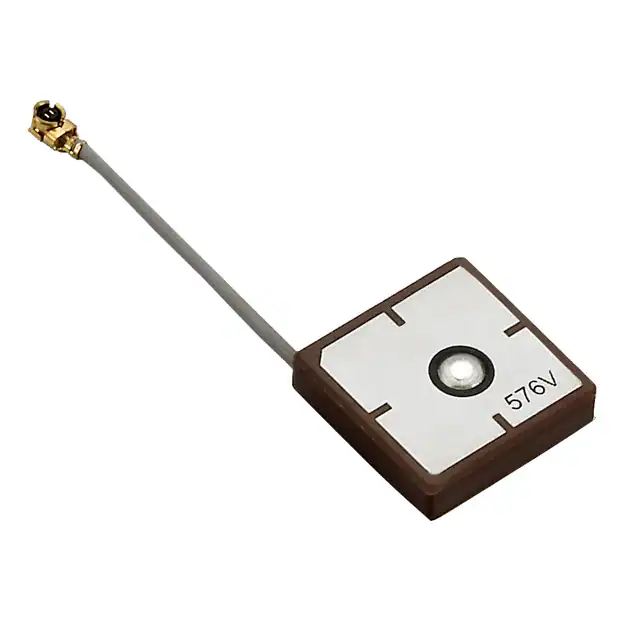

AP.17A.07.0040ARF ANT 1.575GHZ CER PATCH IPEX |
4,760 | 0.00 |
|
Datasheet |
- | Tray | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 2 | - | 1dBic | - | LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.248" (6.30mm) | GPS |
|

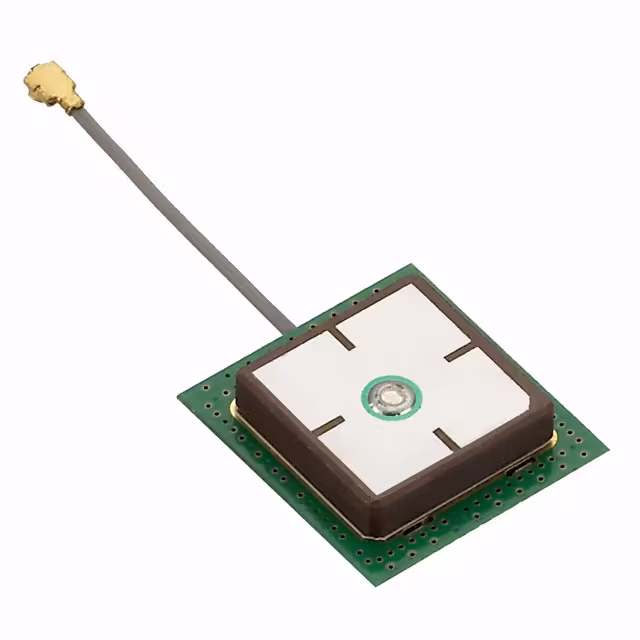

AP.17B.07.0040ARF ANT 1.575GHZ CER PATCH IPEX |
1,560 | 0.00 |
|
Datasheet |
- | Tray | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 2 | - | 1dBic | - | LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.307" (7.80mm) | GPS |
|

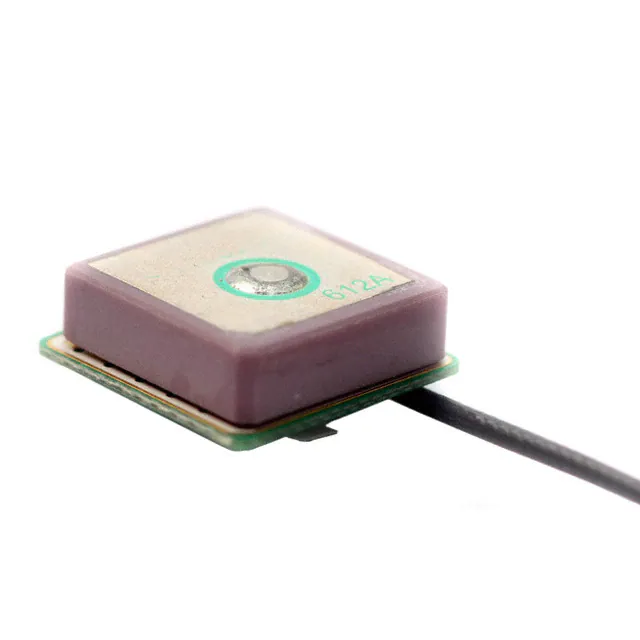

AP.12B.07.0057ARF ANT 1.575GHZ CER PATCH CAB |
4,521 | 0.00 |
|
Datasheet |
- | Tray | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Ceramic Patch | 1 | 2 | - | 1.5dBic | - | Cable - 46mm, LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.236" (6.00mm) | GPS |
|
AP.10A.07.0050BRF ANT 1.575GHZ CER PATCH IPEX |
4,926 | 0.00 |
|
Datasheet |
- | Tray | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 2 | - | -3dBic | - | LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.157" (4.00mm) | GPS |
|
AP.10B.07.0050BRF ANT 1.575GHZ CER PATCH IPEX |
2,067 | 0.00 |
|
Datasheet |
- | Tray | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 2 | - | -3dBic | - | LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.157" (4.00mm) | GPS |
|

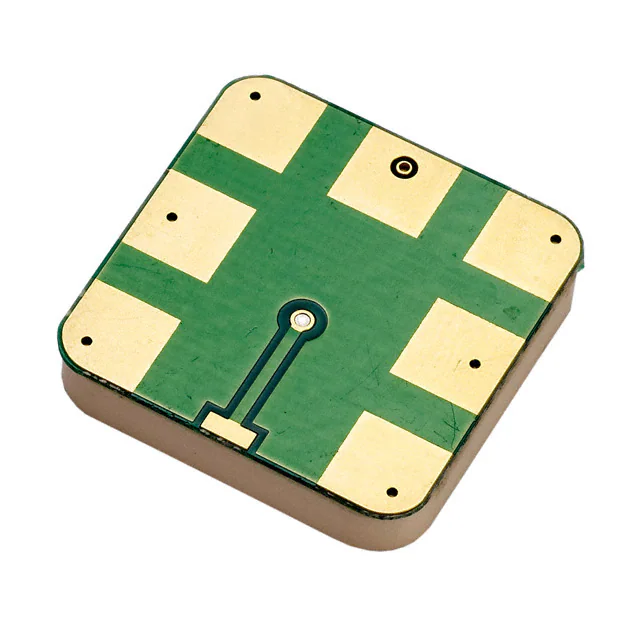

SGP.1575.25.4.C.02RF ANT 1.575GHZ CER PATCH SLD |
2,557 | 0.00 |
|
- |
- | Tape & Reel (TR) | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.571GHz ~ 1.579GHz | Ceramic Patch | 1 | 1.5 | - | 2dBic | - | - | Solder | - | - | - | Surface Mount | 0.177" (4.50mm) | GPS |
|

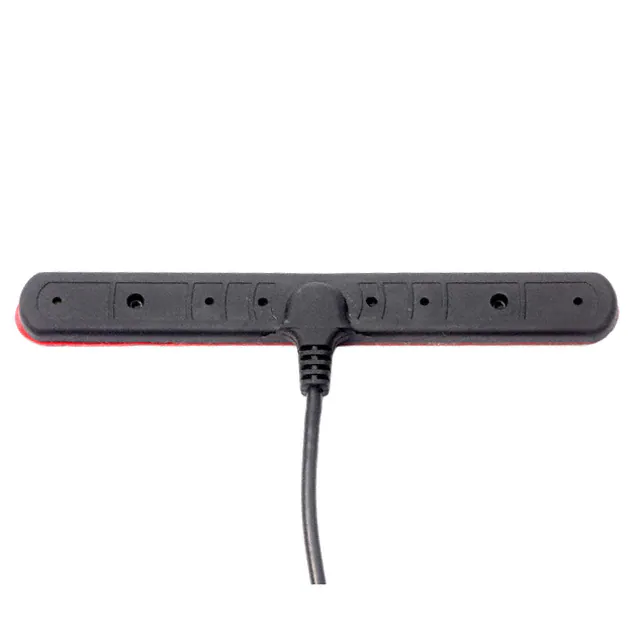

GSA.8822.A.301111RF ANT 850MHZ/900MHZ FLAT BAR |
1,584 | 0.00 |
|
Datasheet |
- | Bag | Obsolete | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Flat Bar | 5 | 2 | - | 3dBi | 10 W | Cable - 3m | SMA Male | IP67 | - | - | Adhesive | 0.256" (6.50mm) | CDMA, DCS, GSM, PCS, UMTS, WCDMA |
|

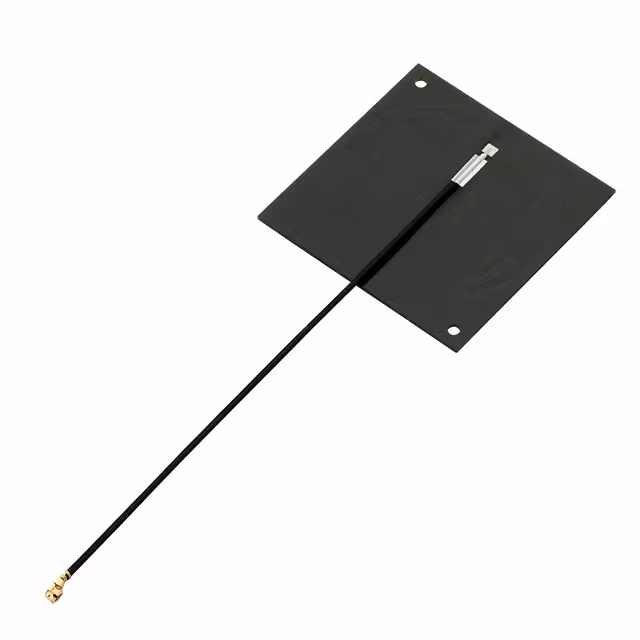

PC24.07.0100ARF ANT 850MHZ/900MHZ FLAT PATCH |
3,250 | 0.00 |
|
Datasheet |
TheStripe™ | Bag | Obsolete | Cellular, General ISM | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Flat Patch | 4 | 2 | -12dB, -25dB, -12dB, -10dB | 0dBi | 10 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Chassis Mount | 0.031" (0.80mm) | AMPS, DCS, GSM, PCS |
|

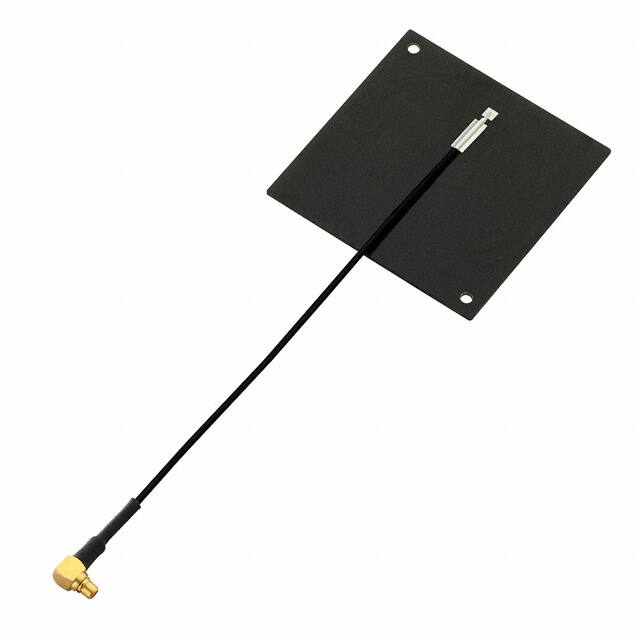

PC24.09.0100ARF ANT 892MHZ/1.9GHZ FLAT PATCH |
2,501 | 0.00 |
|
Datasheet |
TheStripe™ | Bag | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Flat Patch | 2 | 2 | -25dB, -12dB | 0dBi | 10 W | - | MMCX Male | - | - | - | Adhesive | 0.031" (0.80mm) | GSM |
|
FXP100.07.0100ARF ANT 2.3GHZ/2.5GHZ FLAT PATCH |
1,752 | 0.00 |
|
Datasheet |
- | Bag | Obsolete | WiFi | Wide Band | 2.3GHz, 2.5GHz, 3.5GHz | 2.1GHz ~ 4.32GHz | Flat Patch | 1 | 2 | - | 3.2dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | WiMax™ |
|

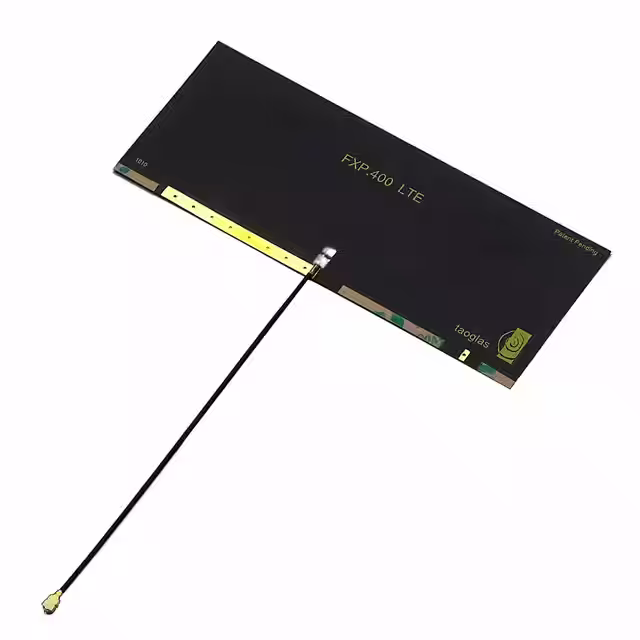

FXP400.07.0100ARF ANT 815MHZ/2.4GHZ FLAT PATCH |
4,260 | 24.30 |
|
Datasheet |
- | Bag | Obsolete | Cellular | UHF (300MHz ~ 1GHz), SHF (f > 4GHz) | 815MHz, 2.4GHz | 690MHz ~ 940MHz, 1.72GHz ~ 3.13GHz | Flat Patch | 2 | 2 | -6dB | 4dBi | 10 W | Cable - 85mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | LTE |
|

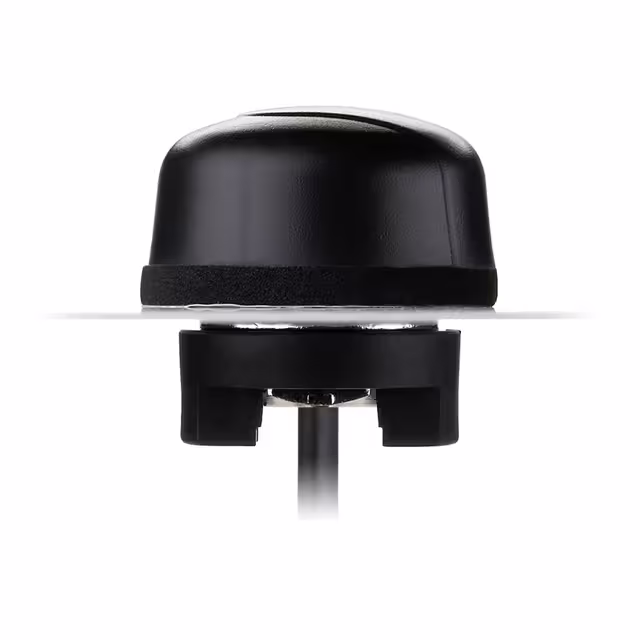

WS.01.B.305151RF ANT 3.8GHZ DOME RP-SMA MALE |
3,045 | 48.60 |
|
Datasheet |
Hercules | Bag | Obsolete | 802.15.4, Bluetooth, WiFi | Wide Band | 3.8GHz | 2.4GHz ~ 5.2GHz | Dome | 1 | 1.6 | -15dB | - | - | - | RP-SMA Male | IP69K | - | - | Panel Mount | 1.142" (29.00mm) | Bluetooth, WLAN, Zigbee™ |
|
PA.15RF ANT 2.4GHZ CHIP SOLDER SMD |
1,445 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | - | -21dB | -3.1dBi | - | - | Solder | - | - | - | Surface Mount | 0.130" (3.30mm) | Bluetooth, 802.11a/b/g |
|

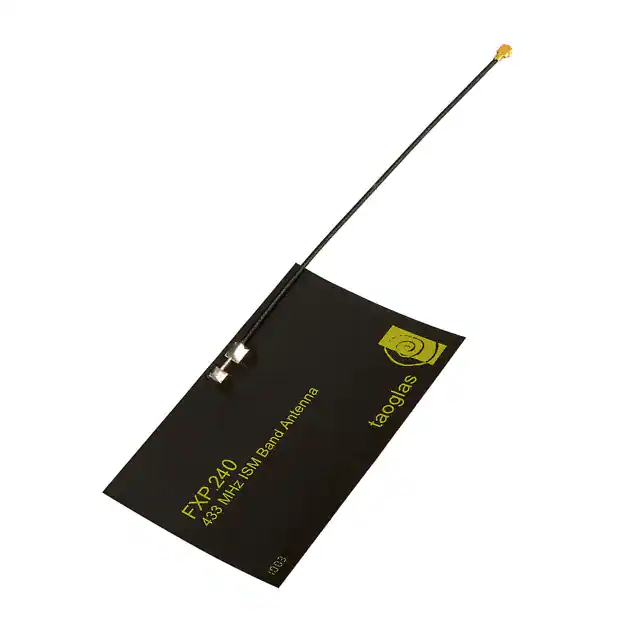

FXP240.07.0100ARF ANT 434MHZ FLAT PATCH MHFII |
1,090 | 0.00 |
|
Datasheet |
- | Bag | Obsolete | - | UHF (300MHz ~ 1GHz) | 434MHz | 433MHz ~ 435MHz | Flat Patch | 1 | 2 | -20dB | 0dBi | 5 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | - |
|

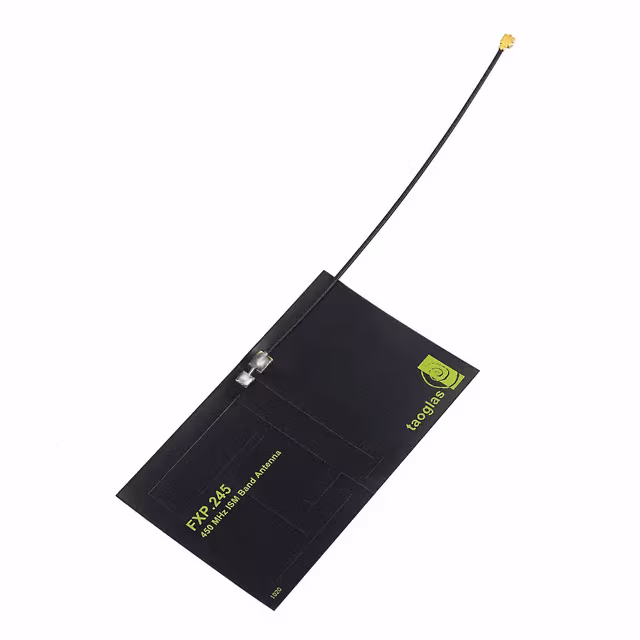

FXP245.07.0100ARF ANT 450MHZ FLAT PATCH CAB ADH |
4,114 | 0.00 |
|
Datasheet |
- | Bag | Obsolete | - | UHF (300MHz ~ 1GHz) | 450MHz | 450MHz ~ 457MHz | Flat Patch | 1 | 2 | -20dB | 0dBi | 5 W | Cable - 100mm | I-PEX MHF2 | - | - | - | Adhesive | 0.004" (0.10mm) | - |
|

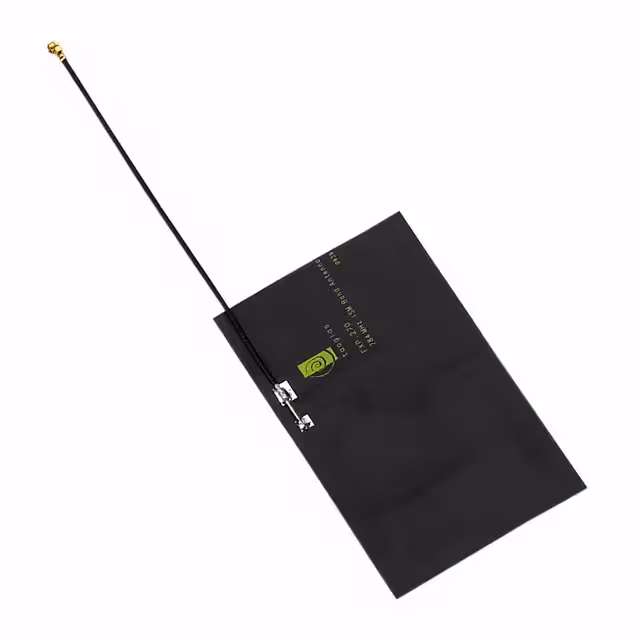

FXP270.07.0100ARF ANT 783MHZ FLAT PATCH MHFII |
4,301 | 0.00 |
|
Datasheet |
- | Bag | Obsolete | - | UHF (300MHz ~ 1GHz) | 783MHz | 779MHz ~ 787MHz | Flat Patch | 1 | 2 | -20dB | 1.4dBi | 5 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | - |
|

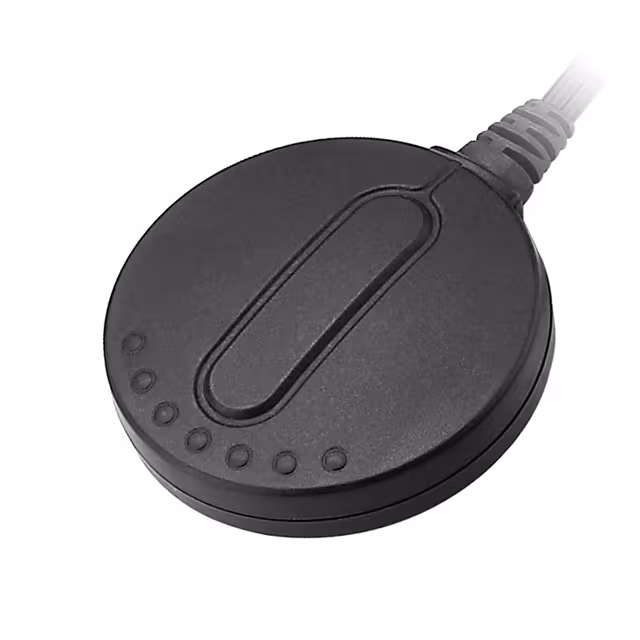

MA301.A.AB.001RF ANT 1.4GHZ MODULE SMA ML ADH |
4,162 | 32.02 |
|
Datasheet |
- | Bag | Obsolete | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 1.4GHz | 824MHz ~ 1.99GHz | Module | 1 | 1.92 | - | 28dBic | - | LNA | SMA Male | IP65 | - | - | Adhesive | 0.681" (17.30mm) | CDMA, GPS, GSM, UMTS |
|

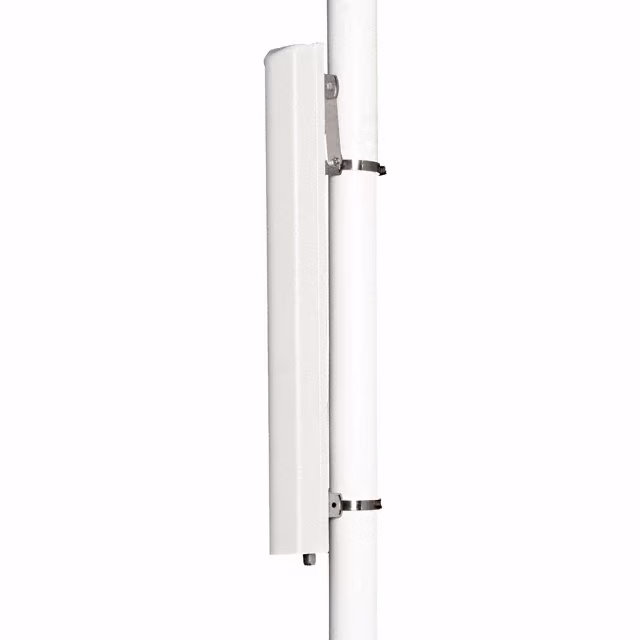

SA.PANEL.20RF ANT 5.4GHZ PANEL N FEM BRKT |
2,908 | 0.00 |
|
Datasheet |
- | Box | Obsolete | WiFi | SHF (f > 4GHz) | 5.4GHz | 4.9GHz ~ 5.9GHz | Panel | 1 | - | -14dB | 17dBi | 50 W | - | N Type Female | - | - | - | Bracket Mount | 2.756" (70.00mm) | Wi-Fi |
