RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

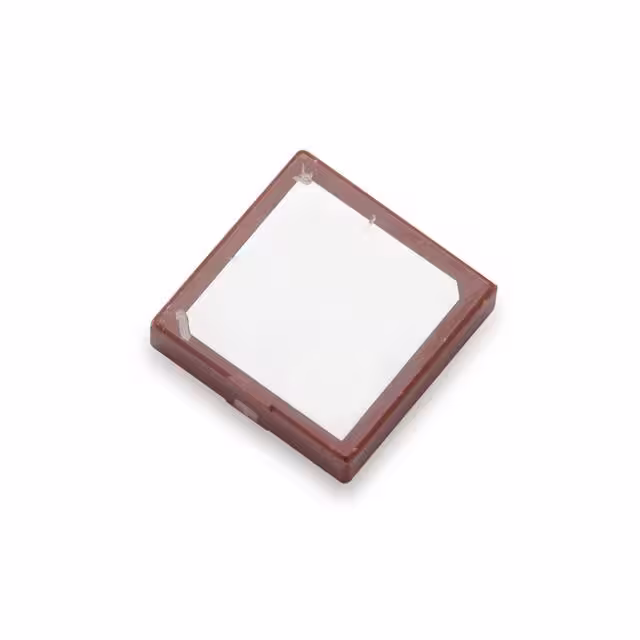

ANT1037RF ANT 1592MHZ CERAMIC PATCH PI |
4,586 | 4.05 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz | Ceramic Patch | 2 | 1.5 | - | 0.14dBi, 1.75dBi | - | - | Solder | - | - | - | Adhesive | 0.157" (4.00mm) | GLONASS, GPS |
|

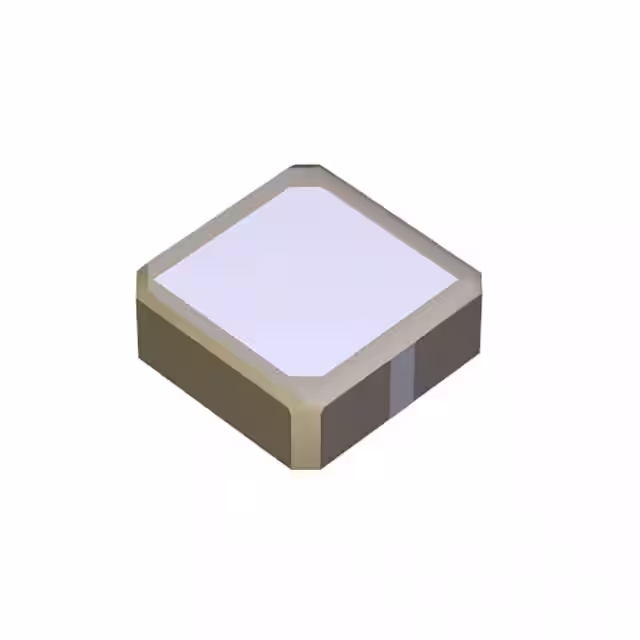

SZC-N-0G06RF ANT 1.575/1.602GHZ CER PATCH |
3,841 | 4.10 |
|
Datasheet |
ARIETISa | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.572GHz ~ 1.578GHz, 1.597GHz ~ 1.607GHz | Ceramic Patch | 1 | 2.1, 2 | -8dB | 1.8dBi, 2dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | Galileo, GLONASS, GNSS, GPS |
|
ANT1034RF ANT 1177MHZ CERAMIC PATCH PI |
3,174 | 4.12 |
|
Datasheet |
- | Tray | Active | - | UHF (1GHz ~ 2GHz) | 1.176GHz | 1.164GHz ~ 1.188GHz | Ceramic Patch | 1 | 1.8 | -10dB | -0.5dBi | - | - | Solder | - | - | - | Adhesive | 0.157" (4.00mm) | IRNSS |
|
|
ANT1028RF ANT 1592MHZ CERAMIC PATCH PI |
1,113 | 4.12 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz | Ceramic Patch | 3 | 1.8 | -10dB | 2dBi, 0dBi, 1.5dBi | - | - | Solder | - | - | - | Adhesive | 0.157" (4.00mm) | Beidou, GLONASS, GPS |
|
|
ANT1027RF ANT 1575.42MHZ/1602MHZ CERAMI |
3,045 | 4.12 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz | Ceramic Patch | 2 | 2 | -10dB | 0.5dBi, 2dBi | - | - | Solder | - | - | - | Adhesive | 0.157" (4.00mm) | GLONASS, GPS |
|
|
ANT1025RF ANT 1575.42MHZ/1602MHZ CERAMI |
2,886 | 4.47 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz | Ceramic Patch | 2 | 2 | -10dB | -0.5dBi, 1dBi | - | - | Solder | - | - | - | Adhesive | 0.157" (4.00mm) | GLONASS, GPS |
|
|
ANT1043RF ANT 1571MHZ CERAMIC PATCH PI |
4,294 | 4.67 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz | 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz | Ceramic Patch | 2 | 1.8 | -10dB | 0dBi | - | - | Solder | - | - | - | Adhesive | 0.079" (2.00mm) | Beidou, GPS |
|
ANT-2G4S32.4 GHZ WHIP ANTENNA |
3,814 | 0.00 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | - | - | - | 0dBi | - | - | I-PEX MHF | - | - | - | - | 1.260" (32.00mm) | ISM |
|
|
ANT1042RF ANT 1575.42MHZ/1602MHZ CERAMI |
1,190 | 4.98 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz | Ceramic Patch | 2 | 2 | -10dB | -3.5dBi, -1.5dBi | - | - | Solder | - | - | - | Adhesive | 0.079" (2.00mm) | GLONASS, GPS |
|
|
ANT1036RF ANT 1581MHZ CERAMIC PATCH PI |
1,507 | 4.98 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz | Ceramic Patch | 2 | 2 | - | 0.26dBi, 1.25dBi | - | - | Solder | - | - | - | Adhesive | 0.157" (4.00mm) | GLONASS, GPS |
|
|
PE51OM10222.4 GHz/900 MHz 3 dBi Omni Anten |
2,267 | 0.00 |
|
Datasheet |
- | Retail Package | Active | Bluetooth, Cellular, General ISM, WiFi | Wide Band | 930MHz, 2.45GHz | 900MHz ~ 960MHz, 2.4GHz ~ 2.5GHz | Module | 2 | - | - | 3dBi, 3dBi | 50 W | - | NMO | - | - | - | - | 3.000" (76.20mm) | 802.11b/g/n, Bluetooth, GSM, IoT, ISM, RFID |
|
|
MEA-4920-CM/100-00276-012.4/5.0 GHz ISM Connector Mount |
2,920 | 0.00 |
|
Datasheet |
- | Tape & Box (TB) | Active | General ISM | Wide Band | 2.45GHz, 5.422GHz | 2.41GHz ~ 2.49GHz, 4.92GHz ~ 5.925GHz | Whip, Right Angle | 2 | 1.4, 1.7 | -14.7dB, -12.8dB | 4dBi, 5.2dBi | 25 W | - | Connector | IP67 | - | - | Connector Mount | 2.087" (53.00mm) | ISM |
|
|
MEA-2410-LP-CM/100-00274-012.4 GHz ISM Connector Mount |
2,965 | 0.00 |
|
Datasheet |
- | Tape & Box (TB) | Active | General ISM | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.41GHz ~ 2.49GHz | Whip, Right Angle | 1 | 1.3 | -16.4dB | 3.2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 2.087" (53.00mm) | Iridium™ |
|
|
MEA-2410-SMA/100-00275-012.4/5.0 GHz ISM Connector Mount |
2,060 | 0.00 |
|
Datasheet |
- | Tape & Box (TB) | Active | General ISM | Wide Band | 2.45GHz, 5.422GHz | 2.41GHz ~ 2.49GHz, 4.92GHz ~ 5.925GHz | Whip, Straight | 2 | 1.4, 1.7 | -14.7dB, -12.8dB | 4dBi, 5.2dBi | 25 W | Cable - 2m | - | IP67 | - | - | Connector Mount | 2.205" (56.00mm) | ISM |
|
ANT1017RF ANT 1571MHZ CERAMIC PATCH PI |
1,306 | 5.50 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz | 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz | Ceramic Patch | 2 | 1.8 | -10dB | -6.5dBi, -8dBi | - | - | Solder | - | - | - | Adhesive | 0.157" (4.00mm) | Beidou, GPS |
|
|
ANT1016RF ANT 1605MHZ CERAMIC PATCH PI |
4,636 | 5.50 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.605GHz | 1.603GHz ~ 1.607GHz | Ceramic Patch | 1 | 1.5 | - | -4.5dBi | - | - | Solder | - | - | - | Adhesive | 0.157" (4.00mm) | GPS |
|
|
ANT1018RF ANT 1652MHZ CERAMIC PATCH PI |
2,262 | 5.50 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz | Ceramic Patch | 2 | 1.8 | -10dB | -8dBi, -5.5dBi | - | - | Solder | - | - | - | Adhesive | 0.157" (4.00mm) | GLONASS, GPS |
|
ANT1035RF ANT 1586MHZ CERAMIC PATCH PI |
4,400 | 5.61 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz | Ceramic Patch | 2 | 1.8 | -10dB | 0dBi, 1dBi | - | - | Solder | - | - | - | Adhesive | 0.157" (4.00mm) | GLONASS, GPS |
|
|
ANT1023RF ANT 1593MHZ CERAMIC PATCH PI |
2,218 | 5.67 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz | Ceramic Patch | 2 | 1.5 | -10dB | -5.5dBi, -2dBi | - | - | Solder | - | - | - | Adhesive | 0.157" (4.00mm) | GLONASS, GPS |
|
|
ANT1024RF ANT 1602MHZ CERAMIC PATCH PI |
4,887 | 5.67 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz | Ceramic Patch | 3 | 1.8 | -10dB | -3dBi, -3.3dBi, -2.8dBi | - | - | Solder | - | - | - | Adhesive | 0.157" (4.00mm) | Beidou, GLONASS, GPS |
