RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEANOM11194 Cellular, 5 Wi-Fi, 1 GPS Combi |
1,112 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 788.5MHz, 2.195GHz, 2.45GHz, 3.75GHz, 5.45GHz | 617MHz ~ 960MHz, 1.69GHz ~ 2.5GHz, 2.4GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 4.9GHz ~ 6GHz | Module | 5 | 2 | - | 4dBi, 6dBi, 5dBi, 7dBi, 8dBi | 10 W | Cable - 5.18m | N Type Male, RP-SMA Male, SMA Male | IP69K | - | - | Connector Mount | 3.150" (80.01mm) | General Purpose |
|
|
PEANOM11384 Cellular, 5 Wi-Fi, 1 GPS Combi |
1,071 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 788.5MHz, 2.195GHz, 2.45GHz, 3.75GHz, 5.45GHz | 617MHz ~ 960MHz, 1.69GHz ~ 2.5GHz, 2.4GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 4.9GHz ~ 6GHz | Module | 5 | 2 | - | 4dBi, 6dBi, 5dBi, 7dBi, 8dBi | 10 W | Cable - 5.18m | N Type Male, RP-SMA Male, TNC Male | IP69K | - | - | Connector Mount | 3.150" (80.01mm) | General Purpose |
|
|
PEANOM11094 Cellular, 5 Wi-Fi, 1 GPS Combi |
1,018 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 788.5MHz, 2.195GHz, 2.45GHz, 3.75GHz, 5.45GHz | 617MHz ~ 960MHz, 1.69GHz ~ 2.5GHz, 2.4GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 4.9GHz ~ 6GHz | Module | 5 | 2 | - | 4dBi, 6dBi, 5dBi, 7dBi, 8dBi | 10 W | Cable - 5.18m | RP-SMA Male, SMA Male | IP69K | - | - | Connector Mount | 3.150" (80.01mm) | General Purpose |
|
|
PEANOM11084 Cellular, 5 Wi-Fi, 1 GPS Combi |
4,878 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 788.5MHz, 2.195GHz, 2.45GHz, 3.75GHz, 5.45GHz | 617MHz ~ 960MHz, 1.69GHz ~ 2.5GHz, 2.4GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 4.9GHz ~ 6GHz | Module | 5 | 2 | - | 4dBi, 6dBi, 5dBi, 7dBi, 8dBi | 10 W | Cable - 5.182m, LNA | RP-SMA Male, SMA Male | IP69K | - | - | Connector Mount | 3.150" (80.01mm) | General Purpose |
|
|
PE9858B-15WR-112 Waveguide Standard Gain H |
4,336 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 8.525GHz | 7.05GHz ~ 10GHz | Horn | 1 | 1.5 | - | 15dBi | - | - | - | - | - | - | Waveguide Mount | 5.210" (132.33mm) | General Purpose |
|
|
PE51129PANEL FIXED ANTENNA OPERATES FRO |
2,048 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 5.4GHz | 4.4GHz ~ 6.4GHz | Module | 1 | 1.5 | - | 9dBi | 50 W | - | SMA Female | - | - | - | Connector Mount | 0.031" (0.80mm) | General Purpose |
|
|
PEWAN1017WR-10 WAVEGUIDE STANDARD GAIN HO |
4,233 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 92.5GHz | 75GHz ~ 110GHz | Horn | 1 | 1.15 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 1.000" (25.40mm) | General Purpose |
|
|
PEWAN1018WR-10 Waveguide Standard Gain Ho |
2,019 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 92.5GHz | 75GHz ~ 110GHz | Horn | 1 | 1.15 | - | 15dBi | - | - | - | - | - | - | Waveguide Mount | 1.146" (29.10mm) | General Purpose |
|
|
PEWAN1049WR-10 Waveguide Conical Gain Hor |
4,397 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 93.5GHz | 87GHz ~ 100GHz | Horn | 1 | 1.15 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 1.000" (25.40mm) | General Purpose |
|
|
PEWAN1042WR-12 Waveguide Conical Gain Hor |
2,927 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 72.5GHz | 68GHz ~ 77GHz | Horn | 1 | 1.15 | - | 15dBi | - | - | - | - | - | - | Waveguide Mount | 1.000" (25.40mm) | General Purpose |
|
|
PEANFP1074WiFi 6, 2400-2500/5150-5850 MHz |
4,447 | 0.00 |
|
Datasheet |
- | Retail Package | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Panel | 2 | 2 | - | 6dBi, 6dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Mast Mount | 0.980" (24.89mm) | 802.11ax, Bluetooth, IoT, Wi-Fi, Zigbee™ |
|
|
PEANFP1077WiFi 6, 2400-2500/5150-5850 MHz |
4,454 | 0.00 |
|
Datasheet |
- | Retail Package | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Panel | 2 | 2 | - | 6dBi, 6dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | RP-TNC Male | - | - | - | Mast Mount | 0.980" (24.89mm) | 802.11ax, Bluetooth, IoT, Wi-Fi, Zigbee™ |
|
|
PEANFP1075WiFi 6, 2400-2500/5150-5850 MHz |
3,930 | 0.00 |
|
Datasheet |
- | Retail Package | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Panel | 2 | 2 | - | 6dBi, 6dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Male | - | - | - | Mast Mount | 0.980" (24.89mm) | 802.11ax, Bluetooth, IoT, Wi-Fi, Zigbee™ |
|
|
PEANFP1076WiFi 6, 2400-2500/5150-5850 MHz |
1,288 | 0.00 |
|
Datasheet |
- | Retail Package | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Panel | 2 | 2 | - | 6dBi, 6dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | RP-SMA Male | - | - | - | Mast Mount | 0.980" (24.89mm) | 802.11ax, Bluetooth, IoT, Wi-Fi, Zigbee™ |
|
|
PEWAN1039WR-15 Waveguide Conical Gain Hor |
1,651 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 63GHz | 58GHz ~ 68GHz | Horn | 1 | 1.15 | - | 20dBi | - | - | - | - | - | - | Waveguide Mount | 3.100" (78.74mm) | General Purpose |
|
|
PEWAN1007WR-19 Waveguide Standard Gain Ho |
3,390 | 0.00 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 50GHz | 40GHz ~ 60GHz | Horn | 1 | 1.15 | - | 20dBi | - | - | - | - | - | - | Waveguide Mount | 2.500" (63.50mm) | General Purpose |
|
|
PEWAN075-10ELSFWR75 GAIN HRN 10-15GHZ 10DBI |
2,999 | 0.00 |
|
Datasheet |
- | Tape & Box (TB) | Active | - | Wide Band | 12.5GHz | 10GHz ~ 15GHz | Horn | 1 | 1.4 | - | 10dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 1.508" (38.30mm) | General Purpose |
|
|
PEWAN112-10ELSFWR112 GAIN HRN 7.05-10GHZ 10DBI |
3,824 | 0.00 |
|
Datasheet |
- | Tape & Box (TB) | Active | Waveguide | Wide Band | 8.525GHz | 7.05GHz ~ 10GHz | Horn | 1 | 1.4 | - | 10dBi | - | - | SMA Female | - | - | - | Waveguide Mount | 1.369" (34.77mm) | - |
|
|
PEWAN112-15ELSFWR112 GAIN HRN 7.05-10GHZ 15DBI |
1,124 | 0.00 |
|
Datasheet |
- | Tape & Box (TB) | Active | - | Wide Band | 8.525GHz | 7.05GHz ~ 10GHz | Horn | 1 | 1.4 | - | 15dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 2.188" (55.58mm) | General Purpose |
|

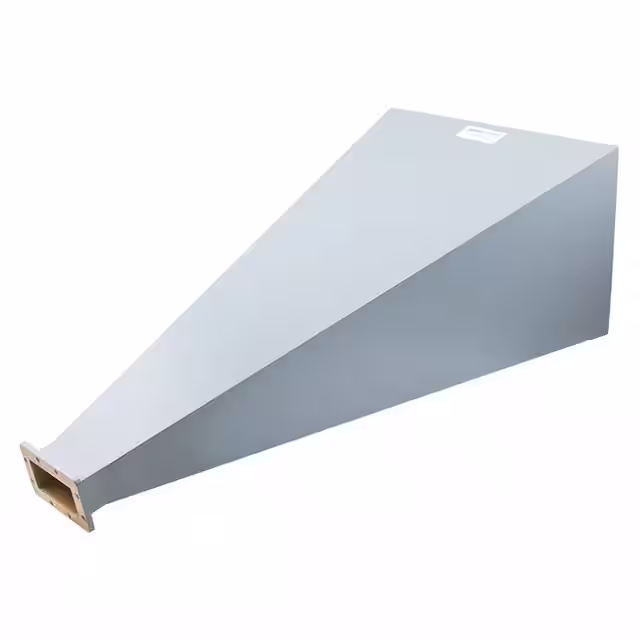

PEWAN229-20WR229 GAIN HORN 3.3-4.9GHZ 20DBI |
1,150 | 1960.00 |
|
Datasheet |
- | Bulk | Active | Waveguide | S-C Band (2GHz ~ 8GHz) | 4.1GHz | 3.3GHz ~ 4.9GHz | Horn | 1 | 1.3 | - | 20dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
