RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

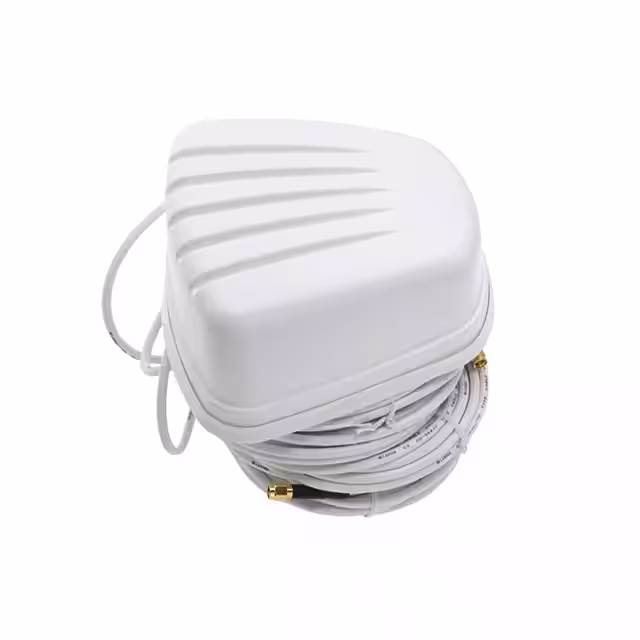

GPSMB502RF ANT MODULE RP-SMA MALE PAN MT |
4,818 | 158.75 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation, WiFi | Wide Band | - | - | Module | 6 | 1.5 | - | 5dBi | - | LNA, Filter | RP-SMA Male, SMA Male | IP67 | - | - | Panel Mount | 2.992" (76.00mm) | GPS, LTE, Wi-Fi |
|

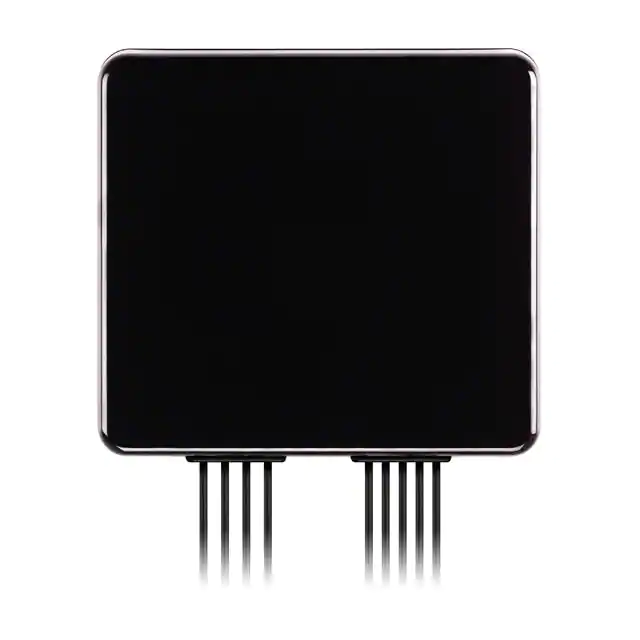

MA990.A.0019IN1 COMBO ANTENNA |
3,861 | 170.97 |
|
Datasheet |
- | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 788.5MHz, 1.223GHz, 1.2445GHz, 1.4725GHz, 1.561GHz, 1.575GHz, 1.5755GHz, 1.6015GHz, 1.955GHz, 2.54GHz, 4.15GHz, 5.5375GHz, 6.525GHz | 617MHz ~ 960MHz, 1.207GHz ~ 1.239GHz, 1.241GHz ~ 1.248GHz, 1.427GHz ~ 1.518GHz, 1.559GHz ~ 1.563GHz, 1.563GHz ~ 1.587GHz, 1.564GHz ~ 1.587GHz, 1.593GHz ~ 1.61GHz, 1.71GHz ~ 2.2GHz, 2.39GHz ~ 2.69GHz, | Module | 13 | 3 | -10dB | 2.1dBi, 4.2dBi, 3.2dBi, 2.2dBi, 0.9dBi, 3.7dBi, 3.7dBi, 0.8dBi, 4dBi, 4.5dBi, 5.4dBi, 6.6dBi | - | Cable - 1m, LNA, Filter | SMA Male (2) | IP67 | - | - | Adhesive | 0.807" (20.50mm) | 3G, 4G, 5G, Beidou, GLONASS, GPS, GNSS, LTE, Wi-Fi |
|

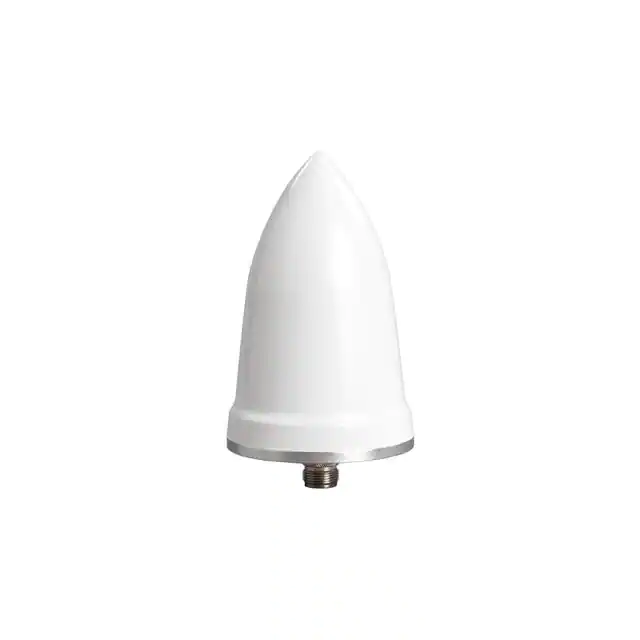

GNSS1-TMG-26NCSRF ANT 1.5845GHZ DOME N TYPE |
4,369 | 197.54 |
|
Datasheet |
GNSS1-TMG-26N | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5845GHz | 1.554GHz ~ 1.615GHz | Dome | 1 | 2 | - | 3dBic | - | LNA, Filter | N Type Female | - | - | - | Pole Mount | 4.961" (126.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
MA351.A.BI.0013IN1 MAGNET MNT ANT 3M SMA(M) |
2,397 | 174.88 |
|
- |
Steedan | Bag | Active | Cellular, WiFi | Wide Band | 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.495GHz, 3.75GHz, 5.5375GHz | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 5.15GHz ~ 5.925GHz | Module | 8 | - | - | 1.1dBi, 3.5dBi, 5dBi, 5.1dBi, 6.6dBi, 6.9dBi, 5.9dBi, 3.3dBi | 10 W | Cable - 3m | SMA Male (2) | IP65 | - | - | Magnetic | 1.881" (47.78mm) | 3G, 4G, 5G, HSPA, HSPA+, LTE, WCDMA, Wi-Fi |
|

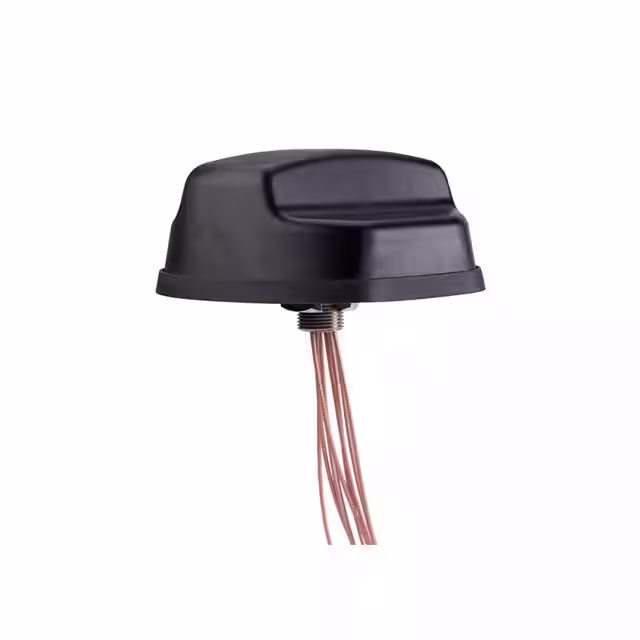

GL4X4-SF-PLKRF ANT 657.5MHZ DOME SMA MALE |
1,726 | 221.22 |
|
Datasheet |
- | Box | Active | Cellular, Navigation | Wide Band | 657.5MHz, 750MHz, 767.5MHz, 892MHz, 1.586GHz, 1.955GHz, 2.002GHz, 2.495GHz, 3.6GHz, 5.55GHz | 617MHz ~ 698MHz, 698MHz ~ 802MHz, 733MHz ~ 802MHz, 824MHz ~ 960MHz, 1.565GHz ~ 1.608GHz, 1.71GHz ~ 2.2GHz, 1.805GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz, 5.15GHz ~ 5.95GHz | Dome | 10 | 2 | - | -0.2dBi, -1.4dBi, 1.1dBi, 0dBi, 0dBi, 2.1dBi, -2dBic, 3dBic, 4.4dBi, 1.7dBi, 1.5dBi, 4.8dBi, 2.2dBi, 4.7dBi, 2.6dBi, 5.8dBi | 50 W | Cable - 5.18m | SMA Male (2) | IP67 | - | - | Panel Mount | 3.012" (76.50mm) | 2G, 3G, 5G, Bluetooth, Cellular, GNSS, GPS, LTE |
|
|
MA354.A.BICG.0014 IN1 MAGNET MNT ANT 3M SMA(M) |
2,910 | 220.58 |
|
- |
Steedan | Box | Active | Cellular, WiFi | Wide Band | 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.45GHz, 2.495GHz, 3.75GHz, 5.5GHz, 5.5375GHz, 6.1375GHz | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 5.15GHz ~ 5.85GHz, 5.15GHz ~ 5.925GHz, 5.925GHz ~ 7.125GHz | Module | 11 | - | - | 1.6dBi, 3.5dBi, 5dBi, 5.1dBi, 6.6dBi, 4.2dBi, 6.9dBi, 5.9dBi, 3.3dBi, 7.7dBi, 3.9dBi | 10 W | Cable - 3m | RP-SMA Male, SMA Male | IP65 | - | - | Magnetic | 1.881" (47.78mm) | 3G, 4G, 5G, HSPA, HSPA+, LTE, WCDMA, Wi-Fi |
|
BMYD210GRF ANT 215-225MHZ YAGI 3 ELEM |
1,534 | 309.50 |
|
Datasheet |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

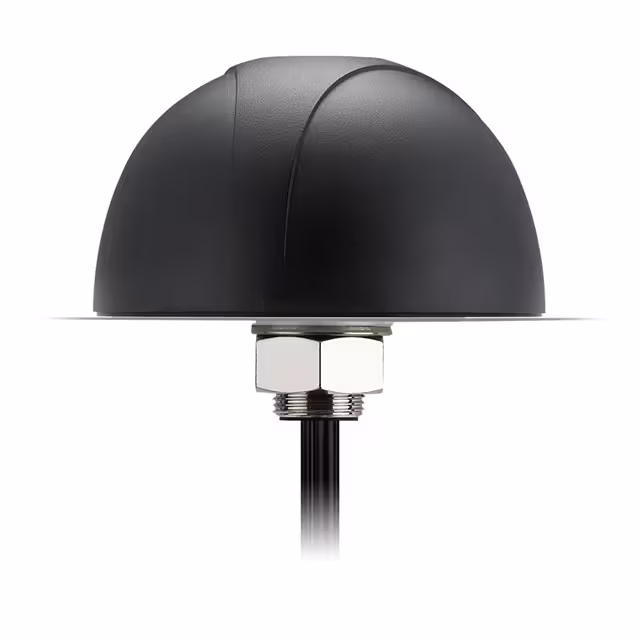

MA752.B.ABICG.001PANTHEON 3000MM GNSS-RG174 SMA(M |
1,664 | 285.60 |
|
- |
Pantheon | Box | Active | Cellular, Navigation, WiFi | Wide Band | 460MHz, 752MHz, 859MHz, 920MHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.45GHz, 2.495GHz, 5.375GHz | 450MHz ~ 470MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | Dome | 12 | 2, 3 | - | -1.3dBi, 0.43dBi, 0.7dBi, 1.3dBi, 1.54dBi, 1.7dBi, 1.8dBi, 1.85dBi, 1.89dBi, 1.93dBi, 5dBi, 5.53dBi | - | Cable - 3m | RP-SMA Male | - | - | - | Panel Mount | 3.244" (82.40mm) | 2G, 3G, 4G, GLONASS, GPS, LTE, Wi-Fi |
|
|
GL9X1AX-TRB-KITTROOPER II SLENDER DUAL CARRIER |
1,508 | 0.00 |
|
Datasheet |
Trooper™ II | Box | Active | Cellular, WiFi | Wide Band | 657.5MHz, 750MHz, 767.5MHz, 780MHz, 788.5MHz, 859MHz, 920MHz, 1.586GHz, 1.955GHz, 2.002GHz, 2.205GHz, 2.45GHz, 2.495GHz, 3.8GHz, 4.6GHz, 5.4GHz, 5.55GHz | 600MHz ~ 698MHz, 617MHz ~ 802MHz, 617MHz ~ 802MHz, 698MHz ~ 894MHz, 733MHz ~ 960MHz, 824MHz ~ 960MHz, 880MHz ~ 960MHz, 1.565GHz ~ 1.608GHz, 1.71GHz ~ 2.2GHz, 1.71GHz ~ 2.2GHz, 1.805GHz ~ 2.5GHz, 2.3GH | Module | 17 | 2 | - | -0.6dBi, 1.5dBi, 2dBi, 1dBi, 1dBi, 2.6dBi, 1dBi, 3dBi, 2.6dBi, 3.9dBi, 4.1dBi, 2.3dBi, 2.6dBi, 4dBi, 4.8dBi, 4.5dBi, 4.7dBi, 1.9dBi, 3.4dBi, 3.6dBi, 5dBi | 25 W | Cable - 609.6mm | SMA Male (3) | IP67 | - | - | Through Hole | 3.543" (90.00mm) | 802.11ax, GNSS, Wi-Fi |
|

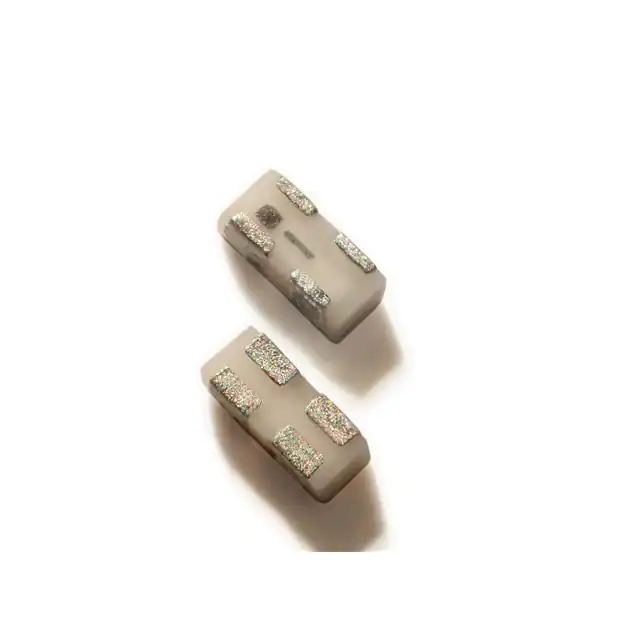

RFANT1005040A1TRF ANT 2.4GHZ ISM SMD |
3,224 | 0.50 |
|
Datasheet |
- | Tape & Reel (TR) | Active | General ISM | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2.6 | -7dB | 1dBi | - | - | Solder | - | - | - | Surface Mount | 0.015" (0.37mm) | ISM |
|
SRC5G027RF ANT 5.4GHZ CHIP SOLDER SMD |
8,853 | 0.94 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | SHF (f > 4GHz) | 5.4GHz | 4.9GHz ~ 5.9GHz | Chip | 1 | 3 | -6dB | 3.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | - |
|
|
2108792-4FPC ANT, MHF, 150MM, WI-FI 6E TR |
1,244 | 0.74 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2 | - | 4.5dBi | - | Cable - 150mm | MHF | - | - | - | Adhesive | 0.005" (0.12mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
W3714RF ANT 5.45GHZ PCB TRACE SLDR |
2,722 | 0.68 |
|
Datasheet |
Embedded Antenna | Tape & Reel (TR) | Active | - | SHF (f > 4GHz) | 5.45GHz | 4.9GHz ~ 6GHz | PCB Trace | 1 | 2 | - | 4.5dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.094" (2.40mm) | General Purpose |
|
|
W3713RF ANT 5.45GHZ PCB TRACE SLDR |
2,720 | 0.68 |
|
Datasheet |
Embedded Antenna | Tape & Reel (TR) | Active | - | SHF (f > 4GHz) | 5.45GHz | 4.9GHz ~ 6GHz | PCB Trace | 1 | 2 | - | 4.5dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.094" (2.40mm) | General Purpose |
|
|
2108792-8FPC ANT, MHF 4L, 150MM, WI-FI 6E |
2,956 | 0.78 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2 | - | 4.5dBi | - | Cable - 150mm | MHF4L | - | - | - | Adhesive | 0.005" (0.12mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
ANT161575TT-3000A1RF ANT 1.575GHZ/2.4GHZ CHIP SLD |
1,775 | 0.72 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | Wide Band | 1.575GHz, 2.4GHz, 5.5GHz | 1.574GHz ~ 1.577GHz, 2.4GHz ~ 2.484GHz, 5.15GHz ~ 5.85GHz | Chip | 3 | 1.2, 1.8, 3.3 | - | - | - | - | Solder | - | - | - | Surface Mount | 0.016" (0.40mm) | - |
|
2118016-1RF ANT 2.4/5.5GHZ PCB TRACE SLD |
2,046 | 1.05 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.483.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 3 | - | 2dB | - | - | Solder | - | - | - | Surface Mount | 0.031" (0.79mm) | Bluetooth, WLAN, Zigbee™ |
|

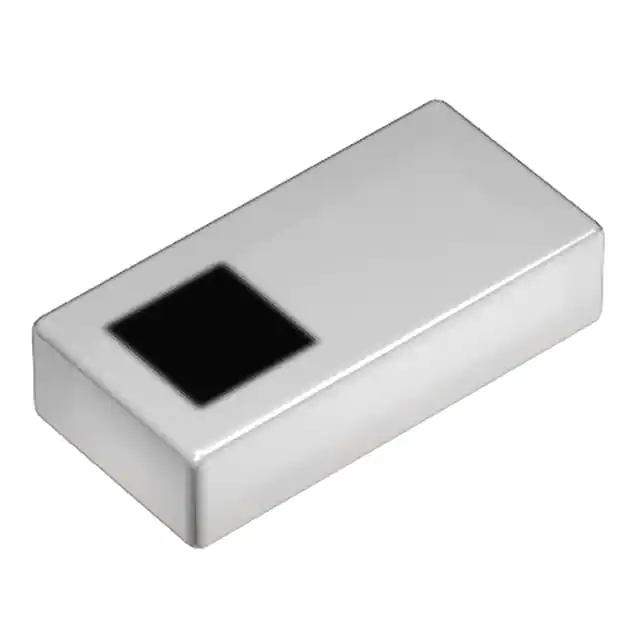

ANT162442ST-1201AM1CERAMIC ANTENNA FOR 2400-2484MHZ |
6,458 | 0.80 |
|
Datasheet |
ANT | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.442GHz | 2.4GHz ~ 2.484GHz | Chip | 1 | 3 | - | - | - | - | Solder | - | - | - | Surface Mount | 0.016" (0.40mm) | - |
|

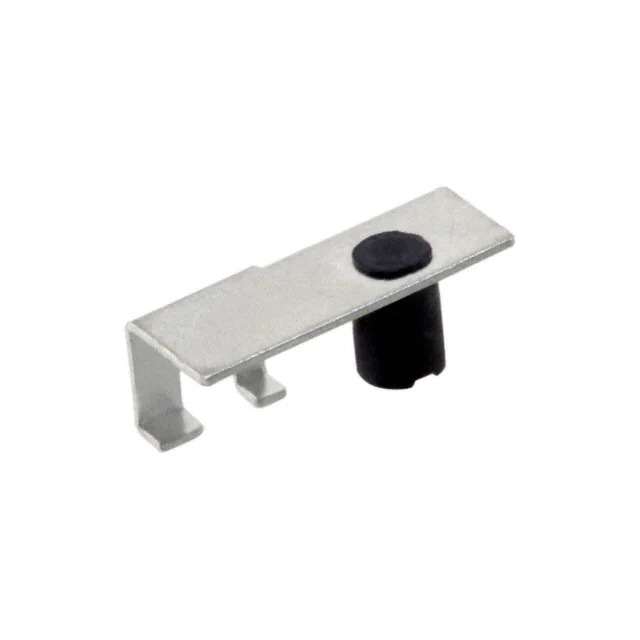

2118316-1RF ANT 5GHZ STAMPED MET SLDR SMD |
9,879 | 1.17 |
|
Datasheet |
- | Tape & Reel (TR) | Active | WiFi | SHF (f > 4GHz) | 5GHz | - | Stamped Metal | 1 | - | - | - | - | - | Solder | - | - | - | Surface Mount | 0.171" (4.35mm) | WLAN |
|
|
2108857-7PCB ANT, MHF4, 150MM WI-FI 6E TR |
4,362 | 1.03 |
|
Datasheet |
- | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2 | - | 4.3dBi | - | Cable - 150mm | MHF4 | - | - | - | Adhesive | 0.276" (7.01mm) | Wi-Fi |
