RF Filters
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | Bandwidth | Filter Type | Ripple | Insertion Loss | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DEA202450BT-2175A1-HRF FILTER BAND PASS 2.45GHZ 0805 |
3,204 | 1.20 |
|
Datasheet |
DEA | 0805 (2012 Metric), 3 PC Pad | Tape & Reel (TR) | Active | 2.45GHz Center | - | Band Pass | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|

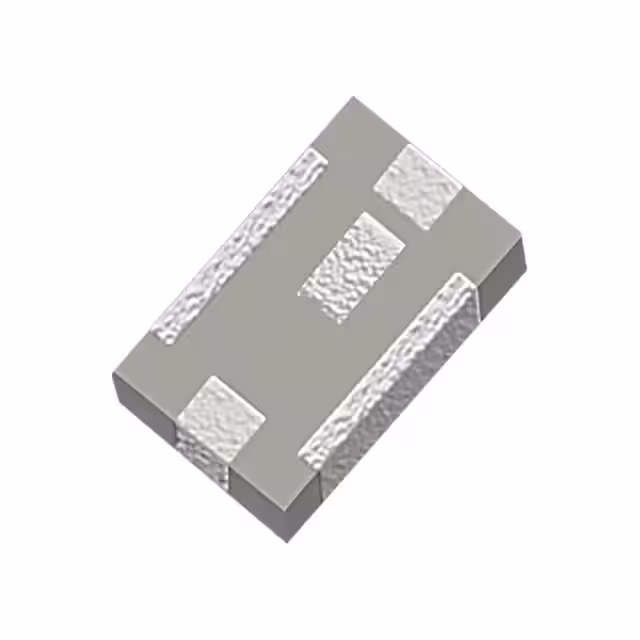

LBP.5410.Z.A.30RF FILTER BAND PASS 5.41GHZ 0805 |
3,704 | 1.53 |
|
Datasheet |
- | 0805 (2012 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 5.41GHz Center | 1.02GHz | Band Pass | - | 1.5dB | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.045" (1.15mm) |
|

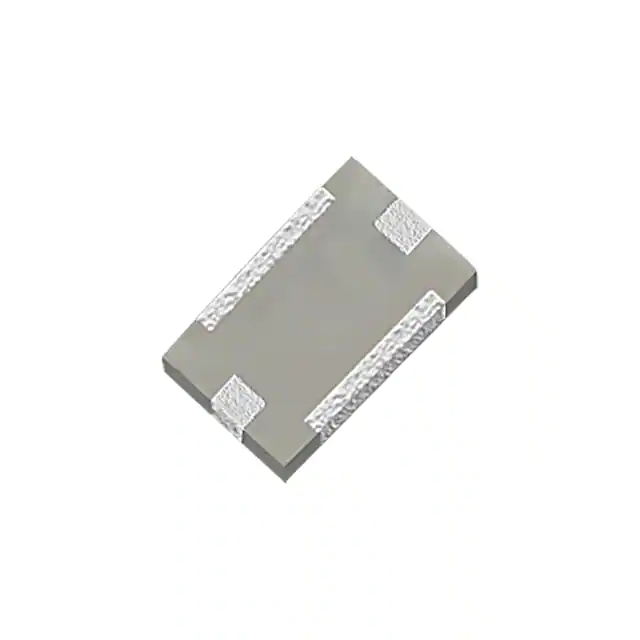

LBP.2450.X.B.30RF FILTER BAND PASS 2.45GHZ 0805 |
1,519 | 1.53 |
|
Datasheet |
- | 0805 (2012 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 2.45GHz Center | 100MHz | Band Pass | - | 1.5dB | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.045" (1.15mm) |
|

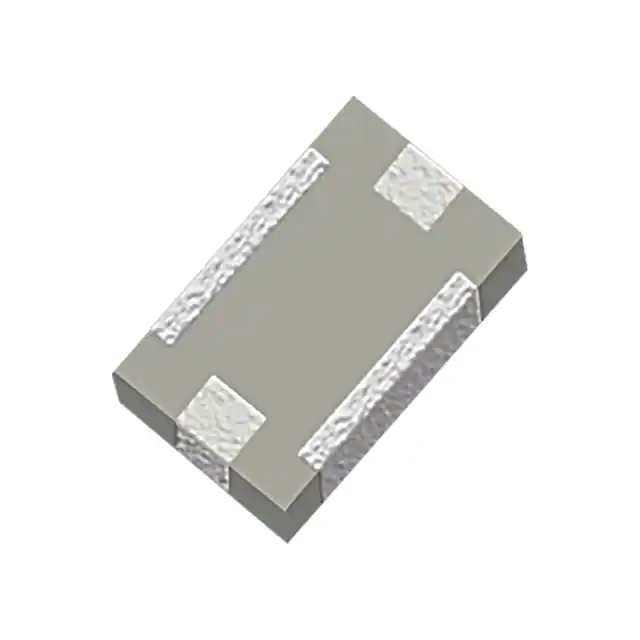

LBP.2450.X.C.30RF FILTER BAND PASS 2.45GHZ 0805 |
3,485 | 1.53 |
|
Datasheet |
- | 0805 (2012 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 2.45GHz Center | 100MHz | Band Pass | - | 1.5dB | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.045" (1.15mm) |
|
LBP.2450.X.A.30RF FILTER BAND PASS 2.45GHZ 0603 |
3,867 | 1.53 |
|
Datasheet |
- | 0603 (1608 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 2.45GHz Center | 100MHz | Band Pass | - | 2.2dB | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
BP0805A1795ASTRRF FILTER BANDPASS 1.795GHZ 0805 |
3,880 | 10.91 |
|
Datasheet |
BP | 0805 (2012 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 1.795GHz | 20MHz | Band Pass | - | - | Surface Mount | 0.080" L x 0.061" W (2.03mm x 1.55mm) | 0.035" (0.90mm) |
|
SCLF-36+RF FILTER LOW PASS 40MHZ 1206 |
2,802 | 15.49 |
|
Datasheet |
- | 1206 (3216 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 40MHz (Cutoff) | - | Low Pass | - | 1dB | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.055" (1.40mm) |
|
XLF-762+RF FILTER LOW PASS 11GHZ 12VQFN |
1,368 | 16.32 |
|
Datasheet |
- | 12-VQFN Exposed Pad | Tape & Reel (TR) | Active | 11GHz (Cutoff) | - | Low Pass | - | 1.6dB | Surface Mount | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.035" (0.89mm) |
|

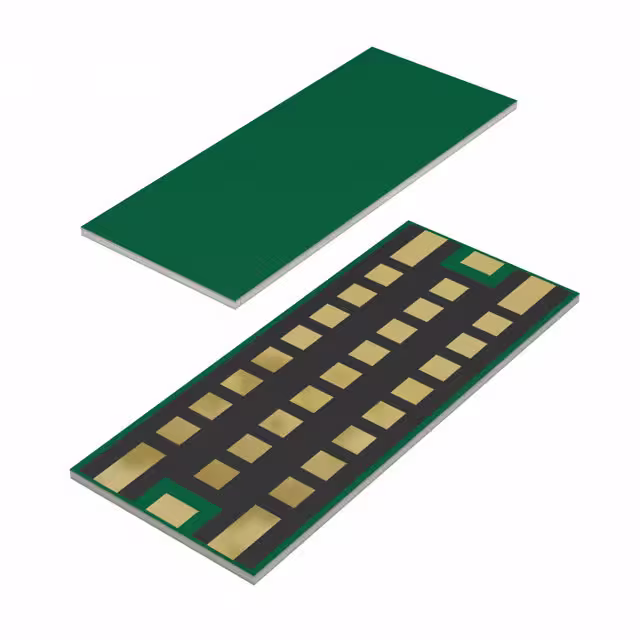

BP0FA1190A7TRRF FILT BAND PASS 1.19GHZ 31ULGA |
1,435 | 26.89 |
|
Datasheet |
BP | 31-ULGA | Tape & Reel (TR) | Active | 1.19GHz | 450MHz | Band Pass | - | 1.56dB | Surface Mount | 0.866" L x 0.206" W (21.99mm x 5.25mm) | 0.022" (0.56mm) |
|
VLF-2600+RF FILTER LOW PASS 3.125GHZ SMA |
4,883 | 34.24 |
|
Datasheet |
VLF-2600+ | SMA In line Module | Box | Active | 3.125GHz (Cutoff) | - | Low Pass | - | 2.97dB | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
|
|
VLF-1525+RF FILTER LOW PASS 1.75GHZ SMA |
2,481 | 34.24 |
|
Datasheet |
VLF-1525+ | SMA In line Module | Box | Active | 1.75GHz (Cutoff) | - | Low Pass | - | 2.23dB | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
|
|
VLF-180+RF FILTER LOW PASS 270MHZ SMA |
2,906 | 34.24 |
|
Datasheet |
VLF-180+ | SMA In line Module | Box | Active | 270MHz (Cutoff) | - | Low Pass | - | 3.14dB | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
|
B118LB4SRF FILTER BAND PASS |
2,074 | 84.54 |
|
Datasheet |
- | - | Bulk | Active | - | - | - | - | - | - | - | - |
|
B138LA2SRF FILTER BANDPASS 13.75GHZ 2SMD |
1,063 | 100.19 |
|
Datasheet |
- | 2-SMD, No Lead | Bulk | Active | 13.75GHz | 500MHz | Band Pass | - | 3.25dB | Surface Mount | 0.450" L x 0.200" W (11.43mm x 5.08mm) | 0.098" (2.49mm) |
|

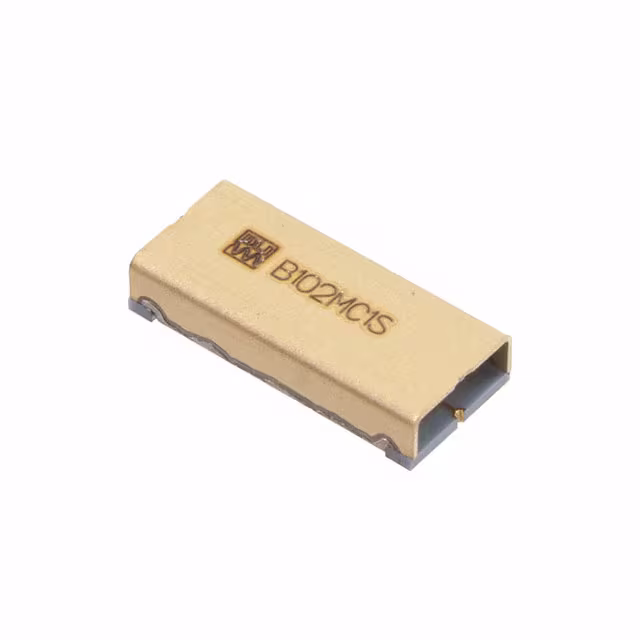

B102MC1SRF FILTER BANDPASS 10.25GHZ 2SMD |
2,093 | 106.45 |
|
Datasheet |
- | 2-SMD, No Lead | Bulk | Active | 10.25GHz | 1GHz | Band Pass | - | 2.25dB | Surface Mount | 0.450" L x 0.200" W (11.43mm x 5.08mm) | 0.103" (2.62mm) |
|
|
L117XH4WRF FILTER LOW PASS 11.7GHZ 6SMD |
2,278 | 112.72 |
|
Datasheet |
- | 6-SMD, No Lead | Tray | Active | 11.7GHz | - | Low Pass | - | 3dB | Surface Mount | 0.220" L x 0.140" W (5.59mm x 3.56mm) | 0.113" (2.87mm) |
|

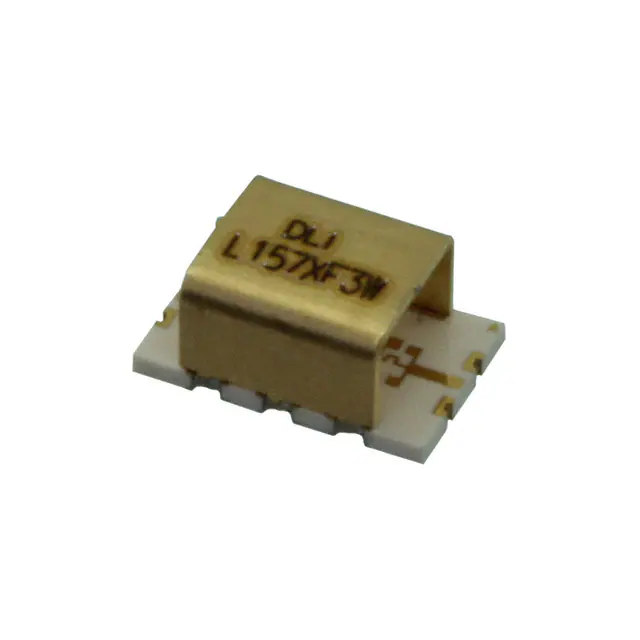

L157XF3WRF FILTER LOW PASS 7.5GHZ 6SMD |
4,112 | 113.62 |
|
Datasheet |
- | 6-SMD, No Lead | Tray | Active | 7.5GHz Center | - | Low Pass | - | 3dB | Surface Mount | 0.220" L x 0.140" W (5.59mm x 3.56mm) | 0.108" (2.74mm) |
|

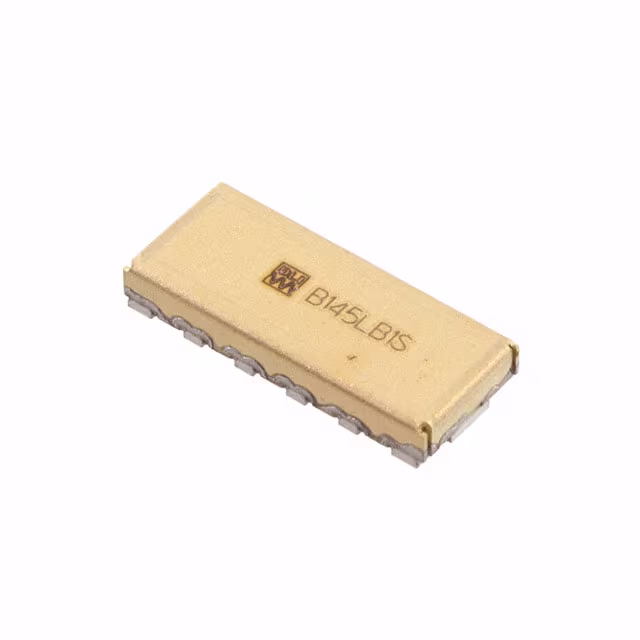

B145LB1SRF FILTER BAND PASS |
4,728 | 143.92 |
|
Datasheet |
- | - | Bulk | Active | - | - | - | - | - | - | - | - |
|
|
H168XHXSRF FILTER HIGH PASS 16.8GHZ 2SMD |
2,302 | 166.65 |
|
Datasheet |
- | 2-SMD, No Lead | Bulk | Active | 16.8GHz | 9.5GHz | High Pass | - | 1.75dB | Surface Mount | 0.450" L x 0.175" W (11.43mm x 4.45mm) | 0.098" (2.49mm) |
|
ZVBP-1227R6-S+RF FILTER BANDPASS 12.276GHZ MOD |
2,088 | 536.56 |
|
Datasheet |
ZVBP-1227R6-S+ | Module | Tray | Active | 12.276GHz Center | 50MHz | Band Pass | - | 1dB | Chassis Mount | 5.750" L x 2.935" W (146.04mm x 74.55mm) | 0.886" (22.50mm) |
