RF Filters
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | Bandwidth | Filter Type | Ripple | Insertion Loss | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AE2028B10569RF FILTER BAND PASS 2.028GHZ MOD |
100 | 339.60 |
|
- |
- | Module, SMA Connectors | Box | Active | 2.028GHz Center | 15MHz | Band Pass | 0.05dB | - | Chassis Mount | 2.000" L x 1.300" W (50.80mm x 33.02mm) | 0.450" (11.43mm) |
|
|
AE2035B10564RF FILTER BAND PASS 2.035GHZ MOD |
100 | 339.60 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.035GHz Center | 15MHz | Band Pass | 0.05dB | - | Chassis Mount | 2.000" L x 1.300" W (50.80mm x 33.02mm) | 0.450" (11.43mm) |
|
|
AE2106B10565RF FILTER BAND PASS 2.106GHZ MOD |
100 | 339.60 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.106GHz Center | 15MHz | Band Pass | - | - | Chassis Mount | 1.900" L x 1.300" W (48.26mm x 33.02mm) | 0.450" (11.43mm) |
|
|
AB5767B657RF FILTER BAND PASS 5.767GHZ MOD |
100 | 339.60 |
|
Datasheet |
- | Module | Box | Active | 5.767GHz Center | 40MHz | Band Pass | - | 1.75dB | Chassis Mount | 3.500" L x 3.500" W (88.90mm x 88.90mm) | 1.500" (38.10mm) |
|
|
AE63B3739RF FILTER BAND PASS 63.83MHZ MOD |
100 | 339.60 |
|
Datasheet |
- | Module | Box | Active | 63.83MHz Center | 1.2MHz | Band Pass | 0.1dB | 4dB | Chassis Mount | 1.000" L x 0.500" W (25.40mm x 12.70mm) | 0.400" (10.16mm) |
|
|
AE160B9995RF FILTER BAND PASS 160MHZ 6SMD |
100 | 341.60 |
|
Datasheet |
- | 6-SMD Module | Box | Active | 160MHz Center | 50MHz | Band Pass | - | 3dB | Surface Mount | 1.500" L x 0.500" W (38.10mm x 12.70mm) | 0.400" (10.16mm) |
|
|
AE500L8993RF FILTER LOW PASS 218MHZ 6DIP |
100 | 345.46 |
|
Datasheet |
- | 6-DIP Module | Box | Active | 218MHz (Cutoff) | 282MHz | Low Pass | - | 1dB | Through Hole | 1.250" L x 0.500" W (31.75mm x 12.70mm) | 0.400" (10.16mm) |
|
|
AB5825B585RF FILTER BAND PASS 5.825GHZ MOD |
100 | 346.92 |
|
Datasheet |
- | Module | Box | Active | 5.825GHz Center | 40MHz | Band Pass | - | 1.75dB | Chassis Mount | 3.500" L x 3.500" W (88.90mm x 88.90mm) | 1.500" (38.10mm) |
|
|
AB5795B583RF FILTER BAND PASS 5.795GHZ MOD |
100 | 346.92 |
|
Datasheet |
- | Module | Box | Active | 5.795GHz Center | 20MHz | Band Pass | - | 1.75dB | Chassis Mount | 3.500" L x 3.500" W (88.90mm x 88.90mm) | 1.500" (38.10mm) |
|
|
AB5745B578RF FILTER BAND PASS 5.745GHZ MOD |
100 | 346.92 |
|
Datasheet |
- | Module | Box | Active | 5.745GHz Center | 40MHz | Band Pass | - | 1.75dB | Chassis Mount | 3.500" L x 3.500" W (88.90mm x 88.90mm) | 1.500" (38.10mm) |
|

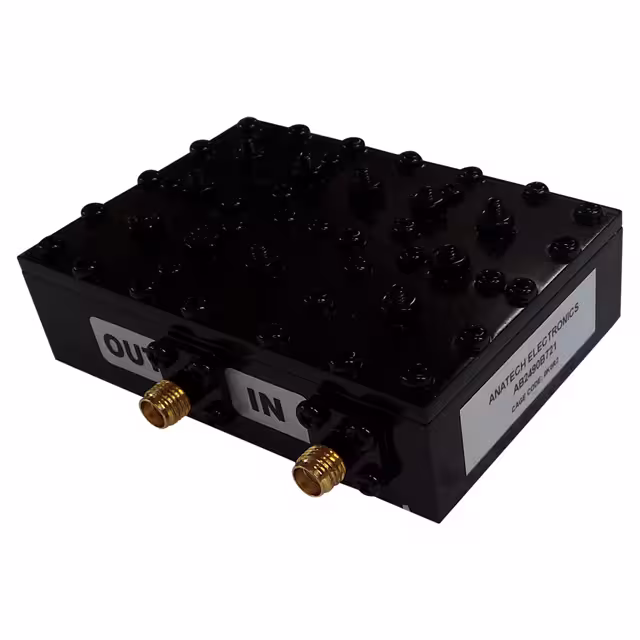

AB2490B721RF FILTER BAND PASS 2.49GHZ MOD |
100 | 347.00 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2.49GHz Center | 11MHz | Band Pass | - | 3dB | Chassis Mount | 3.110" L x 2.160" W (78.99mm x 54.86mm) | 0.820" (20.83mm) |
|
|
AB912B1100RF FILTER BANDPASS 912MHZ MODULE |
100 | 347.70 |
|
Datasheet |
- | Module | Box | Active | 912MHz Center | 5MHz | Band Pass | 0.2dB | 1.75dB | Chassis Mount | 5.512" L x 3.150" W (140.00mm x 80.00mm) | 2.094" (53.20mm) |
|
|
AE960L9091-SRF FILTER LOW PASS 960MHZ MODULE |
100 | 347.70 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 960MHz (Cutoff) | 220MHz | Low Pass | - | 0.5dB | Chassis Mount | 1.500" L x 0.750" W (38.10mm x 19.05mm) | 0.500" (12.70mm) |
|
|
AB5785B730RF FILTER BAND PASS 5.785GHZ MOD |
100 | 352.70 |
|
Datasheet |
- | Module | Box | Active | 5.785GHz Center | 100MHz | Band Pass | 0.2dB | 2dB | Chassis Mount | 2.992" L x 2.047" W (76.00mm x 52.00mm) | 1.024" (26.00mm) |
|
|
AE12L8841RF FILTER LOW PASS 12MHZ BNC |
100 | 352.78 |
|
Datasheet |
- | BNC In-Line Module | Box | Active | 12MHz (Cutoff) | 12MHz | Low Pass | - | 3dB | Chassis Mount | 2.500" L x 1.125" W (63.50mm x 28.58mm) | 0.750" (19.05mm) |
|
|
AE20B11018RF FILTER BAND PASS 20MHZ BNC |
100 | 353.80 |
|
Datasheet |
- | BNC In-Line Module | Box | Active | 20MHz Center | 10MHz | Band Pass | - | 2dB | Chassis Mount | 2.500" L x 1.125" W (63.50mm x 28.58mm) | 0.750" (19.05mm) |
|
|
AE979L9205RF FILTER LOW PASS 979MHZ MODULE |
100 | 353.80 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 979MHz (Cutoff) | 80MHz | Low Pass | - | 0.4dB | Chassis Mount | 1.500" L x 0.750" W (38.10mm x 19.05mm) | 0.500" (12.70mm) |
|
|
AE548B9620RF FILTER BAND PASS 548MHZ BNC |
100 | 359.90 |
|
Datasheet |
- | BNC In-Line Module | Box | Active | 548MHz Center | 60MHz | Band Pass | - | 1dB | Chassis Mount | 4.000" L x 1.250" W (101.60mm x 31.75mm) | 0.750" (19.05mm) |
|
|
AE400H9892RF FILTER HI PASS 400MHZ MODULE |
100 | 359.90 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 400MHz (Cutoff) | 400MHz | High Pass | - | 1dB | Chassis Mount | 1.500" L x 0.750" W (38.10mm x 19.05mm) | 0.500" (12.70mm) |
|
|
AE30B10527RF FILTER BAND PASS 30MHZ MODULE |
100 | 359.90 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 30MHz Center | 800kHz | Band Pass | - | 4dB | Chassis Mount | 2.380" L x 1.000" W (60.45mm x 25.40mm) | 1.000" (25.40mm) |
