RF Filters
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | Bandwidth | Filter Type | Ripple | Insertion Loss | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CLPFL-0800RF FILTER LOW PASS 800MHZ INLINE |
4,716 | 25.81 |
|
Datasheet |
CLPFL | Inline, SMA Connection, F and M | Bulk | Active | 800MHz | - | Low Pass | - | - | Free Hanging (In-Line) | 0.435" Dia x 1.504" L (11.05mm x 38.20mm) | - |
|

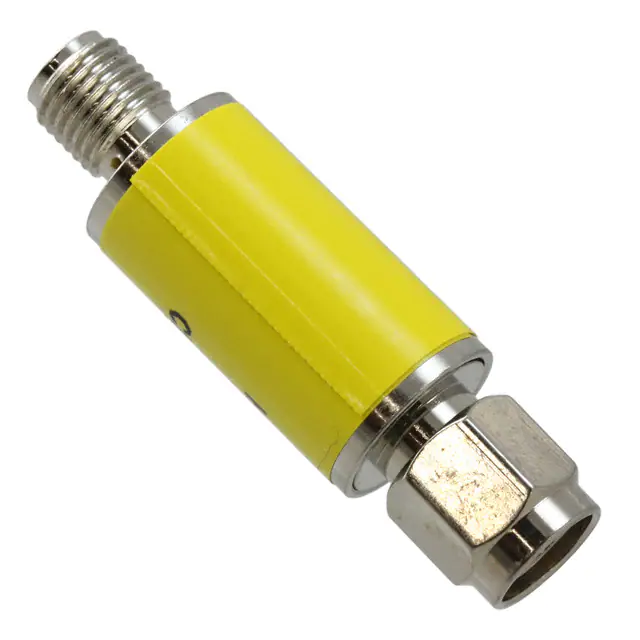

CHPFL-0300RF FILTER HI PASS 300MHZ INLINE |
3,574 | 25.81 |
|
Datasheet |
CHPFL | Inline, SMA Connection, F and M | Bulk | Active | 300MHz | - | High Pass | - | - | Free Hanging (In-Line) | 0.435" Dia x 1.504" L (11.05mm x 38.20mm) | - |
|
THP-700+LUMPED LC HPF, 700 - 4000 MHZ |
2,804 | 0.00 |
|
Datasheet |
- | 8-SMD, No Lead | Tape & Reel (TR) | Active | 2.35GHz Center | 3.3GHz | High Pass | - | 2dB | Surface Mount | 0.250" L x 0.250" W (6.35mm x 6.35mm) | 0.100" (2.54mm) |
|
|
CLPFL-0050RF FILTER LOW PASS 50MHZ INLINE |
3,944 | 29.26 |
|
Datasheet |
CHPFL | Inline, SMA Connection, F and M | Bulk | Active | 50MHz | - | Low Pass | - | - | Free Hanging (In-Line) | 0.435" Dia x 1.504" L (11.05mm x 38.20mm) | - |
|
|
TBP-154+LUMPED LC BPF, 136-175 MHZ, 50 |
117 | 0.00 |
|
Datasheet |
- | 8-SMD, No Lead | Tape & Reel (TR) | Active | 154MHz Center | 39MHz | Band Pass | - | 4dB | Surface Mount | 0.250" L x 0.250" W (6.35mm x 6.35mm) | 0.100" (2.54mm) |
|
|
PLP-1.9+RF FILTER LOW PASS 2.5MHZ 8DIP |
4,727 | 0.00 |
|
Datasheet |
- | 8-DIP Module | Tube | Active | 2.5MHz (Cutoff) | - | Low Pass | - | 1dB | Through Hole | 0.785" L x 0.385" W (19.94mm x 9.78mm) | 0.400" (10.16mm) |
|
|
BFHKI-1982+LTCC BPF, 17.5 - 22.2 GHZ, 50 |
3,999 | 0.00 |
|
Datasheet |
- | 3-SMD, No Lead | Tape & Reel (TR) | Active | 19.85GHz Center | 4.7GHz | Band Pass | - | 4.5dB | Surface Mount | 0.195" L x 0.144" W (4.95mm x 3.65mm) | 0.077" (1.96mm) |
|
BPF-E16+RF FILTER BAND PASS 16MHZ 20SMD |
3,616 | 29.78 |
|
Datasheet |
- | 20-SMD Module | Tape & Reel (TR) | Active | 16MHz Center | 28MHz | Band Pass | - | 3dB | Surface Mount | 1.200" L x 1.200" W (30.48mm x 30.48mm) | 0.370" (9.40mm) |
|
CLPFL-0021-BNCRF FILTER LOW PASS 21MHZ BNC |
1,783 | 37.37 |
|
Datasheet |
CLPFL | BNC In-Line Module | Bulk | Active | 21MHz | - | Low Pass | - | - | Free Hanging (In-Line) | 0.550" Dia x 2.590" W (13.97mm x 65.79mm) | - |
|
|
CLPFL-0090-BNCRF FILTER LOW PASS 90MHZ BNC |
1,411 | 37.37 |
|
Datasheet |
CLPFL | BNC In-Line Module | Bulk | Active | 90MHz | - | Low Pass | - | - | Free Hanging (In-Line) | 0.550" Dia x 2.590" W (13.97mm x 65.79mm) | - |
|
|
CLPFL-0010-BNCRF FILTER LOW PASS 10MHZ BNC |
2,695 | 37.37 |
|
Datasheet |
CLPFL | BNC In-Line Module | Bulk | Active | 10MHz | - | Low Pass | - | - | Free Hanging (In-Line) | 0.550" Dia x 2.590" W (13.97mm x 65.79mm) | - |
|
|
CLPFL-0025-BNCRF FILTER LOW PASS 25MHZ BNC |
2,503 | 37.37 |
|
Datasheet |
CLPFL | BNC In-Line Module | Bulk | Active | 25MHz | - | Low Pass | - | - | Free Hanging (In-Line) | 0.550" Dia x 2.590" W (13.97mm x 65.79mm) | - |
|
|
CLPFL-0050-BNCRF FILTER LOW PASS 50MHZ BNC |
1,272 | 37.37 |
|
Datasheet |
CLPFL | BNC In-Line Module | Bulk | Active | 50MHz | - | Low Pass | - | - | Free Hanging (In-Line) | 0.550" Dia x 2.590" W (13.97mm x 65.79mm) | - |
|
|
CLPFL-0015-BNCRF FILTER LOW PASS 15MHZ BNC |
2,721 | 37.37 |
|
Datasheet |
CLPFL | BNC In-Line Module | Bulk | Active | 15MHz | - | Low Pass | - | - | Free Hanging (In-Line) | 0.550" Dia x 2.590" W (13.97mm x 65.79mm) | - |
|
VLF-1000+RF FILTER LOW PASS 1.3GHZ SMA |
1,983 | 34.24 |
|
Datasheet |
VLF-1000+ | SMA In line Module | Box | Active | 1.3GHz (Cutoff) | - | Low Pass | - | 3.79dB | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
|
|
VLF-8400+RF FILTER LOW PASS 9.1GHZ SMA |
2,134 | 34.24 |
|
Datasheet |
VLF-8400 | SMA In line Module | Box | Active | 9.1GHz (Cutoff) | - | Low Pass | - | 2.16dB | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
|
|
VLF-1575+RF FILTER LOW PASS 1.875GHZ SMA |
1,770 | 34.24 |
|
Datasheet |
VLF-1575+ | SMA In line Module | Box | Active | 1.875GHz (Cutoff) | - | Low Pass | - | 2.71dB | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
|
|
VHF-1200+RF FILTER HIGH PASS 1.18GHZ SMA |
3,389 | 34.24 |
|
Datasheet |
VHF-1200+ | SMA In line Module | Box | Active | 1.18GHz (Cutoff) | 3.38GHz | High Pass | - | 3.08dB | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
|
|
VHF-3500+RF FILTER HIGH PASS 3.5GHZ SMA |
3,501 | 0.00 |
|
Datasheet |
VHF | SMA In line Module | Box | Last Time Buy | 3.5GHz (Cutoff) | 5.6GHz | High Pass | - | 2dB | Chassis Mount | 0.410" Dia x 0.410" L (10.41mm x 10.41mm) | - |
|
|
VLF-320+RF FILTER LOW PASS 460MHZ SMA |
3,622 | 34.24 |
|
Datasheet |
VLF-320+ | SMA In line Module | Box | Active | 460MHz (Cutoff) | - | Low Pass | - | 3.07dB | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
