RF Filters
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | Bandwidth | Filter Type | Ripple | Insertion Loss | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZHSS-4G-S+SS HPF, 4000-24000 MHZ |
3,532 | 0.00 |
|
Datasheet |
- | Module, SMA Connectors | Bulk | Active | 14GHz Center | 20GHz | High Pass | - | 2dB | Chassis Mount | 0.700" L x 0.500" W (17.78mm x 12.70mm) | 0.500" (12.70mm) |
|
ZLSS-6G-S+RF FILTER LOW PASS 6GHZ MODULE |
3,819 | 277.85 |
|
Datasheet |
ZLSS-6G-S+ | Module, SMA Connectors | Bulk | Active | 6GHz (Cutoff) | - | Low Pass | - | 2dB | Chassis Mount | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.650" (16.51mm) |
|
ZVBP-1420-N+RF FILTER BAND PASS 1.42GHZ MOD |
1,134 | 751.21 |
|
Datasheet |
ZVBP-1420-N+ | Module | Tray | Active | 1.42GHz Center | 10MHz | Band Pass | - | 2.5dB | Chassis Mount | 7.250" L x 1.425" W (184.15mm x 36.20mm) | 2.725" (69.22mm) |
|
DEA202484HT-8002A1RF FILTER HI PASS 2.442GHZ 0805 |
497 | 0.33 |
|
Datasheet |
DEA | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | 2.442GHz Center | 84MHz | High Pass | - | 0.65dB | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.043" (1.10mm) |
|
DEA252450BT-2063C1RF FILTER BAND PASS 2.45GHZ 1008 |
760 | 0.44 |
|
Datasheet |
DEA | 1008 (2520 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 2.45GHz Center | 100MHz | Band Pass | 1dB | 2.5dB | Surface Mount | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
BP0805A4320ASTRRF FILTER BAND PASS 4.32GHZ 0805 |
102 | 10.91 |
|
Datasheet |
BP | 0805 (2012 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 4.32GHz | 400MHz | Band Pass | - | 1.2dB | Surface Mount | 0.080" L x 0.061" W (2.03mm x 1.55mm) | 0.035" (0.90mm) |
|
XLF-73+RF FILTER LOW PASS 9.9GHZ 12VQFN |
1,682 | 16.32 |
|
Datasheet |
- | 12-VQFN Exposed Pad | Tape & Reel (TR) | Active | 9.9GHz (Cutoff) | - | Low Pass | - | 1.9dB | Surface Mount | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.035" (0.89mm) |
.jpg)
|

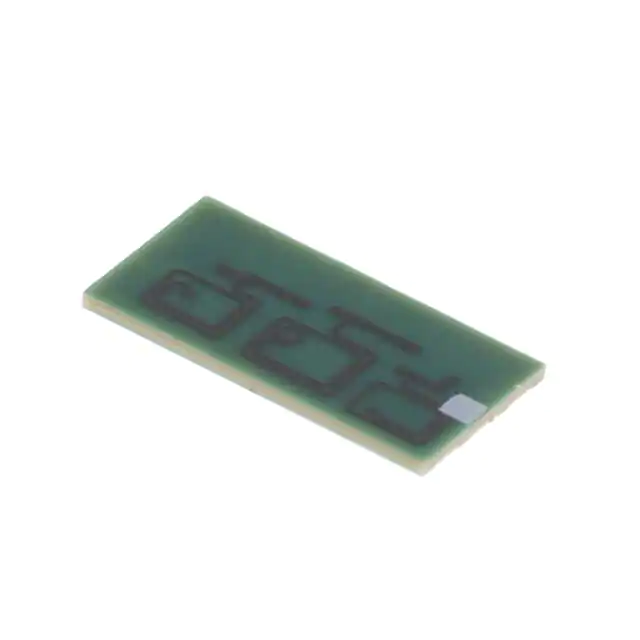

HF0BA1440A700RF FILT HIGH PASS 1.44GHZ 19ULGA |
1,204 | 18.75 |
|
Datasheet |
HF | 19-ULGA | Bulk | Active | 1.44GHz | - | High Pass | - | 1.2dB | Surface Mount | 0.306" L x 0.156" W (7.79mm x 3.98mm) | 0.022" (0.56mm) |
|

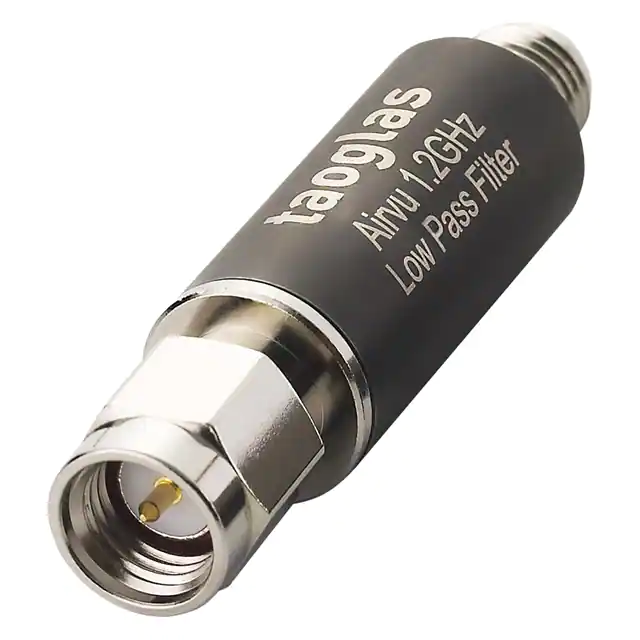

LPF.12.01RF FILTER LOW PASS 1.2GHZ INLINE |
3,839 | 30.23 |
|
Datasheet |
Airvu | Inline, SMA Connection, F and M | Tray | Active | 1.2GHz | 1.1GHz | Low Pass | 1dB | 1.1dB | Free Hanging (In-Line) | 0.394" Dia x 1.535" L (10.00mm x 39.00mm) | - |
|
VHF-1810+RF FILTER HIGH PASS 1.81GHZ SMA |
3,236 | 34.24 |
|
Datasheet |
VHF-1810+ | SMA In line Module | Box | Active | 1.81GHz (Cutoff) | 2.85GHz | High Pass | - | 2.86dB | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
|
|
VHF-1760+RF FILTER HIGH PASS 1.76GHZ SMA |
3,761 | 34.24 |
|
Datasheet |
VHF-1760+ | SMA In line Module | Box | Active | 1.76GHz (Cutoff) | 3.6GHz | High Pass | - | 1.91dB | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
|
|
VHF-1300+RF FILTER HIGH PASS 1.3GHZ SMA |
1,482 | 34.24 |
|
Datasheet |
VHF-1300+ | SMA In line Module | Box | Active | 1.3GHz (Cutoff) | 3.6GHz | High Pass | - | 3dB | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
|
|
VHF-740+RF FILTER HIGH PASS 740MHZ SMA |
1,287 | 34.24 |
|
Datasheet |
VHF-740+ | SMA In line Module | Box | Active | 740MHz (Cutoff) | 2.02GHz | High Pass | - | 2.07dB | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
|
|
VHF-650+RF FILTER HIGH PASS 650MHZ SMA |
1,136 | 34.24 |
|
Datasheet |
VHF-650+ | SMA In line Module | Box | Active | 650MHz (Cutoff) | 1.78GHz | High Pass | - | 3.57dB | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
|
|
VLF-1450+RF FILTER LOW PASS 1.825GHZ SMA |
3,930 | 34.24 |
|
Datasheet |
VLF-1450+ | SMA In line Module | Box | Active | 1.825GHz (Cutoff) | - | Low Pass | - | 10.28dB | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
|
|
VHF-2000+RF FILTER HIGH PASS 2GHZ SMA |
2,938 | 34.24 |
|
Datasheet |
VHF-2000+ | SMA In line Module | Box | Active | 2GHz (Cutoff) | 3.99GHz | High Pass | - | 3dB | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
|
|
VHF-3800+RF FILTER HIGH PASS 7.125GHZ SMA |
3,675 | 34.24 |
|
Datasheet |
VHF-3800+ | SMA In line Module | Box | Active | 7.125GHz Center | 5.75GHz | High Pass | - | 2dB | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
|
|
VLF-160+RF FILTER LOW PASS 230MHZ SMA |
4,564 | 34.24 |
|
Datasheet |
VLF-160+ | SMA In line Module | Box | Active | 230MHz (Cutoff) | - | Low Pass | - | - | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
|
|
VHF-8400+RF FILTER HIGH PASS 8.4GHZ SMA |
2,794 | 34.24 |
|
Datasheet |
VHF-8400+ | SMA In line Module | Box | Active | 8.4GHz (Cutoff) | 4GHz | High Pass | - | 3dB | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
|
|
VLF-530+RF FILTER LOW PASS 700MHZ SMA |
3,673 | 34.24 |
|
Datasheet |
VLF-530+ | SMA In line Module | Box | Active | 700MHz (Cutoff) | - | Low Pass | - | 3.52dB | Chassis Mount | 0.410" Dia x 1.430" L (10.41mm x 36.32mm) | - |
