RF Multiplexers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency Bands (Low / High) | Low Band Attenuation (min / max dB) | High Band Attenuation (min / max dB) | Return Loss (Low Band / High Band) | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FSKCSQYR2G14Q3ZC-AZSAW QUADPLEXER LTE BAND 1 |
2,838 | 3.34 |
|
Datasheet |
FSKC | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Quadplexer | - | - | - | - | - | - | Surface Mount |
|
LDPG-212-322+RF DIPLEXER 1.05GHZ/3.8GHZ 0805 |
1,554 | 2.68 |
|
Datasheet |
- | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 0Hz ~ 2.1GHz / 2.6GHz ~ 5GHz | - | - | 16.0dB / 14.0dB | - | - | Surface Mount |
|
D6HL2G655DL06-ZRF DUPLEXER 2.535/2.655GHZ 9SMD |
2,258 | 4.36 |
|
Datasheet |
- | 9-SMD, No Lead | Tape & Reel (TR) | Not For New Designs | Duplexer | 2.5GHz ~ 2.57GHz / 2.62GHz ~ 2.69GHz | 40.00dB / 48.00dB | 45.00dB / 55.00dB | - | - | - | Surface Mount |
|
B39182B8018P810RF DUPLEXER 1.7475/1.8425GHZ SMD |
1,627 | 4.78 |
|
Datasheet |
- | 9-SMD, No Lead | Tape & Reel (TR) | Active | Duplexer | 1.71GHz ~ 1.785GHz / 1.805GHz ~ 1.88GHz | 44.00dB / 47.00dB | 46.00dB / 49.00dB | - | - | - | Surface Mount |
|
|
ACFM-7101-TR1GRF QUINTPLEX 859MHZ/1.92GHZ 6SMD |
4,361 | 0.00 |
|
- |
- | 6-SMD, No Lead | Tape & Reel (TR) | Obsolete | Quintplexer | 824MHz ~ 894MHz / 1.85GHz ~ 1.99GHz | 55.00dB / - | 30.00dB / - | 12.0dB / 12.0dB | - | - | Surface Mount |
|
|
QPQ1214TR13LTE BD 12/BD 13 TRIPLEXER FILTER |
3,926 | 0.00 |
|
Datasheet |
- | 6-SMD, No Lead | Tape & Reel (TR) | Active | Triplexer | 699MHz ~ 716MHz / 777MHz ~ 787MHz | 18.00dB / 22.00dB | 20.00dB / 34.00dB | 10.0dB / 10.0dB | - | - | Surface Mount |
|
|
CX6026SNLRF DIPLEXER 24.5MHZ/459MHZ MOD |
1,546 | 0.00 |
|
Datasheet |
- | Module | Tray | Obsolete | Diplexer | 5MHz ~ 44MHz / 58MHz ~ 860MHz | - | - | - | - | - | Through Hole |
|
LDP-1050-252+RF DIPLEX 525.5MHZ/2.075GHZ 6SMD |
2,951 | 5.34 |
|
Datasheet |
- | 6-SMD, No Lead | Tape & Reel (TR) | Active | Diplexer | 1MHz ~ 1.05GHz / 1.65GHz ~ 2.5GHz | - | - | 15.0dB / 12.0dB | - | - | Surface Mount |
|
MAFL-011055RF DIPLEXER MODULE |
1,120 | 6.72 |
|
Datasheet |
- | Module | Tape & Reel (TR) | Active | Diplexer | - | - | - | - | - | - | Surface Mount |
|
|
RDP-2R15+DIPLEXER / SURF MOUNT / ROHS |
3,746 | 0.00 |
|
- |
- | 16-SMD, No Lead | Tape & Reel (TR) | Active | Diplexer | 0Hz ~ 20MHz / 950MHz ~ 2.15GHz | - | - | 15.0dB / 15.0dB | - | - | Surface Mount |
|

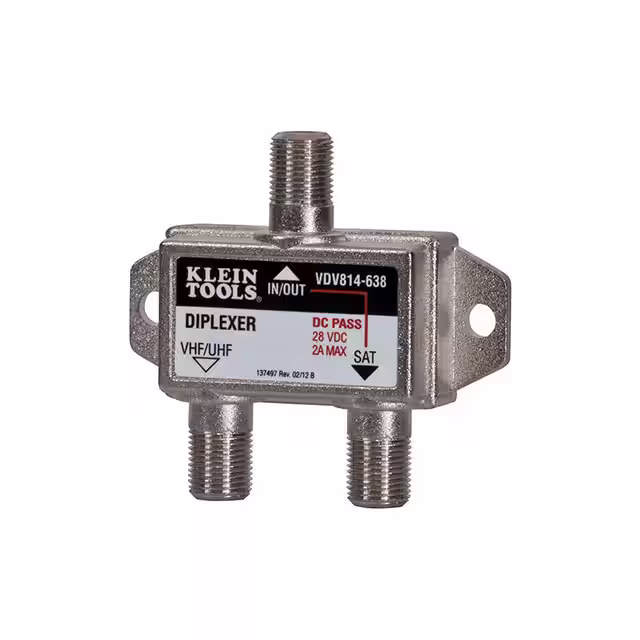

VDV814-638SATELLITE/TV DIPLEXER 5 MHZ 2.3 |
2,370 | 13.45 |
|
Datasheet |
- | Module, SMA Connectors | Bulk | Obsolete | Diplexer | 5MHz / 2.3GHz | - | - | - | - | - | Chassis Mount |
|
|
RDP-50-2R15+DIPLEXER, DC-50/950-2150 MHZ |
3,612 | 0.00 |
|
Datasheet |
- | 16-SMD, No Lead | Tape & Reel (TR) | Active | Diplexer | 0Hz ~ 50MHz / 950MHz ~ 2.15GHz | - | - | 15.0dB / 15.0dB | - | - | Surface Mount |
|
|
RDP-2150+DIPLEXER, DC-10/40-2150 MHZ, 50 |
1,953 | 0.00 |
|
Datasheet |
- | 16-SMD, No Lead | Tape & Reel (TR) | Active | Diplexer | 0Hz ~ 10MHz / 40MHz ~ 2.15GHz | - | - | 16.0dB / 12.0dB | - | - | Surface Mount |
|
|
SDP-1R3G+DIPLEXER / SURF MOUNT / ROHS |
1,930 | 0.00 |
|
- |
- | 14-SMD Module | Tape & Reel (TR) | Active | Diplexer | 0Hz ~ 600MHz / 710MHz ~ 1.3GHz | - | - | 12.0dB / 12.0dB | - | - | Surface Mount |
|
|
TPLX-E2485+LUMPED LC TRIPLEXER |
2,790 | 0.00 |
|
Datasheet |
- | 20-SMD Module | Strip | Active | Triplexer | 1MHz ~ 460MHz / 1.435GHz ~ 2.485GHz | - | - | 10.0dB / 8.0dB | - | - | Surface Mount |
|
|
FMDP100475 OHM DIPLEXER, 5 TO 1450 MHZ L |
3,159 | 0.00 |
|
Datasheet |
- | Module | Bag | Active | Diplexer | 5MHz ~ 1.45GHz / 1.65GHz ~ 2.3GHz | - | - | 10.0dB / 10.0dB | - | - | Chassis Mount |
|
|
FMDP100275 OHM DIPLEXER, 20 TO 862 MHZ L |
2,425 | 0.00 |
|
Datasheet |
- | Module | Bag | Active | Diplexer | 20MHz ~ 862MHz / 950MHz ~ 2.3GHz | - | - | 10.0dB / 10.0dB | - | - | Chassis Mount |
|
|
LCDP1001DIPLEXER 75 OHM TYPE F FEMALE, 5 |
1,651 | 0.00 |
|
Datasheet |
LCDP | Module | Bulk | Active | Diplexer | 5MHz ~ 390MHz / 650MHz ~ 1GHz | - | - | 14.0dB / 14.0dB | - | - | Chassis Mount |
|
|
LCDP1002DIPLEXER 75 OHM TYPE F FEMALE, 5 |
3,978 | 0.00 |
|
Datasheet |
LCDP | Module | Bulk | Active | Diplexer | 20MHz ~ 862MHz / 950MHz ~ 2.3GHz | - | - | 10.0dB / 10.0dB | - | - | Chassis Mount |
|
|
LCDP1004DIPLEXER 75 OHM TYPE F FEMALE, D |
1,940 | 0.00 |
|
Datasheet |
LCDP | Module | Bulk | Active | Diplexer | 5MHz ~ 1.45GHz / 1.65GHz ~ 2.3GHz | - | - | 10.0dB / 10.0dB | - | - | Chassis Mount |
