RF Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | RF Type | Topology | Circuit | Frequency Range | Isolation | Insertion Loss | Test Frequency | P1dB | IIP3 | Features | Impedance | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SEMS-4051-SPDT-SMAEM RELAY SWITCH 18 GHZ 12 V SMA |
1,964 | 0.00 |
|
Datasheet |
- | - | Bulk | Active | General Purpose | - | SPDT | 0Hz ~ 18GHz | 80dB | 0.2dB | 18GHz | - | - | - | 50Ohm | 10.2V ~ 13V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
ARD15105IC RF SWITCH SPDT 18GHZ |
2,952 | 568.73 |
|
Datasheet |
ARD | Module, Pin Contacts | Bulk | Active | General Purpose | Reflective | SPDT | 0Hz ~ 18GHz | 60dB (min) | 0.5dB (max) | 18GHz | - | - | - | 50Ohm | 5V | -55°C ~ 85°C | - | - | - | - |
|

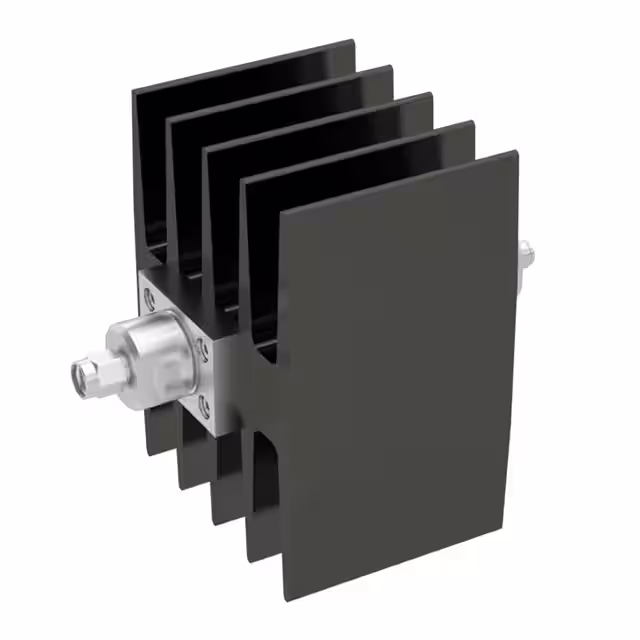

R585452300IC RF SWITCH SPDT 18GHZ |
4,241 | 669.64 |
|
Datasheet |
- | Module | Bulk | Active | General Purpose | - | SPDT | 0Hz ~ 18GHz | 60dB (min) | 0.5dB (max) | 18GHz | - | - | - | 50Ohm | 10.2V ~ 13V | -40°C ~ 85°C | - | - | - | - |
|
|
R577833105IC RF SWITCH DPDT 40GHZ |
4,176 | 835.34 |
|
Datasheet |
DPDT | Module | Bulk | Active | General Purpose | - | DPDT | 0Hz ~ 40GHz | 50dB (min) | 0.8dB (max) | 40GHz | - | - | - | 50Ohm | 24V ~ 30V | -40°C ~ 85°C | - | - | - | - |
|
R573883600IC RF SWITCH SP6T 40GHZ |
2,345 | 1642.70 |
|
Datasheet |
- | Module | Bulk | Active | General Purpose | - | SP6T | 0Hz ~ 40GHz | 50dB (min) | 1.1dB (max) | 40GHz | - | - | - | 50Ohm | 24V ~ 30V | -40°C ~ 85°C | - | - | - | - |
|
|
UPG2411T7C-AIC RF SWITCH SPDT 6GHZ 6RTSON |
1,420 | 0.84 |
|
Datasheet |
- | 6-XFDFN Exposed Pad | Bulk | Obsolete | 802.11a/b/g/n | Reflective | SPDT | 2GHz ~ 6GHz | 25dB | 0.7dB | 6GHz | 30.5dBm | - | - | 50Ohm | - | -40°C ~ 90°C | - | - | - | 6-RTSON |
|
|
AS193-000IC SWITCH SPDT 3V |
100 | 3.50 |
|
Datasheet |
* | - | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
F2933NBGPIC RF SWITCH SPDT 8GHZ 16QFN |
2,159 | 4.27 |
|
Datasheet |
- | 16-VQFN Exposed Pad | Tray | Active | General Purpose | Absorptive | SPDT | 50MHz ~ 8GHz | 45dB | 1.6dB | 8GHz | 35.3dBm | 64dBm | - | 50Ohm | 2.7V ~ 5.5V | -40°C ~ 105°C | - | - | Surface Mount | 16-QFN (4x4) |
|
HMC199AMS8IC RF SWITCH SPDT 2.5GHZ 8MSOP |
2,545 | 4.68 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Bulk | Obsolete | ISM | - | SPDT | 0Hz ~ 2.5GHz | 25dB | 0.6dB | 2GHz, 2.5GHz | 28dBm | 55dBm | - | 50Ohm | 3V | -40°C ~ 85°C | - | - | Surface Mount | 8-MSOP |
|
F2915NBGKIC RF SWITCH SP5T 8GHZ 24VFQFPN |
4,347 | 6.52 |
|
Datasheet |
- | 24-WFQFN Exposed Pad | Tray | Active | - | Absorptive | SP5T | 50MHz ~ 8GHz | 50dB | 1.6dB | 4GHz | - | 60dBm | - | 50Ohm | 2.7V ~ 5.5V | -40°C ~ 105°C | - | - | Surface Mount | 24-VFQFPN (4x4) |
|
HMC241AQS16IC RF SWITCH SP4T 3.5GHZ 16QSOP |
1,569 | 8.77 |
|
Datasheet |
- | 16-SSOP (0.154", 3.90mm Width) | Bulk | Obsolete | CATV | Absorptive | SP4T | 0Hz ~ 3.5GHz | 36dB | 0.8dB | 2.5GHz | 29dBm | 48dBm | - | 50Ohm | 5V | -40°C ~ 85°C | - | - | Surface Mount | 16-QSOP |
|
|
TS82250KIC RF SWITCH SPDT 5GHZ 16QFN |
4,065 | 0.00 |
|
- |
- | 16-VFQFN Exposed Pad | Strip | Active | Cellular, LTE | Reflective | SPDT | 30MHz ~ 5GHz | 22dB | 0.25dB | 400MHz, 5GHz | - | 77dBm | DC Blocked | 50Ohm | 2.6V ~ 5.25V | -40°C ~ 85°C | - | - | Surface Mount | 16-QFN (3x3) |
|
|
TS82420KIC RF SWITCH SP4T 5GHZ 16QFN |
2,947 | 0.00 |
|
- |
- | 16-VFQFN Exposed Pad | Strip | Active | Cellular, LTE | Reflective | SP4T | 30MHz ~ 5GHz | 20dB | 0.5dB | 4GHz | - | 74dBm | DC Blocked | 50Ohm | 2.6V ~ 5.25V | -40°C ~ 85°C | - | - | Surface Mount | 16-QFN (3x3) |
|
MASWCC0009IC RF SWITCH SP4T 3GHZ 24QSOP |
4,045 | 20.13 |
|
Datasheet |
- | 24-SSOP (0.154", 3.90mm Width) | Tube | Active | General Purpose | Absorptive | SP4T | 0Hz ~ 3GHz | 29dB | 1.3dB | 3GHz | 27dBm | 46dBm | - | 50Ohm | 4.5V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 24-QSOP |
|

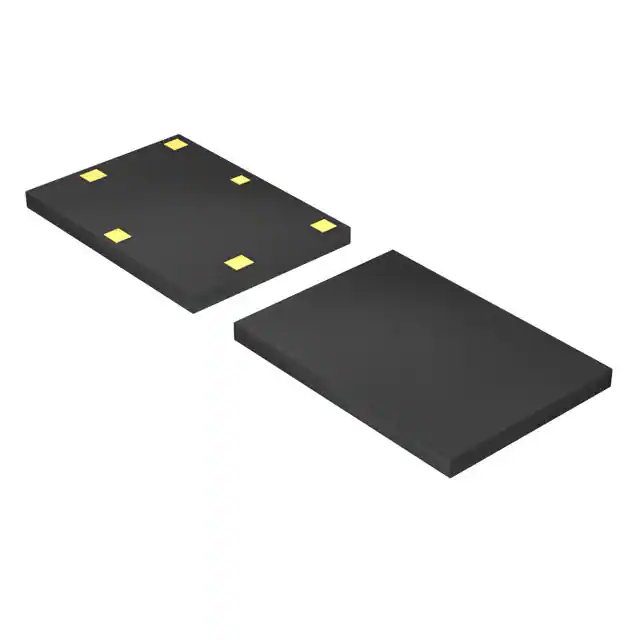

MASW-011052-14220GIC RF SWITCH 18GHZ DIE |
3,522 | 47.31 |
|
- |
- | Die | Tray | Obsolete | General Purpose | - | - | 2GHz ~ 18GHz | - | 1.2dB | 2GHz | - | 40dBm | - | 50Ohm | 5V | -65°C ~ 125°C | - | - | - | Die |
|

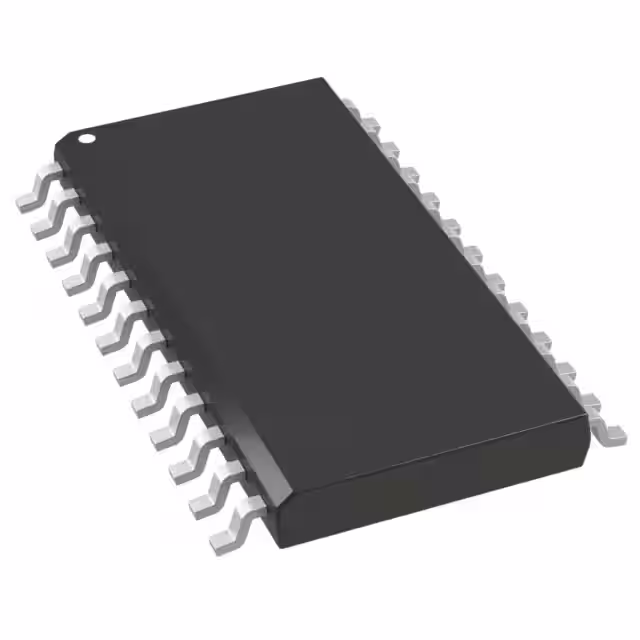

MASW-007075-000100IC RF SWITCH SPDT 3GHZ 24SOIC |
2,243 | 36.39 |
|
Datasheet |
- | 24-SOIC (0.295", 7.50mm Width) | Tube | Active | General Purpose | Absorptive | SPDT | 0Hz ~ 3GHz | 36dB | 1.8dB | 3GHz | 27dBm | 46dBm | - | 50Ohm | 4.5V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 24-SOIC |
|
|
NL101024EGH400CA3IC RF SWITCH |
3,209 | 0.00 |
|
- |
* | - | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MA8334-013IC RF SWITCH SP3T 1GHZ 844-001 |
2,566 | 100.66 |
|
Datasheet |
MA8334 | 844-001 | Bulk | Active | General Purpose | - | SP3T | 10MHz ~ 1GHz | 24dB (min) | 0.35dB (max) | 1GHz | - | - | - | 50Ohm | - | -65°C ~ 125°C | - | - | Chassis Mount | 844-001 |
|

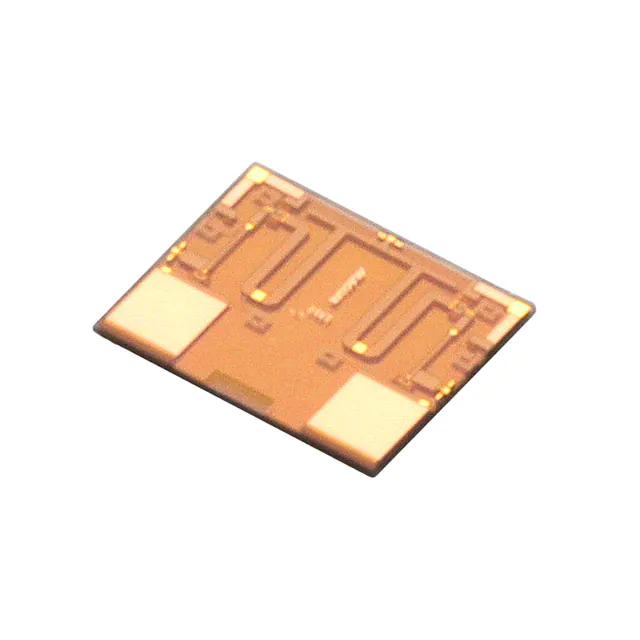

MASW-010647-13950WIC RF SWITCH SPDT 10.5GHZ DIE |
2,654 | 216.87 |
|
- |
- | Die | Tray | Active | General Purpose | - | SPDT | 8GHz ~ 10.5GHz | 39dB | 0.85dB | 10.5GHz | - | 60dBm | - | 50Ohm | 5V | -40°C ~ 85°C | - | - | - | Die |
|
MSW2060-206-WIC RF SWITCH SPDT 1.2GHZ CS206 |
2,012 | 9.00 |
|
Datasheet |
MSW206x-206 | 3-SMD Module | Tray | Active | General Purpose | - | SPDT | 20MHz ~ 1.2GHz | 53dB | 0.25dB | 1.2GHz | - | 65dBm | - | 50Ohm | 5V, 180V | -65°C ~ 125°C | - | - | Surface Mount | CS206 |
