RF Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | RF Type | Topology | Circuit | Frequency Range | Isolation | Insertion Loss | Test Frequency | P1dB | IIP3 | Features | Impedance | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE71S6261SPST PIN Diode Switch Operating |
2,908 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | General Purpose | Reflective | SPST | 4GHz ~ 8GHz | 75dB (min) | 1.5dB | - | - | - | - | 50Ohm | -15V, 5V | -55°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S6242Absorptive SP3T PIN Diode Switch |
2,879 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | General Purpose | Absorptive | SP3T | 10MHz ~ 1GHz | 60dB (min) | 1.4dB (max) | - | - | - | - | 50Ohm | -15V, 5V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|

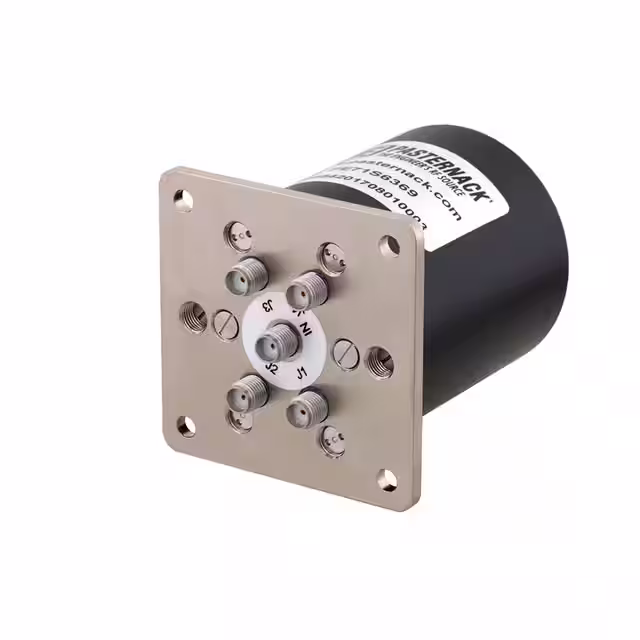

PE71S6369IC RF SWITCH SP4T 18GHZ MODULE |
2,007 | 3140.00 |
|
Datasheet |
- | Module, SMA Connectors | Bag | Active | General Purpose | - | SP4T | DC ~ 18GHz | 80dB | 0.15dB | 18GHz | - | - | - | 50Ohm | 26V ~ 30V | -25°C ~ 70°C | - | - | - | Module |
|
|
WS1018NKUIC RF SWITCH SP10T 18GHZ |
1,687 | 0.00 |
|
Datasheet |
- | Module | Bulk | Active | General Purpose | - | SP10T | 10kHz ~ 18GHz | 30dB | 9dB | 18GHz | - | 59dBm | - | - | 5V | -40°C ~ 85°C | - | - | - | - |
|

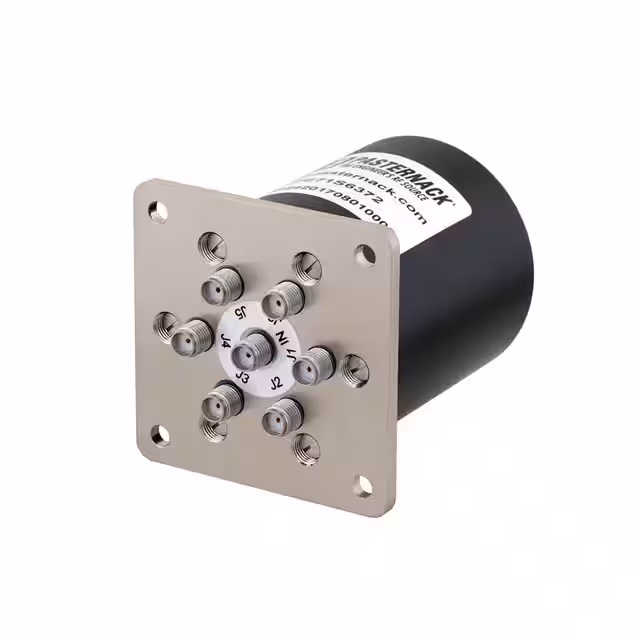

PE71S6372IC RF SWITCH SP6T 18GHZ MODULE |
3,623 | 3080.00 |
|
Datasheet |
- | Module, SMA Connectors | Bag | Active | General Purpose | - | SP6T | DC ~ 18GHz | 80dB | 0.15dB | 18GHz | - | - | - | 50Ohm | 26V ~ 30V | -25°C ~ 70°C | - | - | - | Module |
|
|
PE71S6482Transfer Electromechanical Relay |
3,424 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | SATCOM | Absorptive | - | 0Hz ~ 40GHz | 85dB | 0.5dB | 40GHz | - | - | - | 50Ohm | 28V | -25°C ~ 65°C | - | - | Chassis Mount | - |
|
|
PE71S6087SP6T Electromechanical Relay Lat |
4,909 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | General Purpose | Reflective | SP6T | 0Hz ~ 26.5GHz | 55dB (min) | 0.6dB (max) | 26.5GHz | - | - | - | 50Ohm | 21V ~ 30V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S6454SP6T Electromechanical Relay Nor |
4,479 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | SATCOM | Absorptive | SP6T | 0Hz ~ 26.5GHz | 80dB | 0.35dB | 26.5GHz | - | - | - | 50Ohm | 11V ~ 13V | -25°C ~ 65°C | - | - | Chassis Mount | - |
|
|
PE71S6263SPST PIN Diode Switch Operating |
4,311 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | General Purpose | Reflective | SPST | 12GHz ~ 18GHz | 65dB (min) | 2.5dB | - | - | - | - | 50Ohm | -15V, 5V | -55°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S6485Transfer Electromechanical Relay |
3,003 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | SATCOM | Absorptive | - | 0Hz ~ 40GHz | 85dB | 0.5dB | 40GHz | - | - | - | 50Ohm | 28V | -25°C ~ 65°C | - | - | Chassis Mount | - |
|
|
PE71S6088SP6T Electromechanical Relay Nor |
3,439 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | General Purpose | Reflective | SP6T | 0Hz ~ 26.5GHz | 55dB (min) | 0.6dB (max) | 26.5GHz | - | - | - | 50Ohm | 21V ~ 30V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|

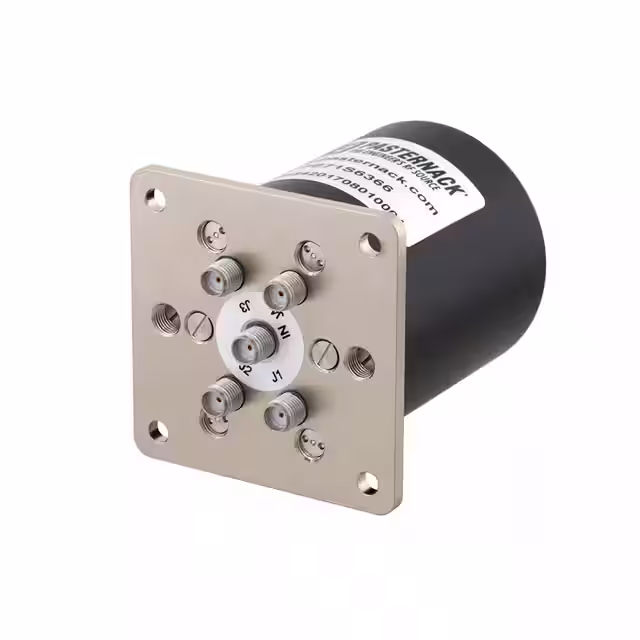

PE71S6366IC RF SWITCH SP4T 26.5GHZ MODULE |
3,744 | 3290.00 |
|
Datasheet |
- | Module, SMA Connectors | Bag | Active | General Purpose | - | SP4T | DC ~ 26.5GHz | 80dB | 0.15dB | 26.5GHz | - | - | - | 50Ohm | 11V ~ 13V | -25°C ~ 70°C | - | - | - | Module |
|
|
PE71S6520SPDT, IP64 Rated Electromechanic |
2,996 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | SATCOM | Absorptive | SPDT | 0Hz ~ 12GHz | 90dB | 0.2dB | 12GHz | - | - | - | 50Ohm | 26V ~ 30V | -54°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S6519SPDT, IP64 Rated Electromechanic |
1,467 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | General Purpose | Absorptive | SPDT | 0Hz ~ 12GHz | 90dB | 0.2dB | 12GHz | - | - | - | 50Ohm | 11V ~ 13V | -54°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S6478SPDT Electromechanical Relay Fai |
3,954 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | SATCOM | Absorptive | SPDT | 0Hz ~ 40GHz | 60dB (Min) | 0.7dB (max) | 40GHz | - | - | - | 50Ohm | 28V | -25°C ~ 65°C | - | - | Chassis Mount | - |
|

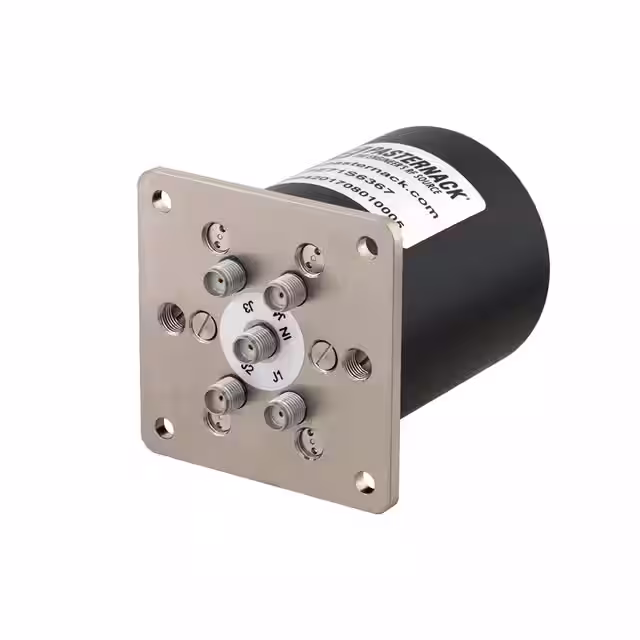

PE71S6367IC RF SWITCH SP4T 26.5GHZ MODULE |
4,814 | 3540.00 |
|
Datasheet |
- | Module, SMA Connectors | Bag | Active | General Purpose | - | SP4T | DC ~ 26.5GHz | 80dB | 0.15dB | 26.5GHz | - | - | - | 50Ohm | 26V ~ 30V | -25°C ~ 70°C | - | - | - | Module |
|
PE71S6371IC RF SWITCH SP4T 26.5GHZ MODULE |
4,017 | 3410.00 |
|
Datasheet |
- | Module, SMA Connectors | Bag | Active | General Purpose | - | SP4T | DC ~ 26.5GHz | 80dB | 0.15dB | 26.5GHz | - | - | - | 50Ohm | 26V ~ 30V | -25°C ~ 70°C | - | - | - | Module |
|

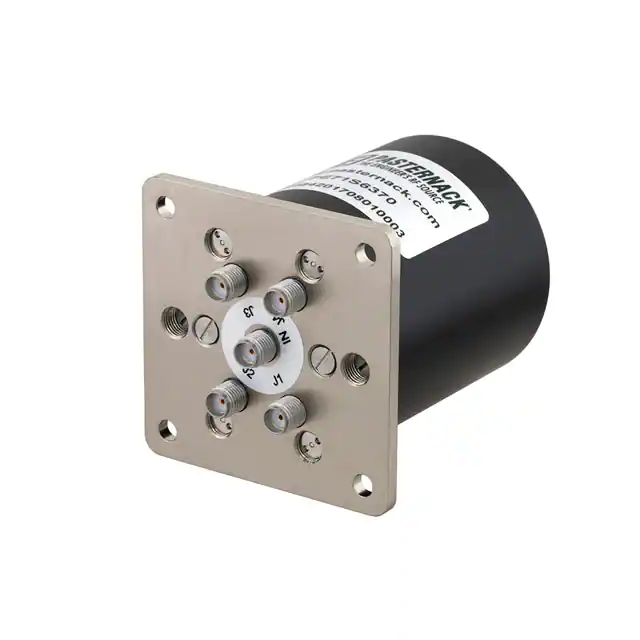

PE71S6370IC RF SWITCH SP4T 26.5GHZ MODULE |
4,710 | 3540.00 |
|
Datasheet |
- | Module, SMA Connectors | Bag | Active | General Purpose | - | SP4T | DC ~ 26.5GHz | 80dB | 0.15dB | 26.5GHz | - | - | - | 50Ohm | 11V ~ 13V | -25°C ~ 70°C | - | - | - | Module |
|
|
PE71S6122Transfer Electromechanical Relay |
2,534 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | General Purpose | Reflective | - | 0Hz ~ 40GHz | 50dB (min) | 0.9dB (max) | 40GHz | - | - | - | 50Ohm | 10.8V ~ 13.2V | -35°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S6583Transfer Electromechancial Relay |
3,318 | 0.00 |
|
Datasheet |
- | - | Retail Package | Active | General Purpose | Absorptive | - | 0Hz ~ 18GHz | 80dB | 0.3dB | 18GHz | - | - | - | 50Ohm | 11V ~ 13V | -25°C ~ 65°C | - | - | Chassis Mount | - |
