Rocker Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLW3020-N-RC-2ASWITCH ROCKER SP3T 5A 125V |
4,719 | 20.69 |
|
Datasheet |
MLW | Tray | Obsolete | Panel Mount, Snap-In | SP3T | On-On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Concave (Curved) - Illuminated | Red | No Marking | Incandescent, Red | 110 VAC | Solder Lug | - | Jumper needed to achieve triple throw | Square - 19.20mm² | -10°C ~ 50°C | UL |
|
|
M2013TJG01-FA-1ASWITCH ROCKER SPDT 0.4VA 28V |
1,275 | 9.34 |
|
Datasheet |
M | Tray | Obsolete | Panel Mount, Snap-In | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 12.50mm | -30°C ~ 85°C | CSA, UL |
|
|
M2012TJW03-FA-2ASWITCH ROCKER SPDT 6A 125V |
3,220 | 7.46 |
|
Datasheet |
M | Tray | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 12.50mm | -30°C ~ 85°C | CSA, UL |
|
|
LW3122-L4FC-ASWITCH ROCKER DPDT 10A 125V |
3,272 | 0.00 |
|
Datasheet |
LW | Tray | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 10A (AC), 6A (DC) | 125 V | 30 V | Concave (Standard V) - Illuminated | Clear (Red, Green Filter/Diffuser) | No Marking | Incandescent, Green/Red | 28 VAC | Solder Lug | - | - | Rectangular - 32.00mm x 19.80mm | -20°C ~ 50°C | CSA, UL |
|
|
M2018TNG01-DASWITCH ROCKER SPDT 0.4VA 28V |
1,703 | 8.94 |
|
Datasheet |
M | Tray | Obsolete | Panel Mount, Flange | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 17.80mm x 10.10mm | -30°C ~ 85°C | CSA, UL |
|
|
MLW3019-F-LF-2ASWITCH ROCKER SPDT 5A 125V |
1,700 | 23.66 |
|
Datasheet |
MLW | Tray | Obsolete | Panel Mount, Snap-In | SPDT | On-Off-Mom | 5A (AC), 3A (DC) | 125 V | 30 V | Concave (Curved) - Illuminated | Green | No Marking | LED, Green | 2.1 VDC | Solder Lug | - | Epoxy Sealed Terminals | Square - 19.20mm² | -10°C ~ 50°C | UL |
|
|
M2022TJW01-GA-2A-CSWITCH ROCKER DPDT 6A 125V |
2,389 | 11.43 |
|
Datasheet |
M | Tray | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Paddle - Illuminated | Black | No Marking | LED, Red | 2.8 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | CSA, UL |
|
|
MLW3013SWITCH ROCKER SPDT 5A 125V |
1,847 | 11.24 |
|
Datasheet |
MLW | Tray | Obsolete | Panel Mount, Snap-In | SPDT | On-Off-On | 5A (AC), 3A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
|
|
M2028TJW01-GASWITCH ROCKER DPDT 6A 125V |
1,069 | 11.26 |
|
Datasheet |
M | Tray | Obsolete | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | CSA, UL |
|

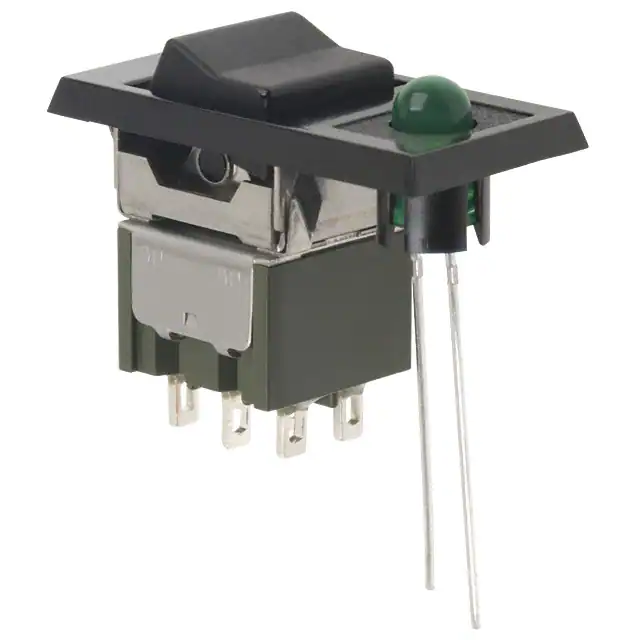

M2022TJW01-FA-2A-FSWITCH ROCKER DPDT 6A 125V |
2,806 | 11.79 |
|
Datasheet |
M | Tray | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) - Illuminated | Black | No Marking | LED, Green | 2.1 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | CSA, UL |
|
|
M2022TJW01-FB-2A-FSWITCH ROCKER DPDT 6A 125V |
1,822 | 11.79 |
|
Datasheet |
M | Tray | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) - Illuminated | White | No Marking | LED, Green | 2.1 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | CSA, UL |
|
|

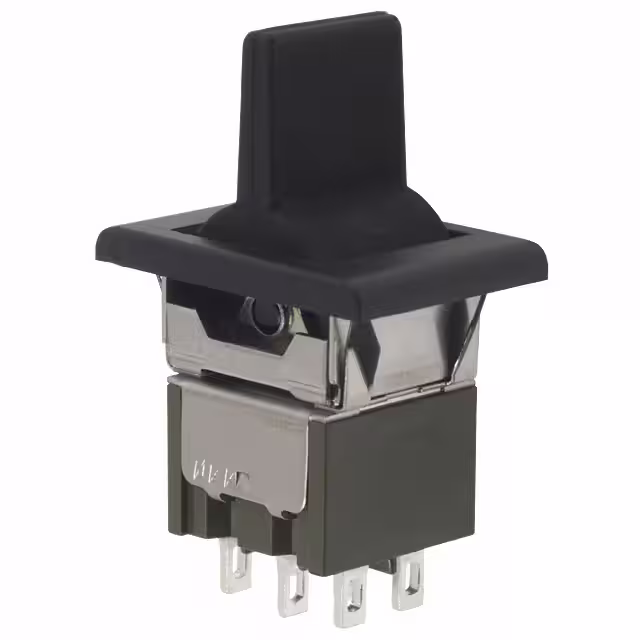

M2029TJW01-GA-1ASWITCH ROCKER DPDT 6A 125V |
3,692 | 12.38 |
|
Datasheet |
M | Tray | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | CSA, UL |
|
|
M2022TXW13-DBSWITCH ROCKER DPDT 6A 125V |
3,996 | 8.99 |
|
Datasheet |
M | Tray | Obsolete | Through Hole | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
M2T28TXW13-FGSWITCH ROCKER DPDT 6A 125V |
3,903 | 0.00 |
|
Datasheet |
M2 | Tray | Obsolete | Through Hole | DPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Blue | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|

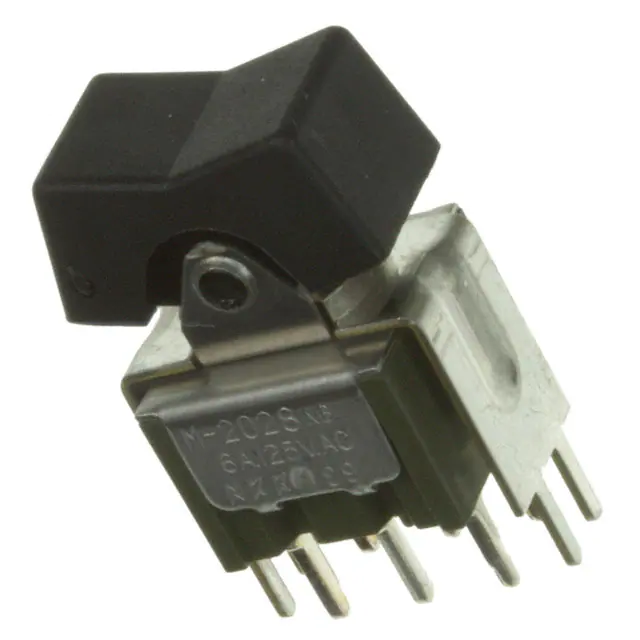

M2028TXW13-DASWITCH ROCKER DPDT 6A 125V |
2,527 | 11.09 |
|
Datasheet |
M | Tray | Obsolete | Through Hole | DPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
M2T25TXW13-DASWITCH ROCKER DPDT 6A 125V |
3,926 | 0.00 |
|
Datasheet |
M2 | Tray | Obsolete | Through Hole | DPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
TJW01-GA-1A.jpg)
|
M2028TJW01-GA-1ASWITCH ROCKER DPDT 6A 125V |
3,048 | 12.59 |
|
Datasheet |
M | Tray | Obsolete | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | CSA, UL |
|
|
M2012TXW13-DHSWITCH ROCKER SPDT 6A 125V |
2,465 | 7.19 |
|
Datasheet |
M | Tray | Obsolete | Through Hole | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | Gray | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
M2012TXW13-FCSWITCH ROCKER SPDT 6A 125V |
2,183 | 7.19 |
|
Datasheet |
M | Tray | Obsolete | Through Hole | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|

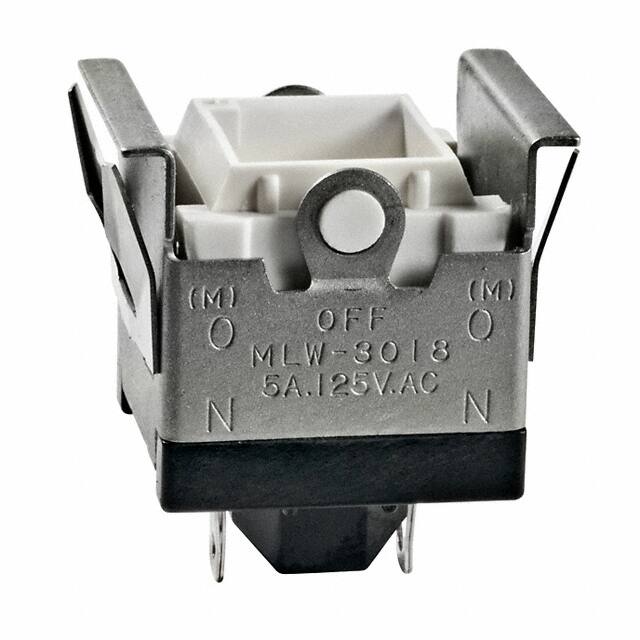

MLW3018SWITCH ROCKER SPDT 5A 125V |
2,519 | 12.40 |
|
Datasheet |
MLW | Tray | Obsolete | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 5A (AC), 3A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
