Solder Stencils, Templates
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Positions | Pitch | Outer Dimension | Inner Dimension | Thermal Center Pad | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IPC0187-SQFN-28/LFCSP-28 (0.5MM PITCH, 5. |
2,629 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 28 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.217" L x 0.138" W (5.50mm x 3.50mm) | 0.122" L x 0.081" W (3.10mm x 2.05mm) | Stainless Steel |
|

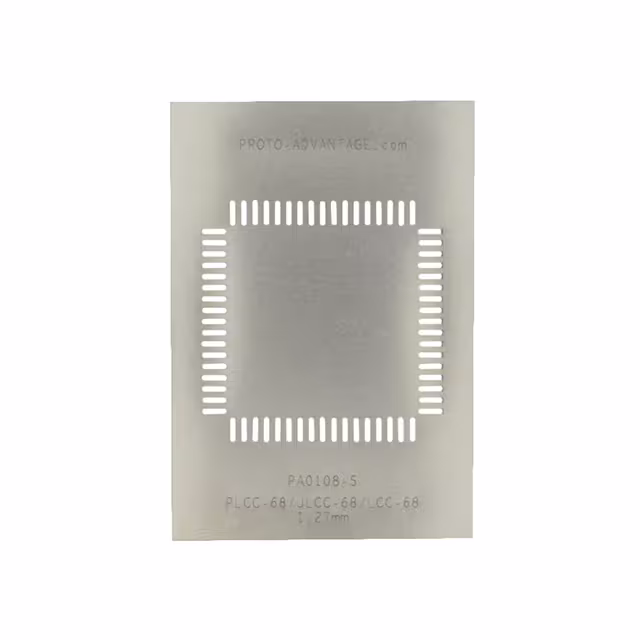

PA0108-SPLCC-68/JLCC-68/LCC-68 (1.27MM P |
4,874 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | PLCC/JLCC | 68 | 0.050" (1.27mm) | 1.950" L x 1.350" W (49.53mm x 34.29mm) | 0.984" L x 0.984" W (25.00mm x 25.00mm) | - | Stainless Steel |
|
PA0111-SPLCC-84/JLCC-84/LCC-84 (1.27MM P |
3,482 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | PLCC/JLCC | 84 | 0.050" (1.27mm) | 2.600" L x 1.800" W (66.04mm x 45.72mm) | 1.181" L x 1.181" W (30.00mm x 30.00mm) | - | Stainless Steel |
|
PA0121-SLQFP-128/PQFP-128 (0.5MM PITCH, |
1,788 | 0.00 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | LQFP | 128 | 0.020" (0.50mm) | 1.950" L x 1.350" W (49.53mm x 34.29mm) | 0.787" L x 0.551" W (20.00mm x 14.00mm) | - | Stainless Steel |
|

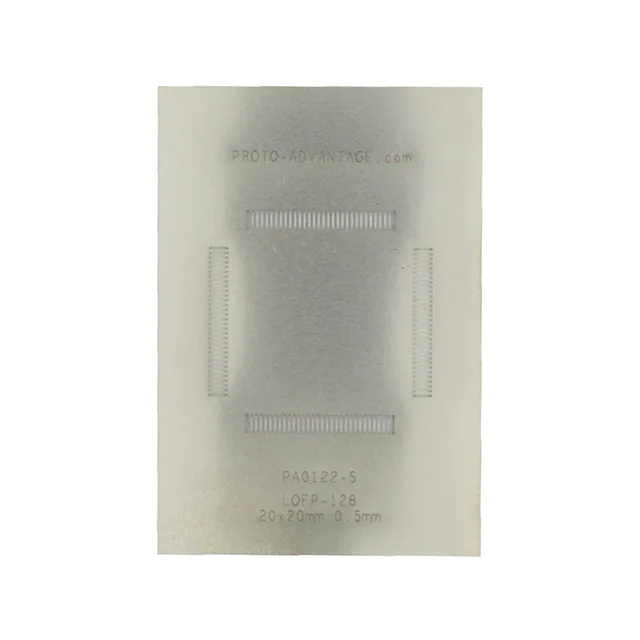

PA0122-SLQFP-128 (0.5MM PITCH, 20X20MM B |
1,495 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | LQFP | 128 | 0.020" (0.50mm) | 1.950" L x 1.350" W (49.53mm x 34.29mm) | 0.787" L x 0.787" W (20.00mm x 20.00mm) | - | Stainless Steel |
|
PA0189-SLQFP-176 (0.5MM PITCH, 24X24MM B |
1,114 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | LQFP | 176 | 0.020" (0.50mm) | 1.950" L x 1.350" W (49.53mm x 34.29mm) | 0.945" L x 0.945" W (24.00mm x 24.00mm) | - | Stainless Steel |
|

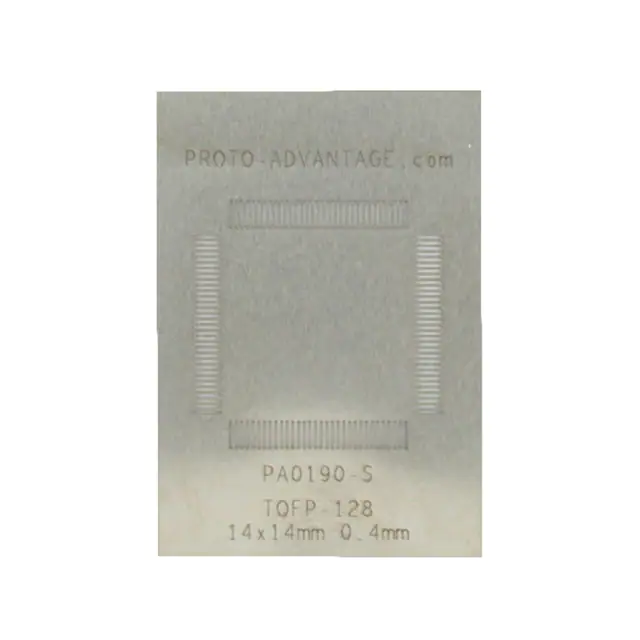

PA0190-STQFP-128 (0.4MM PITCH, 14X14MM B |
4,082 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | TQFP | 128 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.551" L x 0.551" W (14.00mm x 14.00mm) | - | Stainless Steel |
|

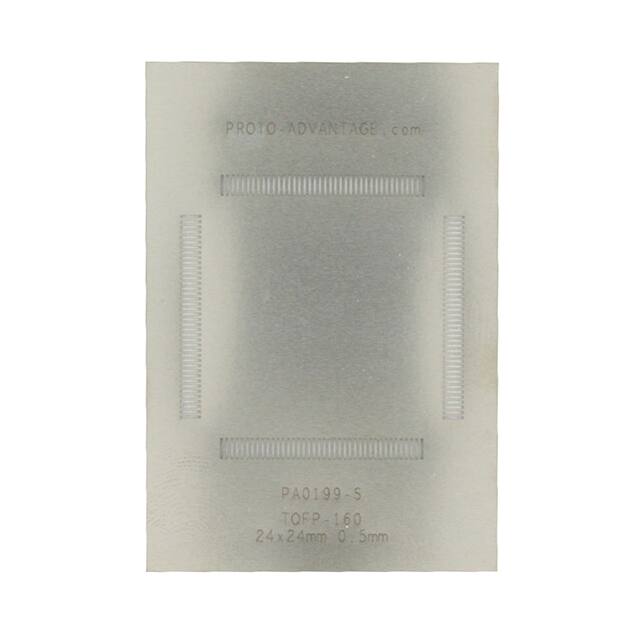

PA0199-STQFP-160 (0.5MM PITCH, 24X24MM B |
4,068 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | TQFP | 160 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.945" L x 0.945" W (24.00mm x 24.00mm) | - | Stainless Steel |
|

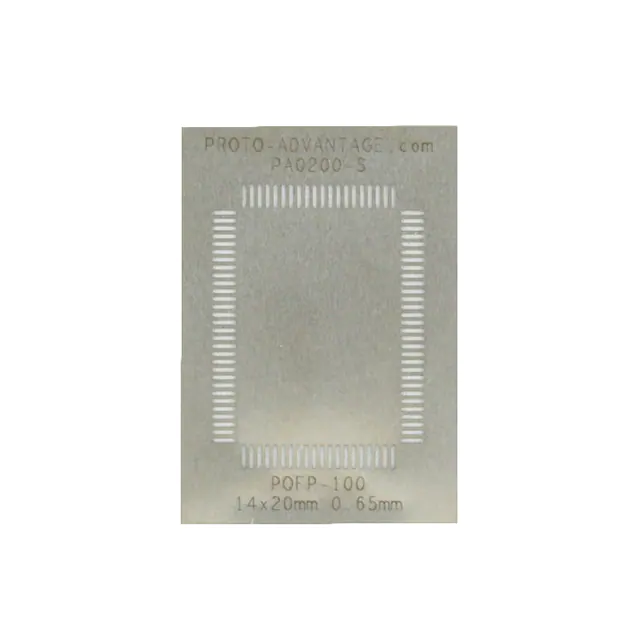

PA0200-SPQFP-100 (0.65MM PITCH, 14X20MM |
3,097 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | PQFP | 100 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.787" L x 0.551" W (20.00mm x 14.00mm) | - | Stainless Steel |
|

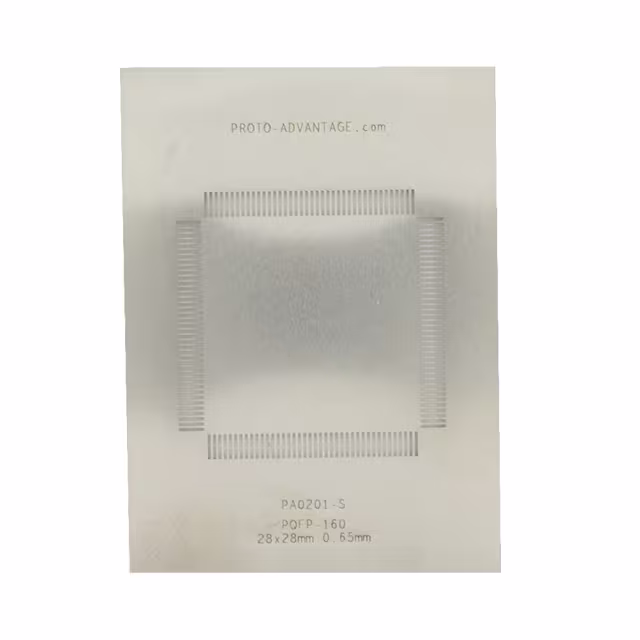

PA0201-SPQFP-160 (0.65MM PITCH, 28X28MM |
2,280 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | PQFP | 160 | 0.026" (0.65mm) | 2.600" L x 1.800" W (66.04mm x 45.72mm) | 1.102" L x 1.102" W (28.00mm x 28.00mm) | - | Stainless Steel |
|

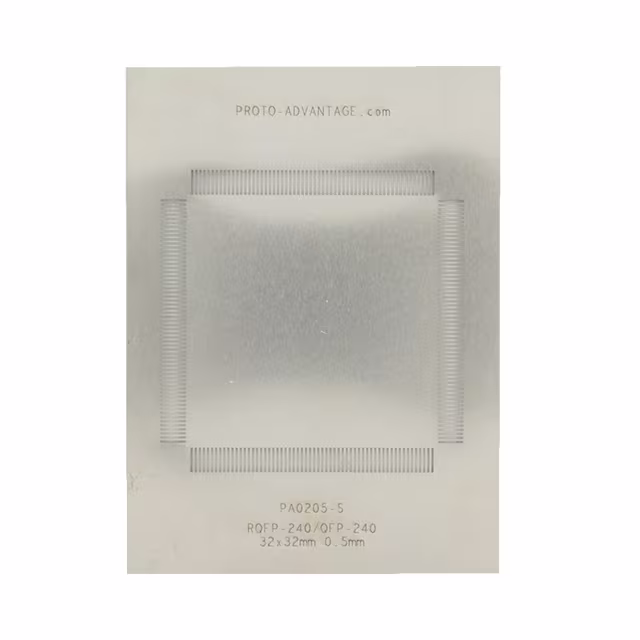

PA0205-SRQFP-240 (0.5MM PITCH, 32X32MM B |
1,112 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | RQFP | 240 | 0.020" (0.50mm) | 2.600" L x 1.800" W (66.04mm x 45.72mm) | 1.260" L x 1.260" W (32.00mm x 32.00mm) | - | Stainless Steel |
|

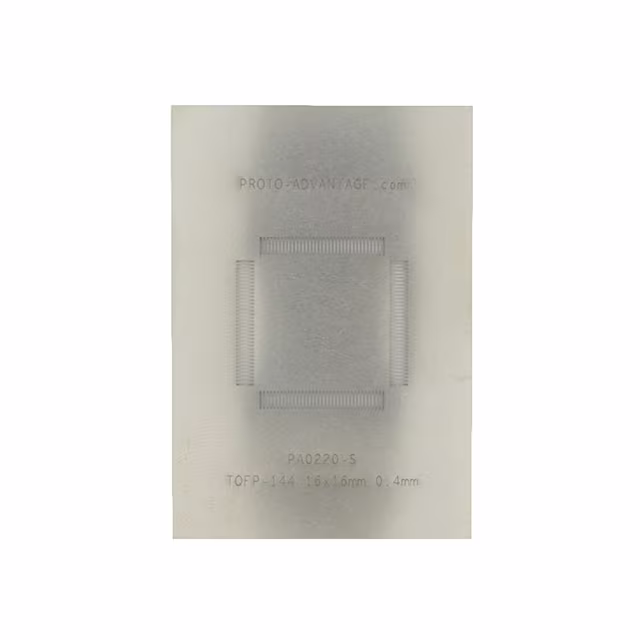

PA0220-STQFP-144 (0.4MM PITCH, 16X16MM B |
1,718 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | TQFP | 144 | 0.016" (0.40mm) | 1.950" L x 1.350" W (49.53mm x 34.29mm) | 0.630" L x 0.630" W (16.00mm x 16.00mm) | - | Stainless Steel |
|
|
CN0002-SHDMI CONNECTOR STENCIL |
4,255 | 11.59 |
|
- |
Proto-Advantage CN | Bulk | Active | - | - | - | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|
|
CN0008-SUSB - MICRO AB CONNECTOR STENCIL |
3,121 | 11.59 |
|
- |
Proto-Advantage CN | Bulk | Active | - | - | - | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|
|
CN0009-SUSB - MICRO B CONNECTOR STENCIL |
1,839 | 11.59 |
|
- |
Proto-Advantage CN | Bulk | Active | - | - | - | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|
|
CN0010-SUSB - MINI B CONNECTOR STENCIL |
2,836 | 11.59 |
|
- |
Proto-Advantage CN | Bulk | Active | - | - | - | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|
|
CN0021-SCOMPACT FLASH TYPE I CONNECTOR S |
3,662 | 11.59 |
|
- |
Proto-Advantage CN | Bulk | Active | - | - | - | 1.950" L x 1.350" W (49.53mm x 34.29mm) | - | - | Stainless Steel |
|
|
CN0023-SMICROSD CONNECTOR STENCIL |
4,801 | 11.59 |
|
- |
Proto-Advantage CN | Bulk | Active | - | - | - | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|
|
CN0036-SQSTRIP (QTH) CONNECTOR STENCIL |
4,019 | 11.59 |
|
- |
Proto-Advantage CN | Bulk | Active | - | - | - | 1.950" L x 0.900" W (49.53mm x 22.86mm) | - | - | Stainless Steel |
|
|
CN0037-SQSTRIP (QSH) CONNECTOR STENCIL |
4,692 | 11.59 |
|
- |
Proto-Advantage CN | Bulk | Active | - | - | - | 1.950" L x 0.900" W (49.53mm x 22.86mm) | - | - | Stainless Steel |
