Solid State Relays (SSR)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Output Type | Voltage - Input | Voltage - Load | Load Current | On-State Resistance (Max) | Termination Style | Operating Temperature | Supplier Device Package | Approval Agency | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AQV454SSR RELAY SPST-NC 150MA 0-400V |
4,728 | 7.46 |
|
Datasheet |
PhotoMOS™ AQV | Tube | Active | Through Hole | SPST-NC (1 Form B) | AC, DC | 1.14VDC | 0 V ~ 400 V | 150 mA | 16 Ohms | PC Pin | -40°C ~ 85°C | 6-DIP | UR | - | - |
|
PLA172PSSR RELAY SPST-NO 100MA 0-800V |
2,198 | 5.50 |
|
Datasheet |
PLA, OptoMOS® | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.2VDC | 0 V ~ 800 V | 100 mA | 50 Ohms | Gull Wing | -40°C ~ 85°C | 6-Flatpack | EN, UL | - | - |
|
AQV254AXSSR RELAY SPST-NO 150MA 0-400V |
4,106 | 6.42 |
|
Datasheet |
PhotoMOS™ AQV | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.14VDC | 0 V ~ 400 V | 150 mA | 16 Ohms | Gull Wing | -40°C ~ 85°C | 6-SMD | UR | - | - |
|
|
AQV103ASSR RELAY SPST-NO 300MA 0-250V |
1,347 | 6.69 |
|
Datasheet |
PhotoMOS™ AQV | Tube | Active | Surface Mount | SPST-NO (1 Form A) | DC | 2.3VDC | 0 V ~ 250 V | 300 mA | 4 Ohms | Gull Wing | -40°C ~ 85°C | 6-SMD | UR | - | - |
|
PAA150PSSR RELAY SPST-NO 250MA 0-250V |
1,417 | 7.68 |
|
Datasheet |
PAA, OptoMOS® | Tube | Active | Surface Mount | SPST-NO (1 Form A) x 2 | AC, DC | 1.2VDC | 0 V ~ 250 V | 250 mA | 7 Ohms | Gull Wing | -40°C ~ 85°C | 8-Flatpack | CSA, EN, UL | - | - |
|
PLB190SSR RELAY SPST-NC 130MA 0-400V |
2,046 | 5.78 |
|
Datasheet |
PLB, OptoMOS® | Tube | Active | Through Hole | SPST-NC (1 Form B) | AC, DC | 1.2VDC | 0 V ~ 400 V | 130 mA | 25 Ohms | PC Pin | -40°C ~ 85°C | 6-DIP | CSA, EN, UL | - | - |
 HEXFET Series 8-SMD 4 Leads.JPG)
|
PVA3054NSPBFSSR RELAY SPST-NO 50MA 0-300V |
4,977 | 1.00 |
|
Datasheet |
PVA, HEXFET® | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.2VDC | 0 V ~ 300 V | 50 mA | 160 Ohms | Gull Wing | -40°C ~ 85°C | 8-SMD | UL | - | - |
|
LBB120SSR RELAY SPST-NC 170MA 0-250V |
1,751 | 6.11 |
|
Datasheet |
LBB, OptoMOS® | Tube | Active | Through Hole | SPST-NC (1 Form B) x 2 | AC, DC | 1.2VDC | 0 V ~ 250 V | 170 mA | 20 Ohms | PC Pin | -40°C ~ 85°C | 8-DIP | CSA, EN, UL | - | - |
|
|
LCA220SSR RELAY SPST-NO 120MA 0-250V |
1,880 | 6.21 |
|
Datasheet |
LCA, OptoMOS® | Tube | Active | Through Hole | SPST-NO (1 Form A) x 2 | AC, DC | 1.2VDC | 0 V ~ 250 V | 120 mA | 20 Ohms | PC Pin | -40°C ~ 85°C | 8-DIP | CSA, EN, UL | - | - |
|
PVD1354NSPBFSSR RELAY SPST-NO 550MA 0-100V |
4,822 | 10.57 |
|
Datasheet |
PVD, HEXFET® | Tube | Active | Surface Mount | SPST-NO (1 Form A) | DC | 1.2VDC | 0 V ~ 100 V | 550 mA | 1.5 Ohms | Gull Wing | -40°C ~ 85°C | 8-SMD | UL | - | - |
|
|
AQV202ASSR RELAY SPST-NO 400MA 0-60V |
1,857 | 8.84 |
|
Datasheet |
PhotoMOS™ AQV | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 2.3VDC | 0 V ~ 60 V | 400 mA | 1.4 Ohms | Gull Wing | -40°C ~ 85°C | 6-SMD | UR | - | - |
|
|
AQV204SSR RELAY SPST-NO 150MA 0-400V |
1,822 | 8.84 |
|
Datasheet |
PhotoMOS™ AQV | Tube | Active | Through Hole | SPST-NO (1 Form A) | AC, DC | 2.3VDC | 0 V ~ 400 V | 150 mA | 16 Ohms | PC Pin | -40°C ~ 85°C | 6-DIP | UR | - | - |
|
|
LAA127PLSSR RELAY SPST-NO 170MA 0-250V |
2,537 | 6.64 |
|
Datasheet |
LAA, OptoMOS® | Tube | Active | Surface Mount | SPST-NO (1 Form A) x 2 | AC, DC | 1.2VDC | 0 V ~ 250 V | 170 mA | 15 Ohms | Gull Wing | -40°C ~ 85°C | 8-Flatpack | CSA, TUV, UL | - | - |
|
|
LBA127LRELAY SPST-NO/NC 150MA 0-250V |
2,220 | 6.91 |
|
Datasheet |
LBA, OptoMOS® | Tube | Active | Through Hole | SPST-NO + SPST-NC (1 Form A and B) | AC, DC | 1.2VDC | 0 V ~ 250 V | 150 mA | 15 Ohms | PC Pin | -40°C ~ 85°C | 8-DIP | CSA, EN, TUV, UL | - | - |
.JPG)
|

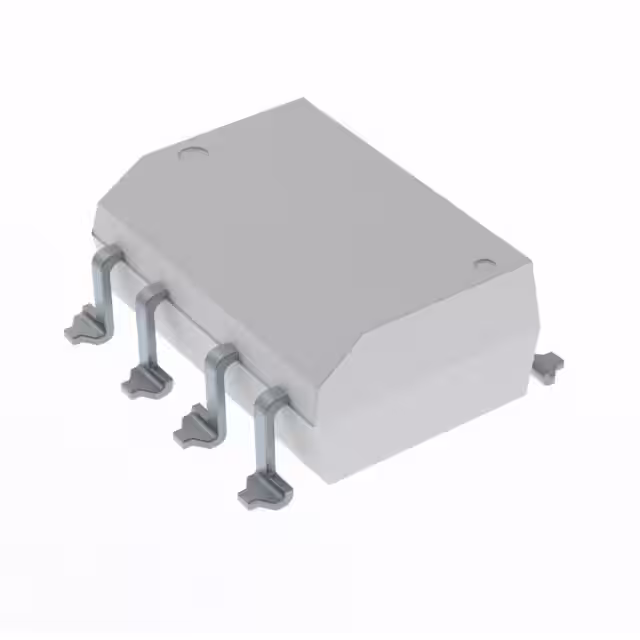

TLP3823(TP1,FSSR RELAY SPST-NO 3A 0-100V |
2,490 | 8.07 |
|
Datasheet |
TLP3823 | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.64VDC | 0 V ~ 100 V | 3 A | 150 mOhms | Gull Wing | -40°C ~ 110°C | 8-SMD | cUL, UL | - | - |
|
AQ2A2-C2-T12VDCSSR RELAY SPST-NO 2A 75-250V |
2,644 | 12.30 |
|
Datasheet |
AQ8 | Bulk | Active | Through Hole | SPST-NO (1 Form A) | AC | 9.6 ~ 14.4VDC | 75 V ~ 250 V | 2 A | - | PC Pin | -30°C ~ 80°C | 4-SIL | cURus, VDE | - | - |
|

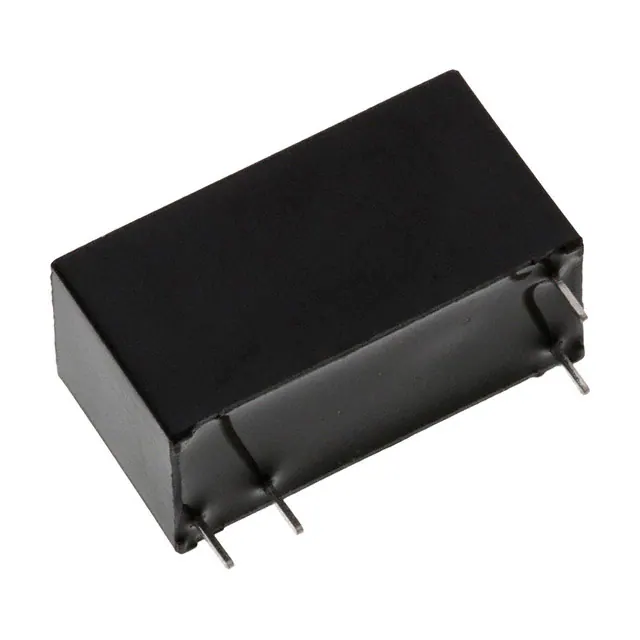

1132290000SSR RELAY SPST-NO 1A 12-275V |
4,212 | 48.88 |
|
Datasheet |
- | Bulk | Active | Through Hole | SPST-NO (1 Form A) | AC, Zero Cross | 10 ~ 32VDC | 12 V ~ 275 V | 1 A | - | PC Pin | -20°C ~ 60°C | - | - | - | - |
|
AQW210HLASSR RELAY SPST-NO 120MA 0-350V |
2,928 | 12.52 |
|
Datasheet |
PhotoMOS™ AQW | Tube | Active | Surface Mount | SPST-NO (1 Form A) x 2 | AC, DC | 1.14VDC | 0 V ~ 350 V | 120 mA | 25 Ohms | Gull Wing | -40°C ~ 85°C | 8-SMD | UR, VDE | - | - |
|
|
AQ2A1-C2-T24VDCSSR RELAY SPST-NO 2A 75-125V |
3,887 | 12.71 |
|
Datasheet |
AQ8 | Bulk | Active | Through Hole | SPST-NO (1 Form A) | AC | 21.6 ~ 26.4VDC | 75 V ~ 125 V | 2 A | - | PC Pin | -30°C ~ 80°C | 4-SIL | cURus, VDE | - | - |
|
|
AQ2A1-C2-T5VDCSSR RELAY SPST-NO 2A 75-125V |
4,297 | 12.71 |
|
Datasheet |
AQ8 | Bulk | Active | Through Hole | SPST-NO (1 Form A) | AC | 4 ~ 6VDC | 75 V ~ 125 V | 2 A | - | PC Pin | -30°C ~ 80°C | 4-SIL | cURus, VDE | - | - |
