Speakers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

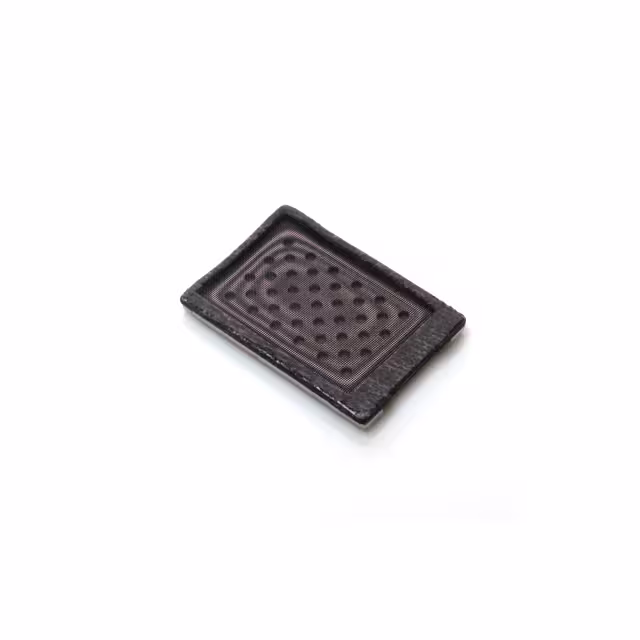

SZ211006-1SPEAKER TOP PORT 86DB RECT |
3,106 | 5.06 |
|
- |
- | Tray | Active | Piezo | General Purpose | 1 kHz ~ 20 kHz | 1kHz | - | 86.00 | 100mm | Sound Pressure Level (SPL) | - | - | Top | Rectangular | - | - | - | - | Solder Pads | - |
|
SZ250808-1SPEAKER TOP PORT 89DB RECT |
2,765 | 5.06 |
|
Datasheet |
- | Tray | Active | Piezo | General Purpose | 800 Hz ~ 20 kHz | 800Hz | - | 89.00 | 100mm | Sound Pressure Level (SPL) | - | - | Top | Rectangular | - | - | - | - | Solder Pads | - |
|

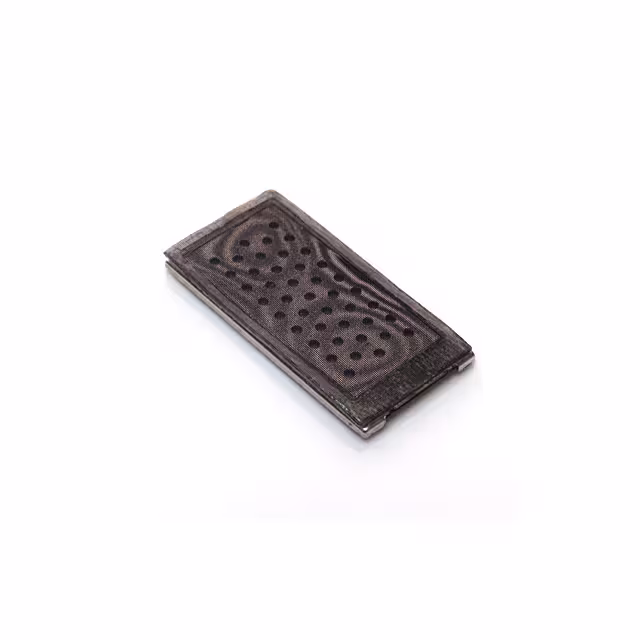

SZ300807-1SPEAKER TOP PORT 89DB RECT |
3,508 | 5.06 |
|
Datasheet |
- | Tray | Active | Piezo | General Purpose | 800 Hz ~ 20 kHz | 800Hz | - | 89.00 | 100mm | Sound Pressure Level (SPL) | - | - | Top | Rectangular | - | - | - | - | Solder Pads | - |
|

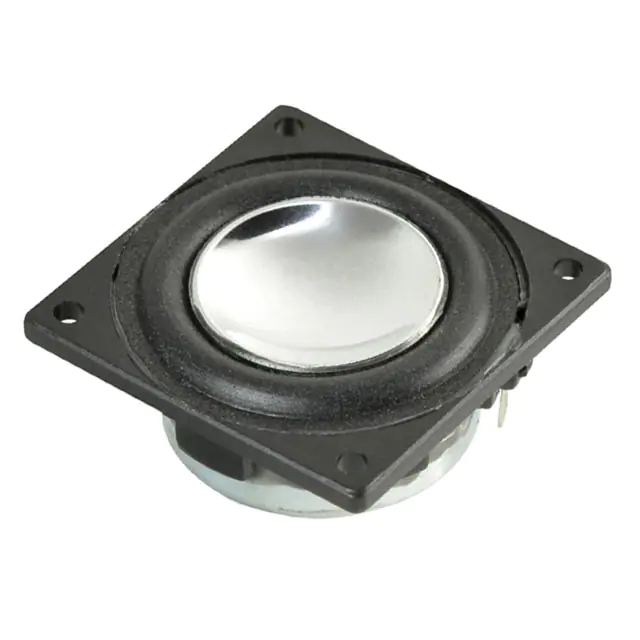

CMS-34348NSPEAKER 8OHM 3W TOP PORT 80DB |
4,247 | 5.43 |
|
Datasheet |
CMS | Tray | Active | Magnetic | General Purpose | 304 Hz ~ 10 kHz | 380Hz | 8 Ohms | 80.00 | 1W/500mm | Sound Pressure Level (SPL) | 3 W | 4 W | Top | Round, Square Frame | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.339" L x 1.339" W (34.00mm x 34.00mm) |
|

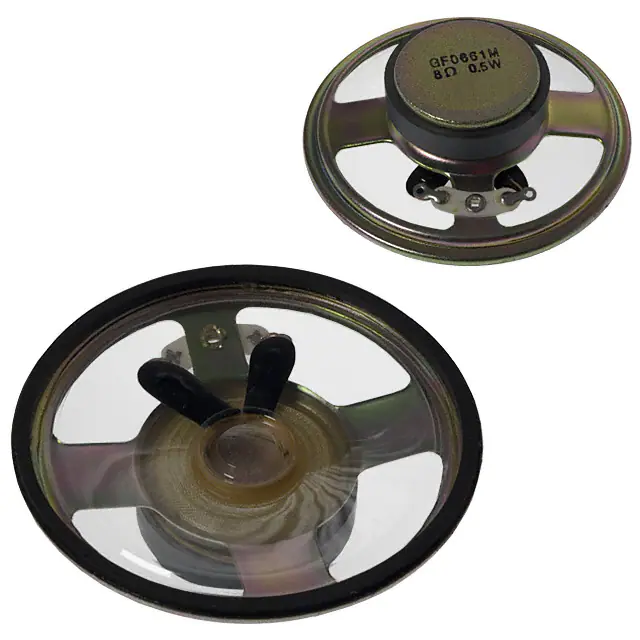

GF0661MSPEAKER 8OHM 500MW TOP PORT 88DB |
1,069 | 5.10 |
|
Datasheet |
GF | Box | Active | Magnetic | General Purpose | 430 Hz ~ 10 kHz | 430Hz | 8 Ohms | 88.00 | 500mW/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Eyelet(s) | 2.598" Dia (66.00mm) |
|

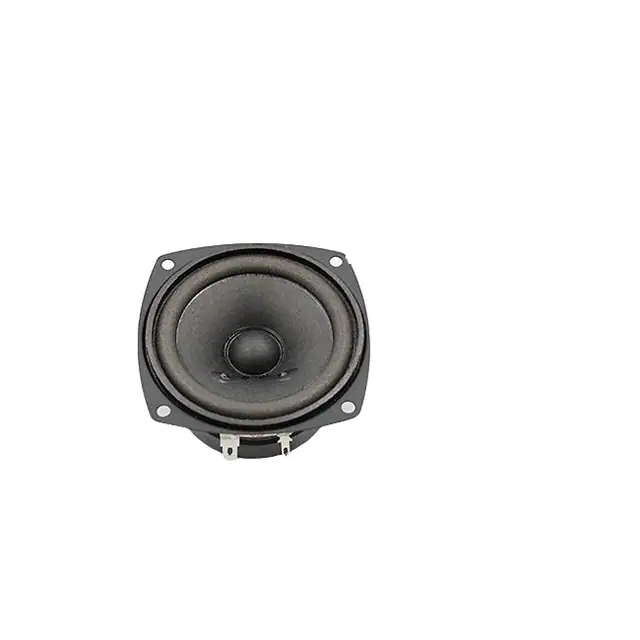

CO53S30DN8SPEAKER 8OHM 10W TOP PORT 91DB |
3,874 | 5.00 |
|
Datasheet |
- | Tray | Active | - | General Purpose | 180 Hz ~ 20 kHz | 180Hz | 8 Ohms | 91.00 | 100mW/100mm | Sound Pressure Level (SPL) | 10 W | 15 W | Top | Round | Paper, Polyurethane (PU) | Nd-Fe-B | - | - | Terminal Block | 2.087" Dia (53.00mm) |
|
2973K 70 8 OHM |
1,710 | 6.95 |
|
- |
- | Retail Package | Active | Magnetic | General Purpose | 170 Hz ~ 20 kHz | 300Hz | 8 Ohms | 85.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | - | Top | Round | - | - | - | - | Solder Eyelet(s) | 2.756" Dia (70.00mm) |
|
2826K 23 SQ 8 OHM |
2,811 | 0.00 |
|
Datasheet |
- | Retail Package | Active | - | General Purpose | 300 Hz ~ 19 kHz | 530Hz | 8 Ohms | 74.00 | 1W/1M | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round, Square Frame | Polyester, Polyethylene Terephthalate (PET) | - | IP64 - Dust Tight, Water Resistant | - | Solder Pads | 0.906" L x 0.906" W (23.00mm x 23.00mm) |
|
|
PB-2015PQSPEAKER 8OHM TOP PORT 75DB RND |
3,925 | 5.33 |
|
Datasheet |
PB | Bulk | Active | - | General Purpose | 1 kHz ~ 5 kHz | 83dB | 8 Ohms | 75.00 | 100mm | Sound Pressure Level (SPL) | - | 150 mW | Top | Round | - | - | - | - | PC Pins | 0.906" Dia (23.00mm) |
|
|
PSR30N08AKSPEAKER 8OHM 100MW TOP PORT 78DB |
2,192 | 5.40 |
|
Datasheet |
PSR | Bulk | Active | Magnetic | General Purpose | 460 Hz ~ 5 kHz | - | 8 Ohms | 78.00 | 1W/1M | Sound Pressure Level (SPL) | 100 mW | 200 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.169" Dia (29.70mm) |
|
2945K 28.40 8 OHM |
2,188 | 14.95 |
|
Datasheet |
- | Retail Package | Active | Magnetic | General Purpose | 230 Hz ~ 20 kHz | 450Hz | 8 Ohms | 79.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Oval, Rectangular Frame | Paper | Nd | - | - | Solder Pads | 1.575" L x 1.102" W (40.00mm x 28.00mm) |
|
2897K 50 SQ 8 OHM |
3,361 | 0.70 |
|
Datasheet |
- | Retail Package | Active | - | General Purpose | 250 Hz ~ 10 kHz | 480Hz | 8 Ohms | 83.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Round, Square Frame | Plastic | - | IP65/IP67 - Dust Tight, Waterproof | - | Quick Connect | 2.008" L x 2.008" W (51.00mm x 51.00mm) |
|
|
8047SC 4.7 ND 4 OHM |
1,244 | 0.00 |
|
Datasheet |
- | Retail Package | Active | Magnetic | General Purpose | 220 Hz ~ 20 kHz | 360Hz | 4 Ohms | 81.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | 4 W | Top | Oval, Rectangular Frame | - | Nd | - | - | Quick Connect | - |
|
|
8048SC 4.7 ND 8 OHM |
3,138 | 0.00 |
|
Datasheet |
- | Retail Package | Active | Magnetic | General Purpose | 220 Hz ~ 20 kHz | 360Hz | 8 Ohms | 81.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | 4 W | Top | Oval, Rectangular Frame | - | - | - | - | Quick Connect | 2.776" L x 1.634" W (70.50mm x 41.50mm) |
|
|
2918K 64 WP 8 OHM |
2,959 | 21.58 |
|
Datasheet |
- | Retail Package | Active | Magnetic | General Purpose | 200 Hz ~ 15 kHz | 300Hz | 8 Ohms | 86.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | IP65 - Dust Tight, Water Resistant | - | Quick Connect | 2.520" Dia (64.00mm) |
|
|
2921K 64 WPT 8 OHM |
4,378 | 26.31 |
|
Datasheet |
- | Retail Package | Active | Magnetic | General Purpose | 200 Hz ~ 15 kHz | 300Hz | 8 Ohms | 86.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | IP65 - Dust Tight, Water Resistant | - | Quick Connect | 2.520" Dia (64.00mm) |
|
2919K 64 WP 50 OHM |
4,017 | 0.50 |
|
Datasheet |
- | Retail Package | Active | Magnetic | General Purpose | 200 Hz ~ 15 kHz | 300Hz | 50 Ohms | 86.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | IP65 - Dust Tight, Water Resistant | - | Quick Connect | 2.520" Dia (64.00mm) |
|
|
PB-2015WQSPEAKER 8OHM 100MW TOP PORT 75DB |
1,951 | 5.92 |
|
Datasheet |
PB | Bulk | Active | - | General Purpose | 1.3 kHz ~ 1.7 kHz | - | 8 Ohms | 75.00 | 100mm | Sound Pressure Level (SPL) | 100 mW | 150 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Wire Leads | 0.906" Dia (23.00mm) |
|

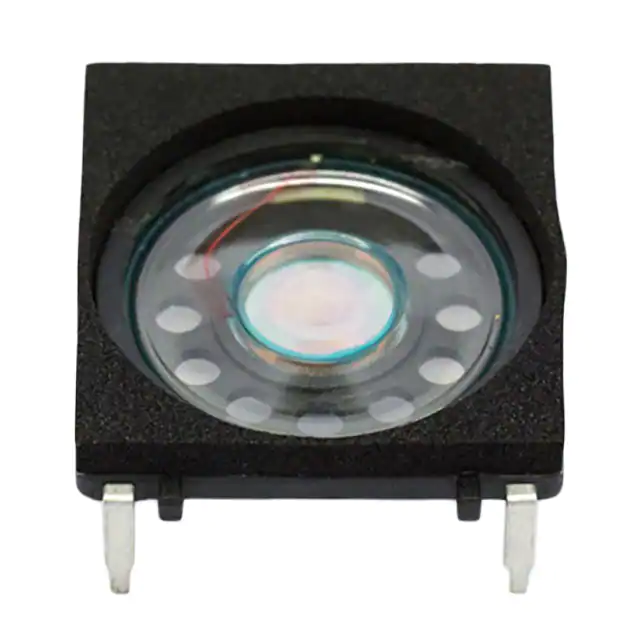

SM420608-1SPEAKER 8OHM 1W TOP PORT 93DB |
4,705 | 6.05 |
|
Datasheet |
- | Tube | Active | Magnetic | General Purpose | 600 Hz ~ 5 kHz | 600Hz | 8 Ohms | 93.00 | 100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Rectangular | Polyethylenimine (PEI) | - | - | - | PC Pins | - |
|

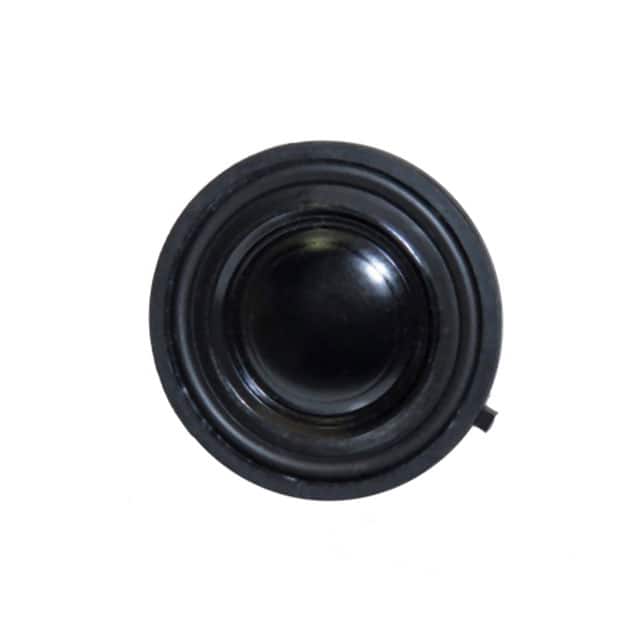

SW360308-1SPEAKER 8OHM 2W TOP PORT 93DB |
4,672 | 6.07 |
|
Datasheet |
SW | Tray | Active | Magnetic | General Purpose | 350 Hz ~ 10 kHz | 350Hz | 8 Ohms | 93.00 | 100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | IP67 - Dust Tight, Waterproof | - | Solder Pads | 1.417" Dia (36.00mm) |
