Stepper Motors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Coil Type | Voltage - Rated | Current Rating (Amps) | Steps per Revolution | Step Angle | Accuracy | Torque - Holding (oz-in / mNm) | Size / Dimension | NEMA Frame Size | Diameter - Shaft | Length - Shaft and Bearing | Mounting Hole Spacing | Termination Style | Operating Temperature | Coil Resistance | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SF2421-10B41STEP, F2, SQ.42, 1.8, , , BIPOLA |
4,438 | 25.00 |
|
Datasheet |
SF | Box | Active | Hybrid | Bipolar | 24VDC | 1 A | 200.0 | 1.8° | - | 41.07 / 290 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | - | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Connector | -10°C ~ 50°C | 3.6 Ohms | - |
|
SS2422-5041STEP, F2, SQ.42, 1.8, PANCAKE TY |
1,207 | 0.00 |
|
Datasheet |
SS | Box | Active | Hybrid | Bipolar | 24VDC | 1 A | 200.0 | 1.8° | - | 26.34 / 186 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | - | 0.197" (5.00mm) | 0.276" (7.00mm) | 1.220" (31.00mm) | Wire Leads | -10°C ~ 50°C | 5.4 Ohms | - |
|
WO-4118S-04PSTEPPER MOTOR |
3,718 | 39.51 |
|
Datasheet |
- | Tray | Active | - | Bipolar | 24VDC | 1.34 A | 200.0 | 1.8° | - | 42 / 296.59 | Square - 1.669" x 1.669" (42.40mm x 42.40mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Wire Leads | -20°C ~ 50°C | 2.5 Ohms | Flatted Shaft |
|
|
SS2502-8040STEP, F2, SQ.50, 1.8, PANCAKE TY |
1,972 | 0.00 |
|
Datasheet |
SS | Box | Active | Hybrid | Bipolar | 24VDC | 1 A | 200.0 | 1.8° | - | 30.45 / 215 | Square - 1.969" x 1.969" (50.00mm x 50.00mm) | - | 0.197" (5.00mm) | 0.197" (5.00mm) | 1.614" (41.00mm) | Wire Leads | -10°C ~ 50°C | 5.9 Ohms | - |
|

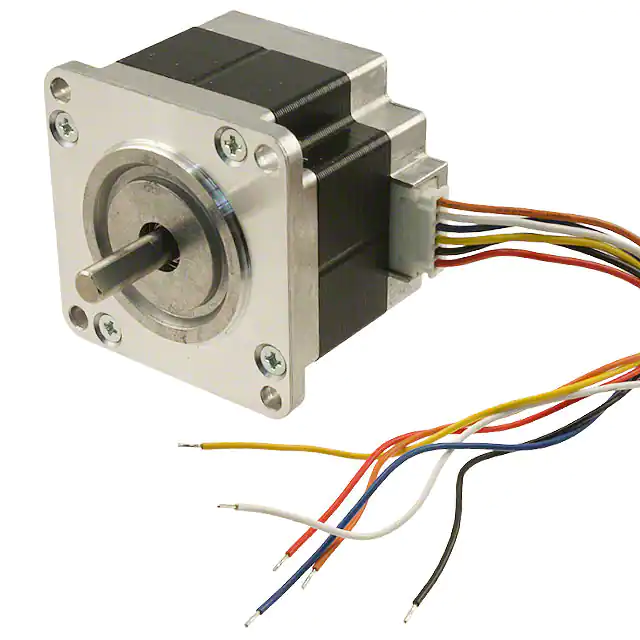

23KM-K267-00VSTEP MOTOR HYBRID UNIPOLAR 24V |
1,704 | 64.63 |
|
Datasheet |
23KM | Bulk | Active | Hybrid | Unipolar | 24VDC | 900 mA | 200.0 | 1.8° | ±5% | 67.98 / 480 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | 0.984" (25.00mm) | 1.856" (47.14mm) | Wire Leads with Connector | -10°C ~ 50°C | 5.8 Ohms | Flatted Shaft |
|
103H7823-1760STEP, F2, SQ.60, 1.8, NEMA, , BI |
2,272 | 57.85 |
|
Datasheet |
H | Tray | Active | Hybrid | Bipolar | 24VDC | 4 A | 200.0 | 1.8° | - | 382.4 / 2700 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 23 | 0.315" (8.00mm) | 0.811" (20.60mm) | 1.856" (47.14mm) | Wire Leads | -10°C ~ 50°C | 0.65 Ohms | - |
|
|
SM2564C60B41F2, 56 SQ., 1.8, BIPOLAR/SINGLE |
1,607 | 0.00 |
|
Datasheet |
SM | Bulk | Active | Hybrid | Bipolar | 24VDC | 6 A | 200.0 | 1.8° | - | 354 / 2500 | Square - 2.205" x 2.205" (56.00mm x 56.00mm) | - | 0.315" (8.00mm) | 0.811" (20.60mm) | 1.856" (47.14mm) | Connector | - | 270 mOhms | Double Flatted Shaft |
|

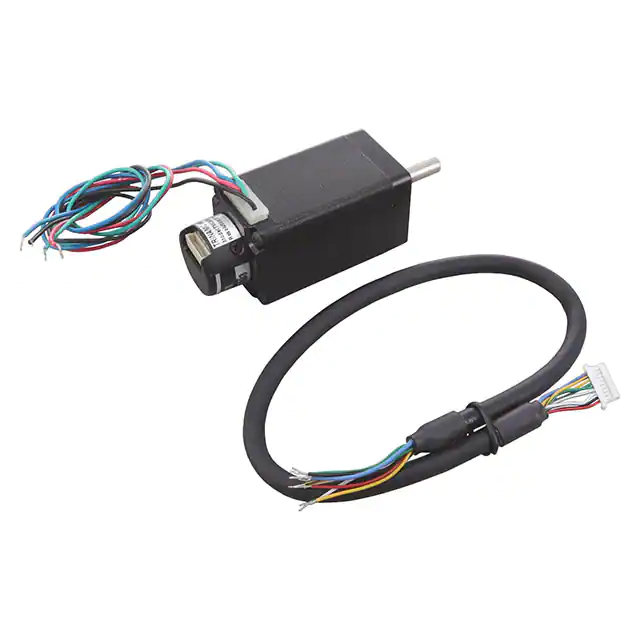

QSH2818-51-07-012-8KSTEP MOTOR HYBRID NEMA11 ENC 819 |
1,019 | 182.40 |
|
Datasheet |
QMot QSH2818 | Bulk | Active | Hybrid | Bipolar | 6.2VDC | 670 mA | 200.0 | 1.8° | ±5% | 17 / 120 | Square - 1.100" x 1.100" (28.00mm x 28.00mm) | 11 | 0.197" (5.00mm) | 0.787" (20.00mm) | 0.906" (23.00mm) | Wire Leads | -20°C ~ 50°C | 9.2 Ohms | Flatted Shaft |
|
|
SM2862-5152STEP, F2, SQ.86, 1.8, HALF INCH |
1,923 | 152.71 |
|
Datasheet |
- | Box | Active | Hybrid | Bipolar | 100VAC | 4 A | 200.0 | 1.8° | - | 906.3 / 6400 | Square - 3.386" x 3.386" (86.00mm x 86.00mm) | 34 | 0.500" (12.70mm) | 1.181" (30.00mm) | 2.740" (69.60mm) | Wire Leads | -10°C ~ 50°C | 0.8 Ohms | - |
|

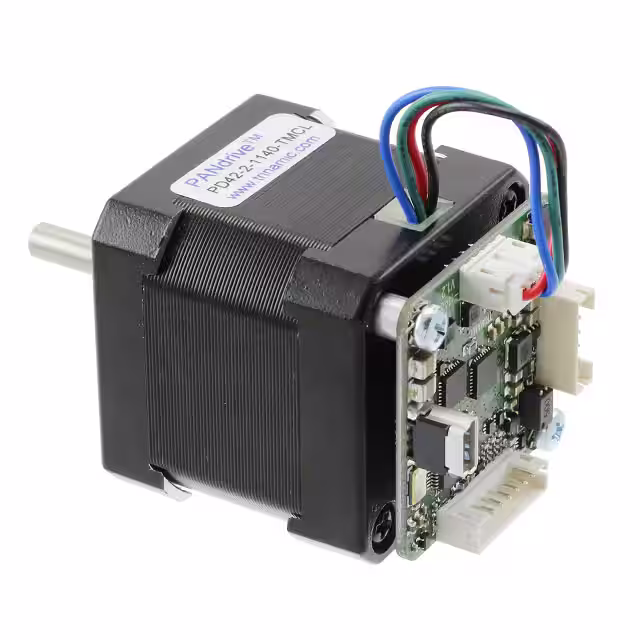

PD42-2-1140-TMCLSTEPPER MOTOR HYBRID BIPOLAR 24V |
3,792 | 252.05 |
|
Datasheet |
PANdrive™ | Case | Active | Hybrid | Bipolar | 24VDC | 2 A | 200.0 | 1.8° | ±5% | 51 / 360 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | - | Wire Leads with Connector | - | - | Integrated Controller, Flatted Shaft |
|
PD42-2-1240-CANOPENPANDRIVE NEMA17, 24V, 0.36NM |
4,195 | 233.90 |
|
- |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 2.4VDC | 2 A | 200.0 | 1.8° | ±5% | 50.98 / 360 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 1.2 Ohms | Integrated Controller, Flatted Shaft |
|
PD60-3-1161STEPPER MOTOR HYBRID BIPOLAR 24V |
4,599 | 277.00 |
|
Datasheet |
PANdrive™ | Case | Active | Hybrid | Bipolar | 24VDC | 2.8 A | 200.0 | 1.8° | - | 297.38 / 2100 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | 0.315" (8.00mm) | 0.945" (24.00mm) | 1.856" (47.14mm) | Wire Leads with Connector | - | - | Integrated Controller, Flatted Shaft |
|
PD60-3-1260-TMCLPANDRIVE NEMA24, 48V, 2.10NM |
1,279 | 313.10 |
|
- |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 4.6VDC | 2.8 A | 200.0 | 1.8° | - | 297.38 / 2100 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | 0.315" (8.00mm) | 0.945" (24.00mm) | 1.856" (47.14mm) | Wire Leads with Connector | -20°C ~ 50°C | - | Integrated Controller, Flatted Shaft |
|
PD60-4-1260-TMCLPANDRIVE NEMA24, 48V, 3.1NM |
2,341 | 356.80 |
|
- |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 6.8VDC | 2.8 A | 200.0 | 1.8° | - | 438.99 / 3100 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | 0.315" (8.00mm) | 0.945" (24.00mm) | 1.856" (47.14mm) | Wire Leads with Connector | -20°C ~ 50°C | - | Integrated Controller, Flatted Shaft |
|
PM20S-180-033PERMANENT MAGNET STEPPER MOTOR |
4,038 | 21.41 |
|
Datasheet |
- | Tray | Active | - | Bipolar | 12VDC | 0.33 A | 20.0 | 18° | - | 1.18 / 8.34 | Round - 0.787" Dia (20.00mm) | - | 0.059" (1.50mm) | 0.394" (10.00mm) | 0.984" (25.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 10.3 Ohms | Round Shaft |
|
SF2423-10B11STEP, F2, SQ.42, 1.8, , , BIPOLA |
4,974 | 29.16 |
|
Datasheet |
SF | Box | Active | Hybrid, Dual Shaft | Bipolar | 24VDC | 1 A | 200.0 | 1.8° | - | 79.3 / 560 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | - | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Connector | -10°C ~ 50°C | 5.3 Ohms | - |
|

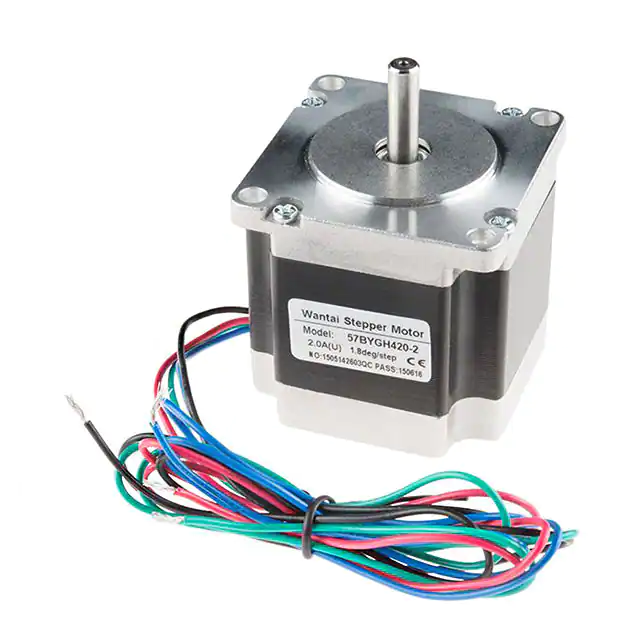

ROB-13656STEP MOTOR HYBRID BIPOLAR 3.2V |
4,020 | 41.88 |
|
Datasheet |
- | Bulk | Active | Hybrid | Bipolar | 3.2VDC | 2 A | 200.0 | 1.8° | ±5% | 125 / 882.7 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | 0.827" (21.00mm) | 1.856" (47.14mm) | Wire Leads | - | 1.6 Ohms | Round Shaft |
|
SH1421-5241STEP, F2, SQ.42, 0.9, , , BIPOLA |
3,639 | 44.67 |
|
Datasheet |
SH | Box | Active | Hybrid | Bipolar | 24VDC | 2 A | 400.0 | 0.9° | - | 32.57 / 230 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | - | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Wire Leads | -10°C ~ 50°C | 0.85 Ohms | - |
|
|
SS2501-8040STEP, F2, SQ.50, 1.8, PANCAKE TY |
1,409 | 0.00 |
|
Datasheet |
SS | Box | Active | Hybrid | Bipolar | 24VDC | 1 A | 200.0 | 1.8° | - | 14.16 / 100 | Square - 1.969" x 1.969" (50.00mm x 50.00mm) | - | 0.197" (5.00mm) | 0.197" (5.00mm) | 1.614" (41.00mm) | Wire Leads | -10°C ~ 50°C | 4.5 Ohms | - |
|
|
SM2562C40B41F2, 56 SQ., 1.8, BIPOLAR/SINGLE |
3,757 | 0.00 |
|
Datasheet |
SM | Bulk | Active | Hybrid | Bipolar | 24VDC | 4 A | 200.0 | 1.8° | - | 198.3 / 1400 | Square - 2.205" x 2.205" (56.00mm x 56.00mm) | - | 0.315" (8.00mm) | 0.811" (20.60mm) | 1.856" (47.14mm) | Connector | - | 0.37 Ohms | - |
