Stepper Motors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Coil Type | Voltage - Rated | Current Rating (Amps) | Steps per Revolution | Step Angle | Accuracy | Torque - Holding (oz-in / mNm) | Size / Dimension | NEMA Frame Size | Diameter - Shaft | Length - Shaft and Bearing | Mounting Hole Spacing | Termination Style | Operating Temperature | Coil Resistance | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM35S-075-038PERMANENT MAGNET STEPPER MOTOR |
3,633 | 24.66 |
|
Datasheet |
- | Tray | Active | - | Bipolar | 24VDC | 0.38 A | 48.0 | 7.5° | - | 6.4 / 45.2 | Round - 1.650" Dia (42.00mm) | - | 0.118" (3.00mm) | 0.394" (10.00mm) | 1.650" (42.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 12 Ohms | - |
|

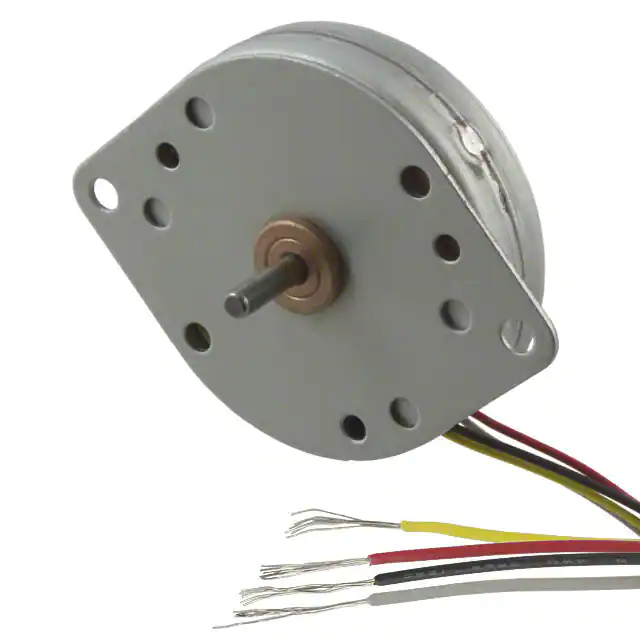

44M100D2BSTEPPER MOTOR PM BIPOLAR 12V |
2,319 | 26.13 |
|
Datasheet |
44M | Bulk | Active | Permanent Magnet | Bipolar | 12VDC | - | 100.0 | 3.6° | ±11% | 6.6 / 46.6 | Round - 1.732" Dia (44.00mm) | - | 0.118" (3.00mm) | 0.450" (11.43mm) | 1.950" (49.48mm) | Wire Leads | 0°C ~ 60°C | 70 Ohms | Round Shaft |
|

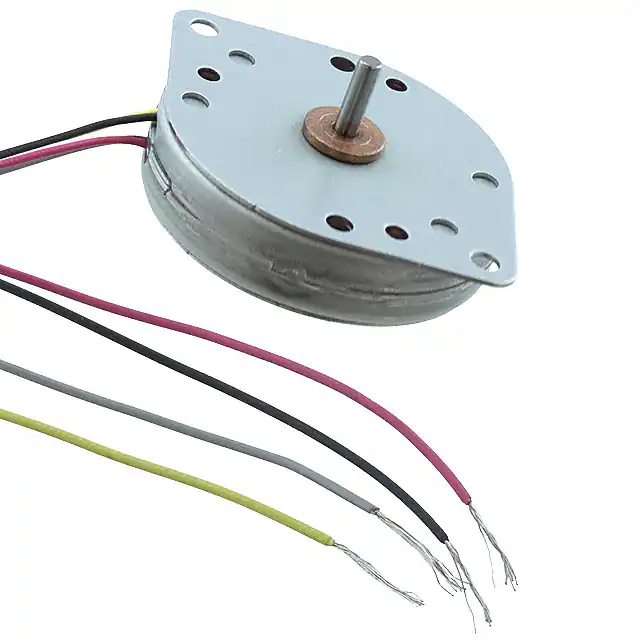

44M100D1BSTEPPER MOTOR PM BIPOLAR 5V |
3,975 | 25.09 |
|
Datasheet |
44M | Bulk | Active | Permanent Magnet | Bipolar | 5VDC | - | 100.0 | 3.6° | ±11% | 5.5 / 38.8 | Round - 1.732" Dia (44.00mm) | - | 0.118" (3.00mm) | 0.450" (11.43mm) | 1.950" (49.48mm) | Wire Leads | 0°C ~ 60°C | 12.5 Ohms | Round Shaft |
|
8105757BYG STEPPER MOTOR |
3,921 | 0.00 |
|
Datasheet |
- | Bulk | Not For New Designs | - | - | - | 2.8 A | 200.0 | 1.8° | - | 169.96 / 1200 | Square - 2.217" x 2.217" (56.30mm x 56.30mm) | - | 0.315" (8.00mm) | 0.827" (21.00mm) | 1.850" (47.00mm) | Wire Leads | - | - | Flatted Shaft |
|
10PM-K013BSTEPPER MOTOR HYBRID BIPOLAR 24V |
2,682 | 32.57 |
|
Datasheet |
10PM | Bulk | Active | Hybrid | Bipolar | 24VDC | 210 mA | 200.0 | 1.8° | - | 6.94 / 49 | Square - 0.984" x 0.984" (25.00mm x 25.00mm) | 10 | 0.197" (5.00mm) | 0.394" (10.00mm) | 0.787" (20.00mm) | Connector | - | 47 Ohms | Round Shaft |
|
|
PM25S-024-HHF8STEPPER MOTOR PM TAPPED M2.6 |
4,645 | 33.33 |
|
Datasheet |
PM | Bag | Active | Permanent Magnet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PG15S-J20-HHF3STEP MOTOR PM GEARED BIPOLAR 5V |
2,178 | 35.00 |
|
Datasheet |
PG | Tray | Active | Permanent Magnet Gear Motor | Bipolar | 5VDC | - | 1000.0 | 0.36° | - | - | Round - 0.591" Dia (15.00mm) | - | 0.118" (3.00mm) | 0.354" (9.00mm) | 0.787" (20.00mm) | Wire Leads | 0°C ~ 50°C | 10 Ohms | Round Shaft |
|
|
10PM-K405BSTEPPER MOTOR HYBRID BIPOLAR 24V |
3,958 | 35.35 |
|
Datasheet |
10PM | Box | Active | Hybrid | Bipolar | 24VDC | 1.5 A | 200.0 | 1.8° | - | 17 / 120 | Square - 0.984" x 0.984" (25.00mm x 25.00mm) | 10 | 0.197" (5.00mm) | 0.394" (10.00mm) | 0.787" (20.00mm) | Connector | - | 1.6 Ohms | Round Shaft |
|
|
17PM-K249BSTEPPER MOTOR HYBRID BIPOLAR 24V |
4,258 | 35.35 |
|
Datasheet |
17PM | Bulk | Active | Hybrid | Bipolar | 24VDC | 600 mA | 200.0 | 1.8° | - | 19.83 / 140 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Connector | - | 5.4 Ohms | Round Shaft |
|
|
17PM-K249USTEP MOTOR HYBRID UNIPOLAR 24V |
4,414 | 35.35 |
|
Datasheet |
17PM | Bulk | Active | Hybrid | Unipolar | 24VDC | 800 mA | 200.0 | 1.8° | - | 14.16 / 100 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Connector | - | 2.7 Ohms | Round Shaft |
|
|
17PM-K264USTEP MOTOR HYBRID UNIPOLAR 24V |
4,297 | 35.35 |
|
Datasheet |
17PM | Bulk | Active | Hybrid | Unipolar | 24VDC | 600 mA | 200.0 | 1.8° | - | 14.16 / 100 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Connector | - | 6.9 Ohms | Round Shaft |
|
|
17PM-K749BSTEPPER MOTOR HYBRID BIPOLAR 24V |
3,242 | 36.36 |
|
Datasheet |
17PM | Bulk | Active | Hybrid | Bipolar | 24VDC | 600 mA | 200.0 | 1.8° | - | 9.2 / 64.97 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Connector | - | 4.4 Ohms | Round Shaft |
|
|
17PM-K749USTEP MOTOR HYBRID UNIPOLAR 24V |
2,321 | 36.36 |
|
Datasheet |
17PM | Bulk | Active | Hybrid | Unipolar | 24VDC | 900 mA | 200.0 | 1.8° | - | 7.08 / 50 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Connector | - | 2.2 Ohms | Round Shaft |
|
|
17PM-K764USTEP MOTOR HYBRID UNIPOLAR 24V |
4,878 | 36.36 |
|
Datasheet |
17PM | Bulk | Active | Hybrid | Unipolar | 24VDC | 600 mA | 200.0 | 1.8° | - | 7.08 / 50 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Connector | - | 5.6 Ohms | Round Shaft |
|
|
17PM-K049-UPVSSTEP MOTOR HYBRID UNIPOLAR 24V |
4,427 | 0.00 |
|
Datasheet |
17PM | Bulk | Active | Hybrid | Unipolar | 24VDC | 1 A | 200.0 | 1.8° | - | 7.08 / 50 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Connector | - | 3.2 Ohms | Round Shaft |
|
|
17PM-K064USTEP MOTOR HYBRID UNIPOLAR 24V |
2,502 | 36.76 |
|
Datasheet |
17PM | Bulk | Active | Hybrid | Unipolar | 24VDC | 600 mA | 200.0 | 1.8° | - | 7.08 / 50 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Connector | - | 8.3 Ohms | Round Shaft |
|
|
17PM-K342BSTEPPER MOTOR HYBRID BIPOLAR 24V |
2,231 | 37.47 |
|
Datasheet |
17PM | Bulk | Active | Hybrid | Bipolar | 24VDC | 900 mA | 200.0 | 1.8° | - | 43.9 / 310 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Connector | - | 4 Ohms | Round Shaft |
|
|
17PM-K342USTEP MOTOR HYBRID UNIPOLAR 24V |
2,649 | 37.47 |
|
Datasheet |
17PM | Bulk | Active | Hybrid | Unipolar | 24VDC | 1.4 A | 200.0 | 1.8° | - | 35.41 / 250 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Connector | - | 2 Ohms | Round Shaft |
|
|
17PM-K349USTEP MOTOR HYBRID UNIPOLAR 24V |
1,552 | 37.47 |
|
Datasheet |
17PM | Bulk | Active | Hybrid | Unipolar | 24VDC | 1 A | 200.0 | 1.8° | - | 35.41 / 250 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Connector | - | 3.6 Ohms | Round Shaft |
|
23KM-K249USTEP MOTOR HYBRID UNIPOLAR 24V |
2,813 | 38.18 |
|
Datasheet |
23KM | Bulk | Active | Hybrid | Unipolar | 24VDC | 2 A | 200.0 | 1.8° | - | 59.48 / 420 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | 0.813" (20.64mm) | 1.856" (47.14mm) | Connector | - | 1.2 Ohms | Round Shaft |
