Stepper Motors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Coil Type | Voltage - Rated | Current Rating (Amps) | Steps per Revolution | Step Angle | Accuracy | Torque - Holding (oz-in / mNm) | Size / Dimension | NEMA Frame Size | Diameter - Shaft | Length - Shaft and Bearing | Mounting Hole Spacing | Termination Style | Operating Temperature | Coil Resistance | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM2561C60B41F2, 56 SQ., 1.8, BIPOLAR/SINGLE |
2,688 | 0.00 |
|
Datasheet |
SM | Bulk | Active | Hybrid | Bipolar | 24VDC | 6 A | 200.0 | 1.8° | - | 106.2 / 750 | Square - 2.205" x 2.205" (56.00mm x 56.00mm) | - | 0.315" (8.00mm) | 0.811" (20.60mm) | 1.856" (47.14mm) | Connector | - | 0.14 Ohms | - |
|
|
SM2561C40B41F2, 56 SQ., 1.8, BIPOLAR/SINGLE |
1,193 | 0.00 |
|
Datasheet |
SM | Bulk | Active | Hybrid | Bipolar | 24VDC | 4 A | 200.0 | 1.8° | - | 106.2 / 750 | Square - 2.205" x 2.205" (56.00mm x 56.00mm) | - | 0.315" (8.00mm) | 0.811" (20.60mm) | 1.856" (47.14mm) | Connector | - | 0.28 Ohms | - |
|
WO-211-18-01-ROSTEPPER MOTOR |
3,235 | 43.19 |
|
Datasheet |
- | Tray | Active | - | Bipolar | 24VDC | 670 mA | 200.0 | 1.8° | - | 13.7 / 96.74 | Square - 1.110" x 1.110" (28.20mm x 28.20mm) | 11 | 0.197" (5.00mm) | 0.787" (20.00mm) | 0.906" (23.00mm) | Wire Leads | -20°C ~ 50°C | 7.1 Ohms | Round Shaft |
|
WO-4109R-08STEPPER MOTOR |
1,919 | 45.97 |
|
Datasheet |
- | Tray | Active | - | Bipolar | 24VDC | 600 mA | 400.0 | 0.9° | - | 22 / 155.4 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.591" (15.00mm) | 1.220" (31.00mm) | Wire Leads | -20°C ~ 50°C | 11.6 Ohms | Round Shaft |
|
|
SM2562C60B41F2, 56 SQ., 1.8, BIPOLAR/SINGLE |
3,992 | 0.00 |
|
Datasheet |
SM | Bulk | Active | Hybrid | Bipolar | 24VDC | 6 A | 200.0 | 1.8° | - | 198.3 / 1400 | Square - 2.205" x 2.205" (56.00mm x 56.00mm) | - | 0.315" (8.00mm) | 0.811" (20.60mm) | 1.856" (47.14mm) | Connector | - | 0.18 Ohms | - |
|
|
SM2562C20B41F2, 56 SQ., 1.8, BIPOLAR/SINGLE |
2,545 | 0.00 |
|
Datasheet |
SM | Bulk | Active | Hybrid | Bipolar | 24VDC | 2 A | 200.0 | 1.8° | - | 198.3 / 1400 | Square - 2.205" x 2.205" (56.00mm x 56.00mm) | - | 0.315" (8.00mm) | 0.811" (20.60mm) | 1.856" (47.14mm) | Connector | - | 1.5 Ohms | - |
|
|
WO-4109R-05STEPPER MOTOR |
4,359 | 45.97 |
|
Datasheet |
- | Tray | Active | - | Bipolar | 24VDC | 800 mA | 400.0 | 0.9° | - | 22 / 155.4 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.591" (15.00mm) | 1.220" (31.00mm) | Wire Leads | -20°C ~ 50°C | 6.5 Ohms | Round Shaft |
|
SH1422-5241STEP, F2, SQ.42, 0.9, , , BIPOLA |
2,983 | 45.40 |
|
Datasheet |
SH | Box | Active | Hybrid | Bipolar | 24VDC | 2 A | 400.0 | 0.9° | - | 48.15 / 340 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | - | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Wire Leads | -10°C ~ 50°C | 1.05 Ohms | - |
|
SH1424-5241STEP, F2, SQ.42, 0.9, , , BIPOLA |
2,014 | 48.33 |
|
Datasheet |
SH | Box | Active | Hybrid | Bipolar | 24VDC | 2 A | 400.0 | 0.9° | - | 67.97 / 480 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | - | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Wire Leads | -10°C ~ 50°C | 1.25 Ohms | - |
|
103H7821-1760STEP, F2, SQ.60, 1.8, NEMA, , BI |
4,318 | 43.94 |
|
Datasheet |
H | Box | Active | Hybrid | Bipolar | 24VDC | 4 A | 200.0 | 1.8° | - | 124.6 / 880 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 23 | 0.315" (8.00mm) | 0.811" (20.60mm) | 1.856" (47.14mm) | Wire Leads | -10°C ~ 50°C | 0.35 Ohms | - |
|
103H7121-5840STEP, F2, SQ.56, 1.8, , , BIPOLA |
1,036 | 49.06 |
|
Datasheet |
H | Box | Active | Hybrid | Bipolar | 24VDC | 3 A | 200.0 | 1.8° | - | 77.89 / 550 | Square - 2.205" x 2.205" (56.00mm x 56.00mm) | - | 0.250" (6.35mm) | 0.811" (20.60mm) | 1.856" (47.14mm) | Wire Leads | -10°C ~ 50°C | 0.54 Ohms | - |
|
|
103H7821-1730STEP, F2, SQ.60, 1.8, NEMA, , BI |
4,847 | 43.94 |
|
Datasheet |
H | Box | Active | Hybrid, Dual Shaft | Bipolar | 24VDC | 4 A | 200.0 | 1.8° | - | 124.6 / 880 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 23 | 0.315" (8.00mm) | 0.811" (20.60mm) | 1.856" (47.14mm) | Wire Leads | -10°C ~ 50°C | 0.35 Ohms | - |
|
SH1601-5240STEP, F2, SQ.60, 0.9, , , BIPOLA |
2,737 | 46.13 |
|
Datasheet |
SH | Box | Active | Hybrid | Bipolar | 24VDC | 2 A | 400.0 | 0.9° | - | 97.71 / 690 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | - | 0.250" (6.35mm) | 0.811" (20.60mm) | 1.856" (47.14mm) | Wire Leads | -10°C ~ 50°C | 1.2 Ohms | - |
|

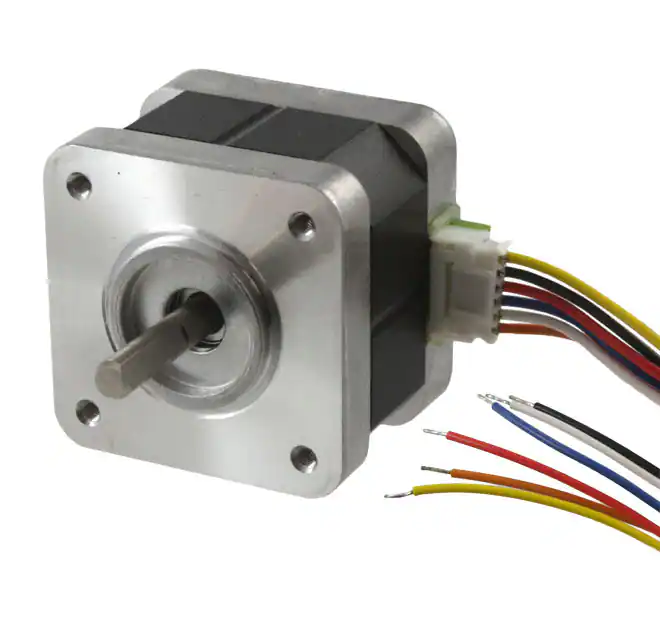

17PY-Z053-99VSSTEP MOTOR HYBRID DUAL SHAFT 24V |
2,512 | 53.13 |
|
Datasheet |
17PY | Bulk | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 850 mA | 400.0 | 0.9° | ±5% | 22.7 / 160 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.787" (20.00mm) | 1.220" (31.00mm) | Wire Leads with Connector | -10°C ~ 50°C | 4.2 Ohms | Flatted Shaft |
|
|
SH1602-5240STEP, F2, SQ.60, 0.9, , , BIPOLA |
2,144 | 49.06 |
|
Datasheet |
SH | Tray | Active | Hybrid | Bipolar | 24VDC | 2 A | 400.0 | 0.9° | - | 181.3 / 1280 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | - | 0.250" (6.35mm) | 0.811" (20.60mm) | 1.856" (47.14mm) | Wire Leads | -10°C ~ 50°C | 1.65 Ohms | - |
|
SH2281-5771STEP, F2, SQ.28, 1.8, , , BIPOLA |
4,165 | 49.06 |
|
Datasheet |
SH | Tray | Active | Hybrid | Bipolar | 24VDC | 1 A | 200.0 | 1.8° | - | 9.91 / 70 | - | - | 0.197" (5.00mm) | 0.591" (15.00mm) | 0.906" (23.00mm) | Wire Leads | -10°C ~ 50°C | 2.6 Ohms | - |
|
|
SH2281-5731STEP, F2, SQ.28, 1.8, , , BIPOLA |
1,578 | 49.06 |
|
Datasheet |
SH | Box | Active | Hybrid, Dual Shaft | Bipolar | 24VDC | 1 A | 200.0 | 1.8° | - | 9.91 / 70 | - | - | 0.197" (5.00mm) | 0.591" (15.00mm) | 0.906" (23.00mm) | Wire Leads | -10°C ~ 50°C | 2.6 Ohms | - |
|

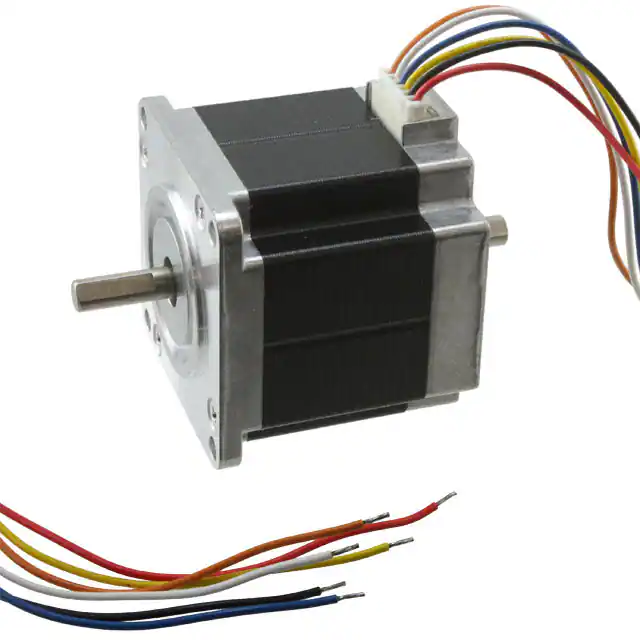

23KM-K049-99VSTEP MOTOR HYBRID DUAL SHAFT 24V |
2,681 | 71.95 |
|
Datasheet |
23KM | Bulk | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 2 A | 200.0 | 1.8° | ±5% | 127.47 / 900 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | 0.984" (25.00mm) | 1.856" (47.14mm) | Wire Leads with Connector | -10°C ~ 50°C | 1.7 Ohms | Flatted Shaft |
|
|
SM2563C20B41F2, 56 SQ., 1.8, BIPOLAR/SINGLE |
4,657 | 0.00 |
|
Datasheet |
SM | Bulk | Active | Hybrid | Bipolar | 24VDC | 2 A | 200.0 | 1.8° | - | 333 / 2350 | Square - 2.205" x 2.205" (56.00mm x 56.00mm) | - | 0.315" (8.00mm) | 0.811" (20.60mm) | 1.856" (47.14mm) | Connector | - | 2.1 Ohms | - |
|
WO-4118L-07PSTEPPER MOTOR |
4,391 | 54.33 |
|
Datasheet |
- | Tray | Active | - | Bipolar | 24VDC | 2.1 A | 200.0 | 1.8° | - | 83 / 586.11 | Square - 1.669" x 1.669" (42.40mm x 42.40mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Wire Leads | -20°C ~ 50°C | 1.3 Ohms | Flatted Shaft |
