Liquid Cooling, Heating
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Product Type | Power - Cooling | Current | Voltage | Flow Rate | Power Input | Thermal Resistance @ GPM | Fluid Capacity | Operating Temperature | Connection Type | Weight | Dimensions - Overall | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

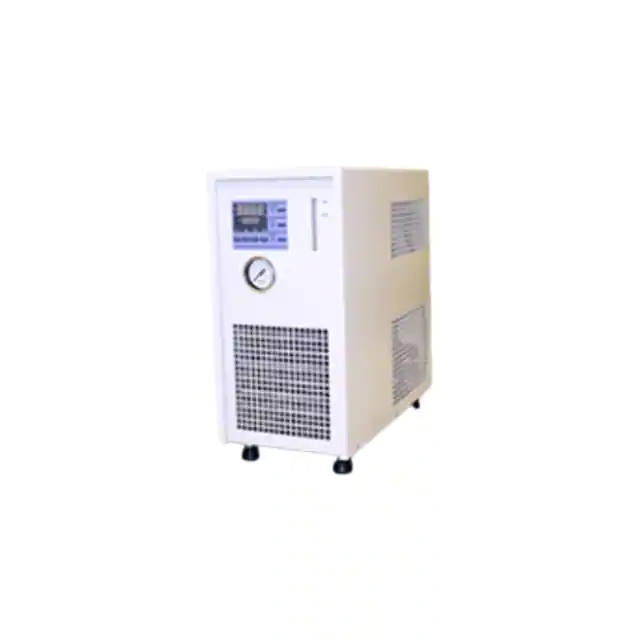

ATS-CHILL300VRECIRC CHILLER 15LPM 300W |
2,781 | 2535.06 |
|
Datasheet |
CHILL V | Box | Active | Active, Recirculating Chiller | 300 W | - | 120/220VAC | 3.96GPM (15.0LPM) | - | - | 4500ML (152.2 oz) | 5°C ~ 35°C | - | 51 lbs (23.1 kg) | 18.70" L x 9.25" W x 19.30" H (475mm x 235mm x 490mm) | - |
|
385760-001RECIRC CHILLR/HEATER 3.3LPM 290W |
4,503 | 2980.00 |
|
Datasheet |
MRC | Box | Active | Active, Recirculating Chiller/Heater | 290 W | 8.5 A | 115 ~ 240VAC | 0.87GPM (3.3LPM) | 507W | - | 450ML (15.2 oz) | 4°C ~ 45°C | 3/8" Quick Connect | 30 lbs (13.6 kg) | 13.31" L x 7.99" W x 15.39" H (338.0mm x 203.0mm x 391.0mm) | UL61010-1 |
|
|
ATS-CHILL600VRECIRC CHILLER 15LPM 600W |
2,616 | 3175.73 |
|
Datasheet |
CHILL V | Box | Active | Active, Recirculating Chiller | 600 W | - | 120/220VAC | 3.96GPM (15.0LPM) | - | - | 4500ML (152.2 oz) | 5°C ~ 35°C | - | 51 lbs (23.1 kg) | 18.70" L x 9.25" W x 19.30" H (475mm x 235mm x 490mm) | - |
|
|
385901-002NRC400-T0-00-PC2 |
4,032 | 0.00 |
|
Datasheet |
Nextreme™ NRC | Bulk | Active | Active, Recirculating Chiller | 400 W | 4.4 A | 115 ~ 230VAC | - | - | - | 1000ML (33.8 oz) | 15°C ~ 40°C | - | - | 16.26" L x 10.79" W x 15.75" H (413.0mm x 274.0mm x 400.0mm) | CE, UL |
|
HPLC-10RECIRC CHILLER 115VAC 1700W |
3,234 | 4453.04 |
|
Datasheet |
HPLC | Bulk | Active | Active, Recirculating Chiller | 1300 W | 8.3 A | 110VAC, 115VAC | 1.85GPM (7.0LPM) | - | - | 5000ML (169.1 oz) | 5°C ~ 40°C | - | 88 lbs (40.0 kg) | 20.52" L x 14.84" W x 25.59" H (521.0mm x 377.0mm x 650.0mm) | CE, UL |
|
|
RC009G03BB3M126KODIAK CHILLER 1050W |
2,102 | 0.00 |
|
Datasheet |
Kodiak | Box | Active | Recirculating Chiller | 1050 W | 12.2 A | 115VAC | 1.3GPM (4.9LPM) | - | - | 3785ML (128.0 oz) | 10°C ~ 35°C | 1/2" FNPT | 99 lbs (44.0 kg) | 19.00" L x 12.50" W x 22.00" H (482.6mm x 317.50mm x 558.8mm) | UL |
|
|
RC045J03BG3M126KODIAK CHILLER 5900W |
4,215 | 0.00 |
|
Datasheet |
Kodiak | Box | Active | Recirculating Chiller | 5900 W | 19.6 A | 208 ~ 230VAC | 4.3GPM (16.3LPM) | - | - | 22713ML (768.0 oz) | 10°C ~ 35°C | 1/2" FNPT | 270 lbs (122.5 kg) | 27.80" L x 21.40" W x31.90" H (706.1mm x 543.6mm x 810.3mm) | UL |
|
|
RC045J03EB3M126KODIAK CHILLER 5900W |
3,665 | 0.00 |
|
Datasheet |
Kodiak | Box | Active | Recirculating Chiller | 5900 W | 20.8 A | 208 ~ 230VAC | 6.0GPM (23.0LPM) | - | - | 29.7ML (768.0oz) | 10°C ~ 35°C | 1/2" FNPT | 270 lbs (122.5 kg) | 27.80" L x 21.40" W x31.90" H (706.1mm x 543.6mm x 810.3mm) | UL |
|

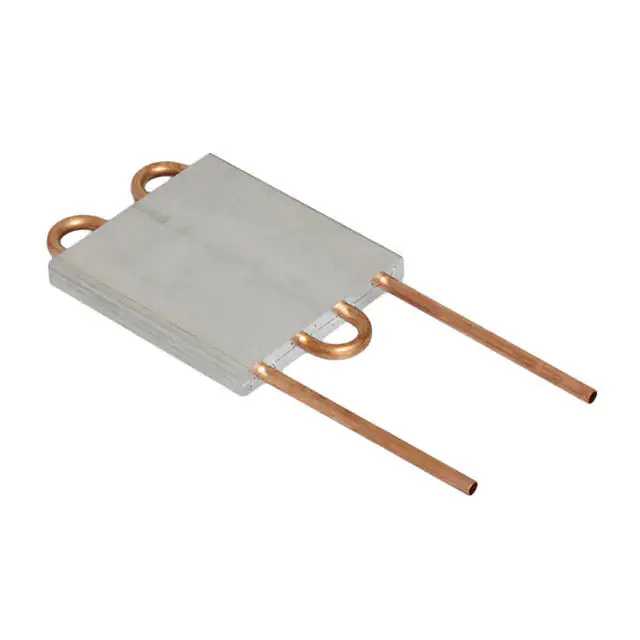

180-20-6CCOLD PLATE HEAT SINK 0.038C/W |
2,969 | 69.28 |
|
Datasheet |
180 | Bulk | Active | Passive, Cold Plate | - | - | - | - | - | 0.038°C/W @ 1.0 GPM | - | - | - | 1.1 lbs (499 g) | 13.41" L x 5.50" W x 0.69" H (340.5mm x 139.7mm x 17.5mm) | - |
|
CP4A-114A-108ECOLD PLATE HEAT SINK 0.018 C/W |
4,624 | 81.79 |
|
Datasheet |
CP | Bulk | Active | Passive, Cold Plate | - | - | - | - | - | 0.018°C/W @ 1.5 GPM | - | - | - | 1.8 lbs (816.5 g) | 4.50" L x 6.00" W x 0.75" H (114.3mm x 152.4mm x 19.1mm) | - |
|
131568COLD PLATE 6 PASS 8X7X0.6MM |
3,978 | 0.00 |
|
Datasheet |
- | Box | Active | Passive, Cold Plate | - | - | - | - | - | 0.012°C/W @ 1.0 GPM | - | - | - | - | 8.00" L x 7.00" W x 0.60" H (203.2mm x 177.8mm x 15.2mm) | - |
|

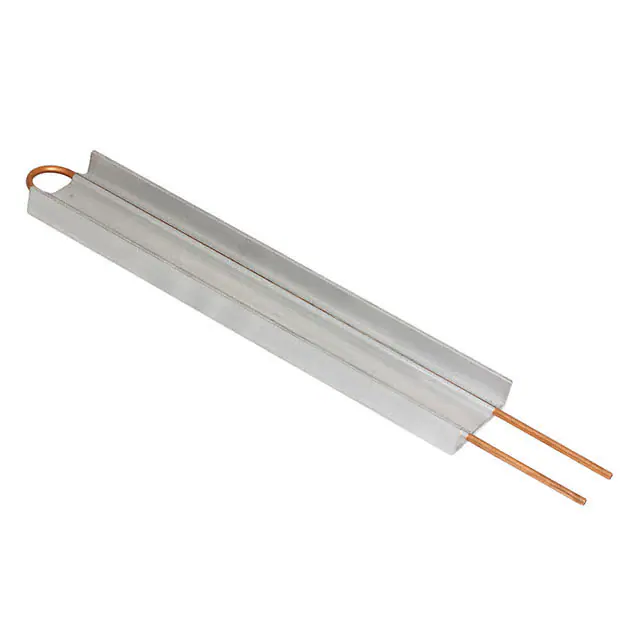

180-11-24CCOLD PLATE HEAT SINK 0.02C/W |
3,625 | 143.50 |
|
Datasheet |
180 | Bulk | Active | Passive, Cold Plate | - | - | - | - | - | 0.020°C/W @ 1.5 GPM | - | - | - | 5.7 lbs (2.6 kg) | 31.69" L x 5.00" W x 1.50" H (804.9mm x 127.2mm x 38.1mm) | - |
|

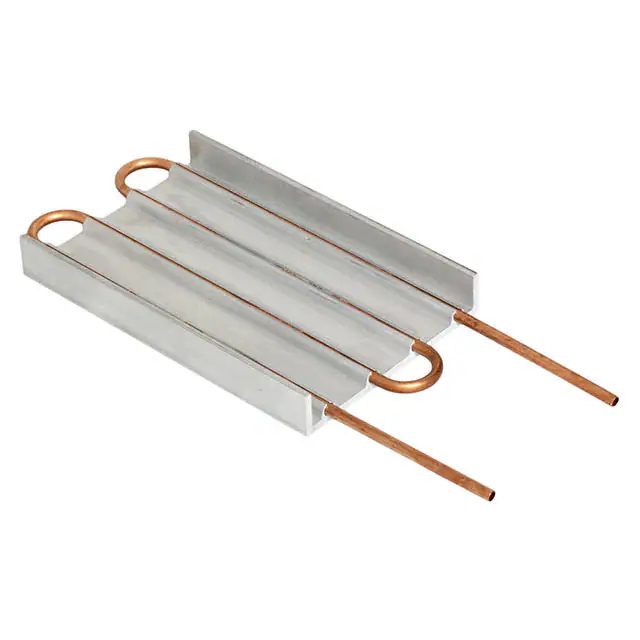

180-12-12SSCOLD PLATE HEAT SINK 0.018C/W |
1,351 | 213.89 |
|
Datasheet |
180 | Bulk | Active | Passive, Cold Plate | - | - | - | - | - | 0.018°C/W @ 1.0 GPM | - | - | - | - | 19.41" L x 7.75" W x 0.66" H (492.9mm x 196.9mm x 16.7mm) | - |
|
ATS-CP-1003-DIYMINI CHANNEL COLD PLATE |
3,416 | 265.35 |
|
Datasheet |
ATS-CP | Box | Active | Passive, Cold Plate | 1000 W | - | - | 1.06GPM (4.0LPM) | - | 0.007°C/W @ 1.0 GPM | - | - | - | 2.4 lbs (1.1 kg) | 6.38" L x 5.79" W x 0.79" H (162.0mm x 147.0mm x 20.0mm) | - |
|
|
6105G1SBHEAT EXCHANGER |
1,273 | 270.53 |
|
Datasheet |
6000 | Box | Active | Active, Heat Exchanger | - | - | - | - | - | - | 50ML (1.7 oz) | 200°C | - | - | - | - |
|
|
M05-050SB1HEAT EXCHANGER |
1,013 | 251.11 |
|
Datasheet |
- | Box | Active | Active, Heat Exchanger | - | - | - | - | - | - | 115ML (3.9 oz) | 200°C | - | - | - | - |
|

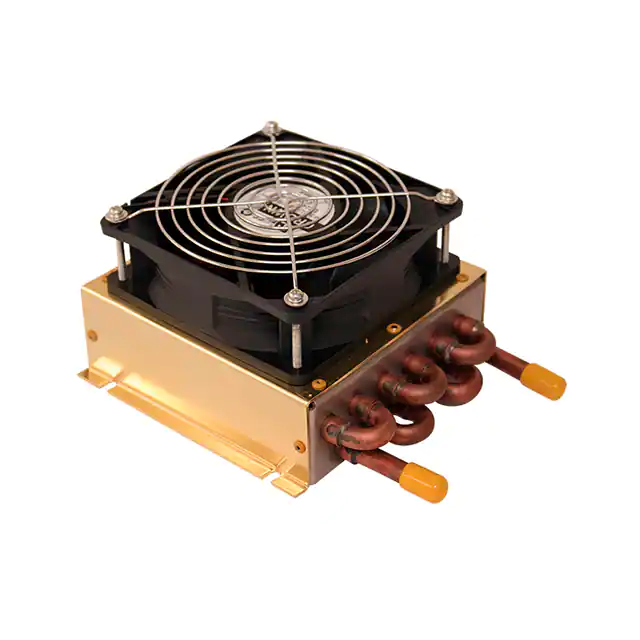

ATS-HE20-C2-R0HEAT EXCHANGER WITH ONE 12V DC F |
1,895 | 439.79 |
|
Datasheet |
ATS-HE20 | Bulk | Active | Active, Heat Exchanger | 22 W | - | 12V | - | - | - | - | - | - | 3.1 lbs (1.4 kg) | 8.23" L x 5.79" W x 1.89" H (209.0mm x 147.0mm x 48.0mm) | - |
|
ATS-HE21-C1-R0HEAT EXCHANGER 10.5X5.8X1.8" |
3,814 | 447.97 |
|
Datasheet |
ATS-HE21 | Bulk | Active | Active, Heat Exchanger | 46 W | - | - | - | - | - | - | - | - | 3.9 lbs (1.8 kg) | - | - |
|

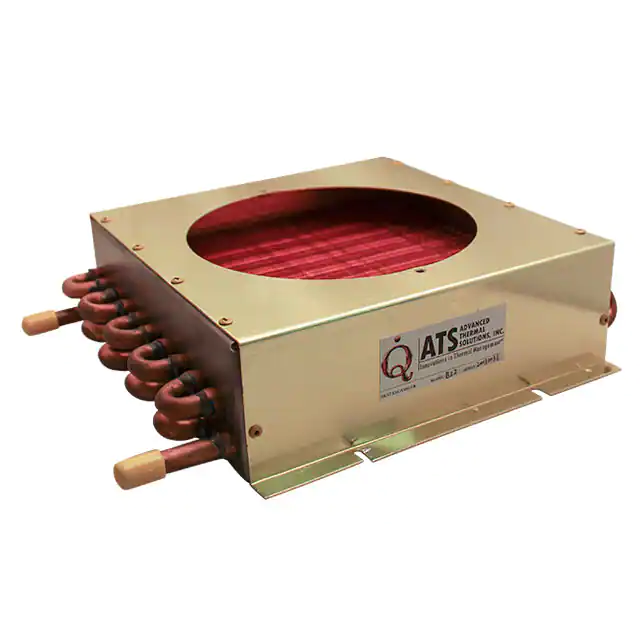

ATS-HE22-C1-R0HEAT EXCHANGER 9.5X9X2.5" |
2,326 | 505.25 |
|
Datasheet |
ATS-HE22 | Bulk | Active | Active, Heat Exchanger | 64 W | - | - | - | - | - | - | - | - | 4.9 lbs (2.2 kg) | - | - |
|

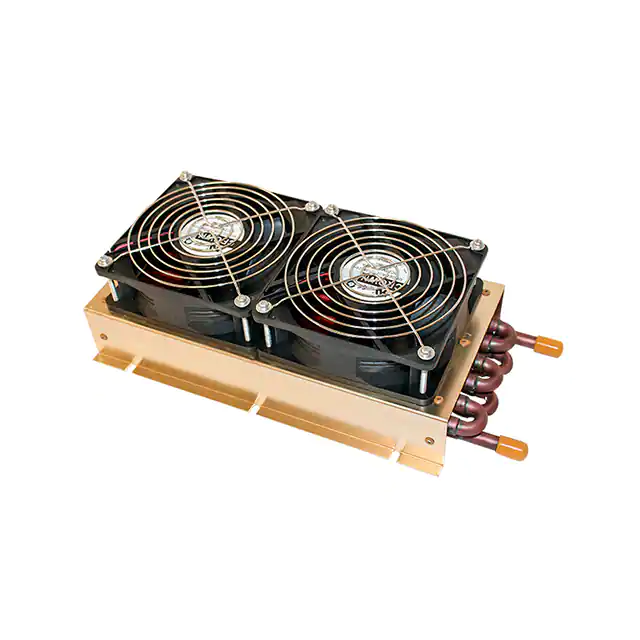

ATS-HE21-C4-R0HEAT EXCHANGER WITH TWO 24V DC F |
1,566 | 523.66 |
|
Datasheet |
ATS-HE21 | Bulk | Active | Active, Heat Exchanger | 46 W | - | 24V | - | - | - | - | - | - | 5.3 lbs (2.4 kg) | 12.62" L x 5.79" W x 1.89" H (320.5mm x 147.0mm x 48.0mm) | - |
