TVS Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JANTX1N5663ATVS DIODE 145VWM 234VC DO202AA |
3,206 | 117.00 |
|
Datasheet |
DO-13 | - | Bulk | Discontinued at Digi-Key | Zener | 1 | - | 145V | 162V | 234V | 6.4A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | Military | MIL-PRF-19500/500 | Through Hole | DO-13 (DO-202AA) |
|
|
JANTXV1N5665ATVS DIODE 171VWM 274VC DO13 |
4,024 | 175.50 |
|
Datasheet |
DO-202AA, DO-13, Axial | - | Bulk | Discontinued at Digi-Key | Zener | 1 | - | 171V | 190V | 274V | 5.5A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | Military | MIL-PRF-19500/500 | Through Hole | DO-13 (DO-202AA) |
|

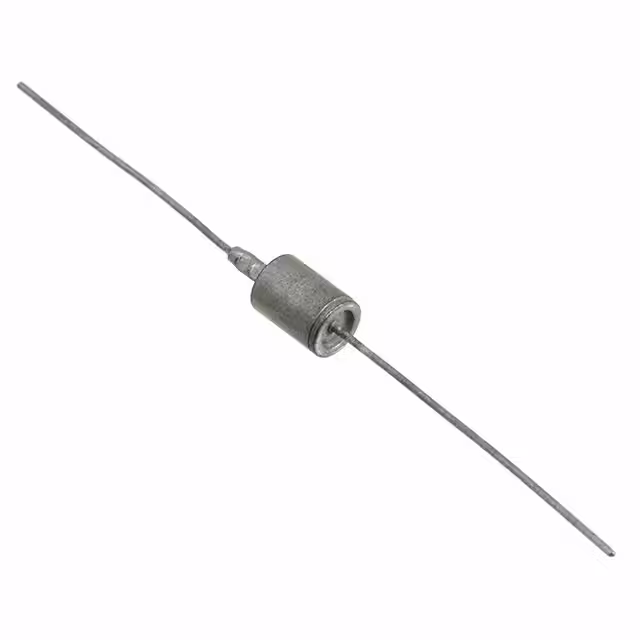

JANTXV1N5650ATVS DIODE 43.6VWM 70.1VC DO13 |
1,526 | 193.05 |
|
Datasheet |
DO-202AA, DO-13, Axial | - | Bulk | Discontinued at Digi-Key | Zener | 1 | - | 43.6V | 48.5V | 70.1V | 21.4A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | Military | MIL-PRF-19500/500 | Through Hole | DO-13 (DO-202AA) |
|
JANTXV1N5613TVS DIODE 175VWM 265VC G AXIAL |
4,405 | 428.62 |
|
Datasheet |
G, Axial | - | Bulk | Active | Zener | 1 | - | 175V | 191V | 265V | 5.7A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | Military | MIL-PRF-19500/434 | Through Hole | G, Axial |
|
1.5SMC39CA V7GTVS DIODE 33.3VWM 53.9VC DO214AB |
371 | 1.48 |
|
Datasheet |
DO-214AB, SMC | 1.5SMC | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | - | 1 | 33.3V | 37.1V | 53.9V | 29A | 1500W (1.5kW) | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
H04D55V0ULESD PROTECTION DIODE |
830 | 0.00 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6V | 15V | 4A (8/20µs) | 60W | No | DVI, USB | 0.7pF @ 1MHz (Max) | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-523 |
|
|
H1A5D536VUESD PROTECTION DIODE |
474 | 0.00 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 36V (Max) | 40V | 55V | 1.5A (8/20µs) | 80W | No | Telecom | 28pF @ 1MHz (Max) | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-523 |
|
|
H05D53V3BESD PROTECTION DIODE |
240 | 0.00 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 3.6V | 12V | 5A (8/20µs) | 60W | No | Telecom | 15pF @ 1MHz (Max) | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-523 |
|
|
H07D53V3UESD PROTECTION DIODE |
150 | 0.00 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V (Max) | 5V | 14V | 7A | 100W | No | CAN, Telecom | 105pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-523 |
|
SMAJ7.5ATVS DIODE 7.5VWM 12.9VC |
200 | 0.11 |
|
Datasheet |
DO-214AC (SMA) | SMAJ | Strip | Active | Zener | 1 | - | 7.5V | 8.33V | 12.9V | 31.01A | 400W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
H04X25V0BUESD PROTECTION DIODE |
488 | 0.00 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 6V | 25V | 4A (8/20µs) | 100W | No | DVI, USB | 0.25pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | DFN1006 |
|
|
H02X212VBUESD PROTECTION DIODE |
200 | 0.00 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 12V (Max) | 13.3V | 30V | 2A (8/20µs) | 60W | No | Telecom | 0.25pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | DFN1006 |
|
|
SMAJ15CATVS DIODE 15VWM 24.4VC |
200 | 0.11 |
|
Datasheet |
DO-214AC (SMA) | SMAJ | Strip | Active | Zener | - | 1 | 15V | 16.7V | 24.4V | 16.39A | 400W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
SMBJ7.5ATVS DIODE 7.5VWM 12.9VC |
200 | 0.12 |
|
Datasheet |
DO-214AA (SMB) | SMBJ | Strip | Active | Zener | 1 | - | 7.5V | 8.33V | 12.9V | 46.51A | 600W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
|
SMAJ20ATVS DIODE 20VWM 32.4VC |
200 | 0.13 |
|
Datasheet |
DO-214AC (SMA) | SMAJ | Strip | Active | Zener | 1 | - | 20V | 22.2V | 32.4V | 12.35A | 400W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
|
SMAJ6.5CATVS DIODE 6.5VWM 11.2VC |
200 | 0.13 |
|
Datasheet |
DO-214AC (SMA) | SMAJ | Strip | Active | Zener | - | 1 | 6.5V | 7.22V | 11.2V | 35.71A | 400W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
|
SMAJ8.0ATVS DIODE 8VWM 13.6VC |
200 | 0.13 |
|
Datasheet |
DO-214AC (SMA) | SMAJ | Strip | Active | Zener | 1 | - | 8V | 8.89V | 13.6V | 29.41A | 400W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
|
SMAJ10ATVS DIODE 10VWM 17VC |
200 | 0.13 |
|
Datasheet |
DO-214AC (SMA) | SMAJ | Strip | Active | Zener | 1 | - | 10V | 11.1V | 17V | 23.53A | 400W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
SMAJ10CATVS DIODE 10VWM 17VC |
150 | 0.49 |
|
Datasheet |
DO-214AC (SMA) | SMAJ | Strip | Active | Zener | - | 1 | 10V | 11.1V | 17V | 23.53A | 400W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
H08D320VBESD PROTECTION DIODE |
780 | 0.00 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 20V (Max) | 22.3V | 50V | 8A | 350W | No | Telecom | 52pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
