TVS Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D5V0S1U2LP1610-7TVS DIODE 5VWM 11.5V U-DFN1610-2 |
8,733 | 0.38 |
|
Datasheet |
0603 (1610 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6V | 11.5V | 150A | - | No | General Purpose | 800pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | U-DFN1610-2 (Type B) |
|
PESD1IVN24-AXTVS DIODE 24VWM 42VC SOD323 |
2,231 | 0.38 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V (Max) | 25.5V | 42V | 3.5A (8/20µs) | - | No | CAN | 14pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
GG0603052R542PDIODE 5VDC, 0603, 2.5PF |
6,959 | 0.24 |
|
Datasheet |
0603 (1608 Metric) | GiGUARD | Tape & Reel (TR) | Active | Zener | - | 1 | 5V | 6.7V | 16V | 3A | 45W | No | Ethernet, HDMI, USB | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 0603 |
|
PEC33712C2A_R1_00001ESD PROTECTION |
4,034 | 0.37 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 12V (Max) | 13.3V | 25V | 5A (8/20µs) | - | No | General Purpose | 29pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
ESD24VD3BHE3-TPESD,24V,SOD-323 |
4,571 | 0.00 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V (Max) | 26.7V | 44V | 7A (8/20µs) | 300W | No | - | 20pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
PESD24VF1BLYLTVS DIODE 24VWM 17VC DFN1006-2 |
2,103 | 0.43 |
|
Datasheet |
SOD-882 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V (Max) | 24.5V | 17V | 1A (8/20µs) | - | No | - | 0.3pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | DFN1006-2 |
|
PJSD12TS_R1_00001SOD-523, TVS/ESD |
3,638 | 0.28 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V (Max) | 13.3V | 17V | 5A (8/20µs) | 120W | No | General Purpose | 60pF @ 1MHz (Max) | -50°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-523 |
|
|
D1213A-02WLQ-7TVS DIODE 3.3VWM 10VC SOT323 |
9,883 | 0.07 |
|
Datasheet |
SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 3.3V | 6V | 10V (Typ) | 5A (8/20µs) | - | Yes | DVI, HDMI, USB | 0.85pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-323 |
|
PE1605M1Q_R1_00001ULTRA LOW CAPACITANCE ESD PROTEC |
4,501 | 0.30 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 5.5V | 15V | 4A (8/20µs) | - | No | USB | 0.3pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 2-DFN (1x0.6) |
|
SMBJ12CAE3/TR13TVS DIODE 12VWM 19.9VC SMBJ |
6,856 | 0.29 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 13.3V | 19.9V | 30.2A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
PUSB3F96XTVS DIODE 5.5VWM 4.6VC 10DFN |
2,778 | 0.51 |
|
Datasheet |
10-XFDFN | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5.5V (Max) | 6V | 4.6V (Typ) | 5.2A (8/20µs) | - | Yes | HDMI | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | DFN2510A-10 |
|
|
PEC2605C2A_R1_00001VERY LOW CAPACITANCE ESD PROTECT |
7,321 | 0.33 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 5V (Max) | 5V | 12.5V | 3.5A (8/20µs) | - | No | General Purpose | 6pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
|
PESD12VS1UA,115TVS DIODE 12VWM 27VC SOD323 |
3,475 | 0.48 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V (Max) | 13.3V | 27V | 22.5A (8/20µs) | 600W | No | - | 160pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
|
DESD1P0RFWA-7DATALINE PROTECTION PP SOT323 T& |
2,271 | 0.00 |
|
Datasheet |
SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 70V (Max) | - | 8V | 15A (8/20µs) | - | No | - | 1pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-323 |
|

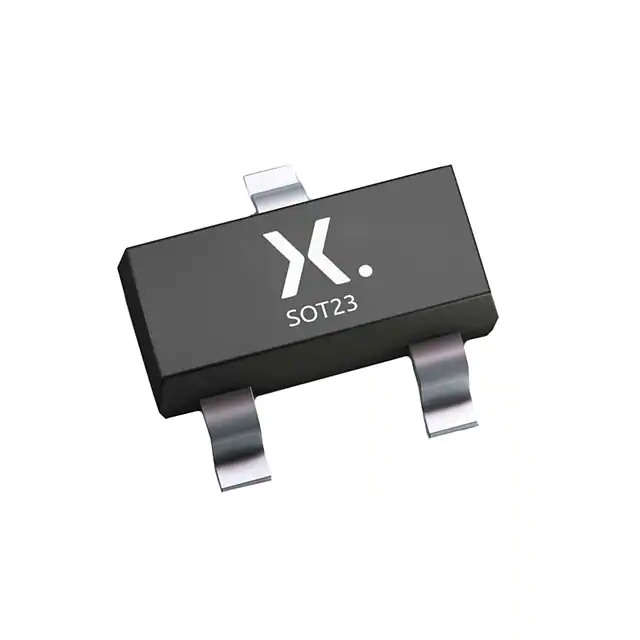

PESD2USB3UV-TRTVS DIODE 3.3VWM TO236AB |
3,391 | 0.50 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 3.3V | - | - | 8A (8/20µs) | - | No | HDMI, USB | - | - | Automotive | AEC-Q100 | Surface Mount | TO-236AB |
|
SMAJ7.0CATVS DIODE 7VWM 12VC DO214AC |
8,146 | 0.43 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | - | 1 | 7V | 7.78V | 12V | 33.3A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
PESD2CANFD24L-TRTVS DIODE 24VWM TO236AB |
2,732 | 0.45 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 24V | - | - | 4A (8/20µs) | - | No | CAN | - | - | Automotive | AEC-Q100 | Surface Mount | TO-236AB |
|
P6SMB24CATVS DIODE 20.5VWM 33.2VC DO214AA |
1,488 | 0.37 |
|
Datasheet |
DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 20.5V | 22.8V | 33.2V | 18.4A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
SMAJ6.5ATVS DIODE 6.5VWM 11.2VC DO214AC |
4,555 | 0.31 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 6.5V | 7.22V | 11.2V | 35.7A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
PESD5V0S1BA,115TVS DIODE 5VWM 14VC SOD323 |
3,527 | 0.44 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 5.5V | 14V | 12A (8/20µs) | 130W | No | General Purpose | 35pF @ 1MHz | -65°C ~ 150°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOD-323 |
