TVS Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMBJ90CATVS DIODE 90VWM 146VC SMB |
8,783 | 0.27 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 90V | 10V | 146V | 4.1A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
SM3.3-TPInterface |
8,237 | 0.00 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Bulk | Active | Zener | 2 | - | 3.3V (Max) | 5.2V | 20V | 18A (8/20µs) | 360W | No | General Purpose | 200pF @ 1MHz (Max) | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23 |
|
CPDQC5V0UESPC-HFDIODE ESD 5VWM 12VC 0402C/SOD-92 |
4,839 | 0.06 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6V | 16V | 3A (8/20µs) | 48W | No | General Purpose | 0.45pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 0402C/SOD-923F |
|
|
ESD36VT2BHE3-TPTVS DIODES |
5,483 | 0.00 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 36V (Max) | 38V | 90V | 5A (8/20µs) | 450W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23 |
|
|
PESD3V3L1BA-QFPESD3V3L1BA-Q/SOD323/SOD2 |
2,899 | 0.00 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 5.8V | 26V | 18A (8/20µs) | 500W | No | CAN, Telecom | 101pF @ 1MHz | -65°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
|
PESD5V0L1BA-QFPESD5V0L1BA-Q/SOD323/SOD2 |
4,046 | 0.00 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 7V | 33V | 15A (8/20µs) | 500W | No | CAN, Telecom | 75pF @ 1MHz | -65°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
|
AOZ8S303BLS-241CH 24V 0.2PF BIDIRECTIONAL TVS |
9,534 | 0.00 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V (Max) | 27V | 6.5V (Typ) | 9A (8/20µs) | 70W | No | HDMI, USB | 0.2pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 2-WLCSP (0.6x0.3) |
|
|
ESD15VLBHE3-TPTVS DIODES |
9,530 | 0.00 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 15V (Max) | 15.5V | 35V | 4A (8/20µs) | 140W | No | - | 10pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DFN1006-2L |
|
|
ESD24VLBHE3-TPTVS DIODES |
9,051 | 0.00 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V (Max) | 25.5V | 45V | 3.5A (8/20µs) | 150W | No | - | 8.5pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DFN1006-2L |
|
|
ESD7V0LBHE3-TPTVS DIODES |
6,666 | 0.00 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 7V (Max) | 7.5V | 15V | 6A (8/20µs) | 90W | No | - | 23pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DFN1006-2L |
|
|
ESD36VLBHE3-TPTVS DIODES |
4,179 | 0.00 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 36V (Max) | 38V | 80V | 2.5A (8/20µs) | 200W | No | - | 6pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DFN1006-2L |
|
|
ESD27VLBHE3-TPTVS DIODES |
6,895 | 0.00 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 27V (Max) | 31V | 75V | 2.5A (8/20µs) | 180W | No | - | 6.5pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DFN1006-2L |
|
|
DESD6V8DLPA-7GENERAL PROTECTION PP X1-DFN1006 |
3,939 | 0.00 |
|
Datasheet |
3-UFDFN | - | Tape & Reel (TR) | Active | Zener | 2 | - | 5.25V | 6.4V | - | - | 70W | No | General Purpose | 40pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | X1-DFN1006-3 |
|
|
LBD8C05L01TVS ESD SOD882 5V 18V |
5,009 | 0.00 |
|
Datasheet |
SOD-882 | LBD8C05L01 | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 5.5V | 18V | 10A (8/20µs) | - | No | General Purpose | 10pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-882 |
|
|
D5V0H2U3SO-7General Protection PP SOT23 T&R |
3,230 | 0.00 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Bulk | Active | Zener | 2 | - | 5V (Max) | 6.4V | 20V | 15A (8/20µs) | 300W | No | Telecom | 156pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
S23C12TVS DIODE 12VWM 19VC SOT23 |
7,123 | 0.07 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | S23CXX | Tape & Reel (TR) | Active | Zener | - | 1 | 12V (Max) | 13.3V | 19V | 1A | 300W | No | General Purpose | 160pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
DT2042-01CSP-7BTVS DIODE 5VWM 7.4VC DSN1006-2 |
7,925 | 0.00 |
|
Datasheet |
2-XDFN | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 5V (Max) | 6V | 7.4V (Typ) | 6.5A (8/20µs) | 50W | No | General Purpose | 0.8pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | X3-DSN1006-2 |
|
ESD3B15WSTVS DIODE 15VWM 29VC SOD-323F |
8,258 | 0.07 |
|
Datasheet |
SC-90, SOD-323F | - | Bulk | Active | Zener | - | 1 | 15V | 16.7V | 29V | 12A (8/20µs) | 350W | No | General Purpose | 75pF @ 1MHz | -50°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323F |
|

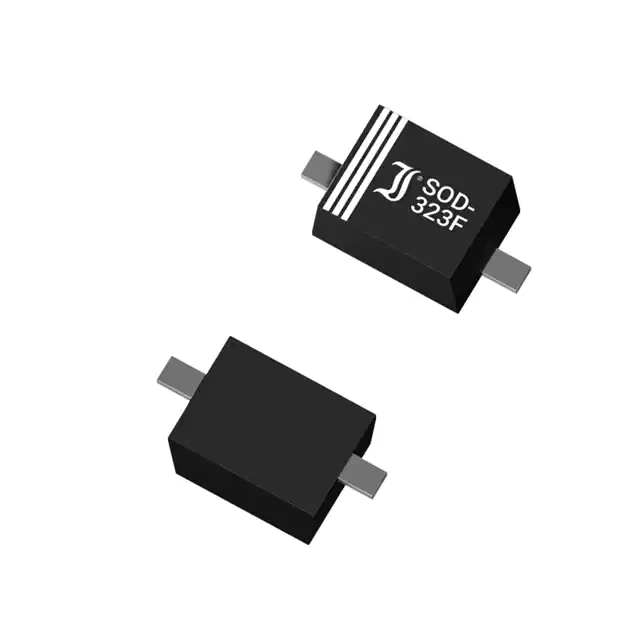

ESD3B5V0WSTVS DIODE 5VWM 14.5VC SOD-323F |
7,514 | 0.07 |
|
Datasheet |
SC-90, SOD-323F | - | Bulk | Active | Zener | - | 1 | 5V | 6V | 14.5V | 24A (8/20µs) | 350W | No | General Purpose | 200pF @ 1MHz | -50°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323F |
|
|
ESD3B12WSTVS DIODE 12VWM 24VC SOD-323F |
2,795 | 0.07 |
|
Datasheet |
SC-90, SOD-323F | - | Bulk | Active | Zener | - | 1 | 12V | 13.3V | 24V | 15A (8/20µs) | 350W | No | General Purpose | 100pF @ 1MHz | -50°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323F |
