TVS Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SD12CT1GTVS DIODE 12VWM 19VC SOD323 |
180,232 | 0.42 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Not For New Designs | Zener | - | 1 | 12V (Max) | 13.3V | 19V | 5A (8/20µs) | 350W | No | - | 64pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
SMAJ30CATVS DIODE 30VWM 48.4VC SMA |
163,929 | 0.43 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | - | 2 | 30V | 33.3V | 48.4V | 8.3A | 400W | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AC (SMAJ) |
|
P6SMB56CATVS DIODE 47.8VWM 77VC DO214AA |
98,223 | 0.40 |
|
Datasheet |
DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 47.8V | 53.2V | 77V | 7.9A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|

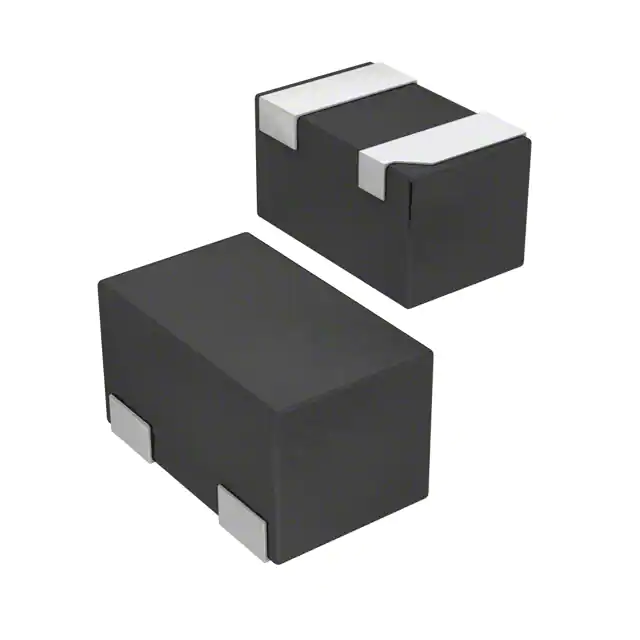

CDDFN2-T5.0LCTVS DIODE 5VWM 25VC 2DFN |
57,474 | 0.42 |
|
Datasheet |
2-UFDFN | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 7V | 25V (Typ) | - | - | No | General Purpose | 0.5pF @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 2-DFN (1x0.6) |
|
SMAJ8.0CATVS DIODE 8VWM 13.6VC SMA |
42,614 | 0.31 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | - | 1 | 8V | 8.89V | 13.6V | 29.4A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
SP0402B-ULC-01ETGTVS DIODE 5VWM 10VC 0402/2DFN |
39,224 | 0.42 |
|
Datasheet |
0402 (1006 Metric) | SPA® | Tape & Reel (TR) | Active | Zener | - | 1 | 5V | 9.8V (Typ) | 10V (Typ) | 2A (8/20µs) | - | No | General Purpose | 0.1pF @ 1MHz | -30°C ~ 85°C (TA) | Automotive | AEC-Q101 | Surface Mount | 0402/2DFN (1x0.60) |
|
SD24C-01FTGTVS DIODE 24VWM 42VC SOD323 |
38,916 | 0.47 |
|
Datasheet |
SC-76, SOD-323 | SD-C, SPA® | Tape & Reel (TR) | Active | Zener | - | 1 | 24V (Max) | - | 42V | 7A (8/20µs) | 450W | No | - | 50pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
TPD1E04U04DPYRTVS DIODE 3.6VWM 8.9VC 2X1SON |
32,443 | 0.42 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3.6V (Max) | 4.5V | 8.9V | 2.5A (8/20µs) | 19W | Yes | HDMI | 0.5pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 2-X1SON (1x.60) |
|
DT1446-04S-7TVS DIODE 5VWM 8.5VC SOT363 |
30,854 | 0.42 |
|
Datasheet |
6-TSSOP, SC-88, SOT-363 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 8.5V | 4.7A (8/20µs) | - | Yes | HDMI | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-363 |
|
CPDT-12VTVS DIODE 12VWM 25VC SOT23-3 |
19,465 | 0.40 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 12V | 13V | 25V | 1A (8/20µs) | 25W | No | General Purpose | - | - | - | - | Surface Mount | SOT-23-3 |
|
CPDU24VTVS DIODE 24VWM 47V 0603/SOD523F |
16,806 | 0.40 |
|
Datasheet |
2-SMD, No Lead | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V | 25V | 47V | 1A (8/20µs) | 47W | No | General Purpose | 10pF @ 1MHz | - | - | - | Surface Mount | 0603/SOD-523F |
|
|
SD15-01FTGTVS DIODE 15VWM 30VC SOD323 |
6,227 | 0.41 |
|
Datasheet |
SC-76, SOD-323 | SD, SPA® | Tape & Reel (TR) | Active | Zener | 1 | - | 15V (Max) | - | 30V | 12A (8/20µs) | 450W | No | General Purpose | 100pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
PESD2CAN,215TVS DIODE 24VWM 41VC TO236AB |
207,042 | 0.43 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Not For New Designs | Zener | - | 2 | 24V (Max) | 26.2V | 41V | 5A (8/20µs) | 230W | No | CAN | 25pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | TO-236AB |
|
ESD7C5.0DT5GTVS DIODE 5VWM SOT723 |
109,324 | 0.49 |
|
Datasheet |
SOT-723 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 5V (Max) | 11V | - | - | - | No | General Purpose | 6.2pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-723 |
|
|
SMBJ5.0CATVS DIODE 5VWM 9.2VC SMB |
106,528 | 0.37 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | - | 2 | 5V | 6.4V | 9.2V | 65.2A | 600W | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AA (SMBJ) |
|
NUP4114HMR6T1GTVS DIODE 5.5VWM 10VC 6TSOP |
71,121 | 0.64 |
|
Datasheet |
SOT-23-6 Thin, TSOT-23-6 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5.5V (Max) | 5.5V | 10V | 8A (8/20µs) | - | Yes | Ethernet, HDMI | 0.6pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-TSOP |
|
|
DESD2CAN2SOQ-7TVS DIODE 24VWM 41VC SOT23 |
34,464 | 0.46 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 24V (Max) | 25.4V | 41V | 5A (8/20µs) | 230W | No | CAN | 25pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
|
ESD321DPYRTVS DIODE 3.6VWM 6.8VC 2X1SON |
32,326 | 0.39 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3.6V (Max) | 4.5V | 6.8V (Typ) | 6A (8/20µs) | 40W | No | General Purpose | 0.9pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 2-X1SON (1x.60) |
|
AQHV12-01LTG-CTVS DIODE 12VWM 30VC SOD523 |
31,010 | 0.42 |
|
Datasheet |
SC-79, SOD-523 | AQHV, SPA® | Tape & Reel (TR) | Active | Zener | - | 1 | 12V (Max) | 13.3V | 30V | 10A (8/20µs) | 300W | No | CAN | - | -40°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-523 |
|
USBLC6-4SC6YTVS DIODE 5.25VWM 17VC SOT23-6 |
24,724 | 1.27 |
|
Datasheet |
SOT-23-6 | USBY | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5.25V | 6V | 17V | 5A (8/20µs) | - | Yes | Ethernet | - | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-6 |
