TVS Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UCLAMP2271P.TNTTVS DIODE 22VWM 55VC SGP1610N2 |
14,557 | 0.82 |
|
Datasheet |
0603 (1610 Metric) | uClamp® | Tape & Reel (TR) | Active | Zener | 1 | - | 22V (Max) | 25.5V | 55V | 25A (8/20µs) | - | No | - | 165pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SGP1610N2 |
|
|
UCLAMP1571P.TNTTVS DIODE 15VWM 40VC SGP1610N2 |
12,297 | 0.82 |
|
Datasheet |
0603 (1610 Metric) | uClamp® | Tape & Reel (TR) | Active | Zener | 1 | - | 15V (Max) | 17.5V | 40V | 40A (8/20µs) | - | No | - | 220pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SGP1610N2 |
|
UCLAMP0561P.TNTTVS DIODE 5VWM 15VC 2SLP1608P |
7,713 | 0.82 |
|
Datasheet |
0603 (1608 Metric) | µClamp® | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6V | 15V | 80A | - | No | General Purpose | 800pF @ 1MHz (Max) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 2-SLP1608P |
|
SD12.TCTTVS DIODE 12VWM 25VC SOD323 |
6,362 | 0.82 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V (Max) | 13.3V | 25V | 15A (8/20µs) | 350W | No | General Purpose | 150pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|
|
UCLAMP0871P.TNTTVS DIODE 8VWM 23VC SGP1610N2 |
3,801 | 0.82 |
|
Datasheet |
0603 (1610 Metric) | uClamp® | Tape & Reel (TR) | Active | Zener | 1 | - | 8V (Max) | 9.5V | 23V | 65A (8/20µs) | - | No | - | 475pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SGP1610N2 |
|
5.0SMDJ15ATVS DIODE 15VWM 24.4VC DO214AB |
22,373 | 1.70 |
|
Datasheet |
DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 15V | 16.7V | 24.4V | 205A | 5000W (5kW) | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
USB50805CE3/TR7TVS DIODE 5VWM 13VC 8-SO |
1,566 | 1.29 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Zener | - | 2 | 5V | 6V | 13V | 5A (8/20µs) | 500W | No | Ethernet | 3pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
SP3003-04ATGTVS DIODE 6VWM 15VC 10MSOP |
9,888 | 1.54 |
|
Datasheet |
10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | SP3003, SPA® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 6V (Max) | - | 15V | 2.5A (8/20µs) | - | Yes | General Purpose | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-MSOP |
|
|
SMDJ78CATVS DIODE 78VWM 126VC DO214AB |
5,198 | 1.64 |
|
Datasheet |
DO-214AB, SMC | SMDJ | Tape & Reel (TR) | Active | Zener | - | 2 | 78V | 86.7V | 126V | 23.81A | 3000W (3kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
1.5KE200CATVS DIODE 171VWM 353VC DO201 |
1,209 | 1.60 |
|
Datasheet |
DO-201AA, DO-27, Axial | 1.5KE, TRANSIL™ | Cut Tape (CT) | Active | Zener | - | 1 | 171V | 190V | 353V | 28A (8/20µs) | 1500W (1.5kW) | No | General Purpose | 337.5pF @ 1MHz | - | - | - | Through Hole | DO-201 |
|

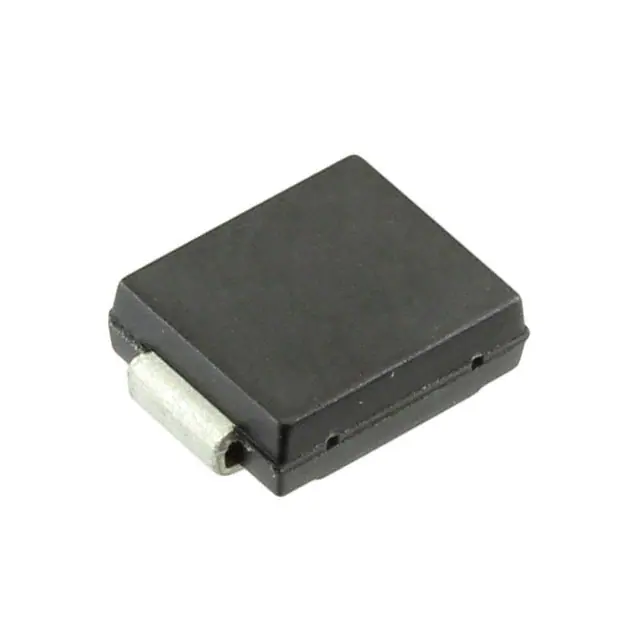

4.0SMDJ24ATVS DIODE 24VWM 38.9VC DO214AB |
11,445 | 1.31 |
|
Datasheet |
DO-214AB, SMC | 4.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.7V | 38.9V | 103A | 4000W (4kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SM30T35CAYTVS DIODE 30VWM 48.4VC SMC |
419 | 2.67 |
|
Datasheet |
DO-214AB, SMC | SM30TY, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 30V | 33.3V | 48.4V | 62A | 3000W (3kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMC |
|
TPD4E001DPKTTVS DIODE 5.5VWM 6USON |
2,266 | 1.00 |
|
Datasheet |
6-UFDFN | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5.5V (Max) | 11V | - | - | 100W | Yes | Ethernet | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-USON (1.6x1.6) |
|
1.5KE300ATVS DIODE 256VWM 529VC DO201 |
2,307 | 0.29 |
|
Datasheet |
DO-201AA, DO-27, Axial | 1.5KE, TRANSIL™ | Cut Tape (CT) | Active | Zener | 1 | - | 256V | 285V | 529V | 19A (8/20µs) | 1500W (1.5kW) | No | General Purpose | 500pF @ 1MHz | - | - | - | Through Hole | DO-201 |
|
1.5KE440CATVS D5.4X7.5 376V 1500W BIDIR |
1,359 | 0.89 |
|
Datasheet |
DO-201AE, Axial | 1.5KE | Cut Tape (CT) | Active | Zener | - | 2 | 376V | 418V | 602V | 2.5A | 1500W (1.5kW) | Yes | General Purpose | 180pF @ 1MHz | -55°C ~ 150°C | - | - | Through Hole | DO-201 |
|
CDSOT23-SLVU2.8TVS DIODE 2.8VWM 21VC SOT23-3 |
27,631 | 1.41 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 2.8V | 3V | 21V | 30A (8/20µs) | 600W | No | General Purpose | 3pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
;;2.jpg)
|
5.0SMDJ54ATVS DIODE 54VWM 87.1VC DO214AB |
21,847 | 1.61 |
|
Datasheet |
DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 54V | 60V | 87.1V | 57.5A | 5000W (5kW) | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
SMLJ75CATVS DIODE 75VWM 121VC SMC |
17,841 | 1.31 |
|
Datasheet |
DO-214AB, SMC | SMLJ | Tape & Reel (TR) | Active | Zener | - | 1 | 75V | 83.3V | 121V | 24.8A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC (DO-214AB) |
|
AQ7538-08UTG5V 3A +30/-22KV UDFN3810-9L DIOD |
2,783 | 0.90 |
|
Datasheet |
9-UDFN | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 8 | - | 5V (Max) | 6V | 10.9V (Typ) | 3A (8/20µs) | - | Yes | HDMI, USB | 0.3pF @ 3GHz | -40°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | 9-µDFN (3.8x1) |
|
|
SMDJ85CATVS DIODE 85VWM 137VC DO214AB |
1,499 | 1.64 |
|
Datasheet |
DO-214AB, SMC | SMDJ | Tape & Reel (TR) | Active | Zener | - | 2 | 85V | 94.4V | 137V | 21.9A | 3000W (3kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
