TVS Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PESD4USB5BTBR-QXTVS DIODE 5VWM 5.5VC DFN2510A-10 |
10,000 | 0.13 |
|
Datasheet |
10-XFDFN | - | Tape & Reel (TR) | Active | Zener | 4 | - | 5V (Max) | 6V | 5.5V (Typ) | 7A (8/20µs) | - | No | HDMI, USB | 0.22pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | DFN2510A-10 |
|

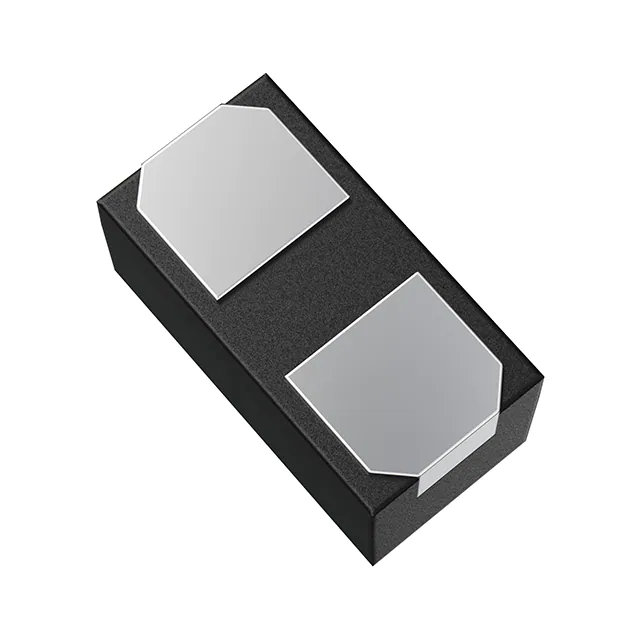

DF2B7BSL,L3FTVS DIODE 5.5VWM 16VC SL2 |
21,872 | 0.21 |
|
Datasheet |
2-SMD, No Lead | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5.5V (Max) | 5.6V | 16V | 7.3A (8/20µs) | 115W | No | General Purpose | 12pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | SL2 |
|
DF2S5.6ASL,L3FTVS DIODE 3.5VWM SL2 |
15,893 | 0.21 |
|
Datasheet |
2-SMD, No Lead | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3.5V (Max) | 5.3V | - | - | - | No | General Purpose | 40pF @ 1MHz | - | - | - | Surface Mount | SL2 |
|
|
DF2B7SL,L3FTVS DIODE 5.3VWM 16VC SL2 |
15,694 | 0.21 |
|
Datasheet |
2-SMD, No Lead | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5.3V (Max) | 5.8V | 16V | 3A (8/20µs) | 45W | No | General Purpose | 6pF @ 1MHz | - | - | - | Surface Mount | SL2 |
|
PESD5V0F1USF,315TVS DIODE 5VWM 10VC DSN0603-2 |
8,964 | 0.48 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6V | 10V | 3A (8/20µs) | - | No | General Purpose | 0.6pF @ 1MHz | -55°C ~ 150°C (TA) | - | - | Surface Mount | DSN0603-2 |
|
|
PESD3V3V1BCSFYLTVS DIODE 3.3VWM 11VC DSN0603-2 |
8,606 | 0.29 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 4.5V | 11V | 7.1A (8/20µs) | - | No | General Purpose | 8.5pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | DSN0603-2 |
|
ESD119B1W01005E6327XTSA1TVS DIODE 5.5VWM 14VC WLL-2-2 |
8,090 | 0.41 |
|
Datasheet |
01005 (0402 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5.5V (Max) | 6.1V | 14V | 2.5A (8/20µs) | 35W | No | HDMI | 0.2pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | P/PG-WLL-2-2 |
|
CSLZ5V6,L3F5.6V ZNR DIODE SOD-962 OVP |
4,300 | 0.00 |
|
Datasheet |
2-SMD, No Lead | CSLZ | Tape & Reel (TR) | Active | Zener | 1 | - | 3.5V (Max) | 5.3V | 9V (Typ) | 2.5A (8/20µs) | 72W | No | General Purpose | 35pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | SL2 |
|
ESD145B1W01005E6327XTSA1TVS DIODE 18VWM 5VC WLL-2-2 |
3,414 | 0.43 |
|
Datasheet |
01005 (0402 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 18V (Max) | 18.5V | 5V (Typ) | 3.5A (8/20µs) | 21W | No | RF Antenna | 0.2pF @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | P/PG-WLL-2-2 |
|
|
DF2S5.1ASL,L3FTVS DIODE 1.5VWM SL2 |
1,255 | 0.21 |
|
Datasheet |
2-SMD, No Lead | - | Tape & Reel (TR) | Active | Zener | 1 | - | 1.5V (Max) | 4.8V | - | - | - | No | General Purpose | 45pF @ 1MHz | - | - | - | Surface Mount | SL2 |
.jpg)
|

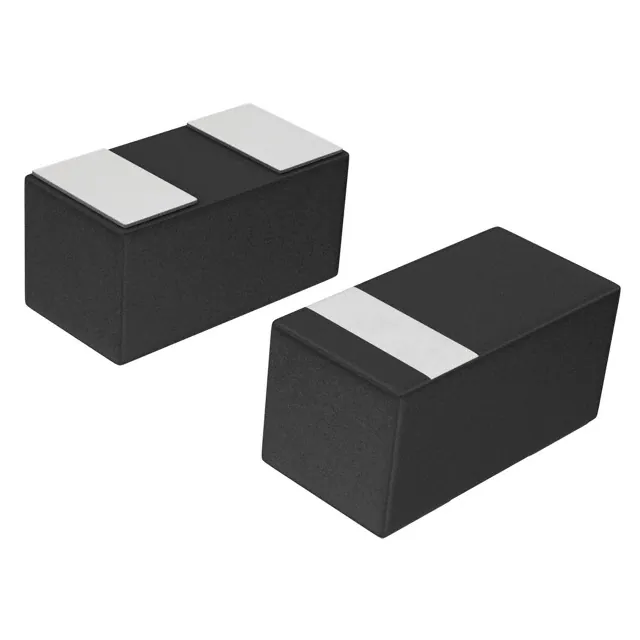

ESDALC14-1BF4TVS DIODE 5VWM 18VC 0201 |
71,855 | 0.42 |
|
Datasheet |
0201 (0603 Metric) | ESDA | Tape & Reel (TR) | Active | Zener | - | 1 | 5V | 13V | 18V (Typ) | 5A (8/20µs) | 100W | No | General Purpose | 22pF @ 1MHz | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 0201 |
.jpg)
|
PUSB3BB2DFZTVS DIODE 4VWM 6.2VC DFN0603-3 |
30,102 | 0.35 |
|
Datasheet |
0201 (0603 Metric) | TrEOS | Tape & Reel (TR) | Active | Zener | - | 1 | 4V (Max) | 7.4V (Typ) | 6.2V (Typ) | 8A (8/20µs) | - | No | General Purpose | 0.26pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | DFN0603-3 (SOT8013) |
|
|
ESD129B1W01005E6327XTSA1TVS DIODE 18VWM 28VC P/WLL-2-2 |
29,361 | 0.41 |
|
Datasheet |
01005 (0402 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 18V | - | 28V | - | - | No | General Purpose | 0.3pF @ 1MHz | - | - | - | Surface Mount | SG-WLL-2-2 |
|
|
ESD259B1W0201E6327XTSA1TVS DIODE 16VWM 25VC WLL-2-3 |
15,100 | 0.44 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 16V | - | 25V (Typ) | 2.5A (8/20µs) | 62.5W | No | General Purpose | 4.2pF @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | PG-WLL-2-3 |
|
DF3A5.6FV,L3FTVS DIODE VESM |
12,816 | 0.24 |
|
Datasheet |
SOT-723 | - | Tape & Reel (TR) | Active | Zener | 2 | - | - | 5.3V | - | - | - | No | General Purpose | 65pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | VESM |
|
ESDALC8-1BF4TVS DIODE 6VWM 16VC 0201 |
6,675 | 0.35 |
|
Datasheet |
0201 (0603 Metric) | ESDA | Tape & Reel (TR) | Active | Zener | - | 1 | 6V | 7V | 16V (Typ) | 8.6A (8/20µs) | 165W | No | General Purpose | 30pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 0201 |
|
SMAJ180CATVS DIODE 180VWM 292VC DO214AC |
5,000 | 0.17 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | - | 2 | 180V | 201V | 292V | 1.4A | 400W | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AC (SMAJ) |
|
|
ESDA5-1BF4TVS DIODE 5VWM 11VC 0201 |
28,417 | 0.41 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V | 5.8V | 11V | 10A (8/20µs) | 110W | No | General Purpose | 45pF @ 1MHz | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 0201 |
|
D1213A-01LP4-7BTVS DIODE 3.3VWM 10VC DFN1006-2 |
27,996 | 0.35 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V (Max) | 6V | 10V (Typ) | 1A (8/20µs) | - | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | X2-DFN1006-2 |
|
D5V0M1U2LP3-7TVS DIODE 5.5VWM 11VC DFN0603-2 |
9,920 | 0.27 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5.5V (Max) | 6.2V | 11V | 10A (8/20µs) | 120W | No | General Purpose | 55pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | X3-DFN0603-2 |
