TVS Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MMBZ27VAL,215TVS DIODE 22VWM 40VC TO236AB |
16,769 | 0.38 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 22V (Max) | 25.65V | 40V | 1A | 40W | No | - | 48pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | TO-236AB |
|
PESD12VV1BLSYLTVS DIODE 12VWM 57VC DFN1006BD-2 |
15,096 | 0.37 |
|
Datasheet |
SOD-882 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 12V (Max) | 14.6V | 57V | 12A (8/20µs) | - | No | Telecom | 17pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | DFN1006BD-2 |
|
VS5V0BL1QST18RTVS DIODE 5VWM 17VC SMD1006 |
9,636 | 0.46 |
|
Datasheet |
2-SMD, No Lead | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 7V | 17V | 1.8A (8/20µs) | 30.6W | No | General Purpose | - | -55°C ~ 150°C (TA) | - | - | Surface Mount | SMD1006 |
|
|
MMBZ12VAL,215TVS DIODE 8.5VWM 17VC TO236AB |
7,039 | 0.38 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 8.5V (Max) | 11.4V | 17V | 2.35A | 40W | No | - | 110pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | TO-236AB |
|
ESD133B1W01005E6327XTSA1TVS DIODE 5.5VWM 13VC P/WLL-2-2 |
7,024 | 0.37 |
|
Datasheet |
01005 (0402 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5.5V | 6.5V | 13V | 3A (8/20µs) | 21W | No | DVI, HDMI, Telecom, USB | 0.2pF @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | P/PG-WLL-2-2 |
|
DF3A5.6FU(TE85L,F)TVS DIODE 2.5VWM USM |
6,296 | 0.41 |
|
Datasheet |
SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 2.5V | 5.3V | - | - | - | No | General Purpose | 65pF @ 1MHz | - | - | - | Surface Mount | USM |
|
|
DF3A6.8LFU,LFTVS DIODE 5VWM USM |
2,875 | 0.38 |
|
Datasheet |
SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 5V | 6.5V | - | - | - | No | General Purpose | 6pF @ 1MHz | - | - | - | Surface Mount | USM |
|
STN101033B101TVS DIODE 3.3VWM 11VC DFN1006-2L |
46,306 | 0.38 |
|
Datasheet |
0402 (1006 Metric) | ST | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 3.6V | 11V | 7A (8/20µs) | 100W | No | General Purpose | 10pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | DFN1006-2L |
|
SCM1293A-04SOTVS DIODE SC74 |
42,712 | 0.35 |
|
Datasheet |
SC-74, SOT-457 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | - | - | 9.9V (Typ) | 1A (8/20µs) | - | Yes | DVI, HDMI | 2pF @ 1MHz | -40°C ~ 85°C | - | - | Surface Mount | SC-74 |
|
SMAJ16A-TPTVS DIODE 16VWM 26VC DO214AC |
38,668 | 0.42 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | 1 | - | 16V | 17.8V | 26V | 15.3A | 400W | No | General Purpose | - | -55°C ~ 175°C (TA) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
PESD3V3S1ULSYLTVS DIODE 3.3VWM 15.5VC 2DFN |
27,142 | 0.37 |
|
Datasheet |
SOD-882 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V (Max) | 5.2V | 15.5V | 20A (8/20µs) | - | No | Telecom | 207pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | DFN1006BD-2 |
|
|
VS6V3UC1QST18RTVS DIODE 6.3VWM 14.7VC SMD1006 |
20,925 | 0.40 |
|
Datasheet |
2-SMD, No Lead | - | Tape & Reel (TR) | Active | Zener | 1 | - | 6.3V (Max) | 6.7V | 14.7V | 45A (8/20µs) | 660W | No | General Purpose | - | -55°C ~ 150°C (TA) | - | - | Surface Mount | SMD1006 |
|
|
STN101050B301TVS DIODE 5VWM 16VC DFN1006-2L |
18,041 | 0.39 |
|
Datasheet |
0402 (1006 Metric) | ST | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 5.5V | 16V | 20A (8/20µs) | 300W | No | General Purpose | 30pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | DFN1006-2L |
|
|
PESD1IVN24-LSYLTVS DIODE 24VWM 42VC DFN1006BD-2 |
15,978 | 0.41 |
|
Datasheet |
SOD-882 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V (Max) | 25.5V | 42V | 3.5A (8/20µs) | - | No | CAN | 14pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | DFN1006BD-2 |
|
SP3422-04UTGTVS DIODE 5VWM 16.7VC 5DFN |
13,157 | 0.38 |
|
Datasheet |
5-XFDFN | SP3422, SPA® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | - | 16.7V (Typ) | 2A (8/20µs) | - | Yes | USB | 0.2pF @ 3GHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 5-DFN (1x0.6) |
|
P4SMA62ATVS DIODE 53VWM 85VC DO214AC |
12,319 | 0.42 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | 1 | - | 53V | 58.9V | 85V | 4.8A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
SZMMBZ20VAWT1GTVS DIODE 17VWM 28VC SC70-3 |
12,000 | 0.06 |
|
Datasheet |
SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 17V | 19V | 28V | 1.4A | 40W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SC-70-3 (SOT323) |
|
VESD26C1-02V-G3-08TVS DIODE 26VWM 48VC SOD523 |
10,790 | 0.40 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 26V (Max) | 27.6V | 48V | 2.1A (8/20µs) | 100W | No | - | 17.5pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-523 |
|
SM05-TPTVS DIODE 5VWM 9.8VC SOT23 |
10,657 | 0.48 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 5V (Max) | 6.2V | 9.8V | 12A (8/20µs) | 300W | No | General Purpose | 110pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|

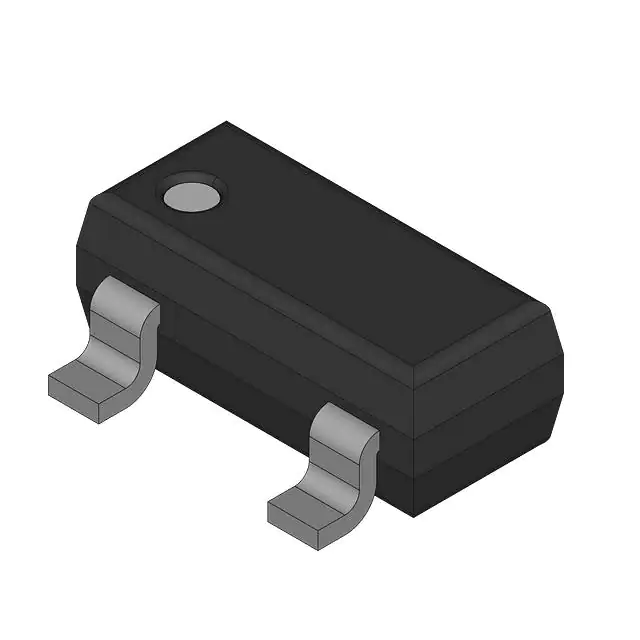

SZMMBZ20VALT3GTVS DIODE 17VWM 28VC SOT23-3 |
9,831 | 0.00 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 17V | 19V | 28V | 1.4A | 40W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 (TO-236) |
