TVS Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DVIULC6-4SC6TVS DIODE 5VWM 17VC SOT23-6 |
20,877 | 1.08 |
|
Datasheet |
SOT-23-6 | DVI | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V | 6V | 17V | 5A (8/20µs) | 80W | Yes | General Purpose | 0.85pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-6 |
|
SMCJ48ATVS DIODE 48VWM 77.4VC DO214AB |
20,425 | 0.60 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | 1 | - | 48V | 53.3V | 77.4V | 19.4A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
SMCJ54CATVS DIODE 54VWM 87.1VC DO214AB |
5,757 | 0.68 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 54V | 60V | 87.1V | 17.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SESD0402X1UN-0030-088TVS DIODE 7VWM 13VC 0402/2DFN |
2,601 | 0.53 |
|
Datasheet |
0402 (1006 Metric) | SESD, SPA® | Tape & Reel (TR) | Active | Zener | 1 | - | 7V (Max) | 8.8V (Typ) | 13V (Typ) | 2.5A (8/20µs) | - | No | HDMI | 0.3pF @ 3GHz | -55°C ~ 125°C (TA) | Automotive | AEC-Q101 | Surface Mount | 0402/2DFN (1x0.60) |
|
CDSOD323-T24SCTVS DIODE 24VWM 46.2VC SOD323 |
2,599 | 0.74 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V | 26.7V | 46.2V (Typ) | 9A (8/20µs) | 400W | No | General Purpose | 40pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
|
SMCJ24ATVS DIODE 24VWM 38.9VC DO214AB |
2,549 | 0.60 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.7V | 38.9V | 38.6A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SMCJ58CATVS DIODE 58VWM 93.6VC DO214AB |
1,806 | 0.61 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 58V | 64.4V | 93.6V | 16.1A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
SP4020-01FTG-CTVS DIODE 3.3VWM 21.8VC SOD323 |
28,341 | 0.64 |
|
Datasheet |
SC-76, SOD-323 | SP4020, SPA® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | - | 1 | 3.3V (Max) | 3.5V | 21.8V (Typ) | 30A (8/20µs) | 750W | No | Ethernet | 2.5pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|

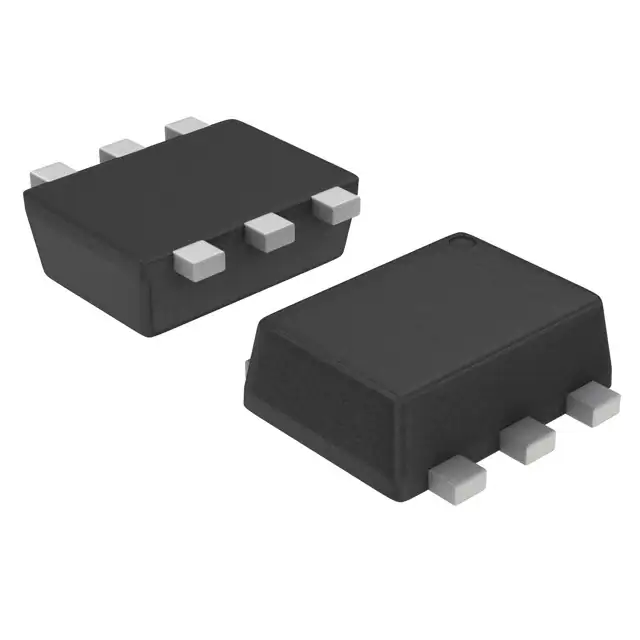

NUP4114UPXV6T1GTVS DIODE 5.5VWM 10VC SOT563 |
22,980 | 0.62 |
|
Datasheet |
SOT-563, SOT-666 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5.5V (Max) | 5.5V | 10V | 8A (8/20µs) | - | Yes | General Purpose | 0.6pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-563 |
|
SMCJ70CA-TPTVS DIODE 70VWM 113VC DO214AB |
20,331 | 0.72 |
|
Datasheet |
DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 70V | 77.8V | 113V | 13.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
TPD3E001DRLRTVS DIODE 5.5VWM SOT5 |
12,505 | 0.68 |
|
Datasheet |
SOT-553 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 3 | - | 5.5V (Max) | 11V | - | - | 90W | Yes | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-5 |
|
TPD2EUSB30DRTRTVS DIODE 5.5VWM 8VC SOT9X3 |
177,429 | 0.65 |
|
Datasheet |
3-SMD, SOT-23-3 Variant | - | Tape & Reel (TR) | Active | Zener | 2 | - | 5.5V (Max) | 7V | 8V | 5A (8/20µs) | 45W | Yes | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-3 |
|
SACB5.0TVS DIODE 5VWM 10VC SMB |
1,436 | 0.61 |
|
Datasheet |
DO-214AA, SMB | SACB | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 7.6V | 10V | 44A | 500W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
AOZ8809DI-03TVS DIODE 3.3VWM 8VC 10DFN |
296,205 | 0.48 |
|
Datasheet |
10-UFDFN | - | Tape & Reel (TR) | Not For New Designs | Steering (Rail to Rail) | 4 | - | 3.3V (Max) | 3.5V | 8V | 12A (100ns) | - | Yes | HDMI | 0.45pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-DFN (2.5x1) |
|
TVS3V3L4UE6327HTSA1TVS DIODE 3.3VWM 7.7VC SC74-6 |
157,611 | 0.54 |
|
Datasheet |
SC-74, SOT-457 | - | Tape & Reel (TR) | Active | Zener | 4 | 2 | 3.3V (Max) | - | 7.7V (Typ) | 20A (8/20µs) | - | No | Ethernet | 2pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | PG-SC74-6 |
|

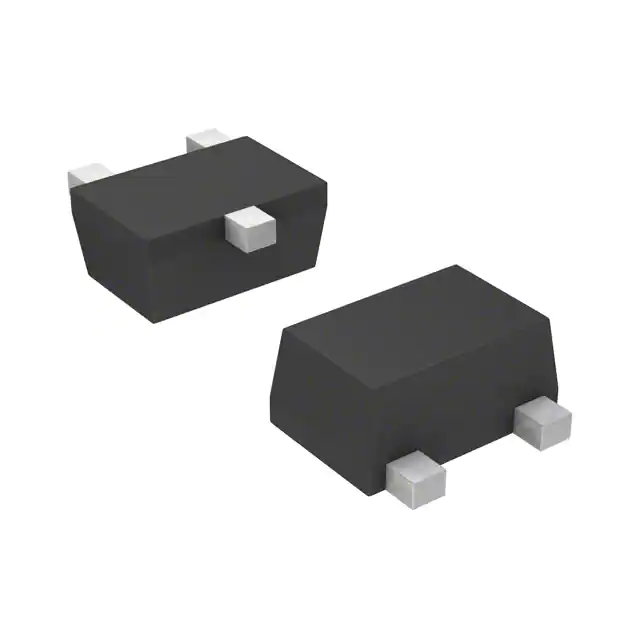

ESD5V3U2U03FH6327XTSA1TVS DIODE 5.3VWM 15VC TSFP-3 |
32,486 | 0.41 |
|
Datasheet |
SOT-723 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 5.3V (Max) | 6V | 15V | 3A (8/20µs) | - | No | General Purpose | 0.4pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | PG-TSFP-3 |
.jpg)
|
ESD7016MUTAGTVS DIODE 5VWM 10VC 8-UDFN |
26,153 | 0.64 |
|
Datasheet |
10-UFDFN | - | Tape & Reel (TR) | Active | Zener | 8 | - | 5V (Max) | 5.5V | 10V | - | - | No | USB | 0.15pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-UDFN (3.3x1.0) |
;;2.jpg)
|
1.5SMC39ATVS DIODE 33.3VWM 53.9VC DO214AB |
10,436 | 0.56 |
|
Datasheet |
DO-214AB, SMC | 1.5SMC | Tape & Reel (TR) | Active | Zener | 1 | - | 33.3V | 37.1V | 53.9V | 28.2A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
SACB12TVS DIODE 12VWM 19VC SMB |
4,334 | 0.61 |
|
Datasheet |
DO-214AA, SMB | SACB | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.3V | 19V | 25A | 500W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
|
SMCJ15CATVS DIODE 15VWM 24.4VC DO214AB |
1,008 | 0.68 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 15V | 16.7V | 24.4V | 61.5A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
