TVS Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMCG51AHE3/57TTVS DIODE 51VWM 82.4VC DO215AB |
3,168 | 0.46 |
|
Datasheet |
DO-215AB, SMC Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 51V | 56.7V | 82.4V | 18.2A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCG) |
|
|
SMCG58AHE3/57TTVS DIODE 58VWM 93VC DO215AB |
3,294 | 0.46 |
|
Datasheet |
DO-215AB, SMC Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 58V | 64.4V | 93V | 16A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCG) |
|
|
SMCG60AHE3/57TTVS DIODE 60VWM 96VC DO215AB |
4,965 | 0.46 |
|
Datasheet |
DO-215AB, SMC Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 60V | 66.7V | 96V | 15.5A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCG) |
|
|
SMCG64AHE3/57TTVS DIODE 64VWM 103VC DO215AB |
4,945 | 0.46 |
|
Datasheet |
DO-215AB, SMC Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 64V | 71.1V | 103V | 14.6A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCG) |
|
|
SMCG70AHE3/57TTVS DIODE 70VWM 113VC DO215AB |
7,829 | 0.46 |
|
Datasheet |
DO-215AB, SMC Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 70V | 77.8V | 113V | 13.3A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCG) |
|
|
SMCG75AHE3/57TTVS DIODE 75VWM 121VC DO215AB |
6,313 | 0.46 |
|
Datasheet |
DO-215AB, SMC Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 75V | 83.3V | 121V | 12.4A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCG) |
|
|
SMCG78AHE3/57TTVS DIODE 78VWM 126VC DO215AB |
6,075 | 0.46 |
|
Datasheet |
DO-215AB, SMC Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 78V | 86.7V | 126V | 11.9A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCG) |
|
|
SMCG85AHE3/57TTVS DIODE 85VWM 137VC DO215AB |
9,440 | 0.46 |
|
Datasheet |
DO-215AB, SMC Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 85V | 94.4V | 137V | 10.9A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCG) |
|
|
SMCG8.5AHE3/57TTVS DIODE 8.5VWM 14.4VC DO215AB |
2,974 | 0.46 |
|
Datasheet |
DO-215AB, SMC Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 8.5V | 9.44V | 14.4V | 104.2A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCG) |
|
|
SMCG90AHE3/57TTVS DIODE 90VWM 146VC DO215AB |
8,551 | 0.46 |
|
Datasheet |
DO-215AB, SMC Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 90V | 100V | 146V | 10.3A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCG) |
|
|
SMCG9.0AHE3/57TTVS DIODE 9VWM 15.4VC DO215AB |
7,832 | 0.46 |
|
Datasheet |
DO-215AB, SMC Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 9V | 10V | 15.4V | 97.4A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCG) |
|

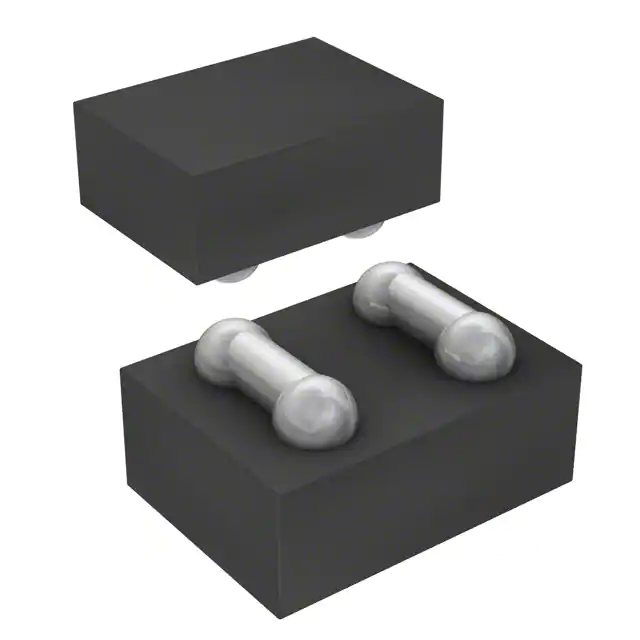

ESDA14V2-1BF3TVS DIODE 12VWM 2FLIPCHIP |
1,881 | 0.46 |
|
Datasheet |
2-XFBGA, FCBGA | ESDA, TRANSIL™ | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 12V | 14.2V | - | - | 50W | No | General Purpose | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 2-FlipChip |
|
PGSMAJ40CAHE3GTVS DIODE 40VWM 64.5VC DO214AC |
4,179 | 0.46 |
|
Datasheet |
DO-214AC, SMA | PGSMAJ | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 40V | 44.4V | 64.5V | 6.2A | 400W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
SMF6.5A RVGTVS DIODE 6.5VWM 11.2VC SOD123W |
3,588 | 0.46 |
|
Datasheet |
SOD-123W | - | Tape & Reel (TR) | Active | Zener | 1 | - | 6.5V | 7.22V | 11.2V | 17.9A | 200W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SOD-123W |
|

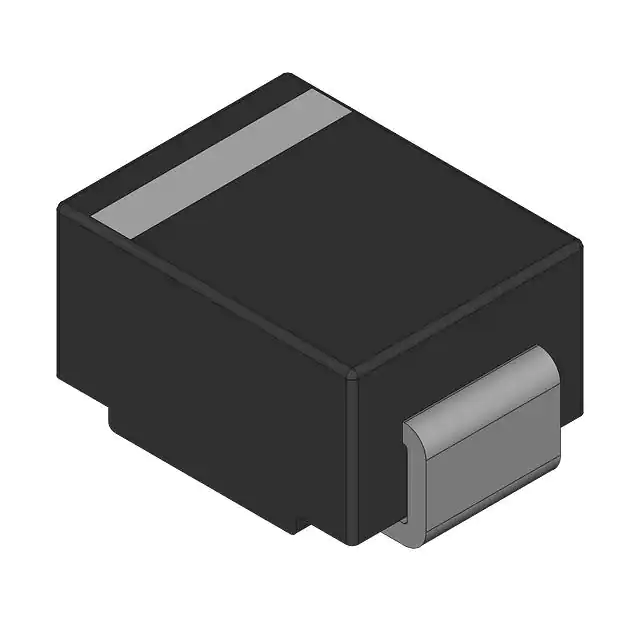

1SMB10CAT3GTVS DIODE 10VWM 17VC SMB |
3,507 | 16.64 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 10V | 11.1V | 17V | 35.3A | 600W | No | General Purpose | 805pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
1SMB12CAT3GTVS DIODE 12VWM 19.9VC SMB |
8,039 | 0.00 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 12V | 13.3V | 19.9V | 30.2A | 600W | No | General Purpose | 680pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
|
1SMB15CAT3GTVS DIODE 15VWM 24.4VC SMB |
3,676 | 0.00 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 15V | 16.7V | 24.4V | 24A | 600W | No | General Purpose | 555pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
|
1SMB16CAT3GTVS DIODE 16VWM 26VC SMB |
8,265 | 0.00 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 16V | 17.8V | 26V | 23.1A | 600W | No | General Purpose | 520pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
|
1SMB18CAT3GTVS DIODE 18VWM 29.2VC SMB |
4,295 | 0.00 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 18V | 20V | 29.2V | 20.5A | 600W | No | General Purpose | 465pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
1SMB20CAT3GTVS DIODE 20VWM 32.4VC SMB |
2,683 | 0.10 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 20V | 22.2V | 32.4V | 18.5A | 600W | No | General Purpose | 425pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
