TVS Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPC15CAHM3/HTVS DIODE 12.8VWM 21.2VC TO277A |
3,334 | 0.45 |
|
Datasheet |
TO-277, 3-PowerDFN | PAR®, eSMP® | Tape & Reel (TR) | Active | Zener | - | 1 | 12.8V | 14.3V | 21.2V | 70.8A | 1500W (1.5kW) | No | - | - | -65°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-277A (SMPC) |
|
|
TPC24CAHM3/HTVS DIODE 20.5VWM 33.2VC TO277A |
8,150 | 0.45 |
|
Datasheet |
TO-277, 3-PowerDFN | PAR®, eSMP® | Tape & Reel (TR) | Active | Zener | - | 1 | 20.5V | 22.8V | 33.2V | 45.2A | 1500W (1.5kW) | No | - | - | -65°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-277A (SMPC) |
|

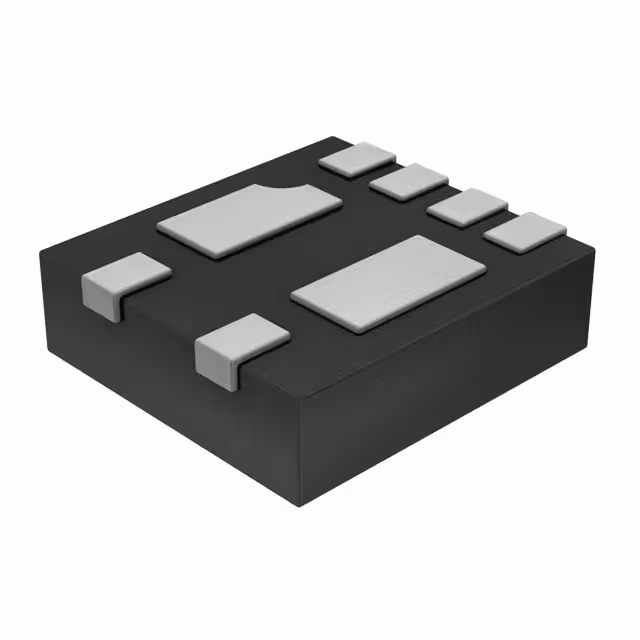

PCLAMP1211P.TGTTVS DIODE 13.5VWM 28VC SLP2018P6 |
4,747 | 0.78 |
|
Datasheet |
6-UFDFN Exposed Pad | RailClamp® | Tape & Reel (TR) | Active | Zener | 1 | - | 13.5V (Max) | 14.5V | 28V | 15A | 5000W (5kW) | No | General Purpose | 1500pF @ 1MHz | 0°C ~ 85°C (TJ) | - | - | Surface Mount | SLP2018P6 |
|

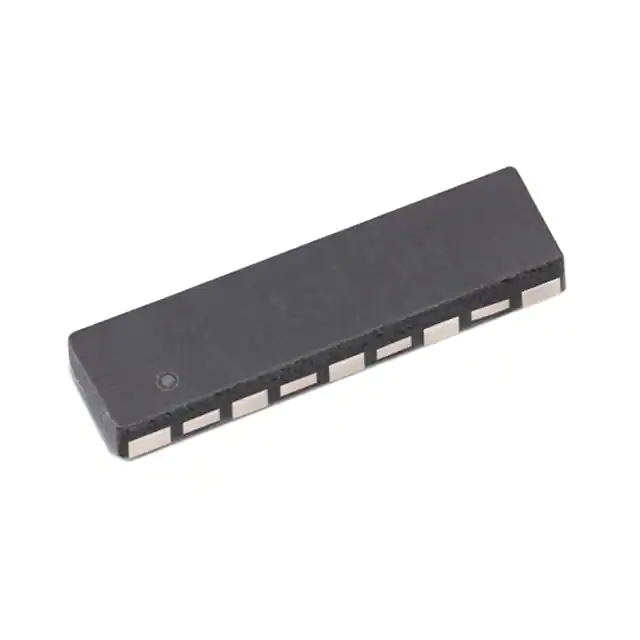

824014881TVS DIODE 1.2VWM 7VC DFN3810-9 |
5,287 | 0.00 |
|
Datasheet |
9-UDFN | WE-TVS | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 8 | - | 1.2V (Max) | 4.5V | 7V (Typ) | 4A (8/20µs) | - | No | General Purpose | 0.35pF @ 1MHz | -55°C ~ 85°C (TA) | - | - | Surface Mount | DFN3810-9 |
|
MSMBJ40AE3/TRTVS DIODE 40VWM 64.5VC SMBJ |
2,195 | 1.29 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 40V | 44.4V | 64.5V | 9.3A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Surface Mount | DO-214AA (SMBJ) |
|
1.5KE440CA_R2_00001GLASS PASSIVATED JUNCTION TRANSI |
9,115 | 0.74 |
|
Datasheet |
DO-201AE, Axial | 1.5KE | Tape & Reel (TR) | Active | Zener | - | 1 | 376V | 418V | 600V | 2.6A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-201AE |
|
|
1.5KE400CA_R2_00001GLASS PASSIVATED JUNCTION TRANSI |
4,990 | 0.74 |
|
Datasheet |
DO-201AE, Axial | 1.5KE | Tape & Reel (TR) | Active | Zener | - | 1 | 342V | 380V | 548V | 2.8A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-201AE |
|
|
1.5KE250CA_R2_00001GLASS PASSIVATED JUNCTION TRANSI |
3,606 | 0.74 |
|
Datasheet |
DO-201AE, Axial | 1.5KE | Tape & Reel (TR) | Active | Zener | - | 1 | 214V | 237V | 344V | 4.5A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-201AE |
|
|
1.5KE300CA_R2_00001GLASS PASSIVATED JUNCTION TRANSI |
9,060 | 0.74 |
|
Datasheet |
DO-201AE, Axial | 1.5KE | Tape & Reel (TR) | Active | Zener | - | 1 | 256V | 285V | 414V | 3.8A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-201AE |
|
|
1.5KE350CA_R2_00001GLASS PASSIVATED JUNCTION TRANSI |
8,484 | 0.74 |
|
Datasheet |
DO-201AE, Axial | 1.5KE | Tape & Reel (TR) | Active | Zener | - | 1 | 300V | 332V | 482V | 3.2A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-201AE |
|
|
TLD8S26AH6600W, 30.4V, 5%, UNIDIRECTIONAL |
5,240 | 0.00 |
|
Datasheet |
DO-218AB | TLD8S | Tape & Reel (TR) | Active | Zener | 1 | - | 26V | 28.9V | 42.1V | 157A | 6600W (6.6kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AB |
|
|
TLD8S16AH6600W, 18.8V, 5%, UNIDIRECTIONAL |
6,750 | 0.00 |
|
Datasheet |
DO-218AB | TLD8S | Tape & Reel (TR) | Active | Zener | 1 | - | 16V | 17.8V | 26V | 254A | 6600W (6.6kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AB |
|
|
TLD8S15AH6600W, 17.6V, 5%, UNIDIRECTIONAL |
8,030 | 0.00 |
|
Datasheet |
DO-218AB | TLD8S | Tape & Reel (TR) | Active | Zener | 1 | - | 15V | 16.7V | 24.4V | 270A | 6600W (6.6kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AB |
|
SESD1004Q4UG-0030-088TVS DIODE 7VWM 13VC 1004/10DFN |
9,900 | 0.95 |
|
Datasheet |
10-XFDFN | SESD, SPA® | Tape & Reel (TR) | Obsolete | Zener | 4 | - | 7V (Max) | 8.8V (Typ) | 13V (Typ) | 2.2A (8/20µs) | - | No | HDMI | 0.3pF @ 3GHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 1004/10DFN (2.5x1.0) |
|
P4SMA51CAHM3_A/ITVS DIODE 43.6VWM 70.1VC DO214AC |
7,412 | 0.16 |
|
Datasheet |
DO-214AC, SMA | P4SMA, TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 43.6V | 48.5V | 70.1V | 5.7A | 400W | No | Telecom | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
P4SMA56CAHM3_A/ITVS DIODE 47.8VWM 77VC DO214AC |
5,361 | 0.16 |
|
Datasheet |
DO-214AC, SMA | P4SMA, TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 47.8V | 53.2V | 77V | 5.2A | 400W | No | Telecom | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
5KP100A-GTVS DIODE 100VWM 162VC R6 |
2,569 | 1.60 |
|
Datasheet |
R-6, Axial | - | Tape & Box (TB) | Active | Zener | 1 | - | 100V | 111V | 162V | 30.86A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | R-6 |
|
|
5KP100CA-GTVS DIODE 100VWM 162VC R6 |
2,763 | 1.60 |
|
Datasheet |
R-6, Axial | - | Tape & Box (TB) | Active | Zener | - | 1 | 100V | 111V | 162V | 30.86A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | R-6 |
|
|
5KP10A-GTVS DIODE 10VWM 17VC R6 |
4,107 | 1.60 |
|
Datasheet |
R-6, Axial | - | Tape & Box (TB) | Active | Zener | 1 | - | 10V | 11.1V | 17V | 294.12A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | R-6 |
|
|
5KP10CA-GTVS DIODE 10VWM 17VC R6 |
2,245 | 1.60 |
|
Datasheet |
R-6, Axial | - | Tape & Box (TB) | Active | Zener | - | 1 | 10V | 11.1V | 17V | 294.12A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | R-6 |
