TVS Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

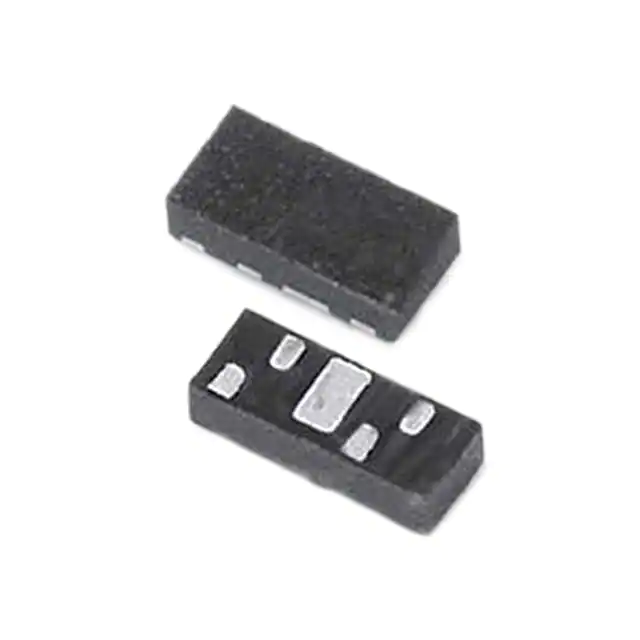

SESD0802Q4UG-0020-090TVS DIODE 7VWM 9.2VC 0802 |
9,188 | 1.00 |
|
Datasheet |
4-XFDFN Exposed Pad | SESD, SPA® | Tape & Reel (TR) | Obsolete | Zener | 4 | - | 7V (Max) | 9V (Typ) | 9.2V (Typ) | 2A (8/20µs) | - | No | HDMI | 0.2pF @ 3GHz | -55°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 0802 |
|
SMDA03-6E3/TR13TVS DIODE 3.3VWM 9VC 8-SO |
4,260 | 1.41 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | TVSarray™ | Tape & Reel (TR) | Active | Zener | 6 | - | 3.3V | 4V | 9V | 5A (8/20µs) | 300W | No | General Purpose | 800pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
SMDA05-6E3/TR13TVS DIODE 5VWM 11VC 8-SO |
7,735 | 1.41 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | TVSarray™ | Tape & Reel (TR) | Active | Zener | 6 | - | 5V | 6V | 11V | 5A (8/20µs) | 300W | No | General Purpose | 550pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
SMDA12-6E3/TR13TVS DIODE 12VWM 24VC 8-SO |
7,894 | 1.41 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | TVSarray™ | Tape & Reel (TR) | Active | Zener | 6 | - | 12V | 13.3V | 24V | 5A (8/20µs) | 300W | No | General Purpose | 185pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
SMDA15-6E3/TR13TVS DIODE 15VWM 30VC 8-SO |
6,268 | 1.41 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | TVSarray™ | Tape & Reel (TR) | Active | Zener | 6 | - | 15V | 16.7V | 30V | 5A (8/20µs) | 300W | No | General Purpose | 140pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
SMDA24-6E3/TR13TVS DIODE 24VWM 55VC 8-SO |
5,658 | 1.41 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | TVSarray™ | Tape & Reel (TR) | Active | Zener | 6 | - | 24V | 26.7V | 55V | 5A (8/20µs) | 300W | No | General Purpose | 88pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
SMDA12-6E3/TR7TVS DIODE 12VWM 24VC 8-SO |
7,485 | 1.41 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | TVSarray™ | Tape & Reel (TR) | Active | Zener | 6 | - | 12V | 13.3V | 24V | 5A (8/20µs) | 300W | No | General Purpose | 185pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
SMDA15E3/TR7TVS DIODE 15VWM 24VC 8-SO |
2,453 | 1.38 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | TVSarray™ | Tape & Reel (TR) | Active | Zener | 4 | - | 15V | 16.7V | 24V | 5A (8/20µs) | 300W | No | General Purpose | 140pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
SMDA24-6E3/TR7TVS DIODE 24VWM 55VC 8-SO |
3,809 | 1.41 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | TVSarray™ | Tape & Reel (TR) | Active | Zener | 6 | - | 24V | 26.7V | 55V | 5A (8/20µs) | 300W | No | General Purpose | 88pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
MSMBG33CAE3TVS DIODE 33VWM 53.3VC SMBG |
9,686 | 1.41 |
|
Datasheet |
DO-215AA, SMB Gull Wing | - | Bulk | Active | Zener | - | 1 | 33V | 36.7V | 53.3V | 11.3A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Surface Mount | DO-214AA (SMBG) |
|
MSMBJ12CA/TRTVS DIODE 12VWM 19.9VC SMBJ |
3,006 | 1.43 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 13.3V | 19.9V | 30.2A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Surface Mount | DO-214AA (SMBJ) |
|
|
MSMBJ6.0A/TRTVS DIODE 6VWM 10.3VC SMBJ |
7,971 | 1.41 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 6V | 6.67V | 10.3V | 58.3A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Surface Mount | DO-214AA (SMBJ) |
|
|
SMDA03C-7TVS DIODE 3.3VWM 9VC 8-SO |
4,837 | 0.00 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | TVSarray™ | Tape & Reel (TR) | Obsolete | Zener | - | 7 | 3.3V | 4V | 9V | 5A (8/20µs) | 300W | No | General Purpose | 300pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
SMDA05C-7TVS DIODE 5VWM 11VC 8-SO |
6,273 | 0.00 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | TVSarray™ | Tape & Reel (TR) | Obsolete | Zener | - | 7 | 5V | 6V | 11V | 5A (8/20µs) | 300W | No | General Purpose | 200pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
SMDA24C-7TVS DIODE 24VWM 55VC 8-SO |
6,855 | 0.00 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | TVSarray™ | Tape & Reel (TR) | Obsolete | Zener | - | 7 | 24V | 26.7V | 55V | 5A (8/20µs) | 300W | No | General Purpose | 35pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
SMCG5631A/TR13TVS DIODE 7.02VWM 12.1VC DO215AB |
5,455 | 0.00 |
|
Datasheet |
DO-215AB, SMC Gull Wing | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 7.02V | 7.79V | 12.1V | - | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-215AB (SMCG) |
|
|
SMCG5632A/TR13TVS DIODE 7.78VWM 13.4VC DO215AB |
4,711 | 0.00 |
|
Datasheet |
DO-215AB, SMC Gull Wing | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 7.78V | 8.65V | 13.4V | - | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-215AB (SMCG) |
|
|
SMCG5634A/TR13TVS DIODE 9.4VWM 15.6VC DO215AB |
5,189 | 0.00 |
|
Datasheet |
DO-215AB, SMC Gull Wing | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 9.4V | 10.5V | 15.6V | - | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-215AB (SMCG) |
|
|
SMCG5641A/TR13TVS DIODE 18.8VWM 30.6VC DO215AB |
9,815 | 0.00 |
|
Datasheet |
DO-215AB, SMC Gull Wing | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 18.8V | 20.9V | 30.6V | - | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-215AB (SMCG) |
|
|
SMCG5645A/TR13TVS DIODE 28.2VWM 45.7VC DO215AB |
7,506 | 0.00 |
|
Datasheet |
DO-215AB, SMC Gull Wing | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 28.2V | 31.4V | 45.7V | - | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-215AB (SMCG) |
