TVS Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMAJ9.0A-TPTVS DIODE 9VWM 15.4VC DO214AC |
4,869 | 0.43 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | 1 | - | 9V | 10V | 15.4V | 26A | 400W | No | General Purpose | - | -55°C ~ 175°C (TA) | - | - | Surface Mount | DO-214AC (SMA) |
|
VS5V0BL1HST15RTVS DIODE 5VWM 18VC DSN0603-2 |
3,409 | 0.44 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 6V | 18V | 2A (8/20µs) | 36W | No | General Purpose | - | -55°C ~ 150°C (TA) | - | - | Surface Mount | DSN0603-2, SOD-962, SMD0603 |
|
SMAJ14A-TPTVS DIODE 14VWM 23.2VC DO214AC |
2,740 | 0.43 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | 1 | - | 14V | 15.6V | 23.2V | 17.2A | 400W | No | General Purpose | - | -55°C ~ 175°C (TA) | - | - | Surface Mount | DO-214AC (SMA) |
 2 Leads.jpg)
|
SM6T16V5CAYTVS DIODE 14.1VWM 23.1VC SMB |
2,500 | 0.53 |
|
Datasheet |
DO-214AA, SMB | SM6TY, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 14.1V | 15.7V | 23.1V | 26A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMB |
|

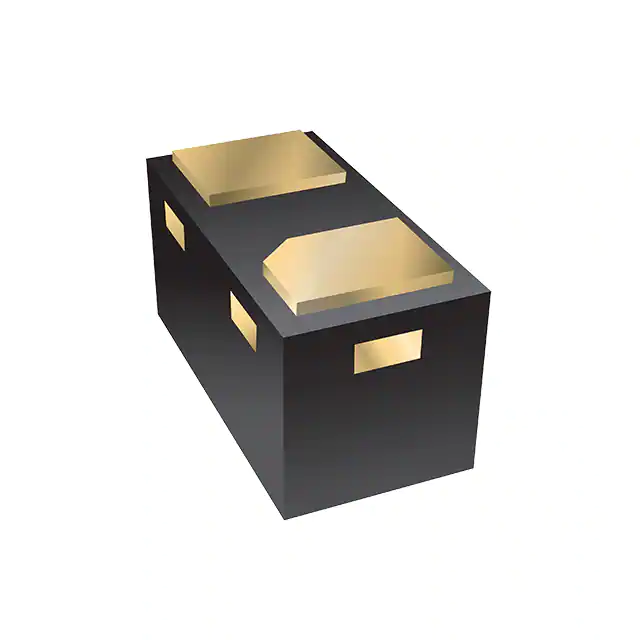

CD0201-T20CTVS DIODE 20VWM 34VC 0201 |
41,581 | 0.45 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 20V | 22.8V | 34V | - | - | No | General Purpose | 6.5pF @ 1MHz | -55°C ~ 85°C (TJ) | - | - | Surface Mount | 0201 |
|
STS521120U351TVS DIODE 12VWM 25VC SOD523 |
12,648 | 0.41 |
|
Datasheet |
SC-79, SOD-523 | ST | Tape & Reel (TR) | Active | Zener | 1 | - | 12V (Max) | 13.3V | 25V | 6A (8/20µs) | 120W | No | General Purpose | 35pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-523 |
|
VESD01C1-HD1HG3-081V;IR=100UA;IP=14.6A;P=W;CD=230P |
11,750 | 0.45 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 1V (Max) | 2.55V | 6.9V | 11A (8/20µs) | 100W | No | - | 192pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DFN1006-2A |
|
P6SMB43CATVS DIODE 36.8VWM 59.3VC DO214AA |
11,609 | 0.47 |
|
Datasheet |
DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 36.8V | 40.9V | 59.3V | 10.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
VESD26C1-HD1-G3-0826V;IR=0.1UA;IP=2.1A;P=W;CD=21PF |
11,304 | 0.45 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 26V (Max) | 28.5V | 48V | 2.1A (8/20µs) | 100W | No | General Purpose | 17.5pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN1006-2A |
|
|
VESD08C1-HD1HG3-088V;IR=0.1UA;IP=6.6A;P=W;CD=57PF; |
11,028 | 0.45 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 8V (Max) | 9.4V | 15.3V | 6.6A (8/20µs) | 100W | No | - | 47pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DFN1006-2A |
|
|
VESD01C1-HD1-G3-081V;IR=100UA;IP=14.6A;P=W;CD=230P |
10,908 | 0.45 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 1V (Max) | 2.55V | 6.9V | 11A (8/20µs) | 100W | No | General Purpose | 192pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN1006-2A |
|
|
VESD08C1-HD1-G3-088V;IR=0.1UA;IP=6.6A;P=W;CD=57PF; |
10,297 | 0.45 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 8V (Max) | 9.4V | 15.3V | 6.6A (8/20µs) | 100W | No | General Purpose | 47pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN1006-2A |
|
VCAN36A2-03G-E3-18TVS DIODE 36VWM 63VC SOT323 |
10,000 | 0.44 |
|
Datasheet |
SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 36V (Max) | 39V | 63V | 2.4A (8/20µs) | 150W | No | CAN | 8pF @ 1MHz | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SOT-323 |
|
CPDZC3V3AU-HFDIODE ESD 3.3VWM 56W 0201/DFN060 |
10,000 | 0.00 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V (Max) | 4.2V | 14V | 4A (8/20µs) | 56W | No | General Purpose | 0.45pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 0201/DFN0603 |
|
|
VESD05C1-HD1HG3-085V;IR=0.1UA;IP=8.7A;P=W;CD=81PF; |
9,880 | 0.45 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 7.1V | 11.5V | 8.7A (8/20µs) | 100W | No | - | 67pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DFN1006-2A |
|
|
VBUS03N1-HD1HG3-083.3V;IR=0.1UA;IP=4A;P=90W;CD=0.4 |
9,765 | 0.45 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V (Max) | 7V | 15V | 4A (8/20µs) | 60W | No | HDMI, USB | 0.7pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN1006-2A |
|
VBUS05M2-HT5-G3-08TVS DIODE 5.5VWM 27VC DFN1110-3A |
9,568 | 0.46 |
|
Datasheet |
3-XDFN Exposed Pad | - | Tape & Reel (TR) | Active | Zener | - | 2 | 5.5V (Max) | 7.5V | 27V (Typ) | 3.4A (8/20µs) | 60W | No | - | 0.37pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | DFN1110-3A |
|
|
VMMBZ33C1HD1HG3-0828V;IR=0.1UA;IP=1.7A;P=100W;CD=1 |
9,302 | 0.45 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 28V (Max) | 31.3V | 85V | 300mA | 15W | No | - | 16.1pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DFN1006-2A |
|
VESD12C1-HD1-G3-0812V;IR=0.1UA;IP=4.4A;P=W;CD=40PF |
9,258 | 0.45 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V (Max) | 14.3V | 22.7V | 4.4A (8/20µs) | 100W | No | General Purpose | 33pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN1006-2A |
|
|
VMMBZ33C1HD1-G3-0828V;IR=0.1UA;IP=1.7A;P=100W;CD=1 |
8,974 | 0.45 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 28V (Max) | 31.3V | 85V | 300mA | 15W | No | General Purpose | 16.1pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN1006-2A |
